Grizzly T10096 Taper Attachment Taper Attachment for G0509 & G0509G New
Product Overview

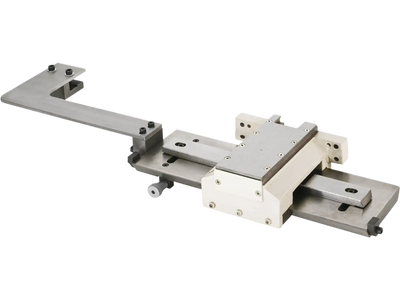

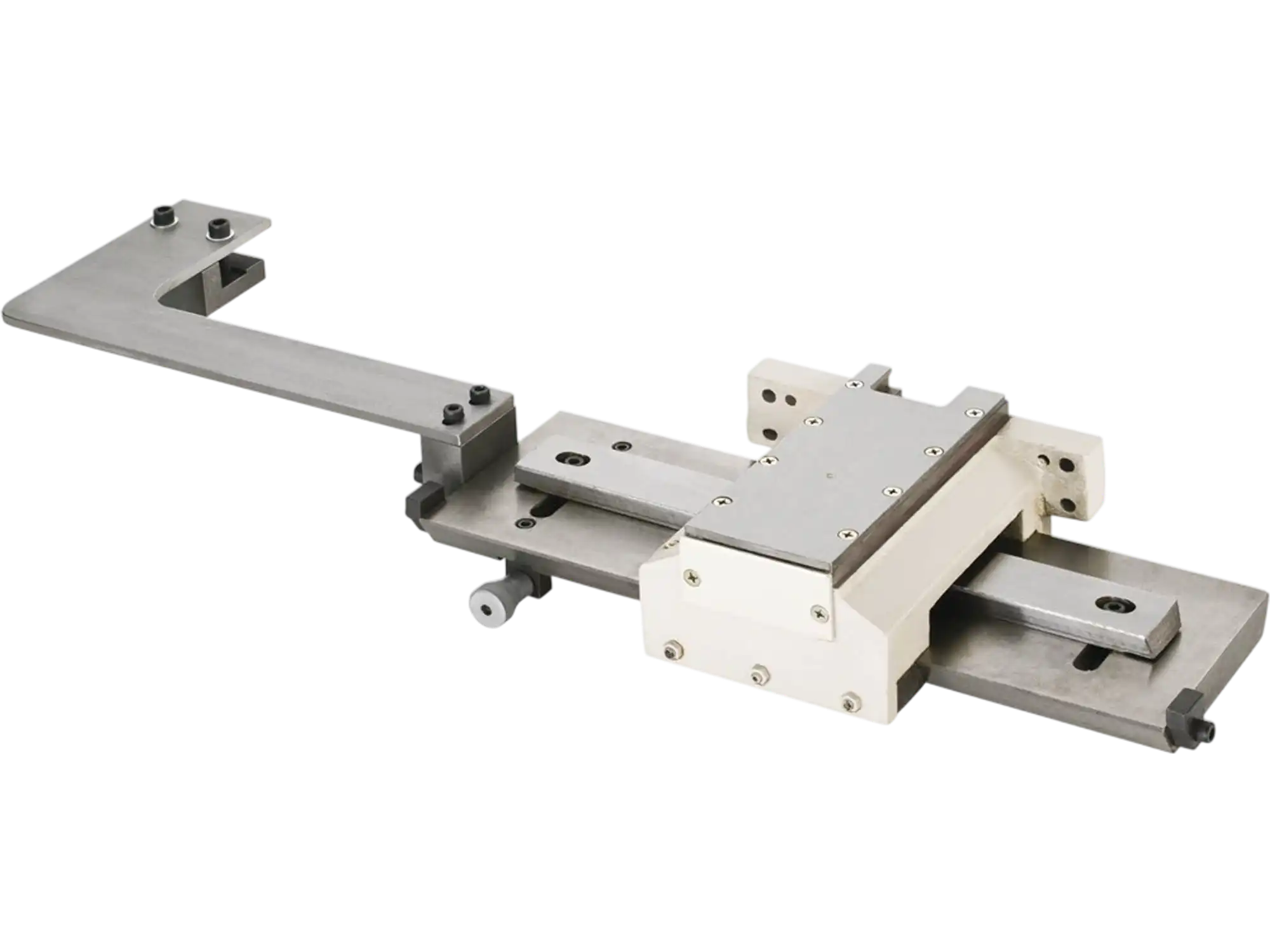

The Grizzly T10096 taper attachment is a lathe accessory designed for the G0509 and G0509G gunsmithing lathes. Built from cast iron and steel, it adds controlled taper-cutting capability for machinists who need accurate results on compatible machines.
This attachment allows precision cutting of outside and inside tapers without offsetting the tailstock or disengaging the cross slide. A fine-thread adjustment knob helps with accurate taper setup, while scales at both ends display taper per foot and taper angle for easier adjustments.
With a maximum taper length of 11-3/16 inches and a taper angle range of 0° to ±8°, it is well suited for gunsmithing, machine shop, and precision turning applications. It is a practical choice for users who want to add repeatable tapering capability without interfering with standard turning operations.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Scales at both ends that read inches of taper per foot and angle of taper
- Adjustment knob with fine threads for precise control when setting tapers
Specifications
| Maximum taper length | 11-3/16" |
| Taper angle range | 0°- ±8° |
| Angle scale divisions | 1° |
| Construction | Cast-iron and steel |
| Overall shipping weight | 76 lbs. |
Warranty
This item comes with a 1 year factory warranty.
