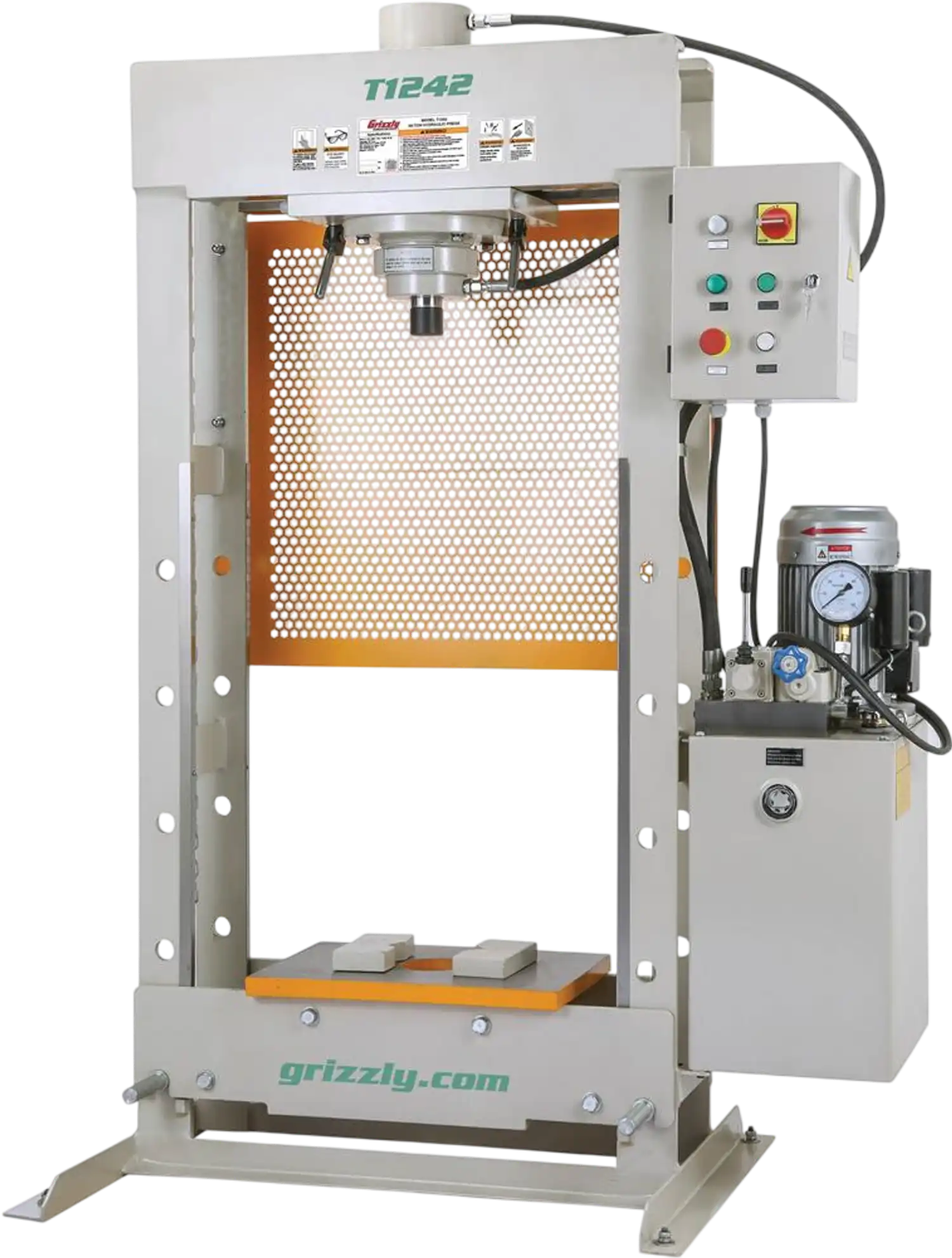

Grizzly T1242 Hydraulic Press 30 Ton Electric Shop Press New
Manufacturer: Grizzly
SKU: T1242
QTY
or
(888) 999-1522
$ 5,750.00
Exceptional Customer Service
Authorized Dealer

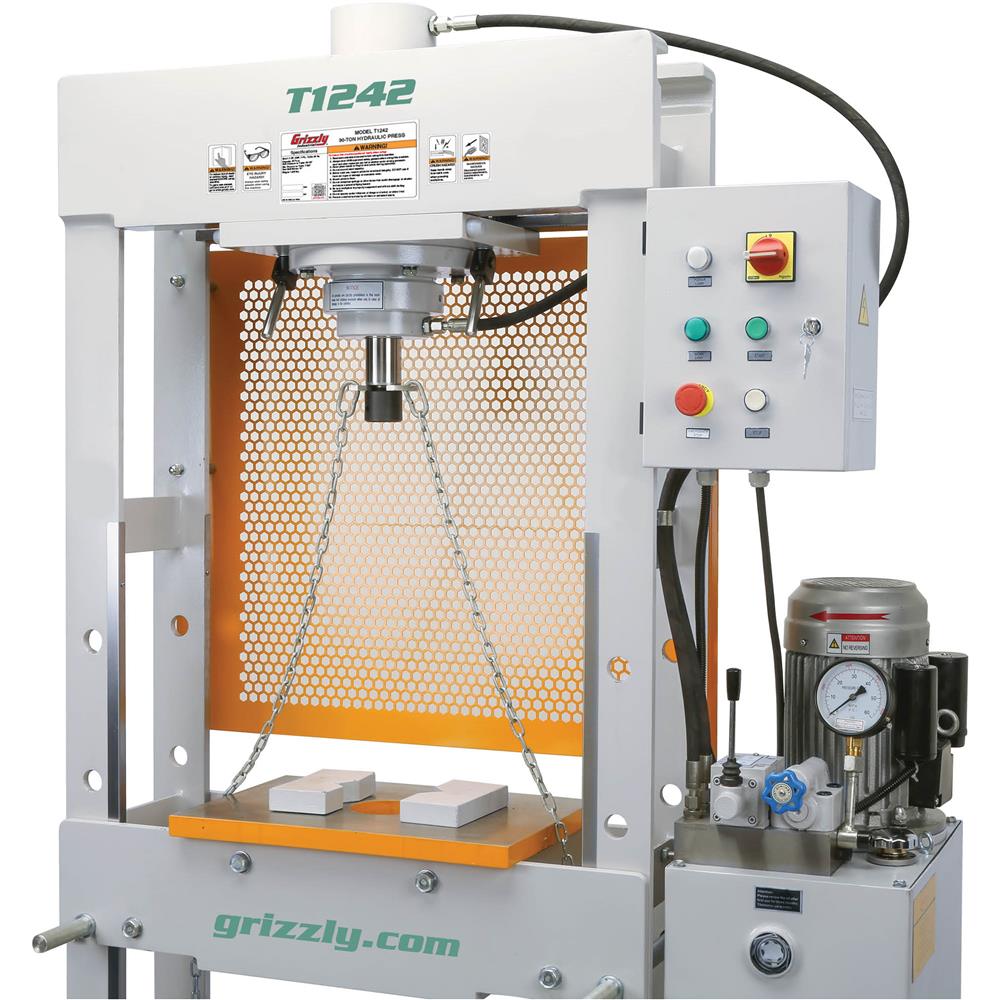

Grizzly T1242 Hydraulic Press 30 Ton Electric Shop Press New
Product Overview

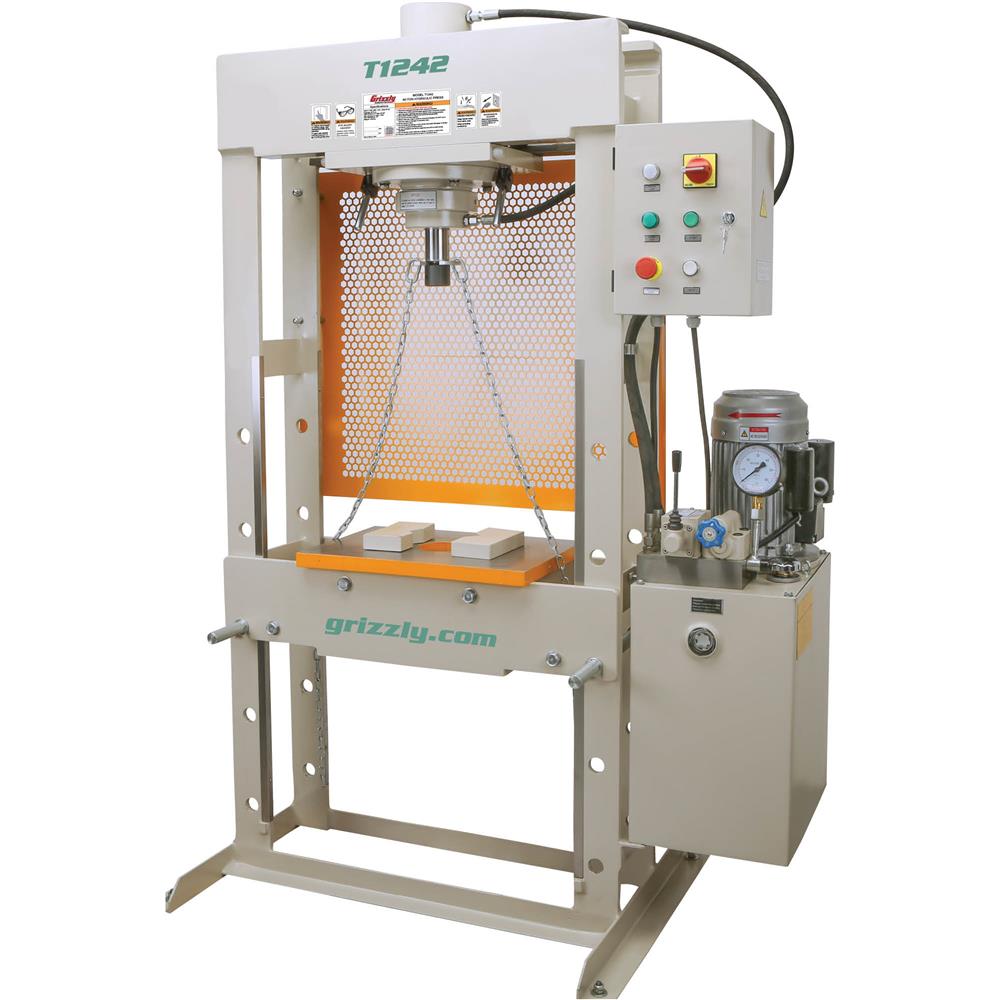

The Grizzly T1242 is a heavy-duty 30-ton electric/hydraulic shop press built for pressing, shaping, and assembling tight-fitting parts in demanding shop environments. Its motor-driven hydraulic system delivers strong, consistent force for manufacturing, automotive, and general mechanical work.
A welded steel frame, built-in pressure gauge, and precision-ground cast-iron table provide the rigidity and control needed for accurate operation. The sliding piston head helps with off-center parts, while five table height positions make it easier to place the workpiece close to the ram for efficient pressing.
With a 3 HP, 220V single-phase motor, 10-inch maximum stroke, and a working area suited for larger components, this press is a practical choice for professional garages, fabrication shops, and industrial maintenance settings that need reliable high-capacity pressing power.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Motor-driven hydraulic operation

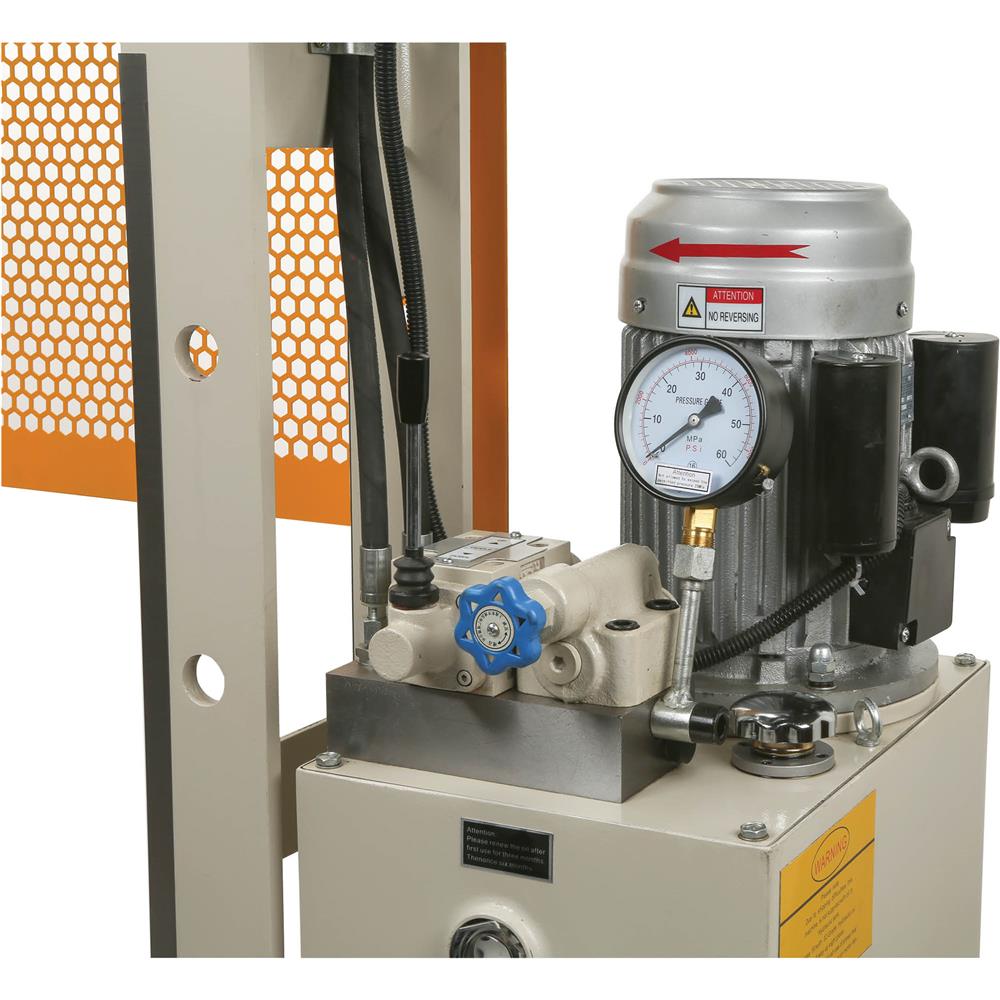

- Built-in pressure gauge
- Welded steel frame for maximum rigidity

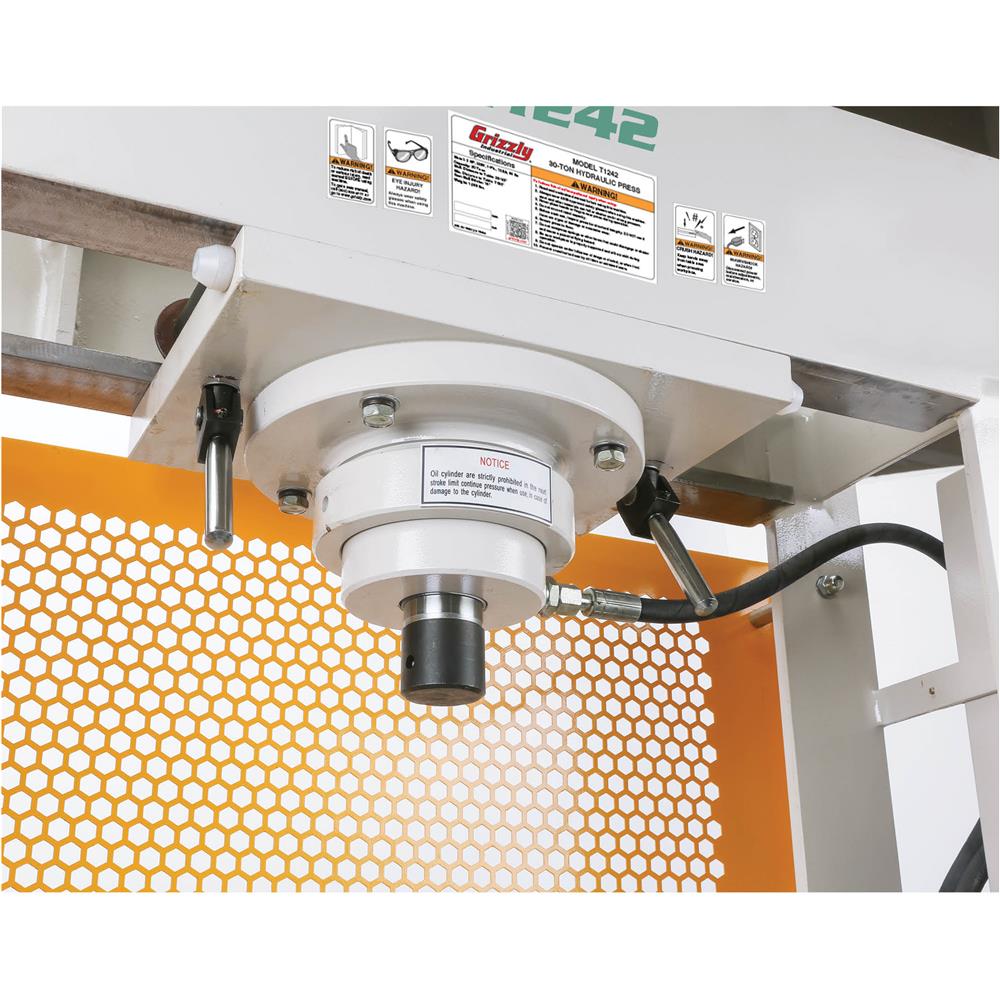

- Sliding head for off-center parts

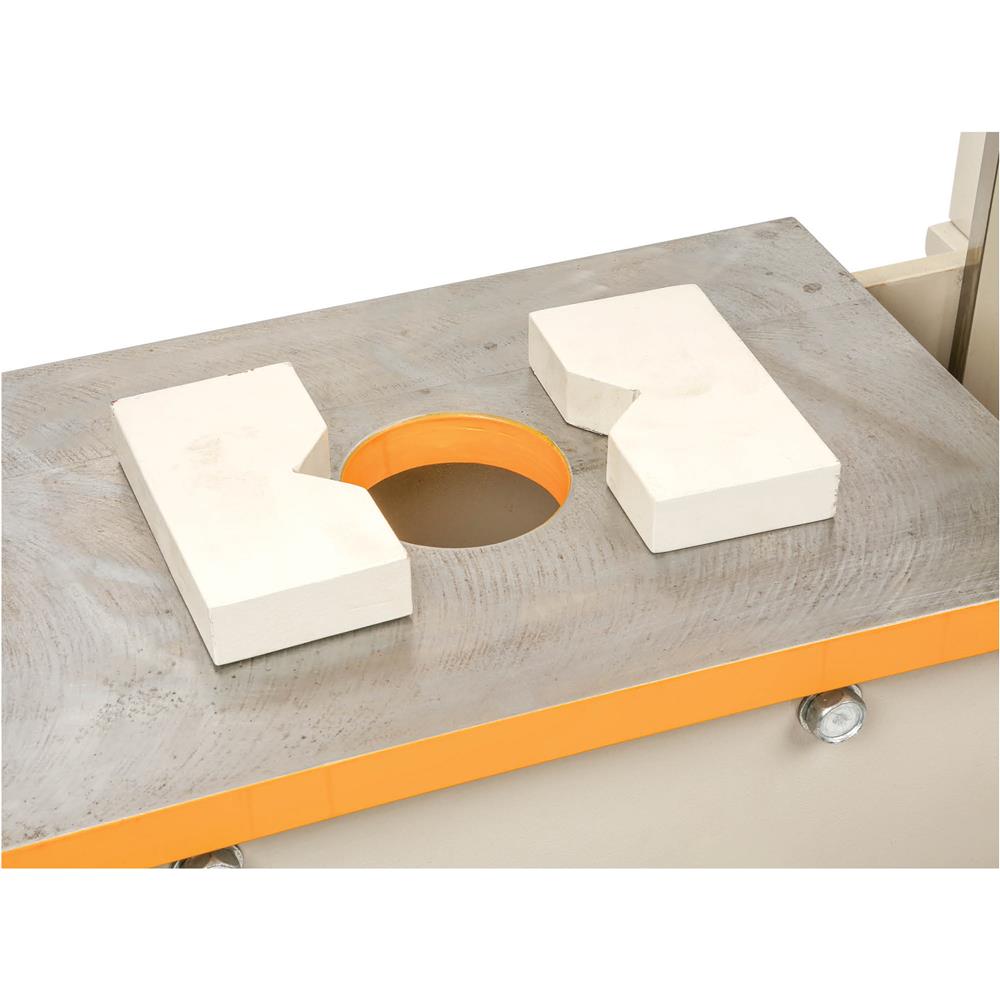

- Two table plates
- Precision-ground cast-iron table
- Five table height positions

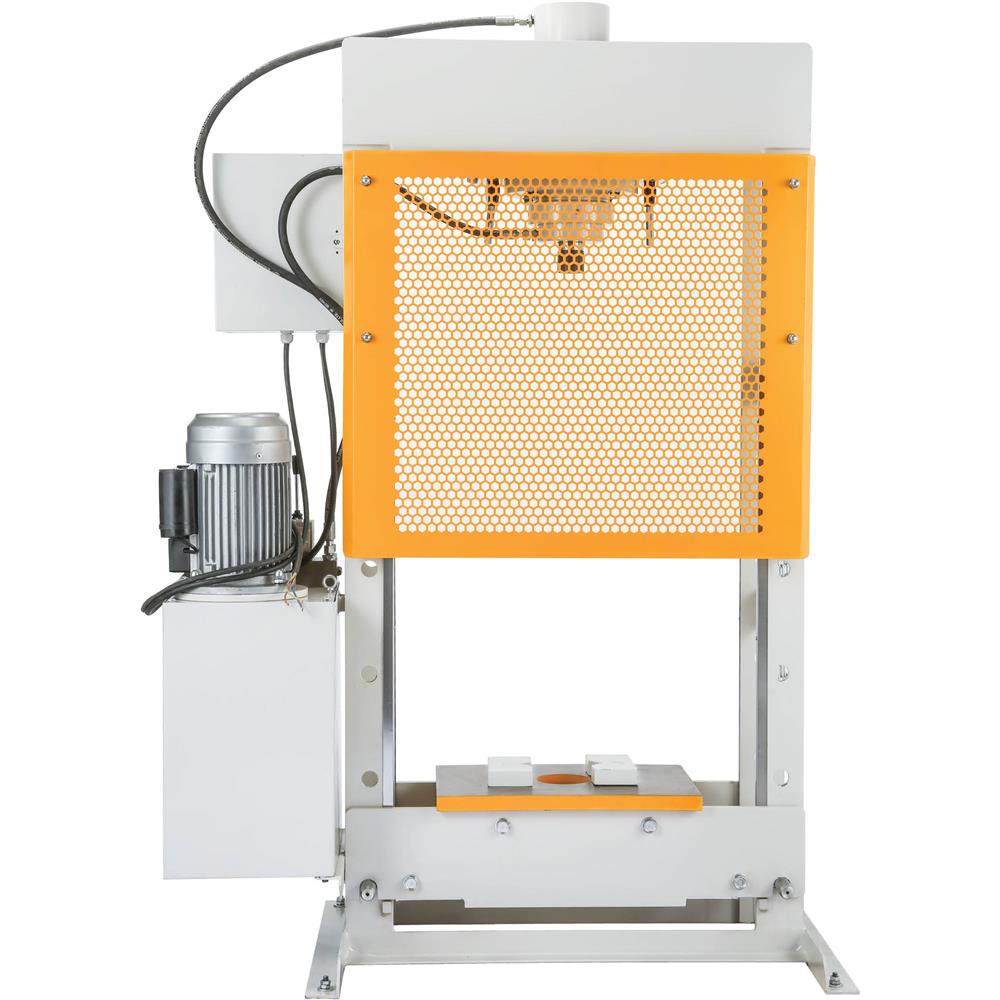

- Protective rear shielding
Specifications
| Motor | 3 HP, 220V, single-phase, 13.5A |
|---|---|
| Max. applied pressure | 60,000 lbs. (30 Tons) |
| Max. stroke | 10" |
| Table to piston distance | 7-3/4" to 36-1/2" |
| Piston head diameter | 2" |
| Working plate size | 30" W x 12-3/4" D |
| Maximum workpiece width | 27" |
| Footprint | 40" W x 27" D |
|---|---|
| Overall dimensions | 50" W x 27" D x 72" H |
| Approximate shipping weight | 1232 lbs. |
Warranty
This item comes with a 1 year factory warranty.
