Grizzly T25937 Rotary Table 5" New
Product Overview

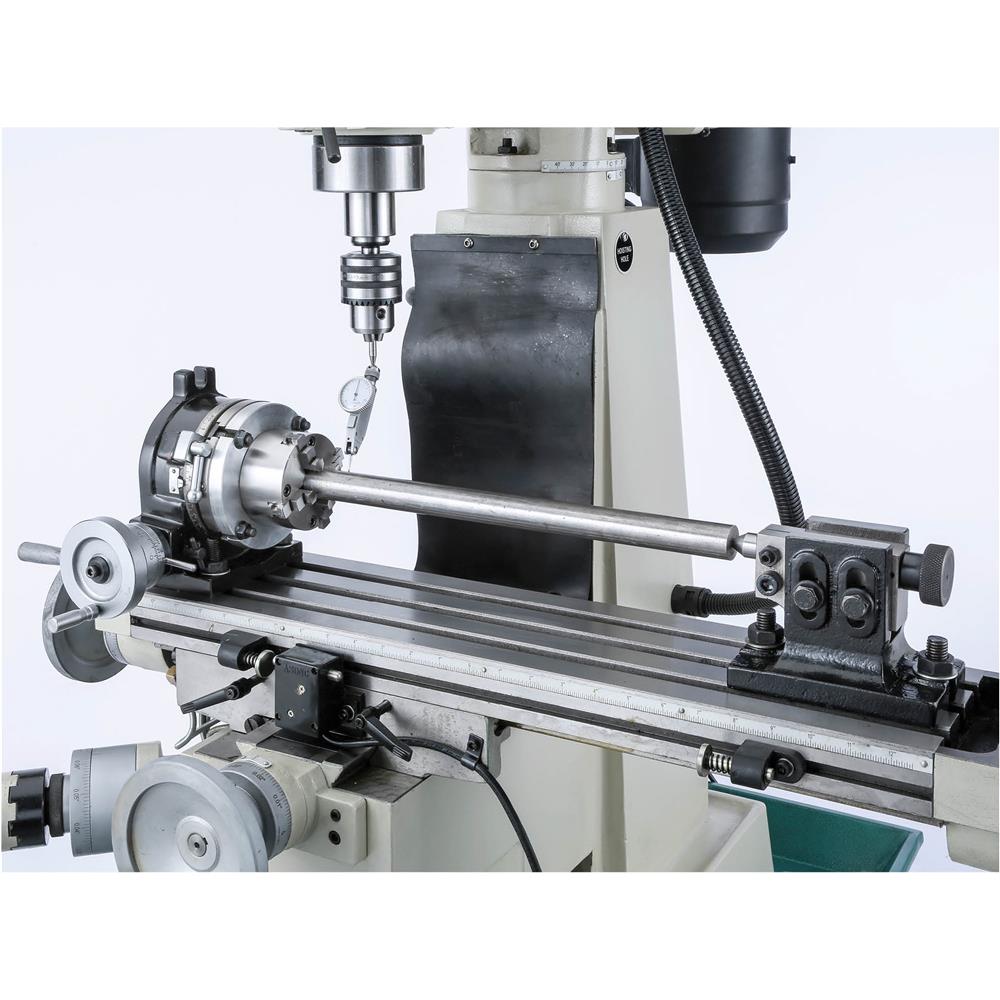

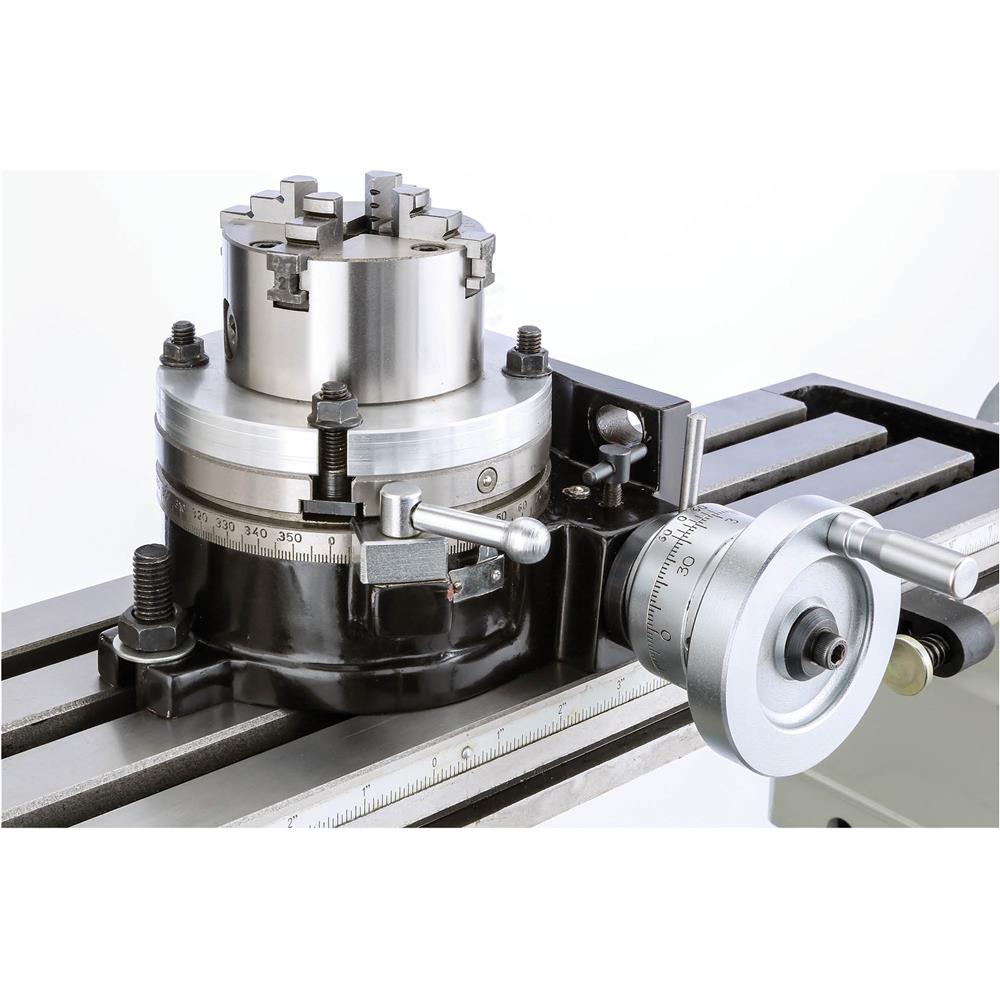

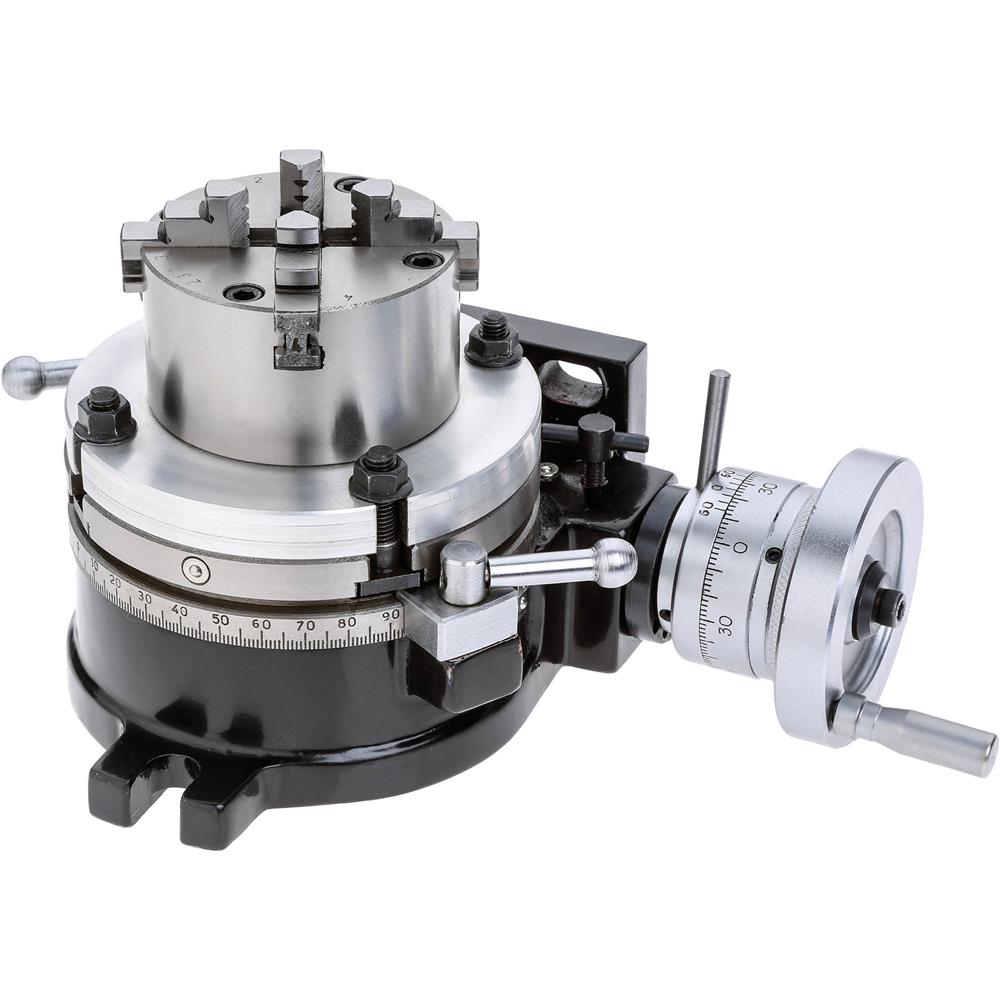

The Grizzly T25937 is a 5-inch rotary table set designed to add precise circular and indexed movement to milling and drilling setups. It can be used in either the horizontal or vertical position, making it a versatile tool for machining arcs, circular profiles, large-diameter holes, and eccentric features.

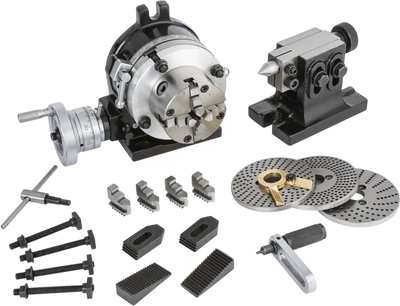

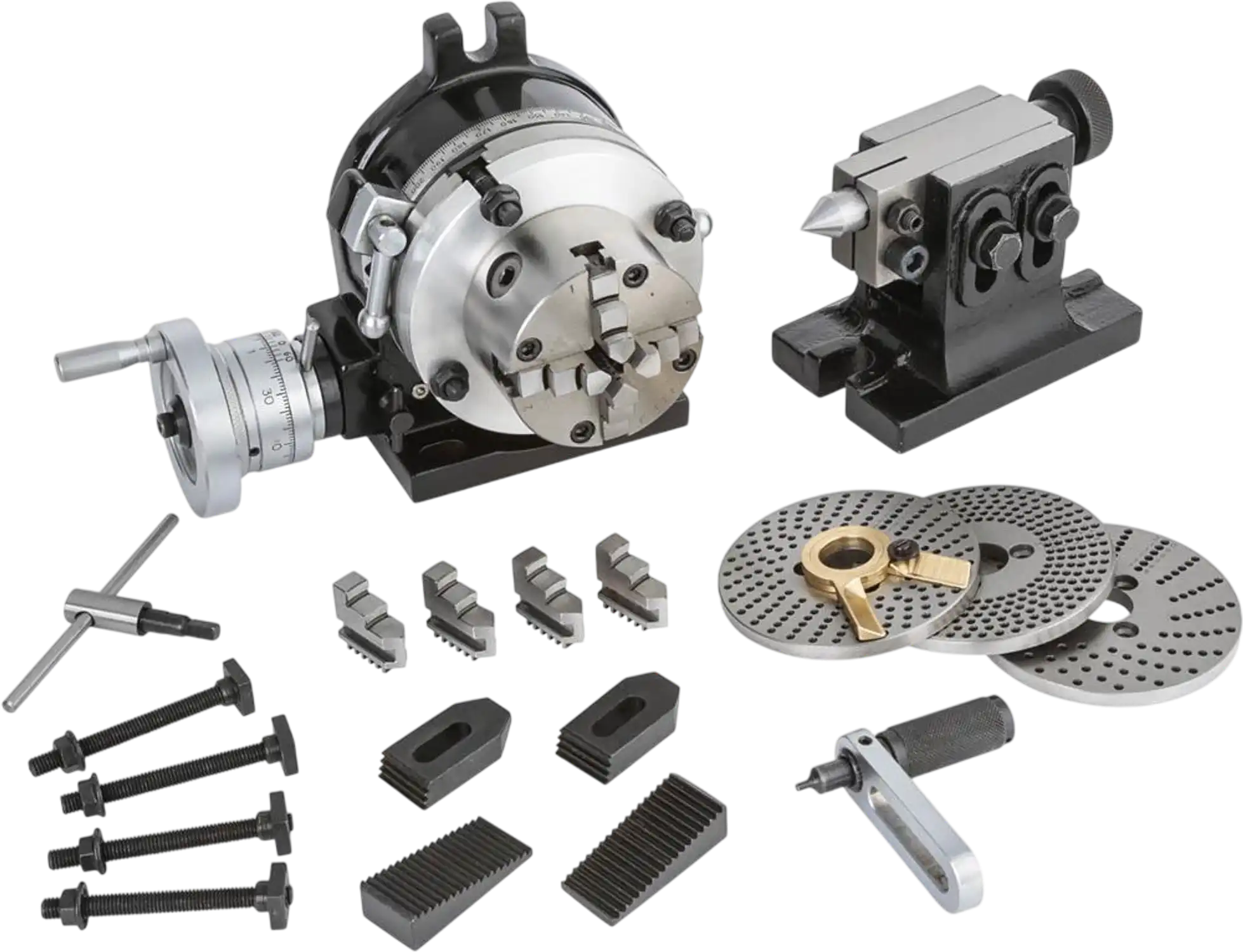

This set includes a 3-1/4-inch 4-jaw scroll chuck with reversible jaws, dividing plates, an adjustable tailstock, and a clamping set for the 4-slot table. With a 90:1 worm gear ratio, 4 degrees of table movement per handle rotation, and a 20-second vernier scale, it offers fine control for accurate positioning and repeatable results.
Ideal for machinists, toolrooms, and serious hobbyists, this rotary table is well suited for users who need dependable indexing and rotary cutting capability in a compact format. Its 4.88-inch table diameter and MT#2 center sleeve make it a practical choice for a wide range of milling applications.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Can be used in horizontal or vertical position
- 4° movement per handle rotation

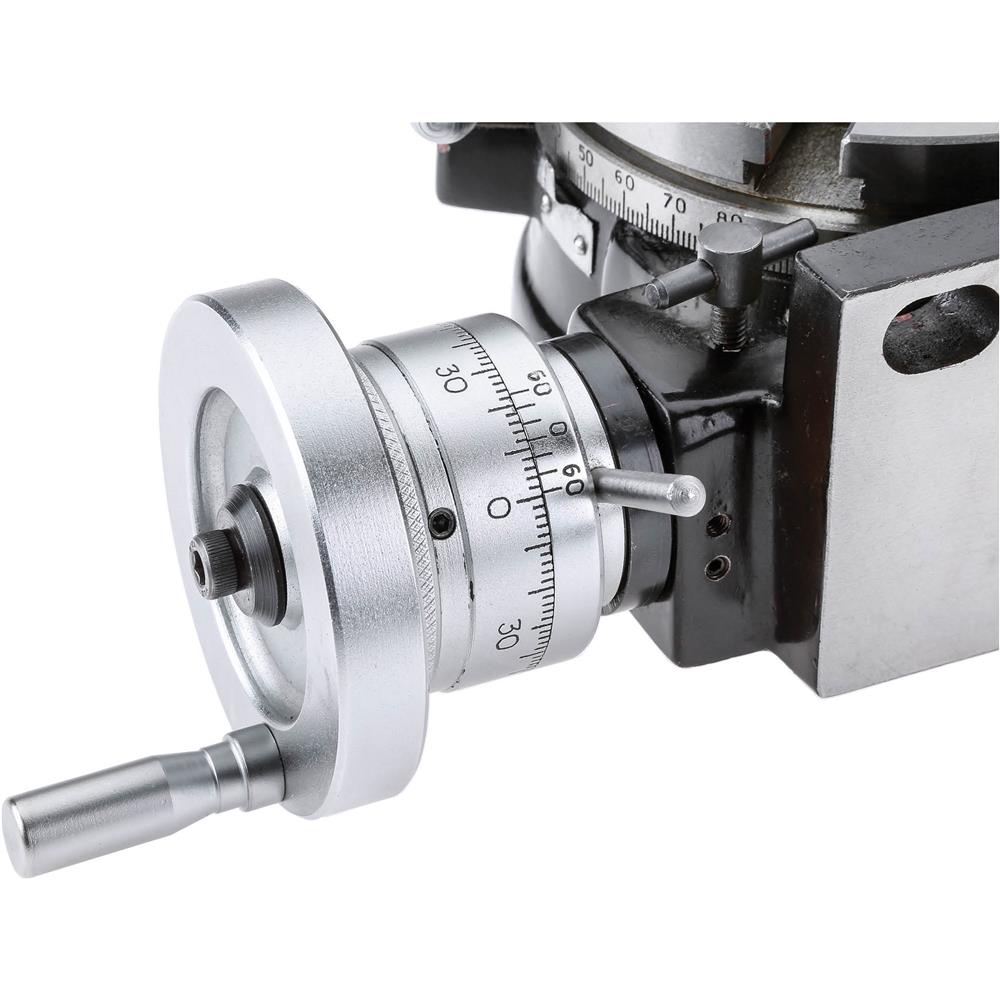

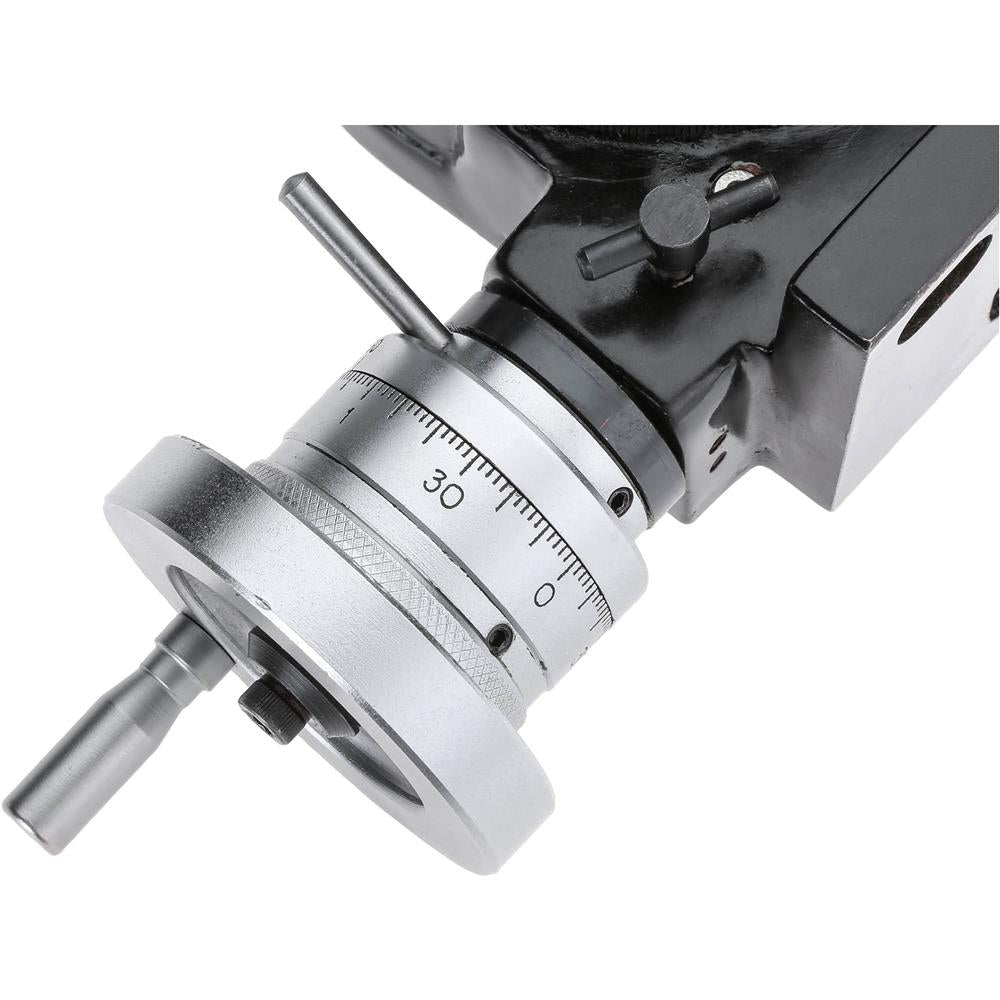

- 20 second vernier scale
Specifications
| Worm gear ratio | 90 |
| Table diameter | 4.88" |
| Table height | 3.93" |
| Base dimensions | 5" W x 7" L |
| Vertical base holes | 1/2" @ 3-1/2" on centers |
| Center sleeve | MT#2 |
| Weight | 35 lbs. |
