Grizzly T26471 Slip Roll Machine 51" Sheet Metal Roller New
Product Overview

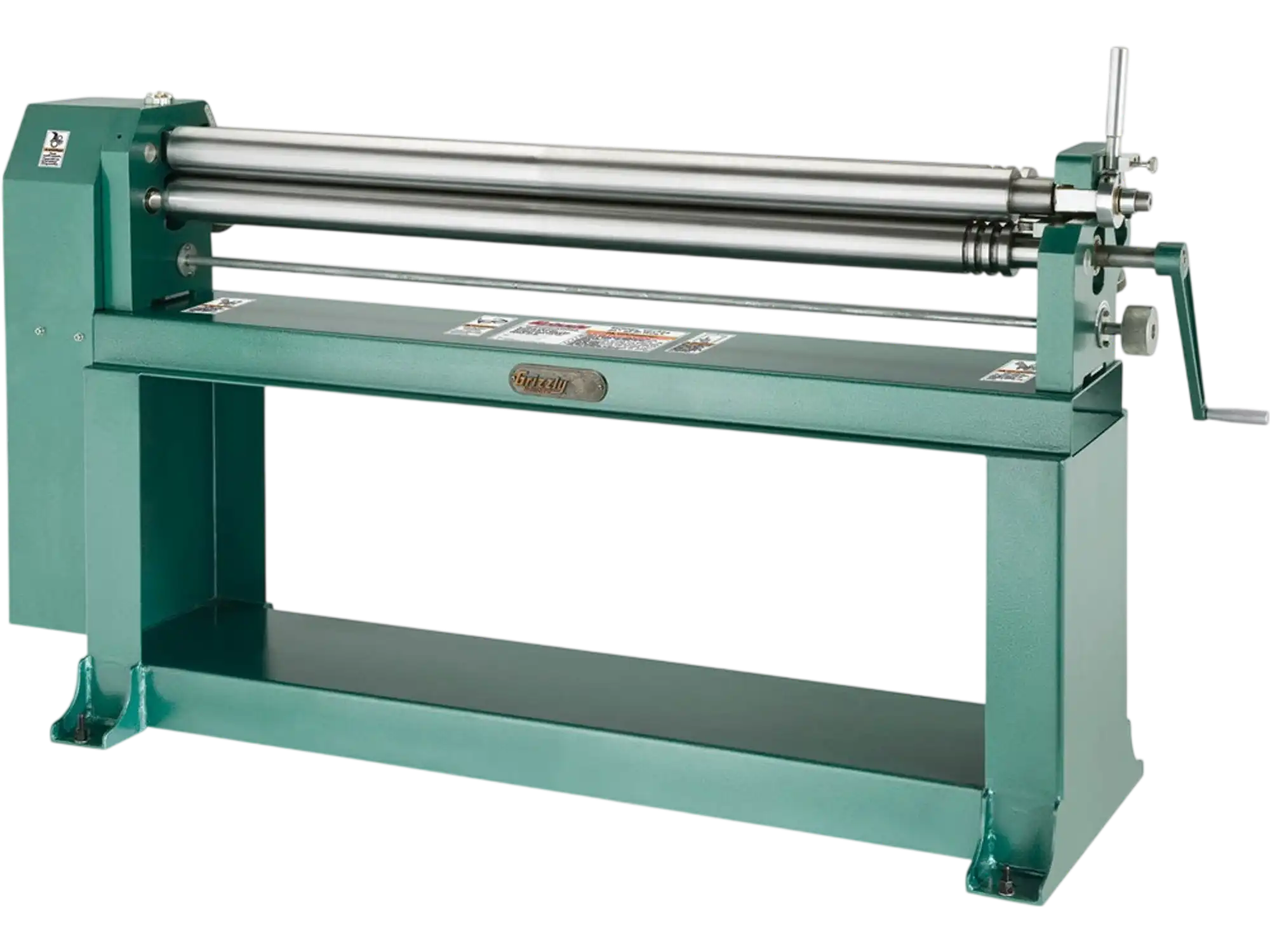

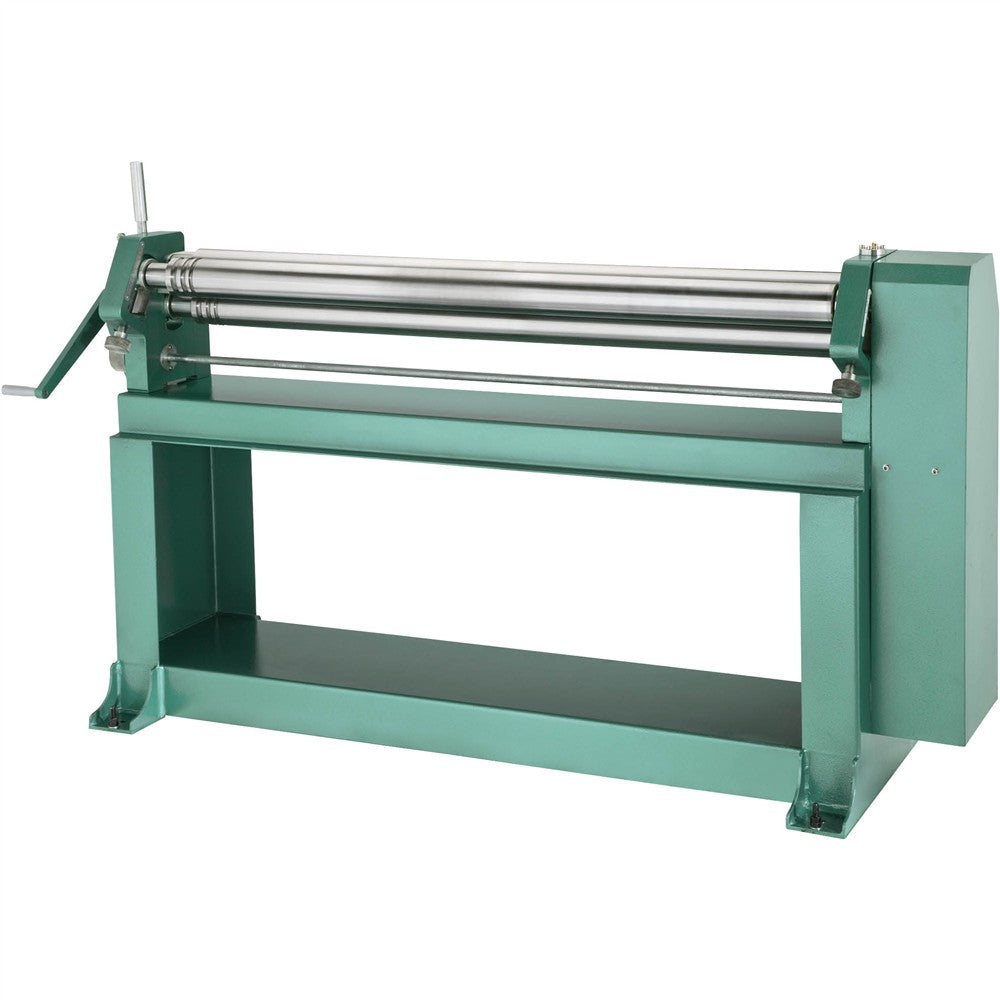

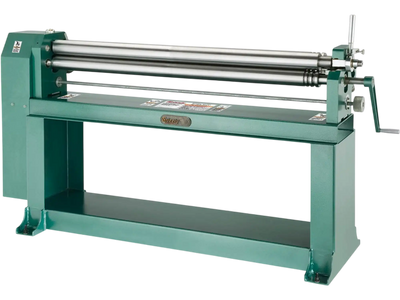

The Grizzly T26471 slip roll machine is a heavy-duty 51-inch sheet metal roller designed for forming smooth, constant-radius bends and rolling cylinders in mild steel up to 15-gauge. Precision-ground 2-inch rollers help produce clean, even results for fabrication work that demands accuracy.
Built with a cast-iron frame, heavy bearings, and hardened steel gearing, this machine is made for stable operation in busy shops. A quick-release top roller makes it easier to remove finished cylinders, while integrated grooves allow forming rod, wire, and small tubing in 5/16-inch, 3/8-inch, and 1/2-inch sizes.
Ideal for HVAC shops, metal fabricators, and custom automotive work, this roller is a strong fit for professionals who need to shape larger sheet metal sections with consistency and control. Its 51-inch capacity also makes it well suited for a wide range of general metalworking applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- 51" Max Width & 15-Gauge Capacity: Easily roll larger sections of mild steel up to 15-gauge (or thinner, wider material), making it perfect for HVAC, fabrication, and custom automotive work.
- Precision-Ground 2" Rollers: The polished rollers ensure a smooth, even finish on your material and produce accurate, constant-radius bends every time.

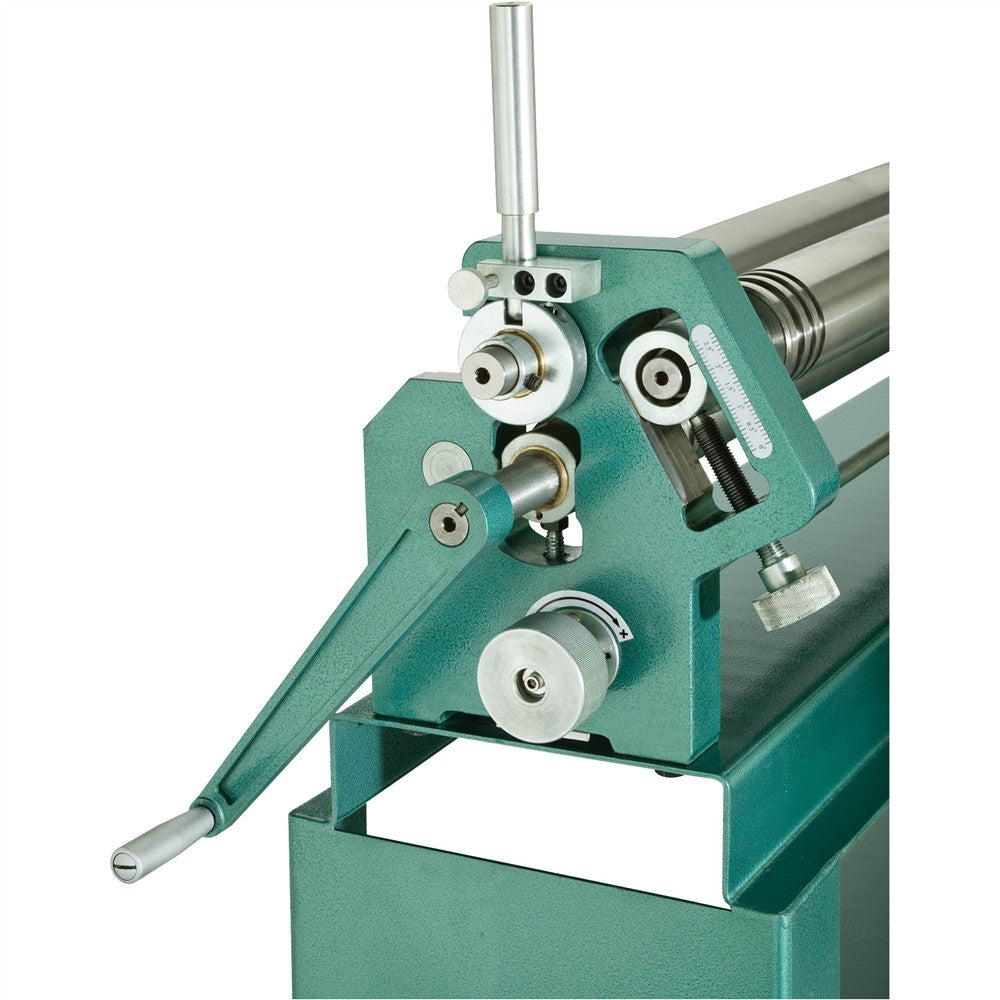

- Quick-Release Top Roller: Speeds up your workflow by letting you easily remove finished cylinders without disturbing your material settings.
- Integrated Wire/Rod Grooves: Shape and form wires, rods, and small-diameter tubing (5/16", 3/8", 1/2") in addition to sheet metal, expanding your project capabilities.
- Heavy-Duty Construction: Features a cast-iron frame, heavy bearings, and hardened steel gearing for maximum durability, stability, and reliable performance under load.
Specifications
| Maximum capacity | 51" |
|---|---|
| Gauge | 15-Gauge mild steel |
| Minimum roll size | 3" |
| Rod/wire grooves diameter | 5/16", 3/8", and 1/2" |
| Footprint | 58" W x 20-1/2" D |
| Overall size | 72" W x 42-1/2" H x 20-1/2" D |
|---|---|
| Approximate shipping weight | 700 lbs. |
Warranty
This item comes with a 1 year factory warranty.
