Grizzly T27400 Tool Post Grinder 3/4 HP Sharpener New
Product Overview

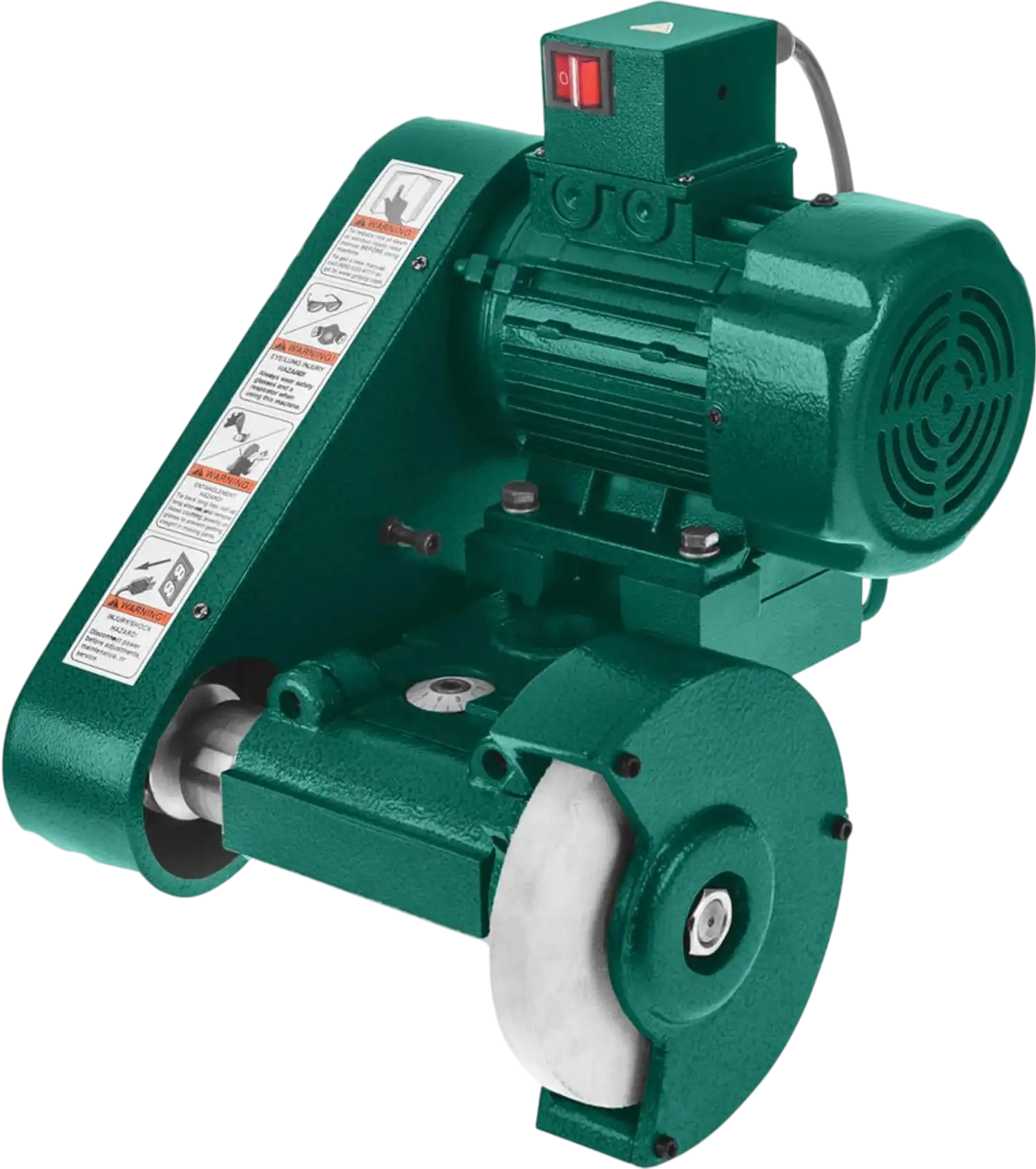

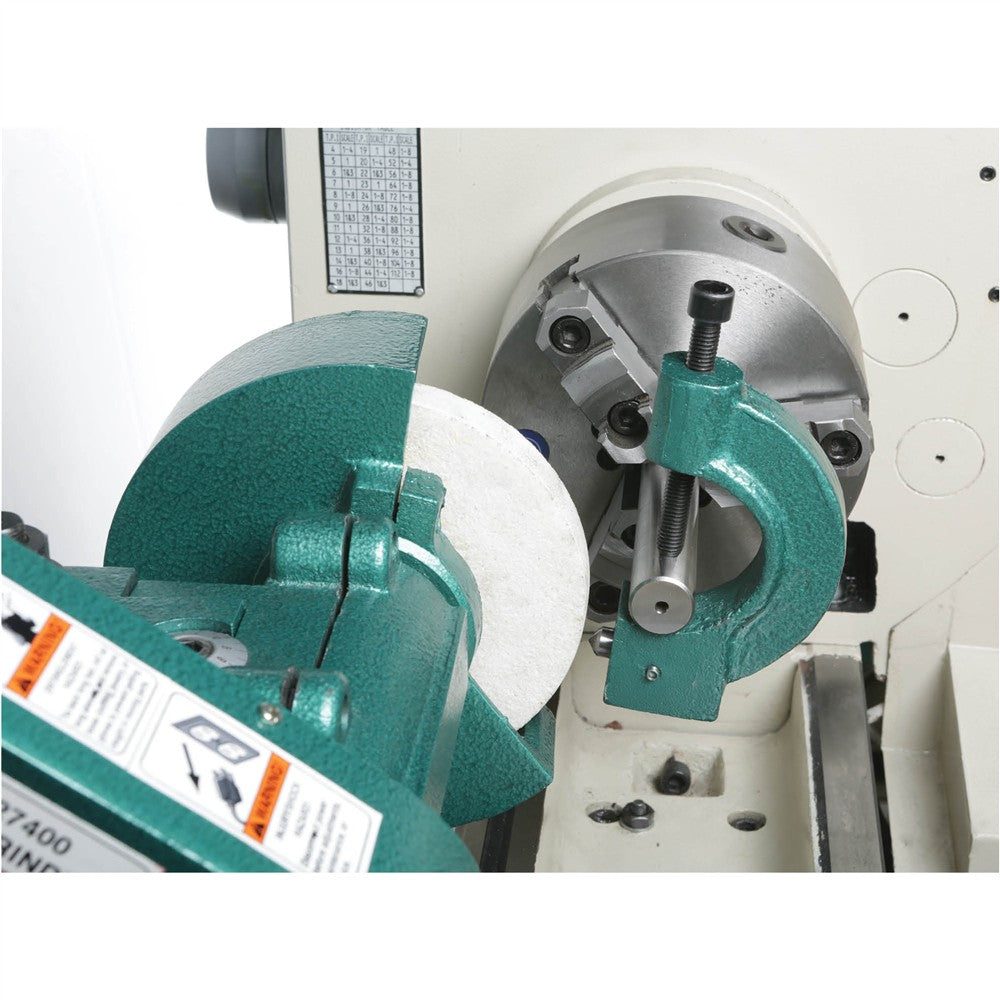

The Grizzly T27400 tool post grinder is a 3/4 HP sharpening and grinding attachment designed to mount directly to the tool post of a lathe. It provides a practical way to perform precision internal and external grinding on workpieces without removing them from the machine.
This unit is built to improve surface finish on work-hardened materials and help maintain tight tolerances on long shafts and similar parts. It includes 60-grit aluminum oxide internal and external grinding wheels, interchangeable spindles, fine vertical height adjustment, and a diamond-tipped dresser for accurate wheel maintenance.
Made for lathes with a 12 inch to 22 inch swing, this grinder is a strong choice for machinists, toolrooms, and serious metalworking shops that need added grinding capability at the lathe. Its direct-mount design keeps the grinder close at hand for efficient finishing and sharpening work.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Fine vertical height adjustment
- Diamond-tipped dresser
- Wheel bushing for 32mm bore external wheels
- 6" x 3/4" aluminum oxide 60-grit external grinding wheel
- 3/4" x 3/4" aluminum oxide 60-grit internal grinding wheel

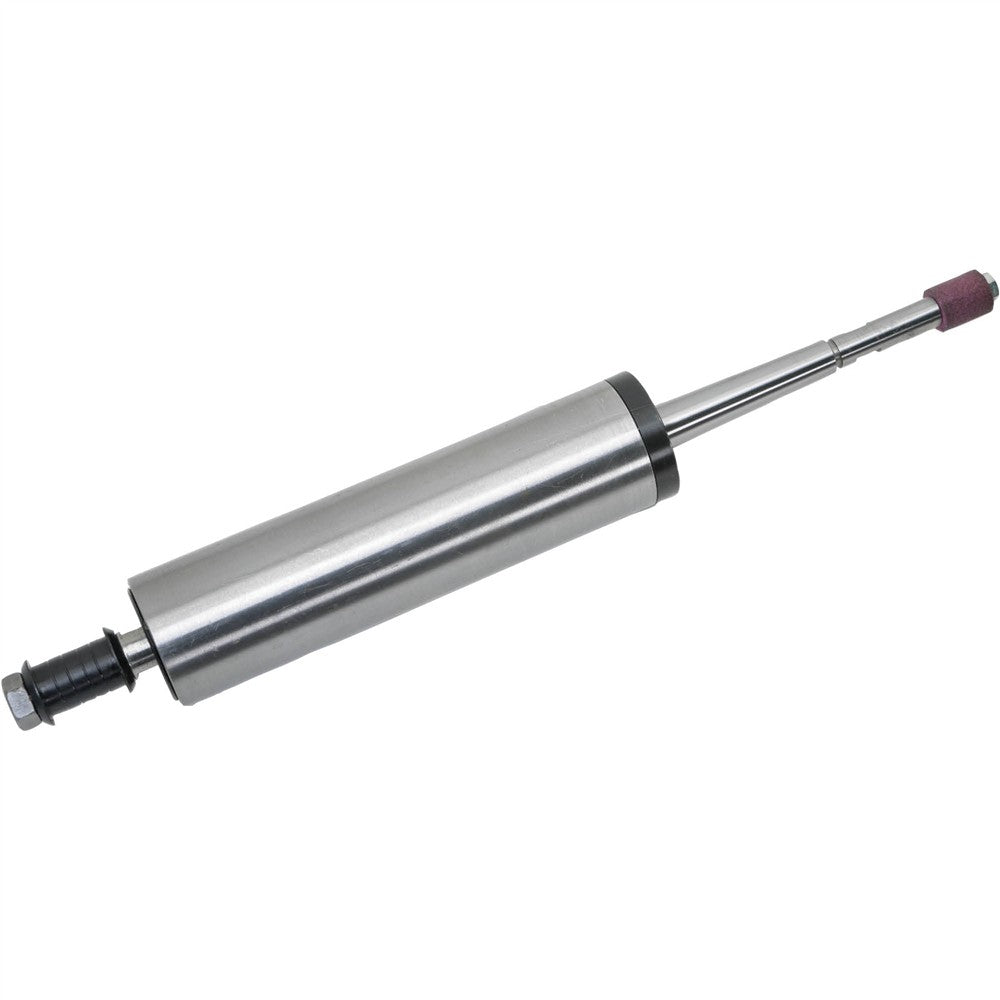

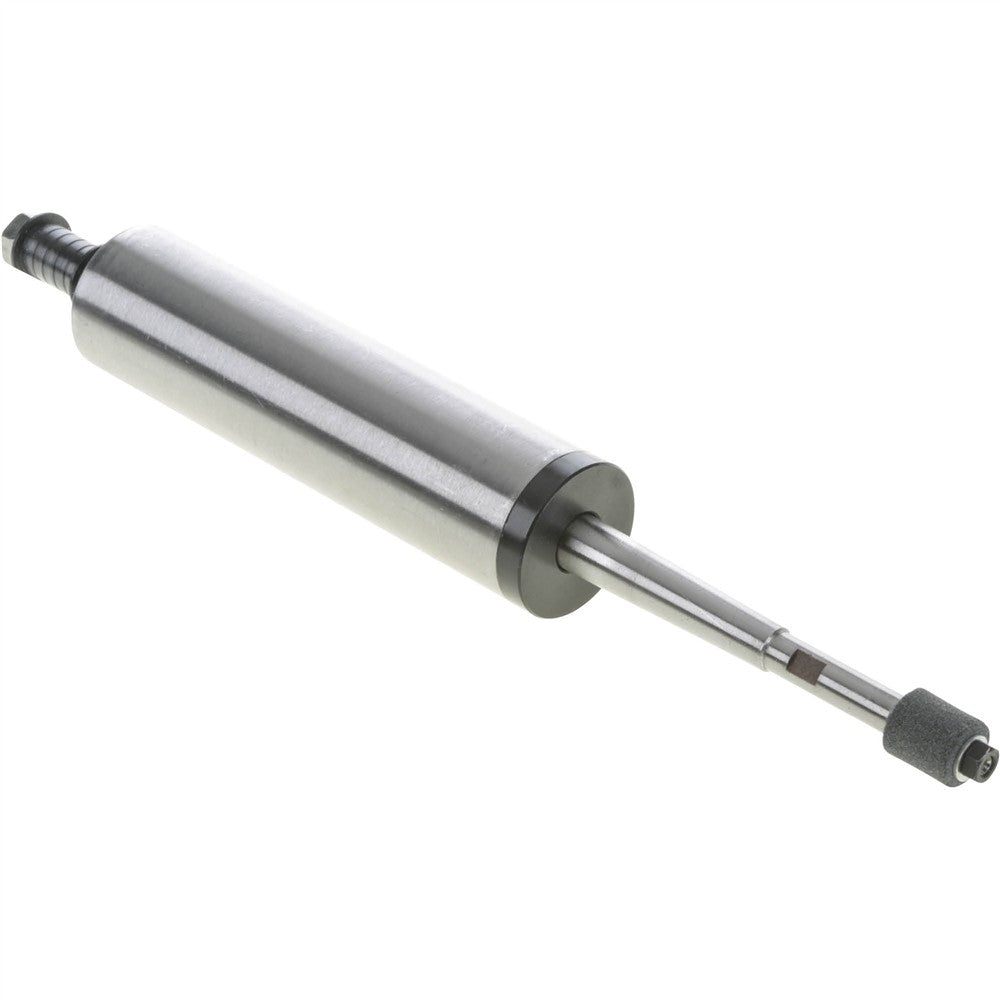

- Interchangeable spindles for external and internal grinding
Specifications
| Motor | 3/4 HP, 220V, single-phase, 3.5A |
|---|---|
| Lathe sizes | 12" - 22" swing |
| External wheel | 3/4" W x 6" D x 5/8" Bore |
| External wheel speed | 4500 RPM |
| Internal wheel | 3/4" W x 3/4" L x 1/4" (6mm) |
| Internal wheel speed | 18,500 RPM |
| Mounting hole | 25mm D x 37mm L (slotted) |
|---|---|
| Overall size | 15" L x 12" W x 10" H |
| Approximate shipping weight | 71 lbs. |
Warranty
This item comes with a 1 year factory warranty.
