Grizzly T28325 Pan & Box Brakes 59" 18-Gauge Pan and Box Brake New
Product Overview

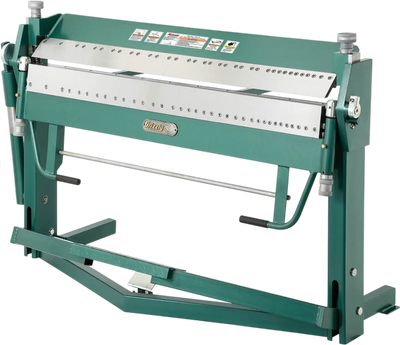

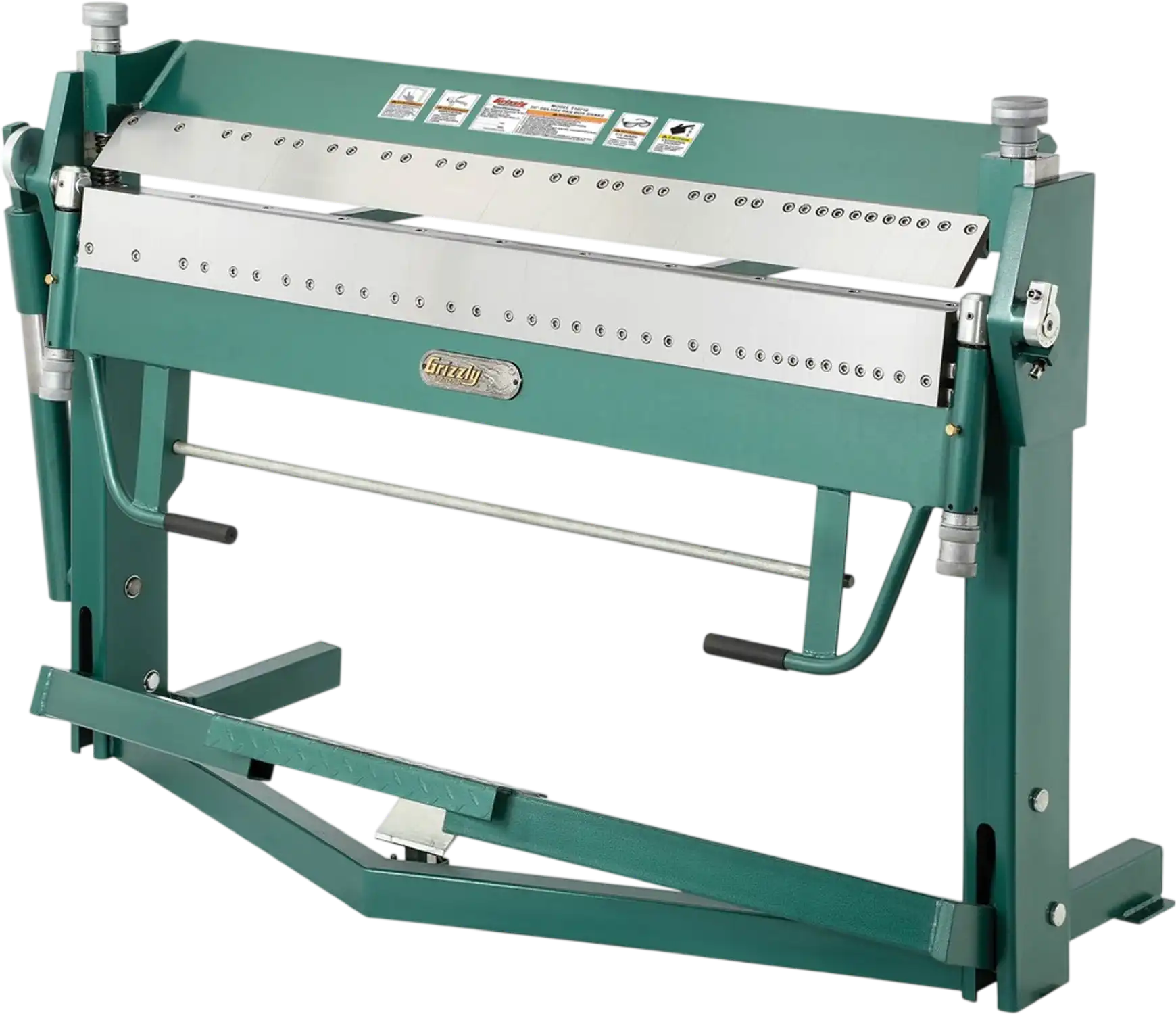

The Grizzly T28325 Pan & Box Brake is a manual sheet metal brake built for precise bending, forming, and repeatable fabrication work. With a 59-inch working width and the capacity to handle up to 18-gauge mild steel at full width, it is designed to produce clean bends for pans, boxes, flanges, and other formed parts.
Removable upper and lower fingers allow a wide range of bend configurations, including box bends, transverse bends, and down-flanged shapes. A foot pedal-operated clamping system, pressure adjustment knobs, and a work stop with 135-degree range help improve control and consistency from one bend to the next.
This machine is a strong fit for fabrication shops, maintenance departments, metalworking professionals, and serious industrial users who need flexibility for short runs or repeat production. It is especially useful for projects that require varied finger widths, accurate setup, and dependable manual forming performance.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

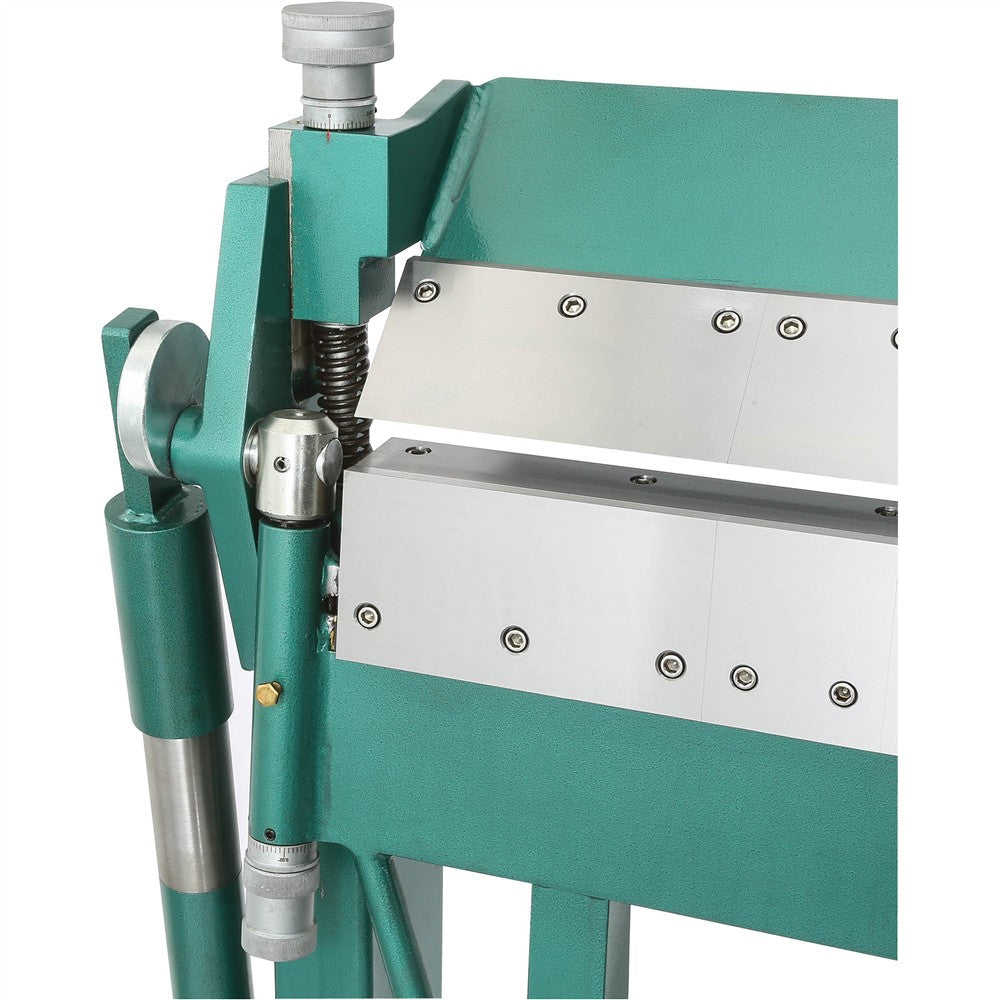

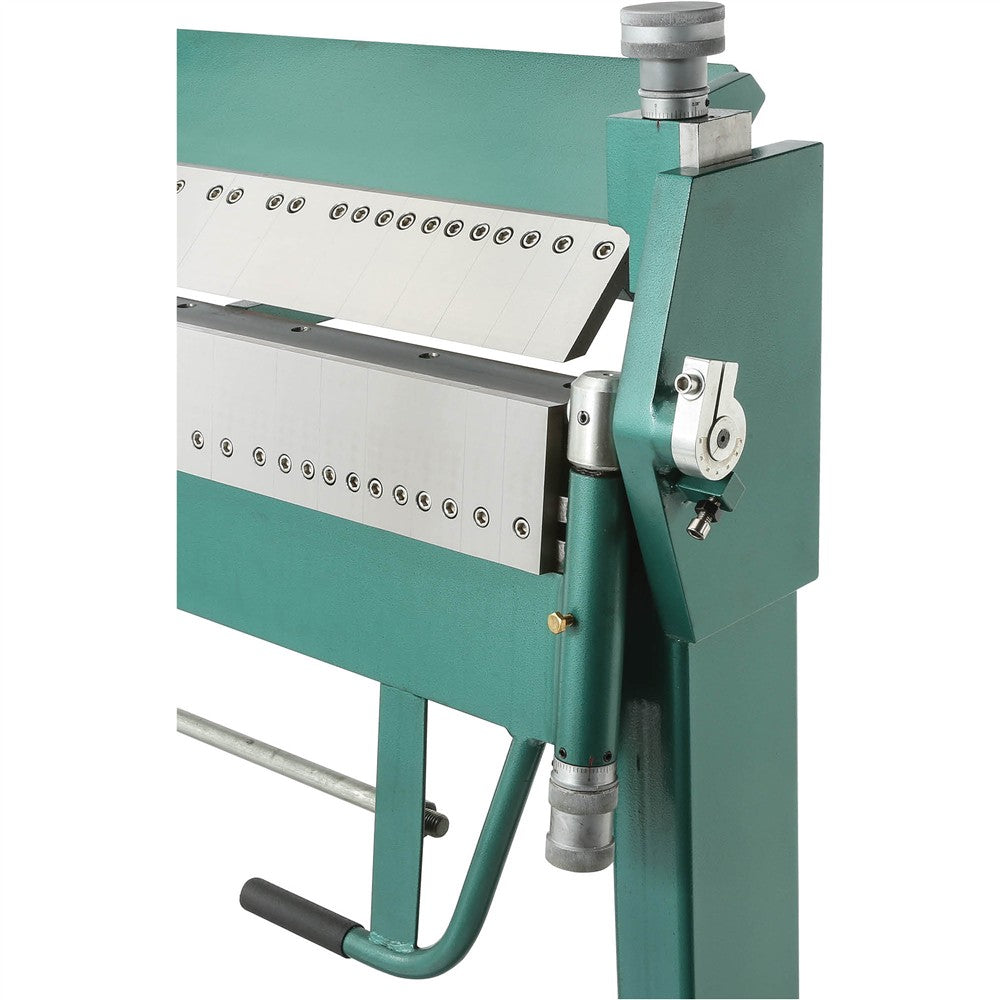

- Pressure adjustment knobs

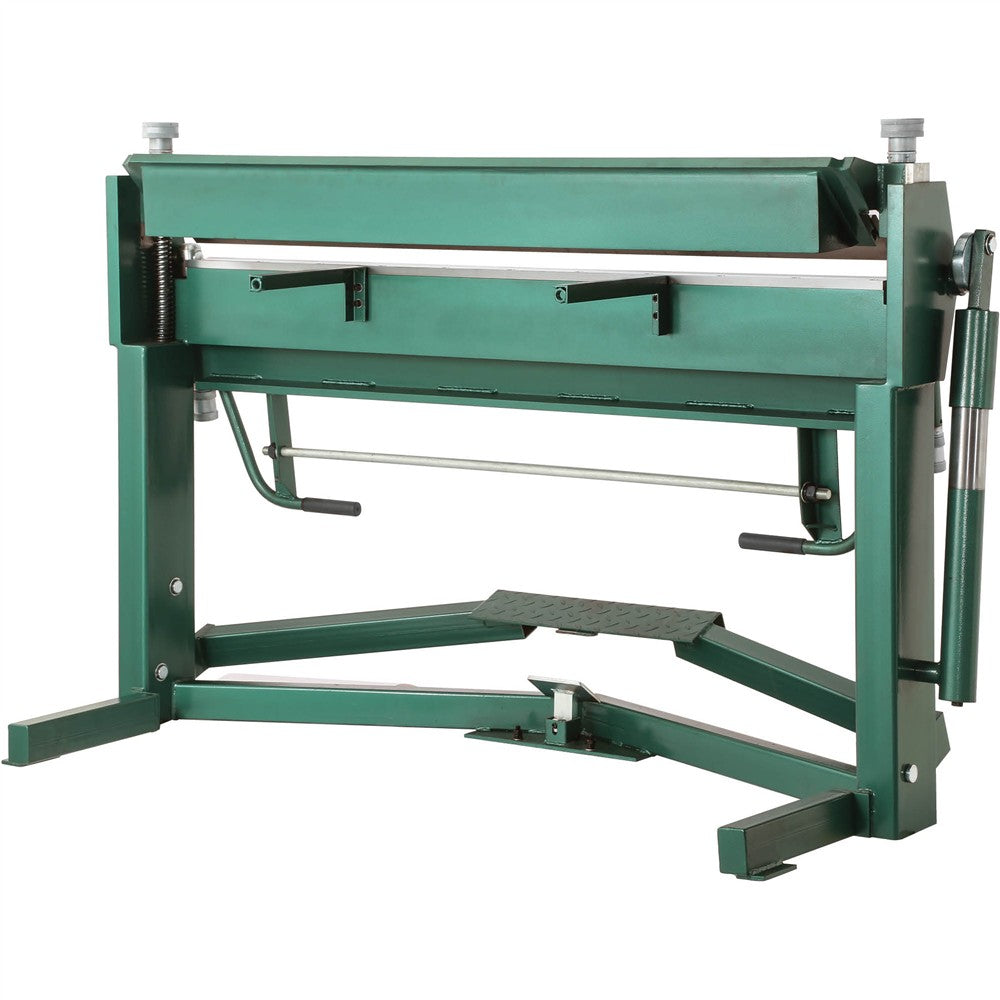

- Foot pedal controls clamping fingers

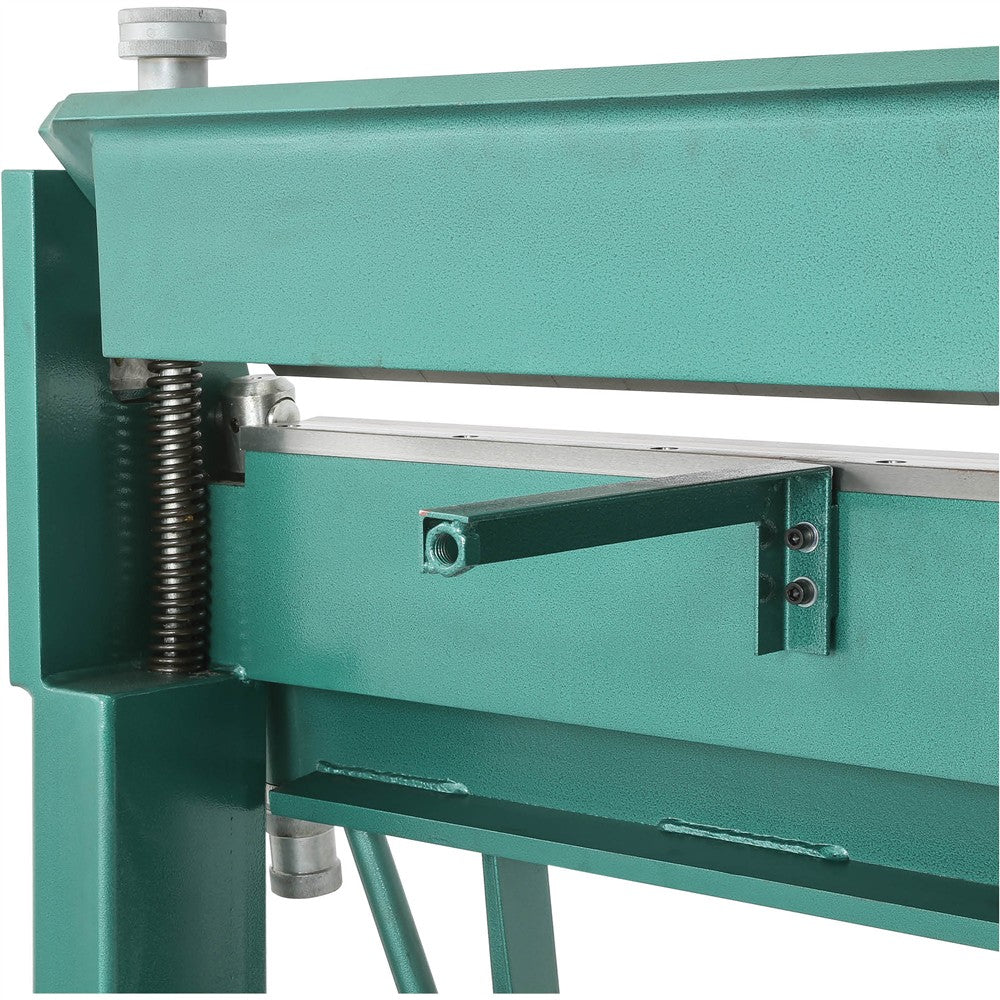

- Work stop collar for repetitive bends
- Removable fingers for box bends
Specifications
| Maximum working width | 59" |
| Maximum thickness at half width (mild steel) | 16-gauge |
| Maximum thickness at full width (mild steel) | 18-gauge |
| Brake range | 0–135° |
| Minimum reverse bend | 5/8" |
| Maximum pan depth | 2" |
| Fingers | (2) 1-1/2", (4) 2", (5) 3", (6) 4", (1) 9" |
| Footprint | 65" x 31" |
| Overall dimensions | 71-1/2"L x 40-1/2"W x 46"H |
| Approximate shipping weight | 1080 lbs. |
Warranty
This item comes with a 1 year factory warranty.
