Grizzly T32983 Digital Read-Out 9-7/8" Scale New
Product Overview

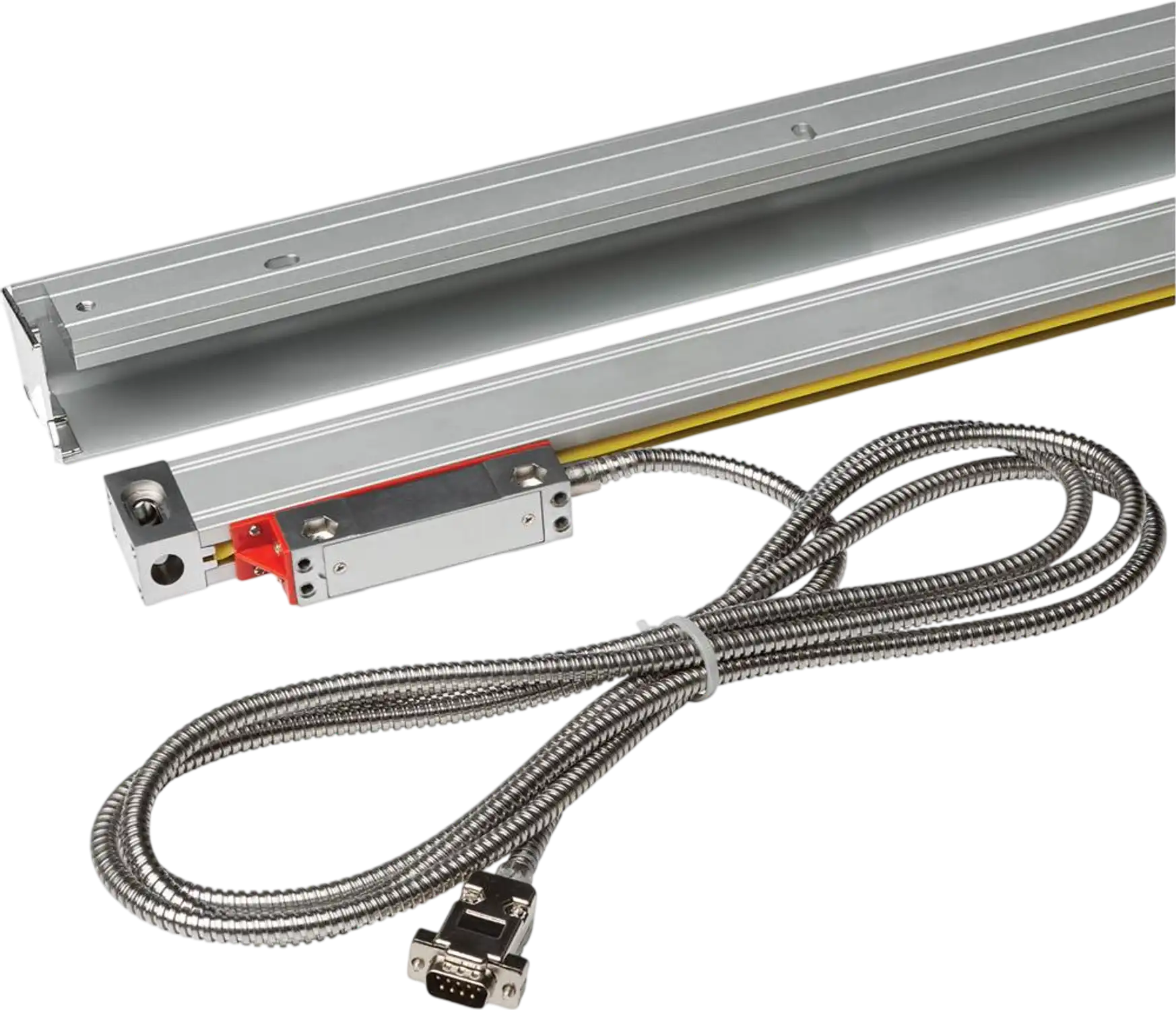

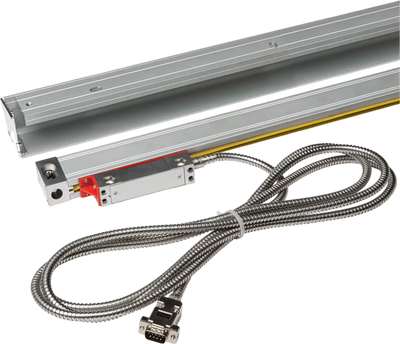

The Grizzly T32983 is a 9-7/8" digital read-out linear optical scale designed as the foundation for a custom DRO setup on machine tools and other precision equipment. It converts table or carriage movement into accurate positional feedback, helping improve measurement consistency and ease of operation.
Built with individually inspected and calibrated glass transducers, this scale offers 5μm resolution, ±6μm accuracy, and 2μm repeatability. A vertical five-bearing sliding system supports smooth, stable travel, while oil-resistant seals and IP53 protection help it perform reliably in shop environments.
This scale is well suited for machinists, fabricators, and shop owners adding digital measurement capability to mills, lathes, or similar machines. It is a practical choice for users who want dependable motion tracking in a compact 9-7/8" travel length.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Specifications
| Supply voltage | DC 5V |
| Resolution | 5μm |
| Travel length | 9-7/8" |
| Accuracy | ±6μm |
| Optical period | 20μm |
| Optical measurement | Transmissive infrared |
| Repeatability | 2μm |
| Seal protection | IP53 |
| Scanning head sliding system | Vertical five-bearing sliding system |
Warranty
This item comes with a 1 year factory warranty.
