Grizzly T32984 Digital Read-Outs 11-13/16" Scale New
Product Overview

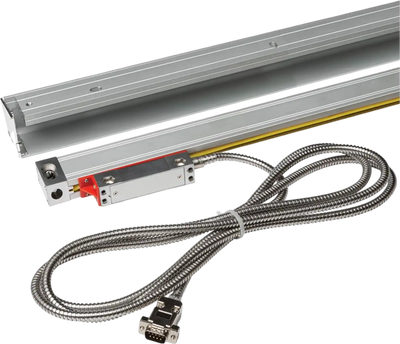

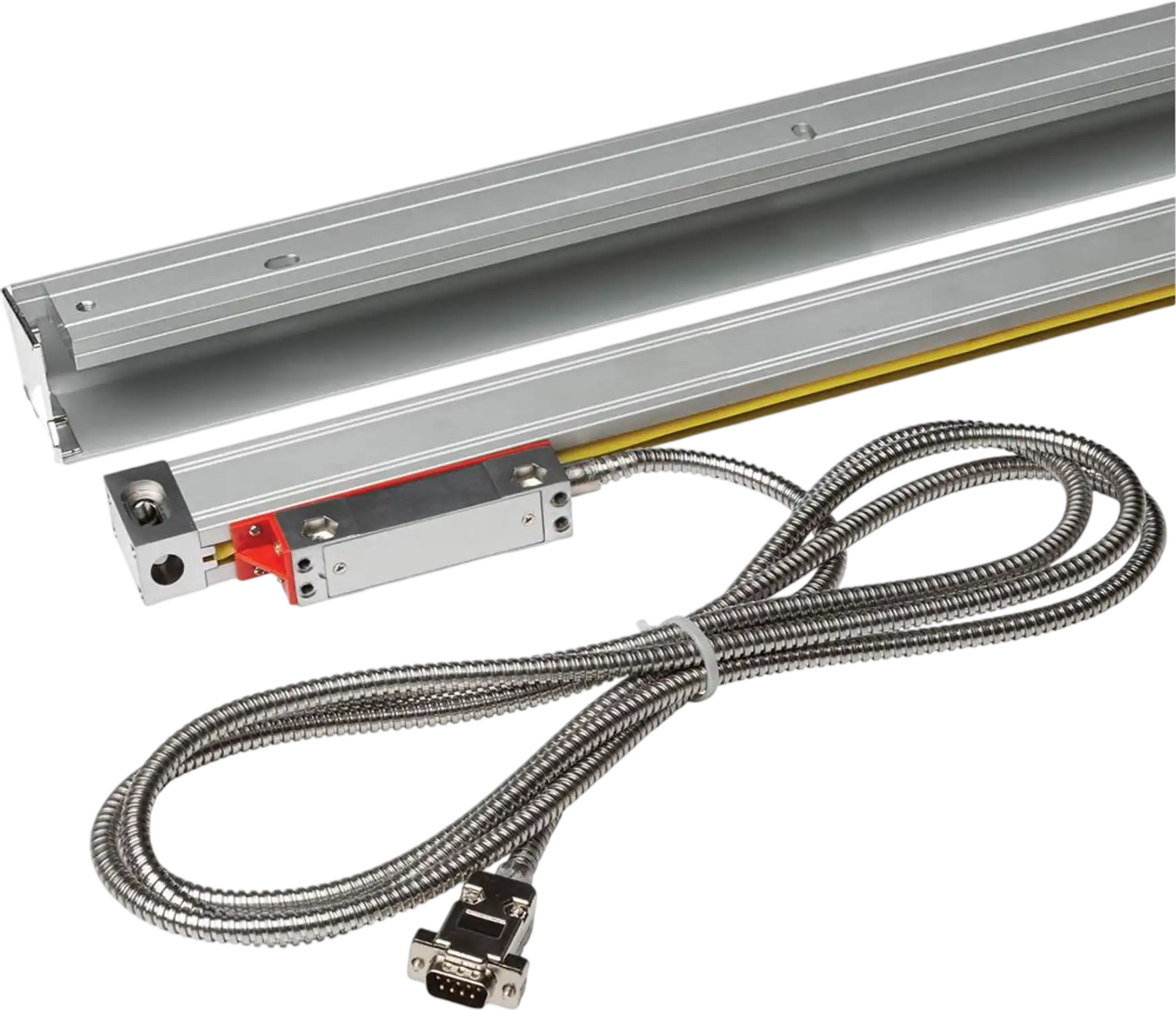

The Grizzly T32984 is an 11-13/16" linear optical scale designed as the foundation for a custom digital read-out system on machine tools and similar equipment. It delivers precise position measurement with 5μm resolution, ±6μm accuracy, and 2μm repeatability for dependable readout performance.
Built with individually inspected and calibrated glass transducers, this scale uses transmissive infrared optical measurement for consistent results. A vertical five-bearing slide system supports smooth carrier movement, while oil-resistant seals help protect the unit in demanding shop environments.
This scale is a practical choice for machinists, fabricators, and workshop users upgrading a mill, lathe, or other precision machine. It is especially well suited for users who want to build a tailored DRO setup with reliable accuracy at an accessible price.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Specifications
| Supply voltage | DC 5V |
| Resolution | 5μm |
| Travel length | 11-13/16" |
| Accuracy | ±6μm |
| Optical period | 20μm |
| Optical measurement | Transmissive infrared |
| Repeatability | 2μm |
| Seal protection | IP53 |
| Scanning head sliding system | Vertical five-bearing sliding system |
Warranty
This item comes with a 1 year factory warranty.
