Grizzly T32995 Digital Read-Outs 51-3/16" Scale New
Manufacturer: Grizzly
SKU: T32995
QTY
or
(888) 999-1522
$ 518.95
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Grizzly T32995 Digital Read-Outs 51-3/16" Scale New
Product Overview

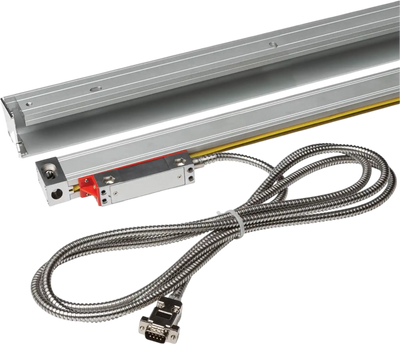

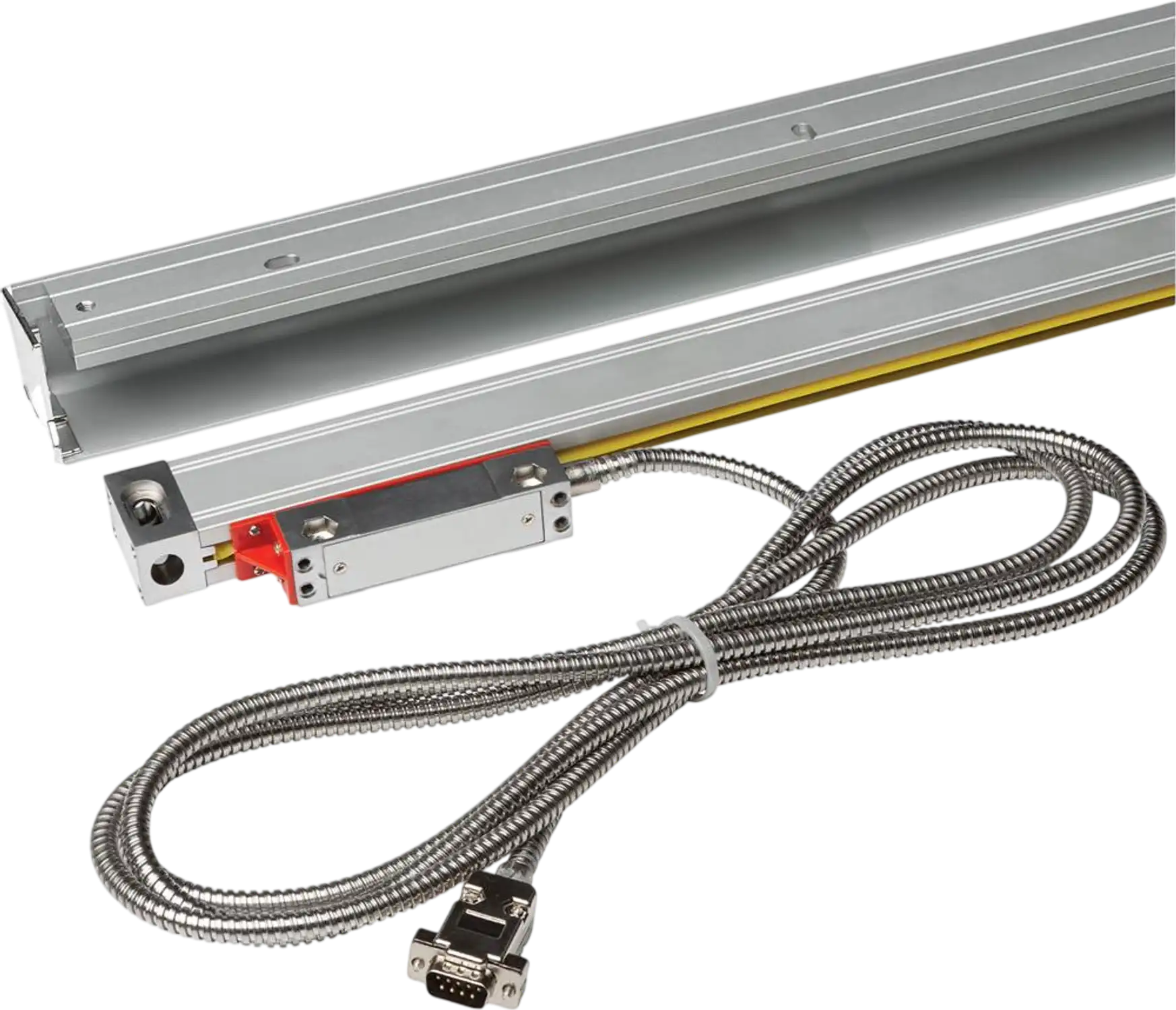

The Grizzly T32995 is a 51-3/16" linear optical scale designed for building or upgrading a digital read-out system on shop machinery. It provides precise position measurement for machines that need accurate travel feedback over a longer axis.
With 5μm resolution, ±25μm accuracy, and 2μm repeatability, this scale is suited for detailed machining and measurement tasks. Its transmissive infrared optical system uses individually calibrated glass transducers, while the five-bearing slide carrier helps deliver smooth, consistent movement during operation.
Built with oil-resistant seals and IP53 protection, this scale is a practical choice for machine shops, fabricators, and serious hobbyists looking to add dependable DRO capability to mills, lathes, or other equipment.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Specifications
| Supply voltage | DC 5V |
| Resolution | 5μm |
| Travel length | 51-3/16" |
| Accuracy | ±25μm |
| Optical period | 20μm |
| Optical measurement | Transmissive infrared |
| Repeatability | 2μm |
| Seal protection | IP53 |
| Scanning head sliding system | Vertical five-bearing sliding system |
Warranty
This item comes with a 1 year factory warranty.
