Grizzly T32998 Digital Read-Out 2-Axis Mill DRO 5-15/16" x 19-11/16" New
Product Overview

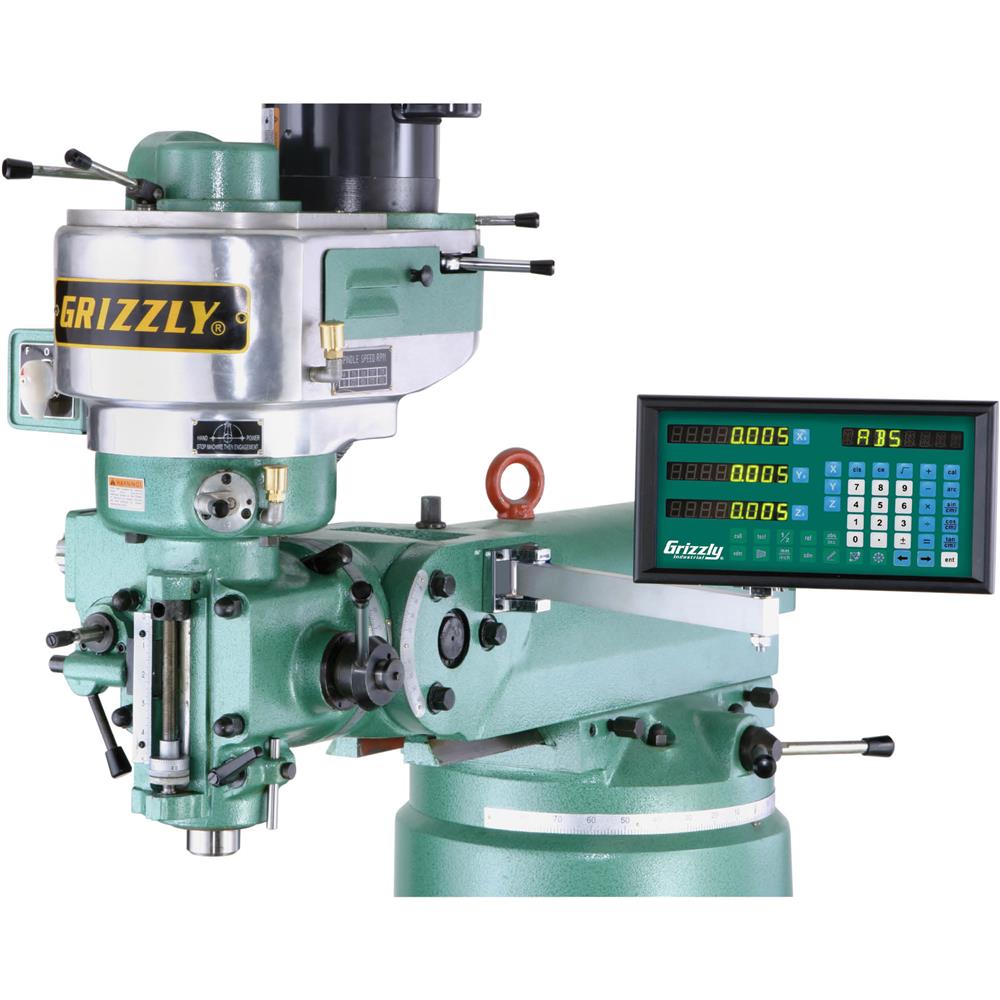

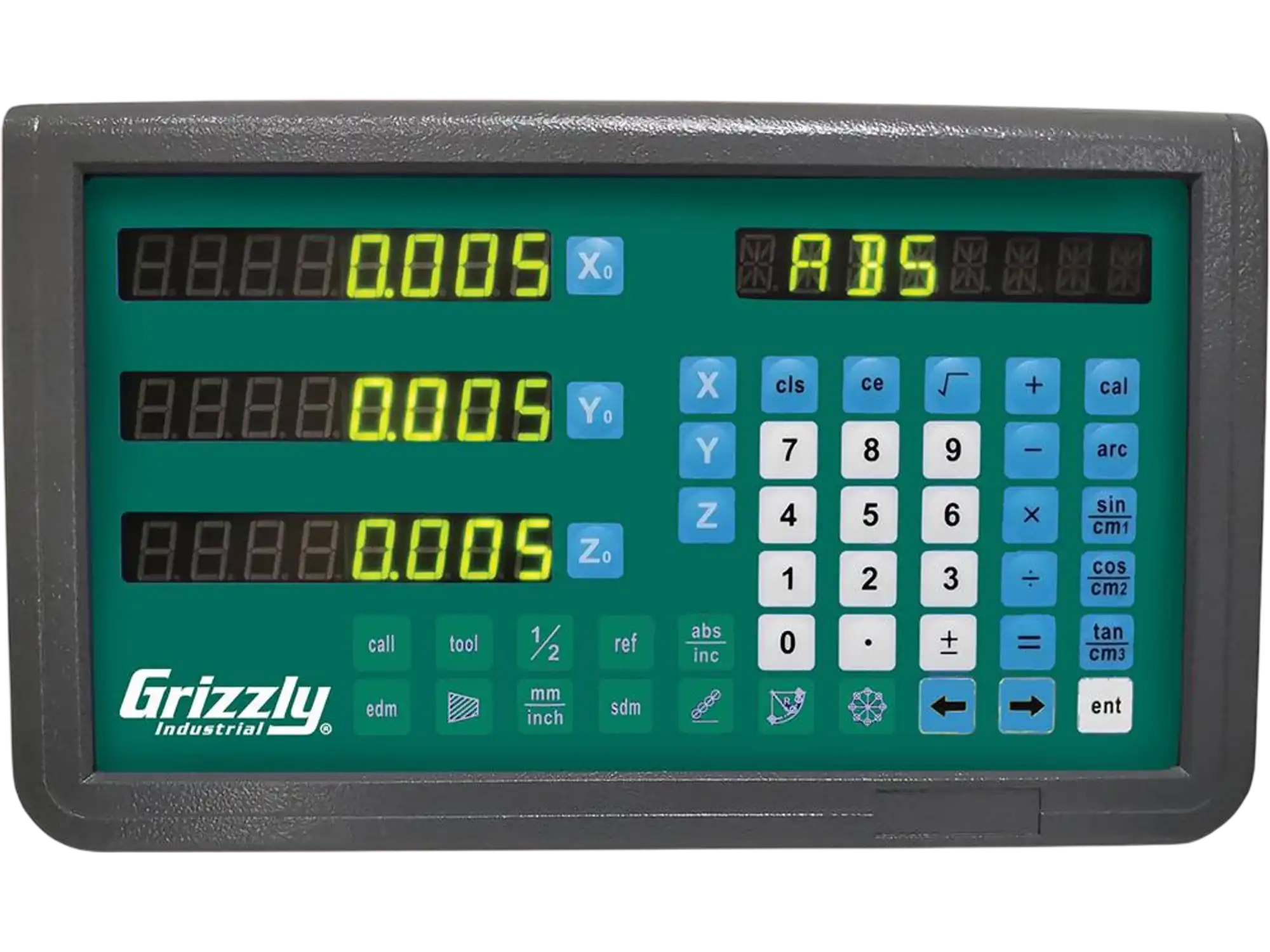

The Grizzly T32998 is a 2-axis digital readout kit for milling machines, designed to upgrade manual positioning with clear, precise measurement on two axes. It includes the readout unit, mounting hardware, and two linear optical scales with 5-15/16" and 19-11/16" travel lengths for custom mill installations.
Built for accuracy and repeatability, this DRO system features 5μm resolution, ±6μm accuracy, and smooth scale movement for dependable readings during milling operations. The sealed aluminum readout housing helps protect internal electronics from shop dust, fumes, and coolant exposure, making it well suited for busy machine environments.
Useful functions such as pitch circle diameter, line hole positioning, inclined machining, radius calculation, shrinkage calculation, vibration filtering, and mm/inch conversion make it a practical choice for machinists who want faster setup and more consistent results. It is ideal for mill owners, toolrooms, hobby machinists, and small shops looking to improve precision and workflow.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Z0 + Z1 axis summation
- Pitch circle diameter (PCD)
- Line hole positioning (LHOLE)
- Inclined machining (INCL)
- Simple and smooth radius functionality
- Linear and non-linear error compensation
- Shrinkage calculation
- Vibration filtering
- mm/inch display
Specifications
| Scale resolution | 5μm |
| Scale travel lengths | 5-15/16", 19-11/16" |
| Scale Accuracy | ±6μm |
| Scale optical period | 20μm |
| Scale optical measurement | Transmissive infrared; 34-11/16" |
| Scale repeatability | 2μm |
| Scale seal protection | IP53 |
Warranty
This item comes with a 1 year factory warranty.
