Grizzly T33000 Digital Read-Out 5-15/16" x 43-5/16" 2-Axis Lathe DRO New
Product Overview

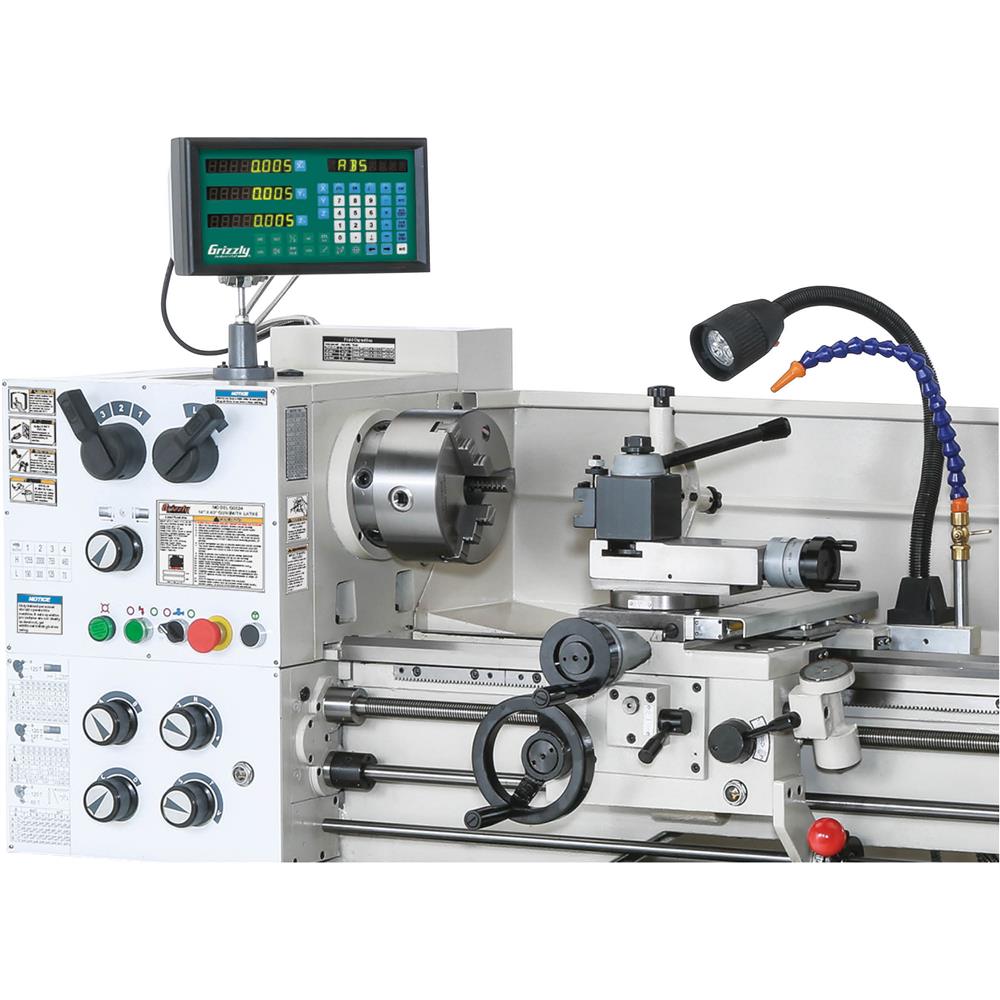

The Grizzly T33000 is a 2-axis digital read-out kit designed to add precise position tracking to a lathe. It includes the readout unit, mounting hardware, and two linear optical scales with 5-15/16" and 43-5/16" travel lengths for a custom installation on compatible machines.

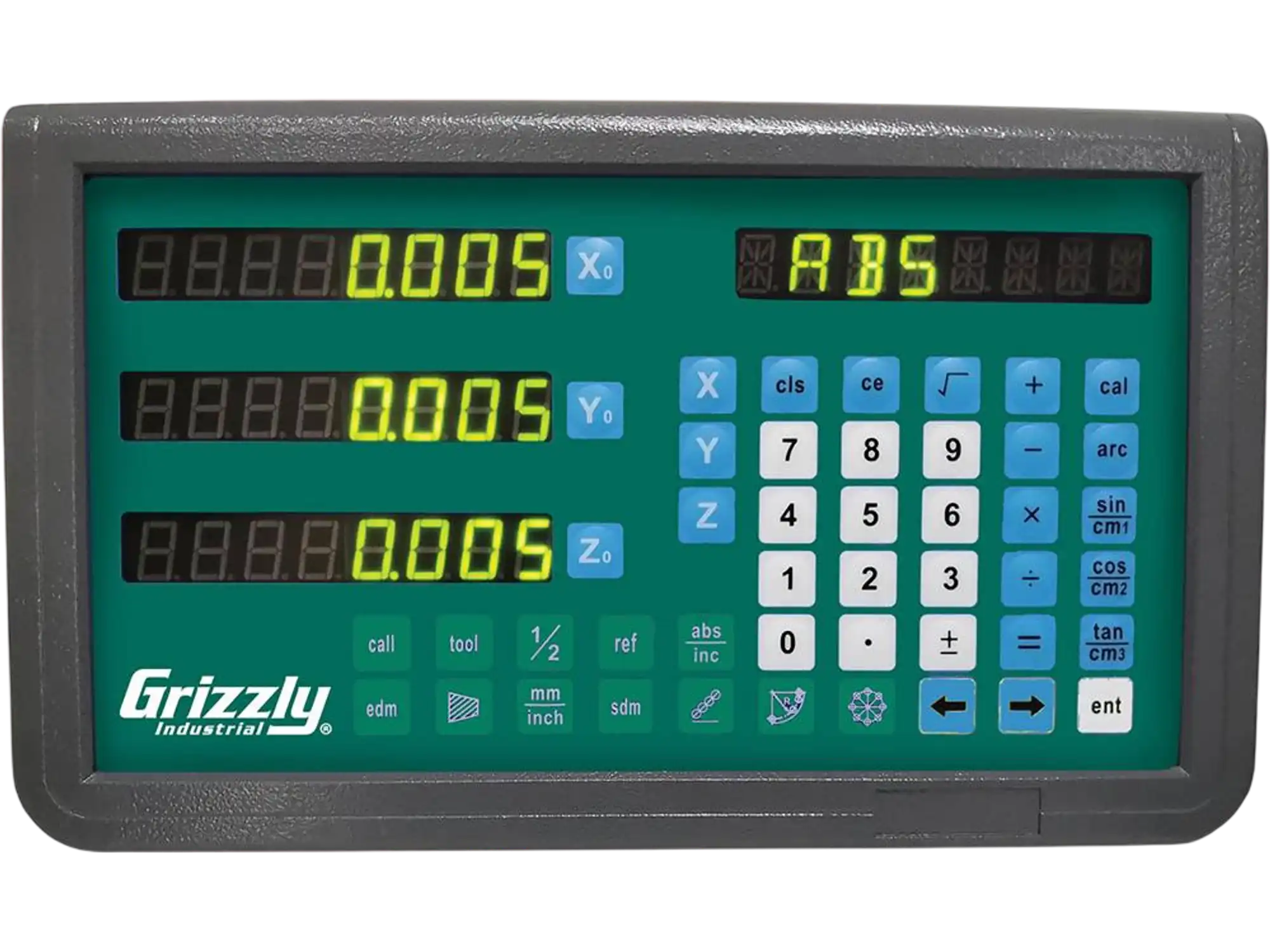

Built for accurate machining, this DRO system offers 5μm resolution, repeatable readings, and a sealed aluminum display housing that helps protect internal electronics from shop dust, fumes, and coolant vapor. It also provides useful machining functions such as pitch circle diameter, line hole positioning, inclined machining, radius calculation, shrinkage calculation, vibration filtering, and mm/inch conversion.
This kit is a strong choice for machinists, fabrication shops, and serious hobby users who want clearer readouts, smoother workflow, and more confidence when turning parts on a lathe. The included optical scales and 2-axis functionality make it well suited for improving both everyday accuracy and more complex setup work.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Z0 + Z1 axis summation
- Pitch circle diameter (PCD)
- Line hole positioning (LHOLE)
- Inclined machining (INCL)
- Simple and smooth radius functionality
- Linear and non-linear error compensation
- Shrinkage calculation
- Vibration filtering
- mm/inch display
Specifications
| Scale resolution | 5μm |
| Scale travel lengths | 5-15/16", 43-5/16" |
| Scale Accuracy | ±6 and 15μm |
| Scale optical period | 20μm |
| Scale optical measurement | Transmissive infrared; 34-11/16" |
| Scale repeatability | 2μm |
| Scale seal protection | IP53 |
Warranty
This item comes with a 1 year factory warranty.
