Grizzly T33006 Digital Read-Out 7-7/8" x 21-11/16" 2-Axis Mill DRO New
Product Overview

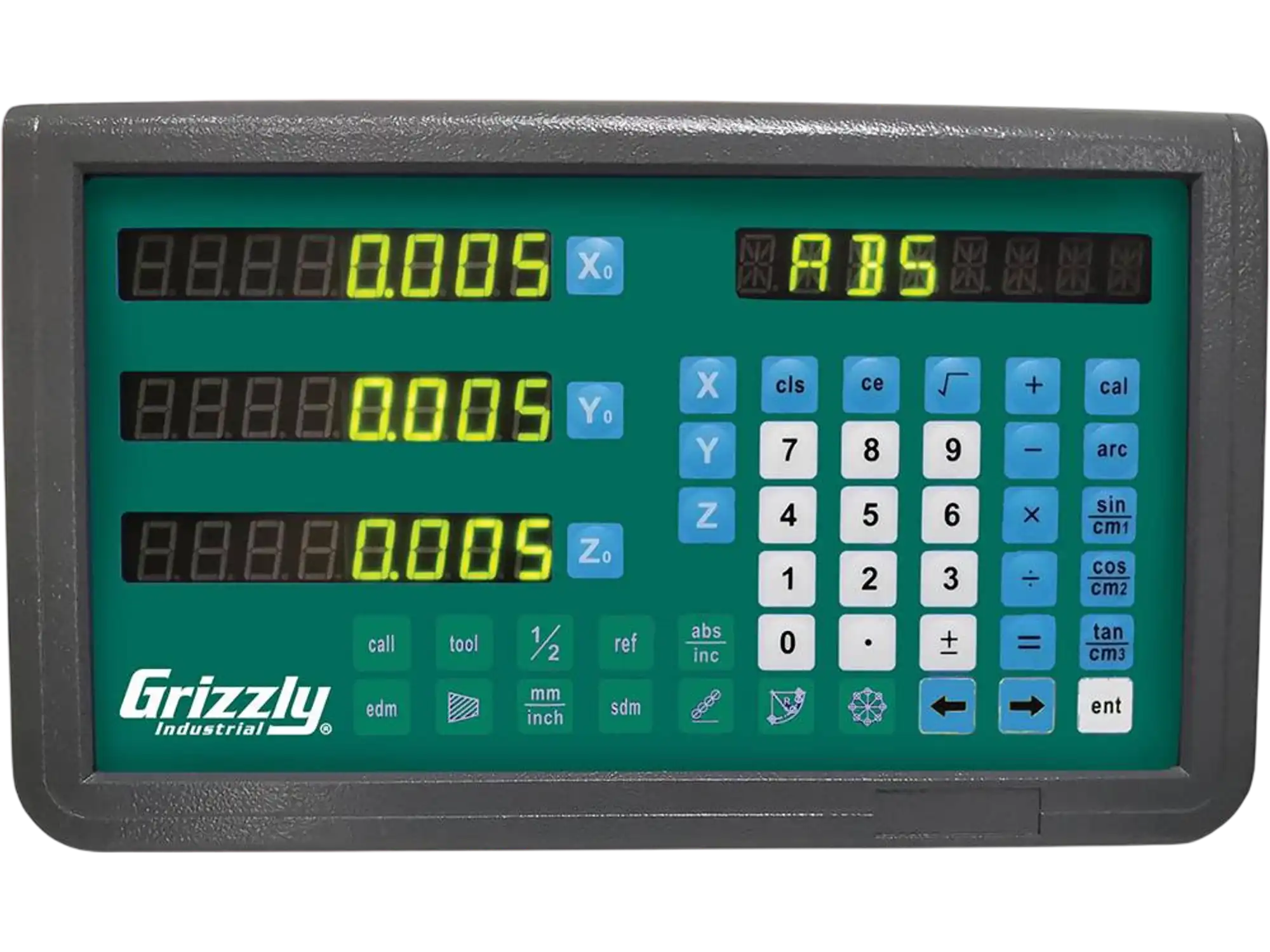

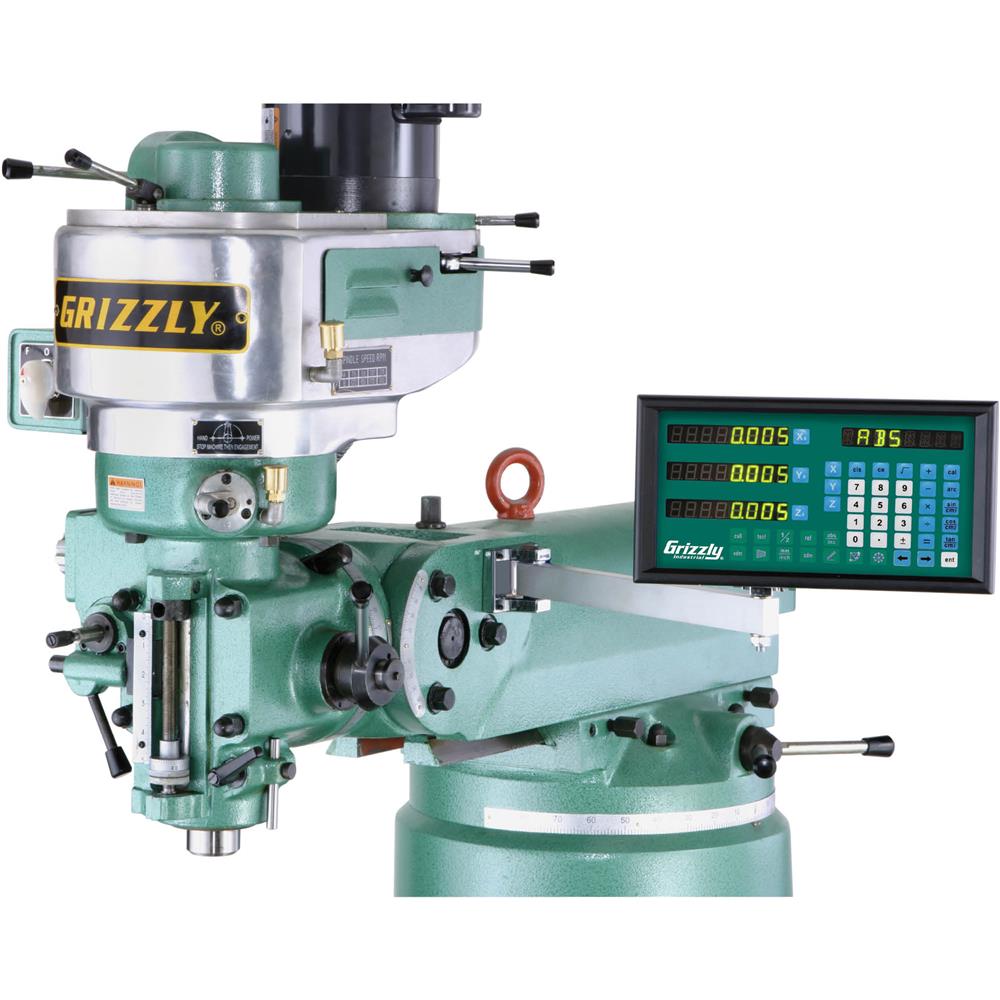

The Grizzly T33006 is a 2-axis digital readout kit designed to add precise position tracking to a milling machine. It includes the readout unit, mounting hardware, and two linear optical scales with 7-7/8" and 21-11/16" travel lengths for custom mill installations.
This DRO system helps improve machining accuracy and workflow by giving clear digital measurement feedback in either mm or inches. Built-in functions support pitch circle diameter, line hole positioning, inclined machining, radius work, shrinkage calculation, and axis summation, making it useful for a wide range of milling tasks.
The sealed aluminum readout housing helps protect internal electronics from dust, fumes, and coolant vapor, while the optical scales are designed for smooth movement, oil resistance, and repeatable performance. With 5µm resolution and strong repeatability, this kit is well suited for machinists, fabrication shops, and serious hobby users upgrading a manual mill.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Z0 + Z1 axis summation
- Pitch circle diameter (PCD)
- Line hole positioning (LHOLE)
- Inclined machining (INCL)
- Simple and smooth radius functionality
- Linear and non-linear error compensation
- Shrinkage calculation
- Vibration filtering
- mm/inch display
Specifications
| Scale resolution | 5μm |
| Scale travel lengths | 7-7/8", 21-11/16" |
| Scale accuracy | ±6μm, ±10μm |
| Scale optical period | 20μm |
| Scale optical measurement | Transmissive infrared; 34-11/16" |
| Scale repeatability | 2μm |
| Scale seal protection | IP53 |
