Grizzly T33007 Digital Read-Out 7-7/8" x 23-5/8" 2-Axis Mill DRO New
Product Overview

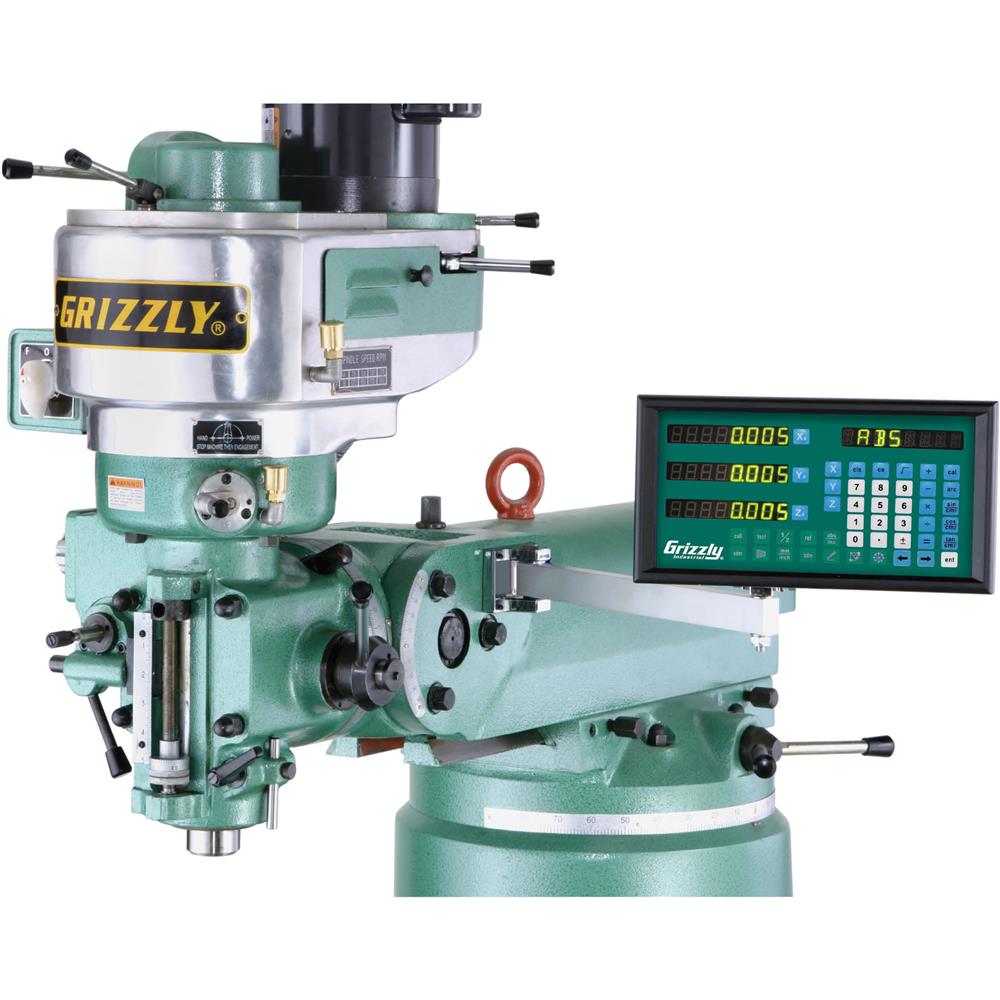

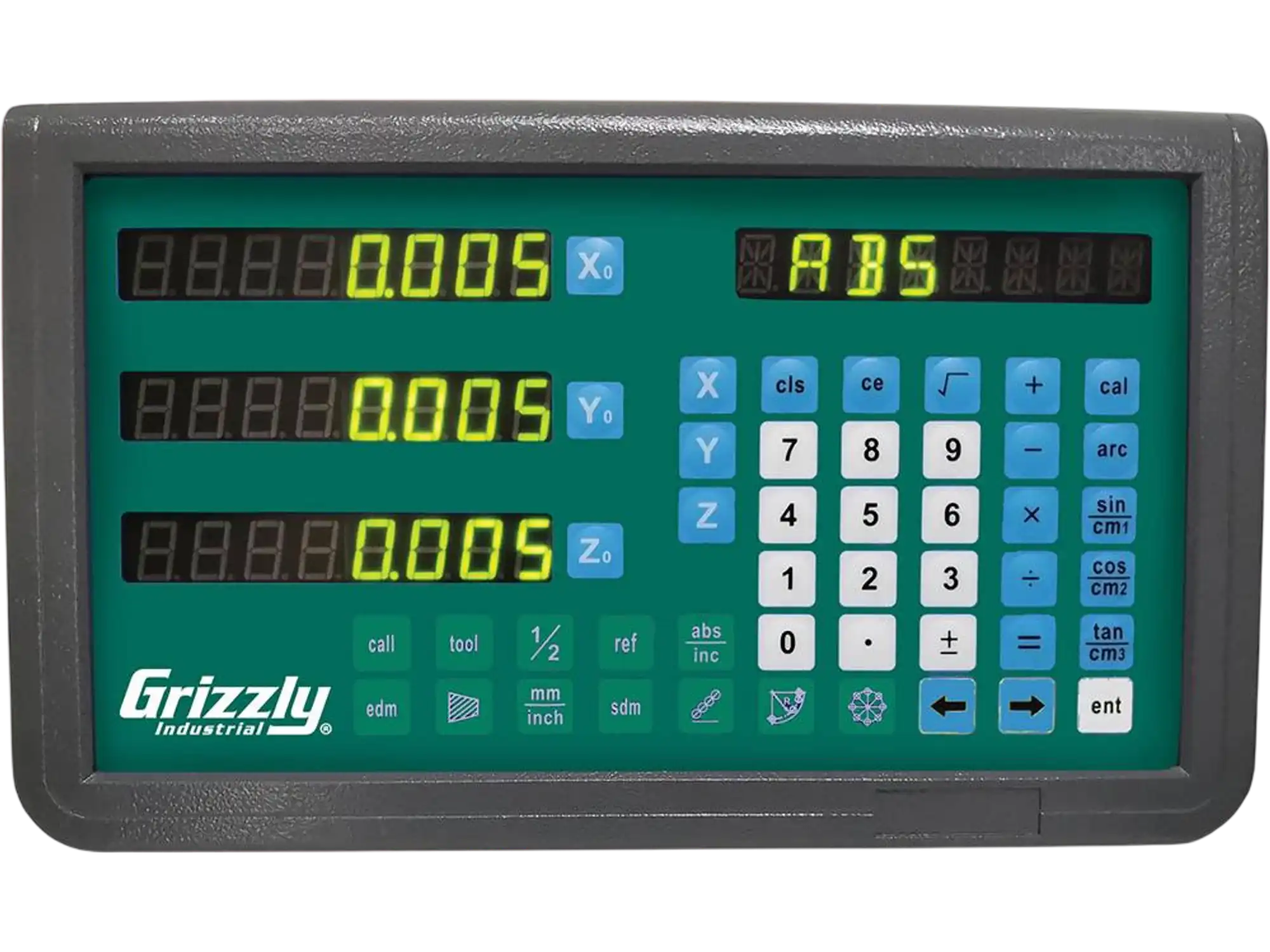

The Grizzly T33007 is a 2-axis digital readout kit for milling machines, designed to add precise position tracking to custom mill setups. It includes the DRO display, mounting hardware, and two linear optical scales with 7-7/8" and 23-5/8" travel lengths for accurate X- and Y-axis measurement.
This system helps improve machining accuracy and repeatability with 5μm resolution, 2μm repeatability, and useful built-in functions for pitch circle diameter, line hole positioning, inclined machining, radius work, shrinkage calculation, and error compensation. The sealed aluminum readout housing helps protect internal electronics from dust, fumes, and coolant exposure in shop environments.
It is a strong choice for machinists, fabricators, and workshop users who want a dependable DRO upgrade for manual milling operations. With smooth-moving optical scales and both inch and millimeter display modes, it is well suited for users seeking clearer positioning data and more efficient setups.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Z0 + Z1 axis summation
- Pitch circle diameter (PCD)
- Line hole positioning (LHOLE)
- Inclined machining (INCL)
- Simple and smooth radius functionality
- Linear and non-linear error compensation
- Shrinkage calculation
- Vibration filtering
- mm/inch display
Specifications
| Scale resolution | 5μm |
| Scale travel lengths | 7-7/8", 23-5/8" |
| Scale accuracy | ±6μm, ±10μm |
| Scale optical period | 20μm |
| Scale optical measurement | Transmissive infrared; 34-11/16" |
| Scale repeatability | 2μm |
| Scale seal protection | IP53 |
Warranty
This item comes with a 1 year factory warranty.
