Grizzly T33008 Digital Read-Out 7-7/8" x 39-3/8" 2-Axis Lathe DRO New
Product Overview

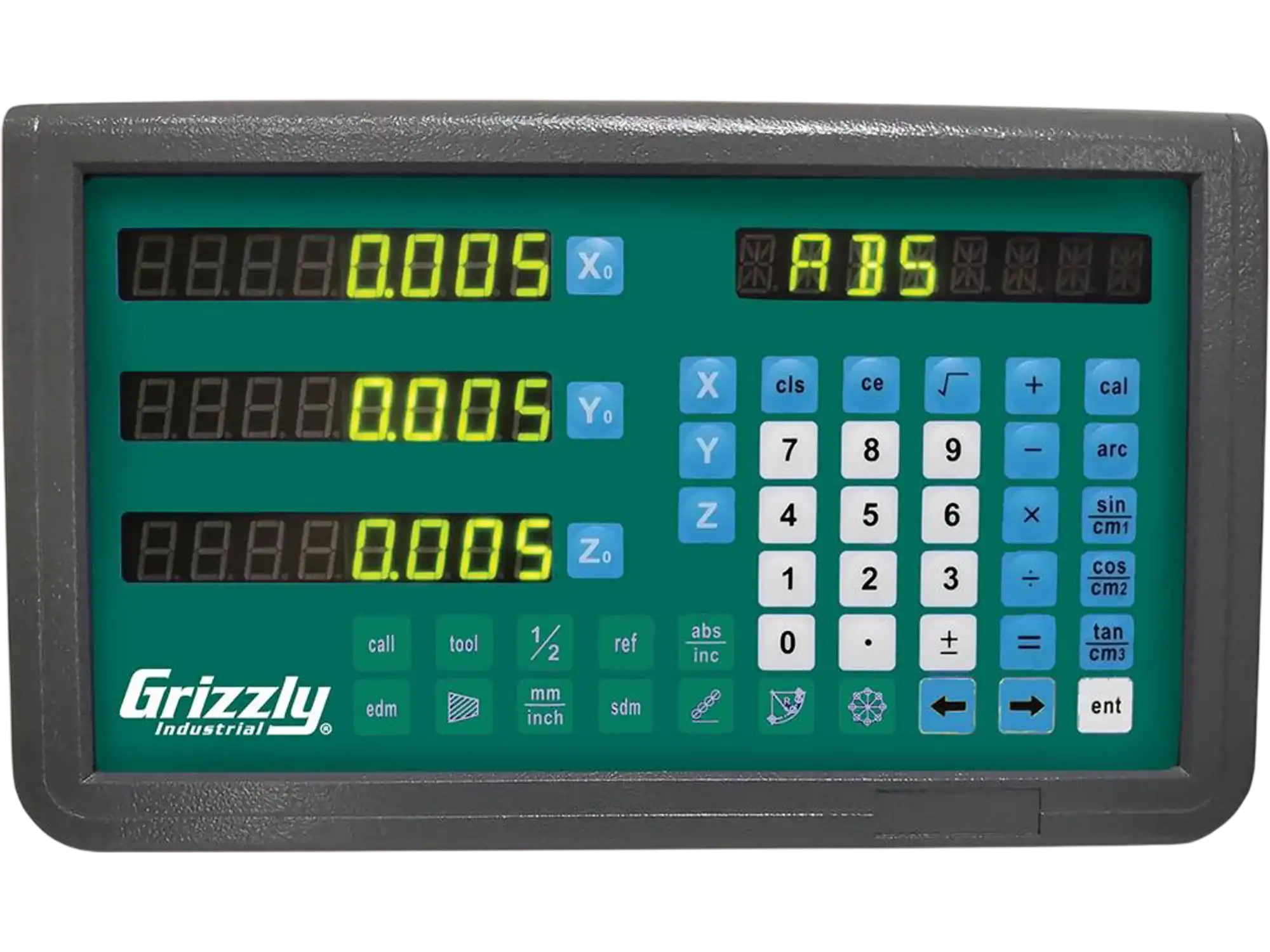

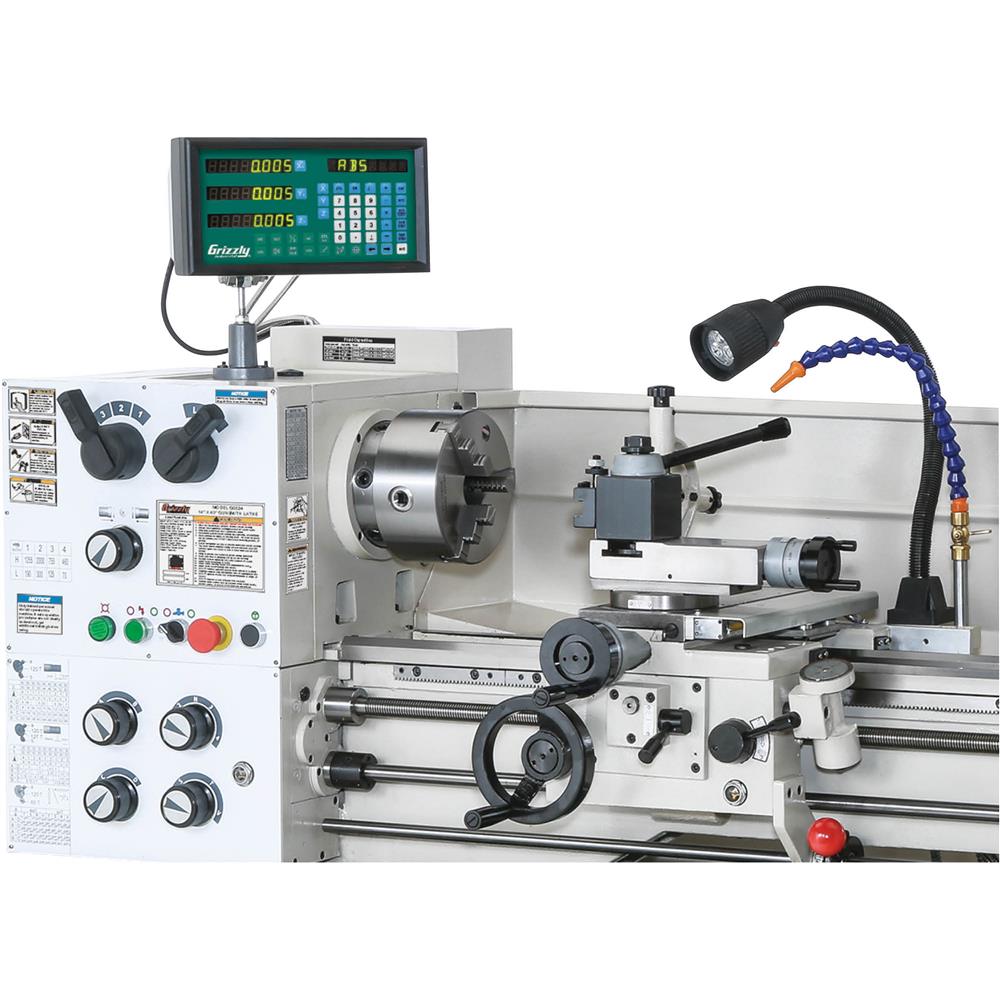

The Grizzly T33008 is a 2-axis digital readout kit designed to add precise position measurement to a lathe. It includes the readout unit, mounting hardware, and two linear optical scales with 7-7/8" and 39-3/8" travel lengths for custom installation on compatible machines.
This DRO helps improve accuracy and repeatability by providing clear digital positioning in either millimeters or inches. Useful built-in functions include pitch circle diameter, line hole positioning, inclined machining, radius calculation, error compensation, vibration filtering, and axis summation for more capable machining setups.
Built for shop use, the sealed aluminum readout case helps resist dust, fumes, and coolant exposure, while the optical scales are designed for smooth movement and reliable measurement. This kit is a strong choice for machinists, metalworking shops, and serious hobby users looking to upgrade a lathe with dependable 2-axis digital control.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Z0 + Z1 axis summation
- Pitch circle diameter (PCD)
- Line hole positioning (LHOLE)
- Inclined machining (INCL)
- Simple and smooth radius functionality
- Linear and non-linear error compensation
- Shrinkage calculation
- Vibration filtering
- mm/inch display
Specifications
| Scale resolution | 5μm |
| Scale travel lengths | 7-7/8", 39-3/8" |
| Scale accuracy | ±6μm, ±10μm |
| Scale optical period | 20μm |
| Scale optical measurement | Transmissive infrared; 34-11/16" |
| Scale repeatability | 2μm |
| Scale seal protection | IP53 |
Warranty
This item comes with a 1 year factory warranty.
