Grizzly T33018 Digital Read-Out 13-13/16" x 63" 2-Axis Lathe DRO New
Product Overview

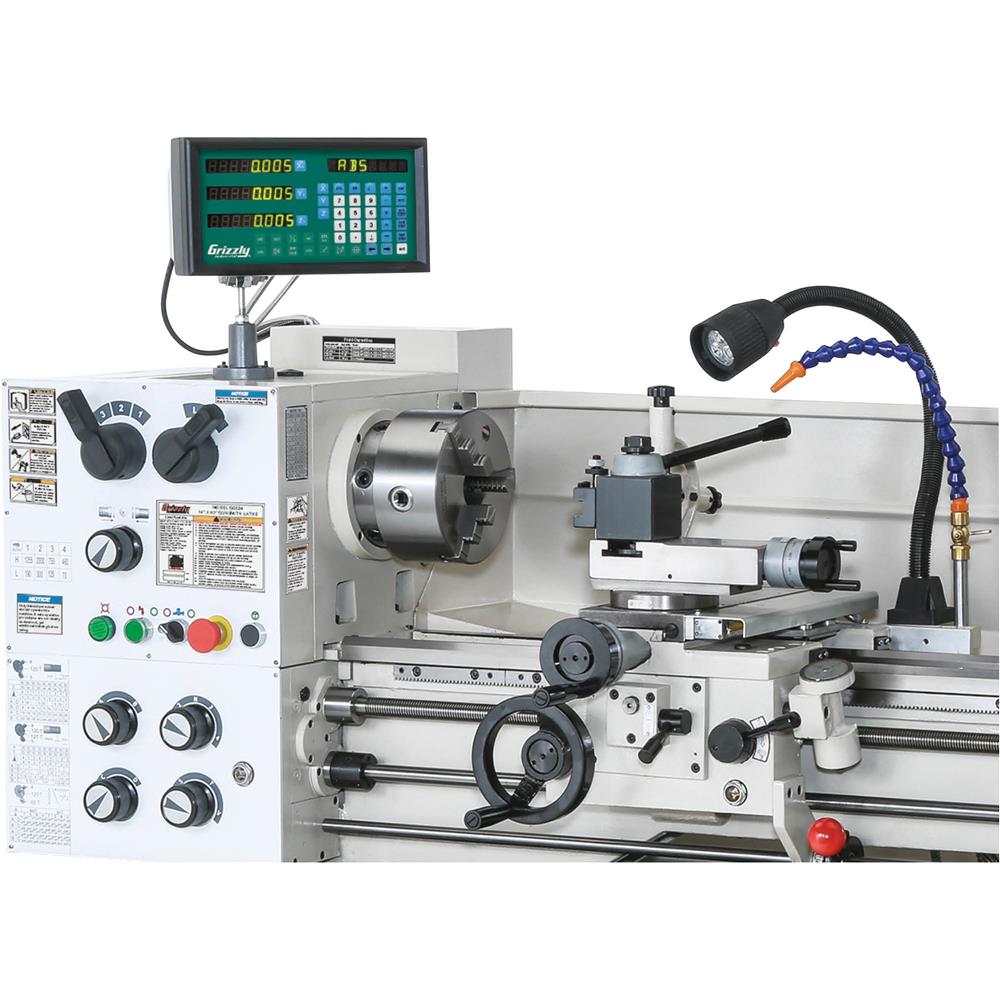

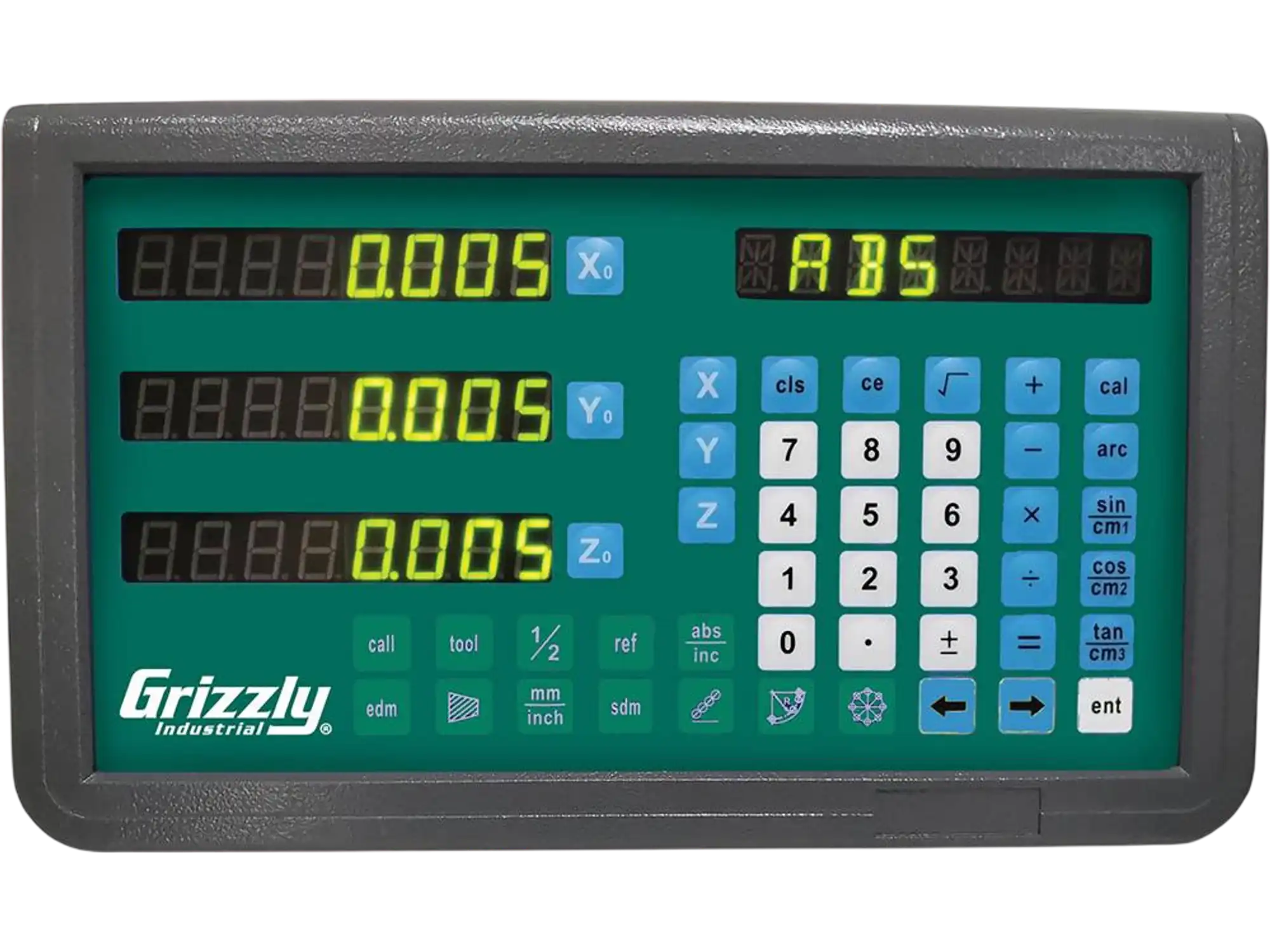

The Grizzly T33018 is a 2-axis digital readout kit designed to upgrade a lathe with precise position feedback on two axes. It includes the readout unit, 13-13/16" and 63" linear optical scales, a DRO arm, and a 2-axis lathe bracket for a custom installation.
Built for accurate, repeatable measurement, this system features 5μm resolution, smooth scale movement, and a sealed aluminum readout case that helps resist dust, fumes, and coolant exposure. Useful functions such as pitch circle diameter, line hole positioning, inclined machining, radius calculation, error compensation, vibration filtering, and mm/inch conversion make it well suited for detailed machining work.
This DRO kit is a strong choice for machinists, fabrication shops, and serious hobby users who want improved accuracy, easier setups, and clearer dimensional control on a lathe. It is especially well suited for machines that can use 13-13/16" and 63" scale travel lengths.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Z0 + Z1 axis summation
- Pitch circle diameter (PCD)
- Line hole positioning (LHOLE)
- Inclined machining (INCL)
- Simple and smooth radius functionality
- Linear and non-linear error compensation
- Shrinkage calculation
- Vibration filtering
- mm/inch display
Specifications
| Scale resolution | 5μm |
| Scale travel lengths | 13-13/16", 63" |
| Scale accuracy | ±6μm, ±25μm |
| Scale optical period | 20μm |
| Scale optical measurement | Transmissive infrared; 34-11/16" |
| Scale repeatability | 2μm |
| Scale seal protection | IP53 |
Warranty
This item comes with a 1 year factory warranty.
