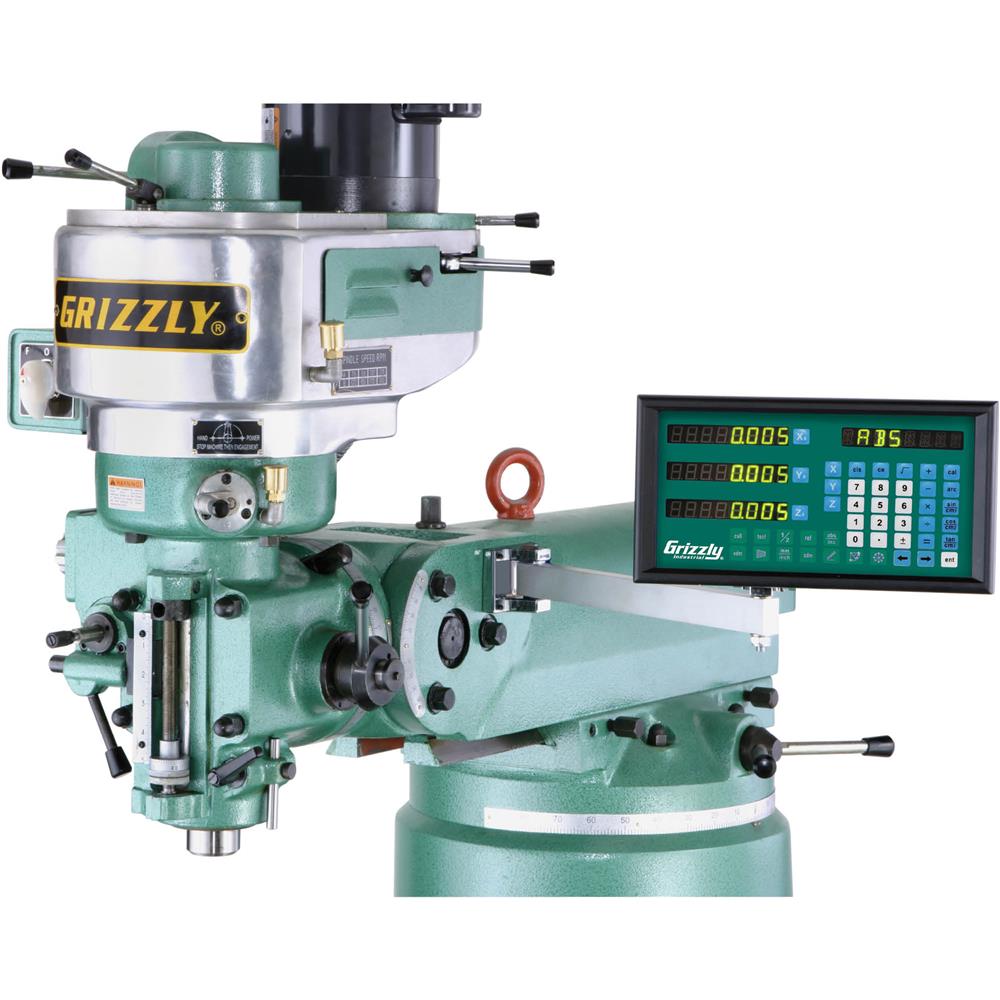

Grizzly T33019 Digital Read-Outs 15-3/4" x 31-1/2" 2-Axis Mill DRO New
Manufacturer: Grizzly
SKU: T33019
QTY
or
(888) 999-1522
$ 620.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Grizzly T33019 Digital Read-Outs 15-3/4" x 31-1/2" 2-Axis Mill DRO New
Product Overview

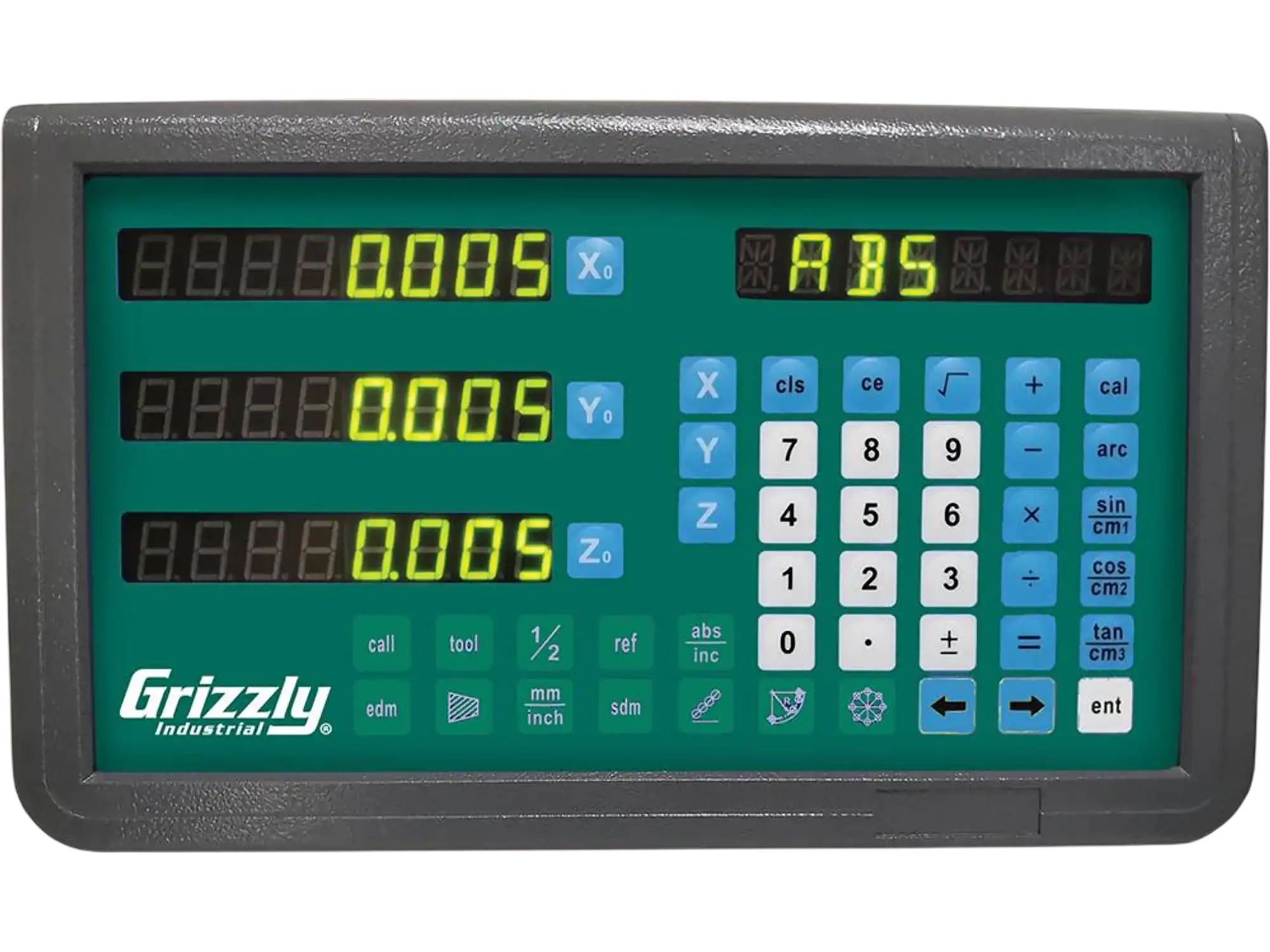

The Grizzly T33019 is a 2-axis digital readout kit for milling machines, designed to add precise position tracking to custom mill setups. This package includes the DRO unit, 15-3/4" and 31-1/2" linear optical scales, mounting arm, and bracket for a complete installation.
Built for accurate and dependable measurement, it features 5μm resolution, strong repeatability, and a sealed aluminum readout housing that helps protect internal electronics from dust, fumes, and coolant exposure. The optical scales are designed for smooth travel and durable operation in shop environments.
This kit is a strong choice for machinists, fabricators, and serious hobby users who want improved accuracy and efficiency at the mill. Useful functions such as pitch circle diameter, line hole positioning, inclined machining, radius calculation, error compensation, vibration filtering, and mm/inch display make it well suited for a wide range of milling tasks.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Z0 + Z1 axis summation
- Pitch circle diameter (PCD)
- Line hole positioning (LHOLE)
- Inclined machining (INCL)
- Simple and smooth radius functionality
- Linear and non-linear error compensation
- Shrinkage calculation
- Vibration filtering
- mm/inch display
Specifications
| Scale resolution | 5μm |
| Scale travel lengths | 15-3/4", 31-1/2" |
| Scale accuracy | ±6μm, ±10μm |
| Scale optical period | 20μm |
| Scale optical measurement | Transmissive infrared; 34-11/16" |
| Scale repeatability | 2μm |
| Scale seal protection | IP53 |
Warranty
This item comes with a 1 year factory warranty.
