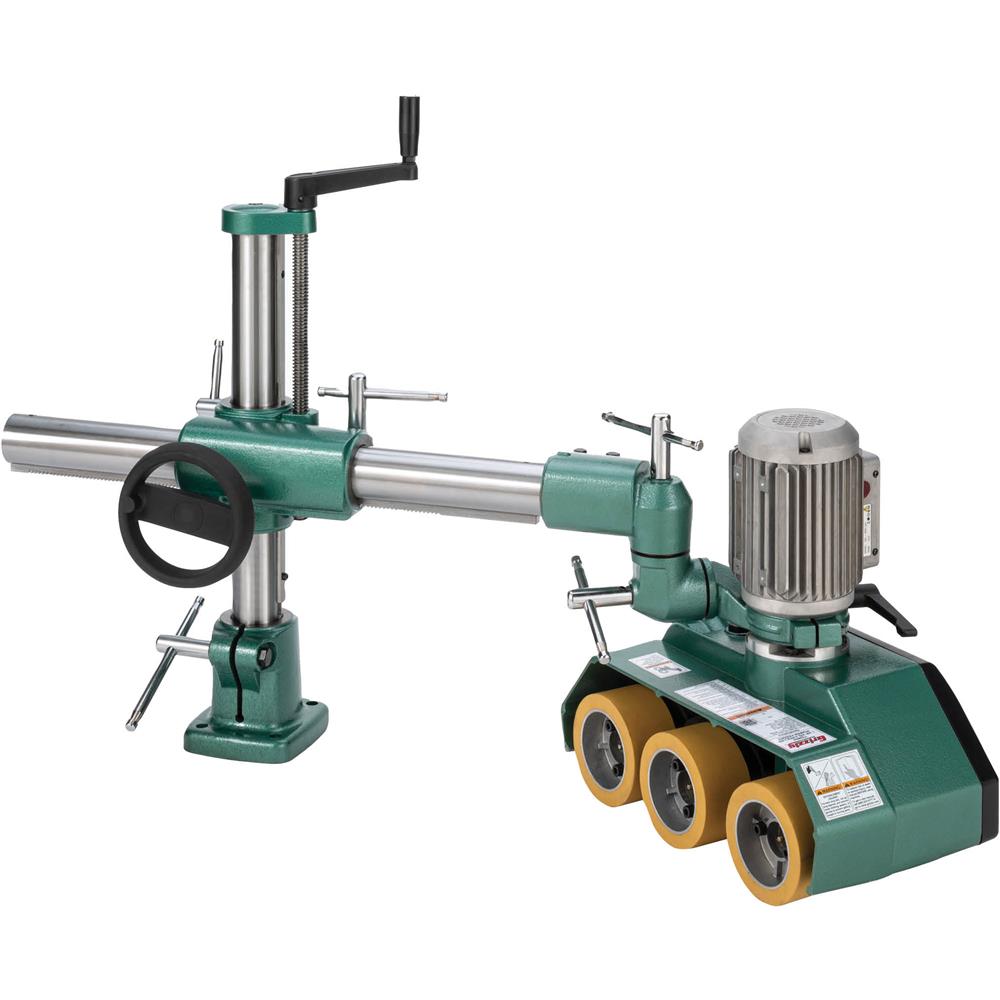

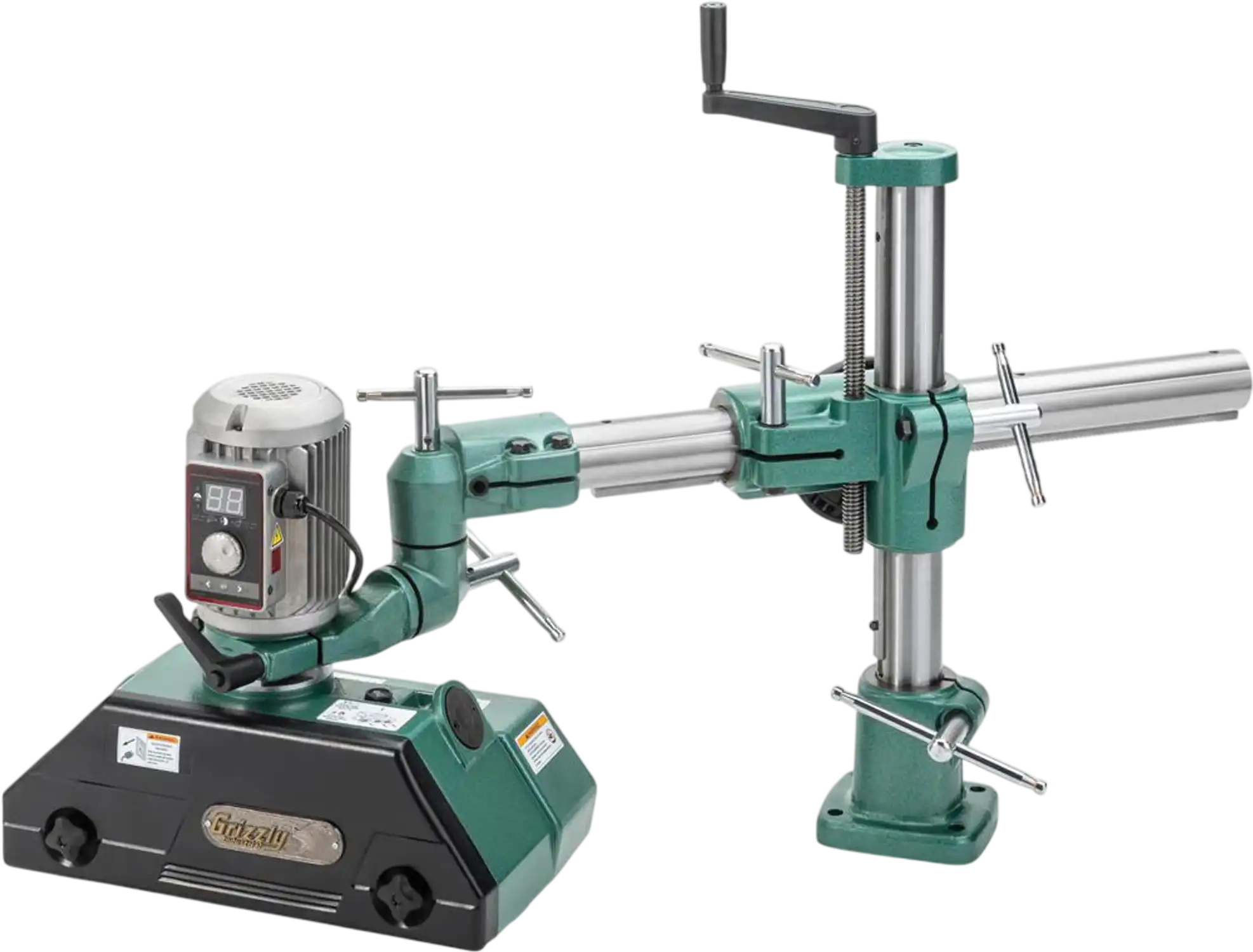

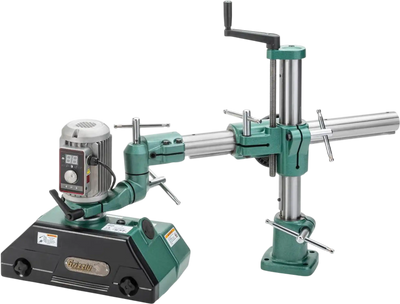

Grizzly T33924 Power Feeder 1 HP Variable-Speed 3-Roller Single-Phase New
Product Overview

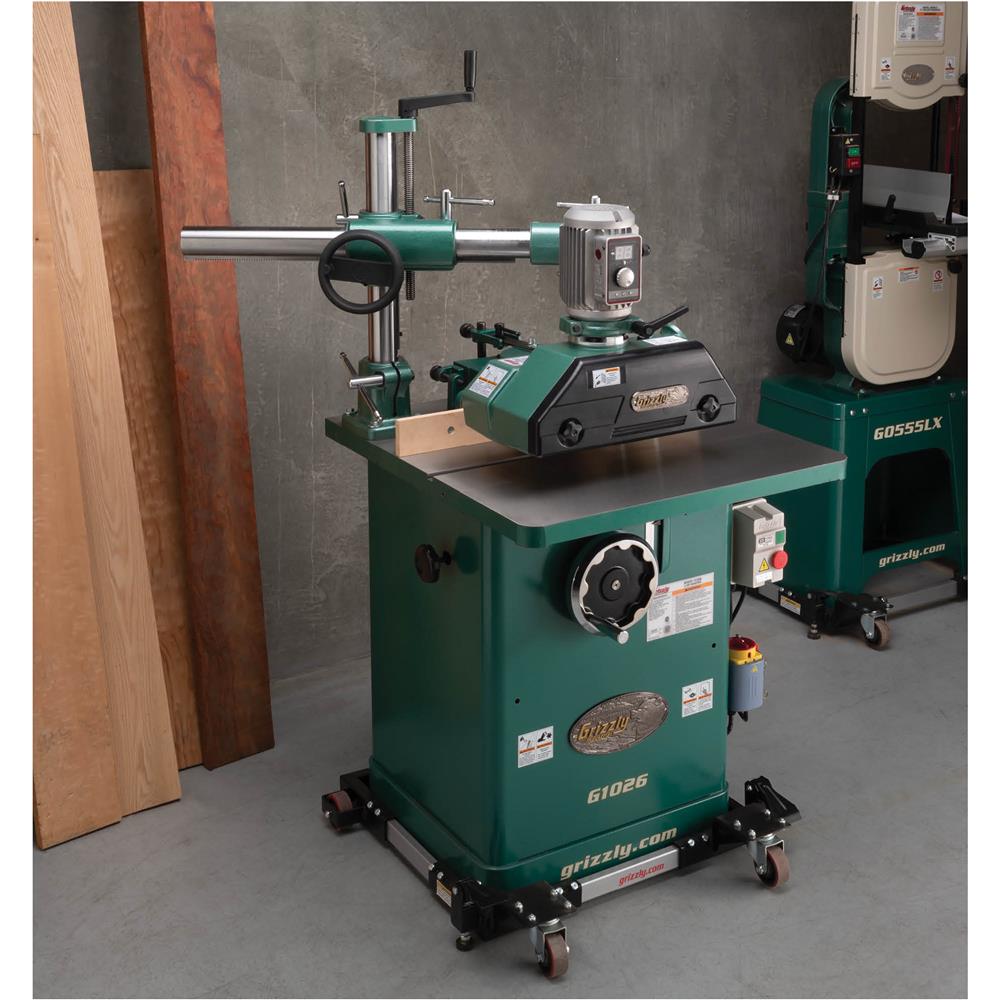

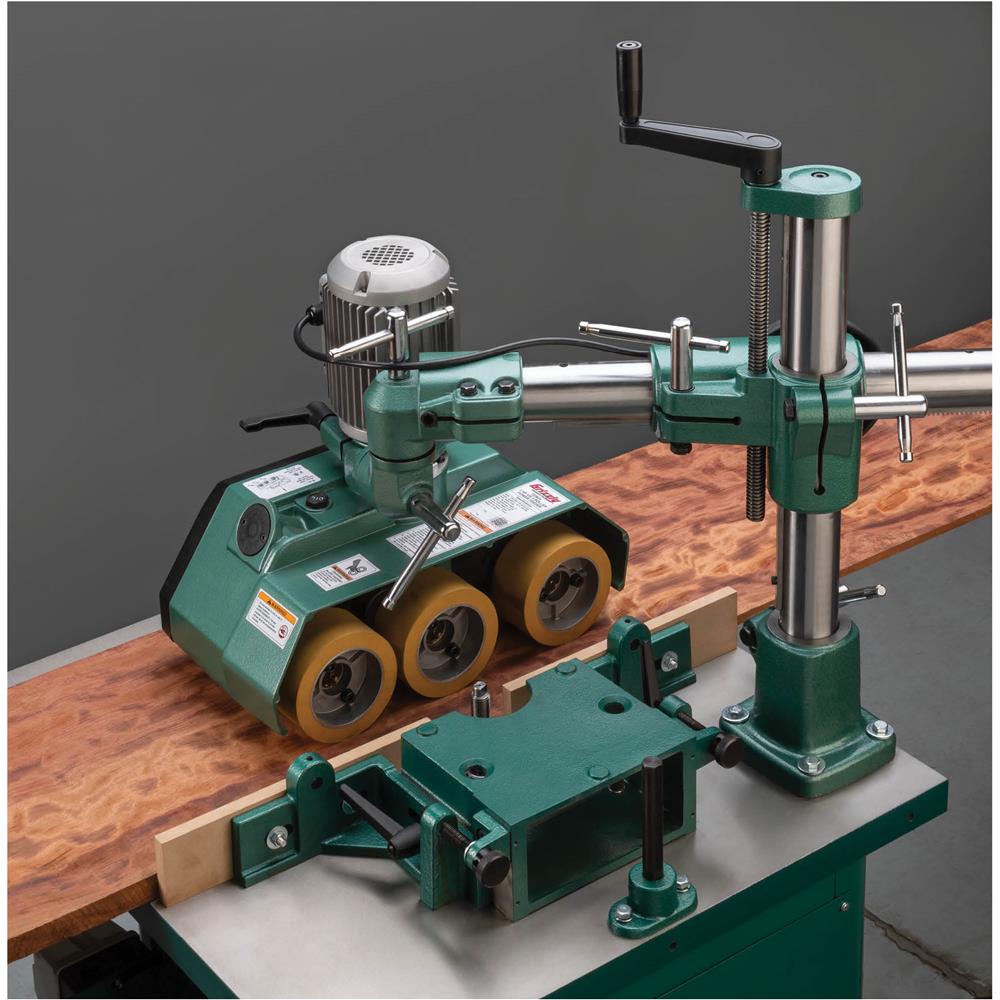

The Grizzly T33924 is a 1 HP variable-speed power feeder designed to deliver smooth, consistent stock feeding on shapers and table saws. Its 3-roller setup helps reduce tearout and improves control, making it a practical upgrade for shops that want cleaner results and more efficient production.
A servo motor keeps feed pressure steady without bogging down, while variable feed ranges of 3–35 FPM and 8–90 FPM let you match speed to the job. An LED display shows feed rate in imperial or metric, and push-button forward/reverse control makes it easy to adapt to different operations.
Built for woodworkers, cabinet shops, and production-minded hobbyists, this feeder offers smooth rack-and-pinion horizontal movement, simple crank-adjusted vertical positioning, and a full 360° swing for flexible setup. It is well suited for users who need reliable, repeatable feeding on a wide range of workpieces.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Tough and effective servo motor

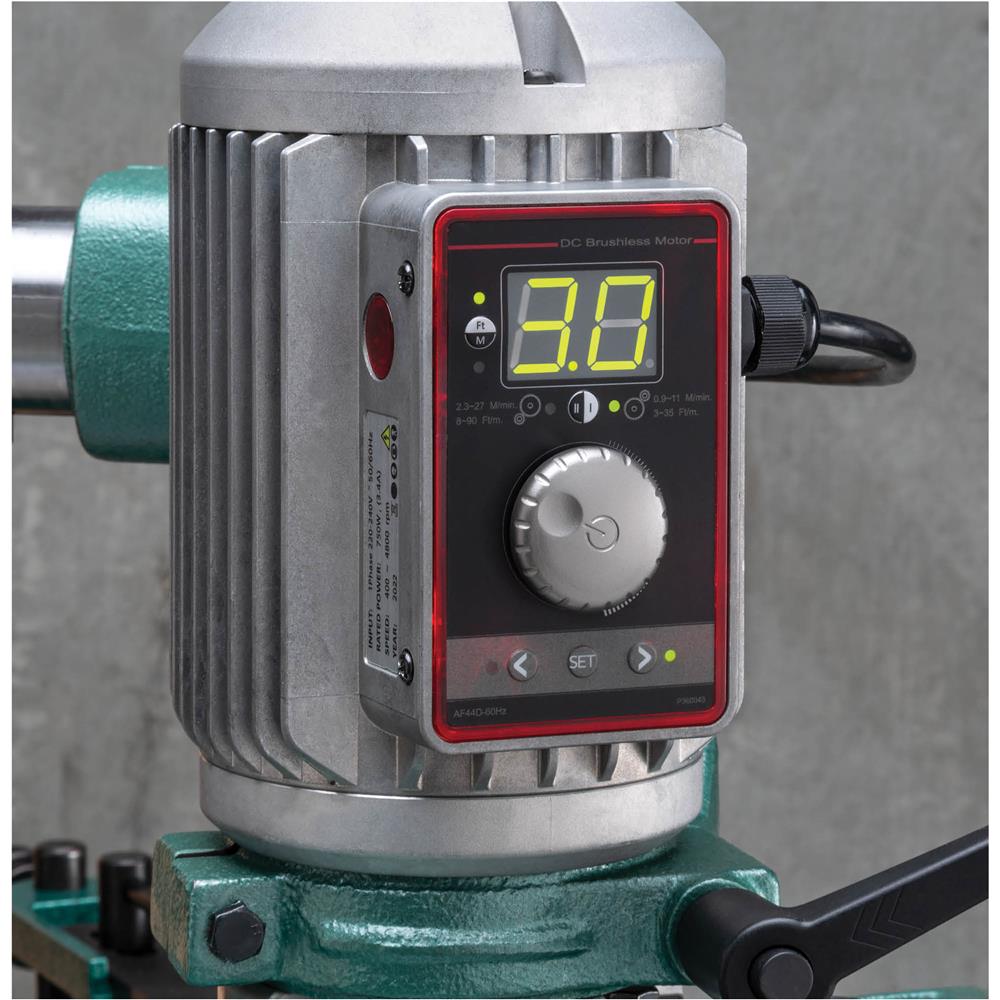

- LED feed rate display showing both imperial and metric readings
- Variable-speed adjustment dial
- Forward/reverse feed
- Push-button ON/OFF switch and feed direction
- Rack-and-pinion horizontal movement
- Crank handle vertical adjustment
- Easy mounting and removal
Specifications
| Motor | 1 HP, 220V, single-phase, 3.4A |
| Feed speeds | Variable, 3-35 FPM and 8-90 FPM |
| Vertical travel | 9-13/16" |
| Horizontal travel | 17-5/16" |
| Rotation | Forward/reverse |
| Swing | 360° |
| Minimum workpiece length | 7" |
| Rollers | (3) 2-3/8" x 4-3/4" |
| Roller suspension | 11/16" |
| Maximum height of rollers | 8-1/8" |
| Overall size | 43-1/2" W x 18-1/2" D x 30" H |
| Approximate shipping weight | 130 lbs. |
Warranty
This item comes with a 1 year factory warranty.
