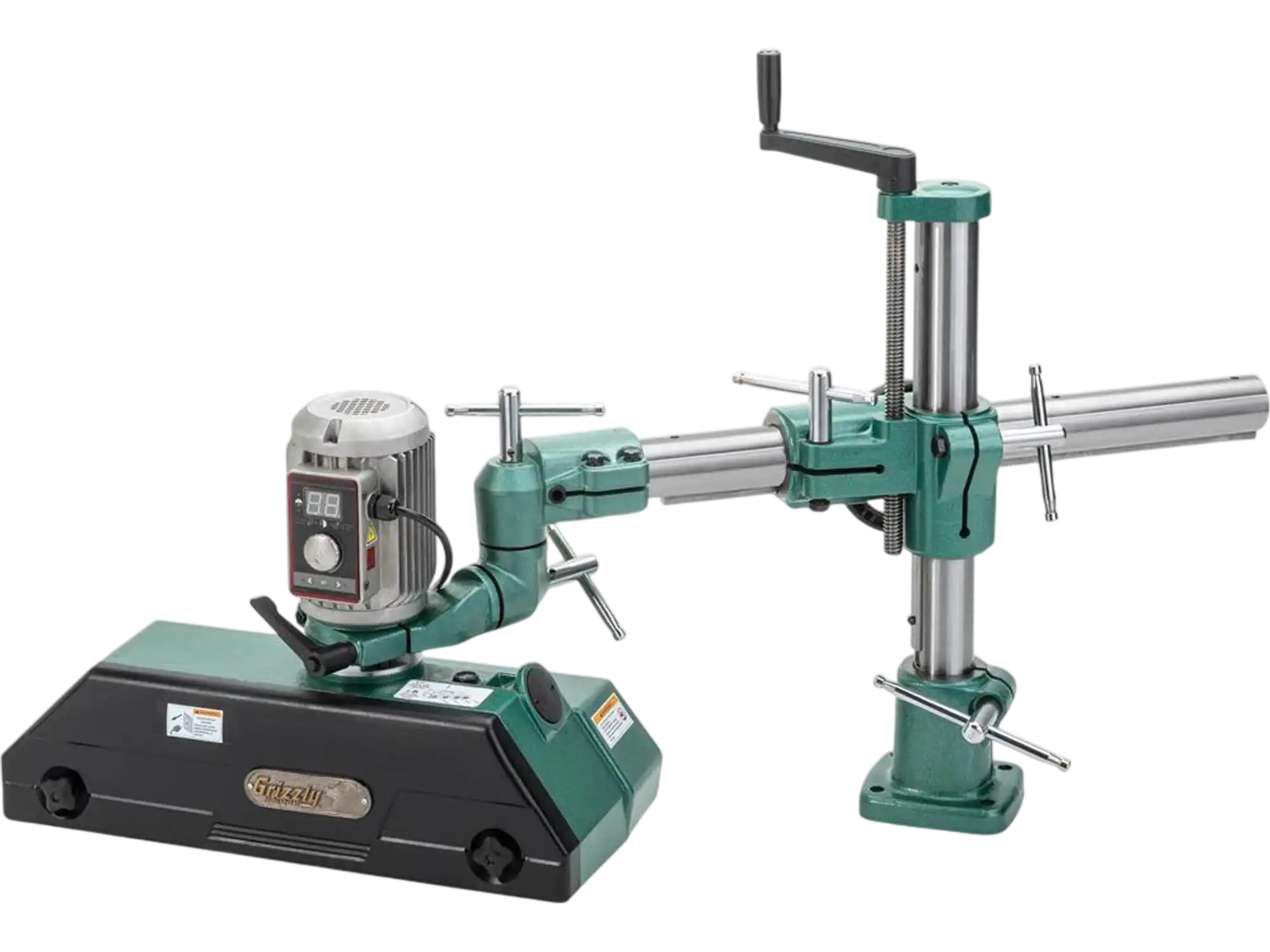

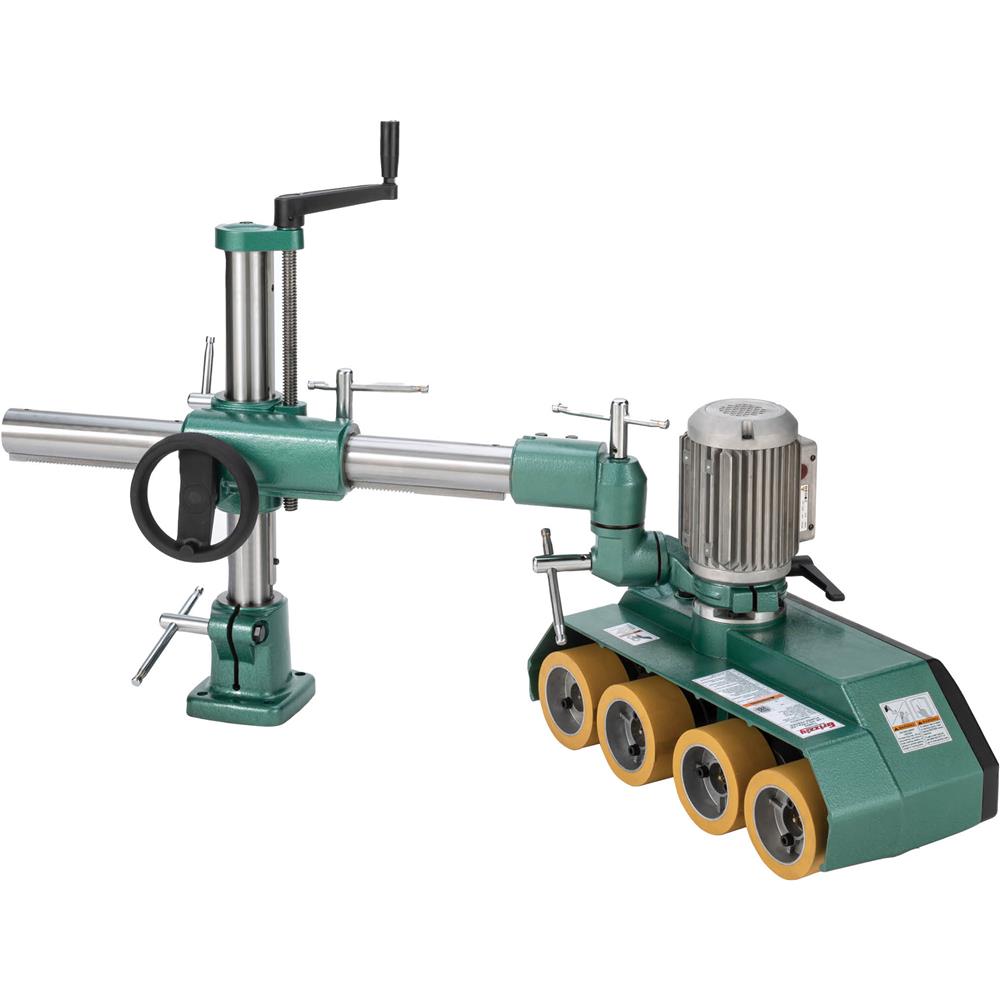

Grizzly T33925 Power Feeder 1 HP Variable-Speed 4-Roller Single-Phase New
Product Overview

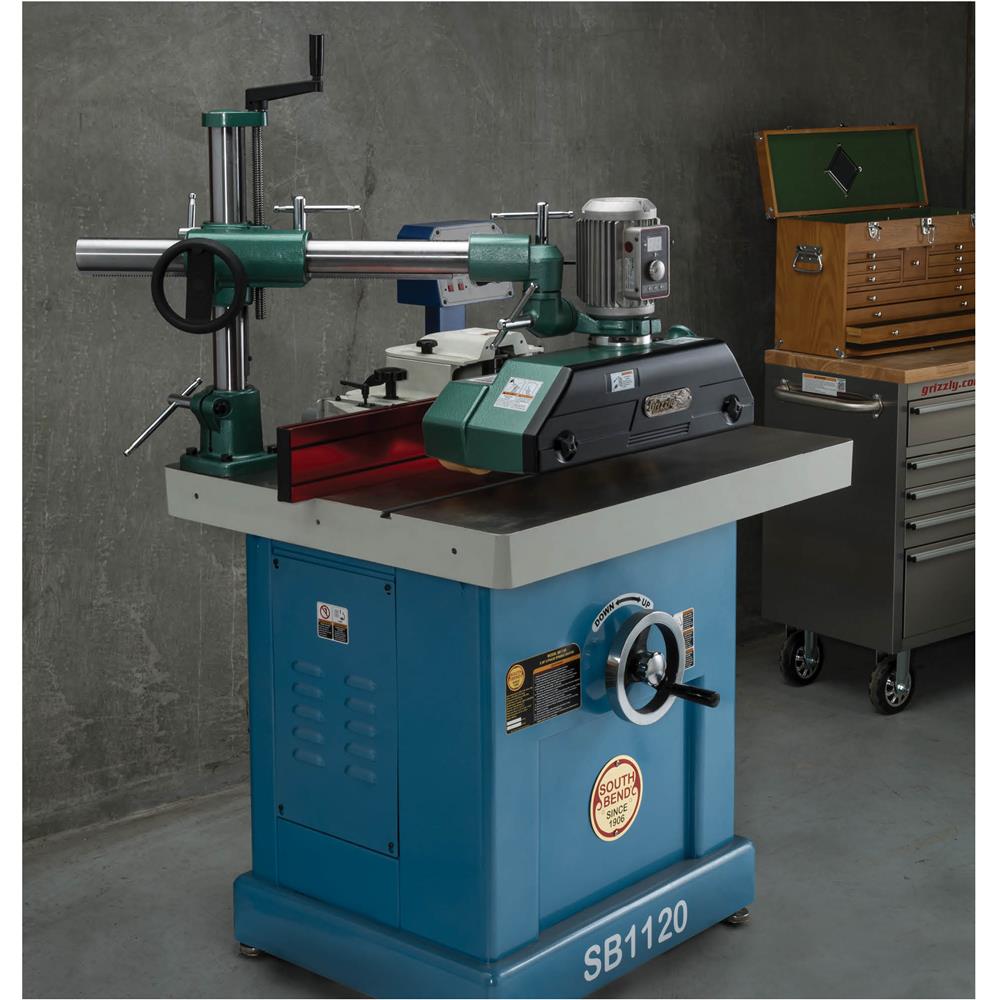

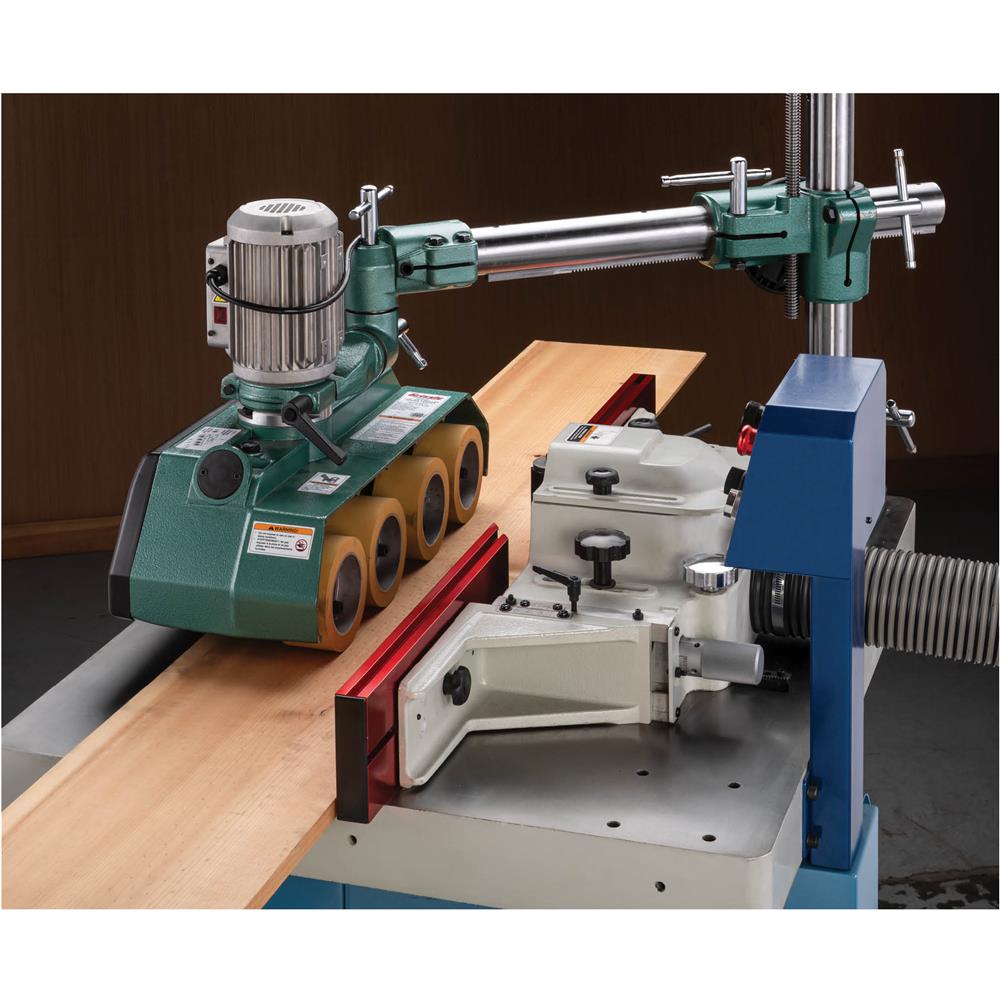

The Grizzly T33925 is a 1 HP, single-phase power feeder designed to keep stock moving smoothly through a shaper or table saw. Its 4-roller design provides steady, consistent feeding for board processing, helping improve control and efficiency during repetitive woodworking tasks.
Variable feed speeds from 3–35 FPM and 8–90 FPM let you match the feed rate to the material and cut, while the servo motor is built to maintain strong, reliable performance under load. An LED display shows the selected speed in imperial or metric, and forward/reverse operation makes it easy to adapt to different shop needs.
With rack-and-pinion horizontal movement, crank-handle vertical adjustment, and 360° swing, this unit is made for flexible positioning and smooth setup changes. It is a practical choice for woodworkers, cabinet shops, and production-focused users who want safer, more consistent feeding for longer work sessions.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Tough and effective servo motor

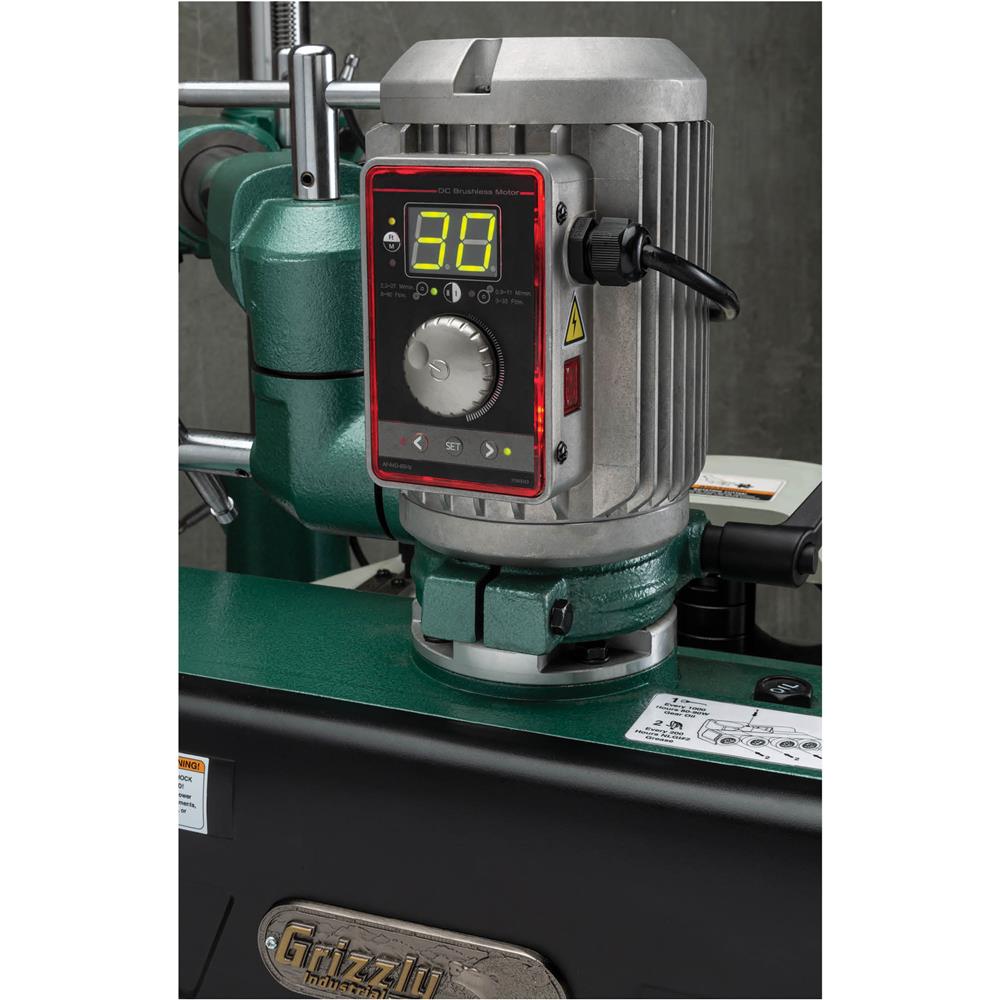

- LED feed rate display showing both imperial and metric readings
- Variable-speed adjustment dial
- Forward/reverse feed
- Push-button ON/OFF switch and feed direction
- Rack-and-pinion horizontal movement
- Crank handle vertical adjustment
- Easy mounting and removal
Specifications
| Motor | 1 HP, 220V, single-phase, 3.4A |
| Feed speeds | Variable, 3–35 FPM and 8–90 FPM |
| Vertical travel | 9-13/16" |
| Horizontal travel | 17-5/16" |
| Rotation | Forward/reverse |
| Swing | 360° |
| Minimum workpiece length | 7" |
| Rollers | (4) 2-3/8" x 4-3/4" |
| Roller suspension | 11/16" |
| Maximum height of rollers | 8-1/8" |
| Footprint | 5-1/2" x 6" |
| Overall size | 43-1/2" W x 24" D x 30" H |
| Approximate shipping weight | 141 lbs. |
Warranty
This item comes with a 1 year factory warranty.
