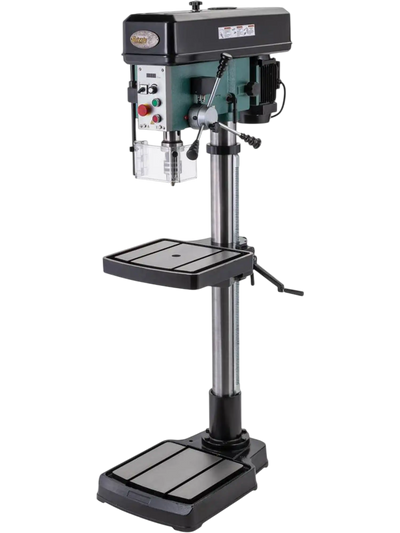

Grizzly T33963 Metal Drill Press 20" Floor Variable-Speed Tapping Drill Press New
Product Overview

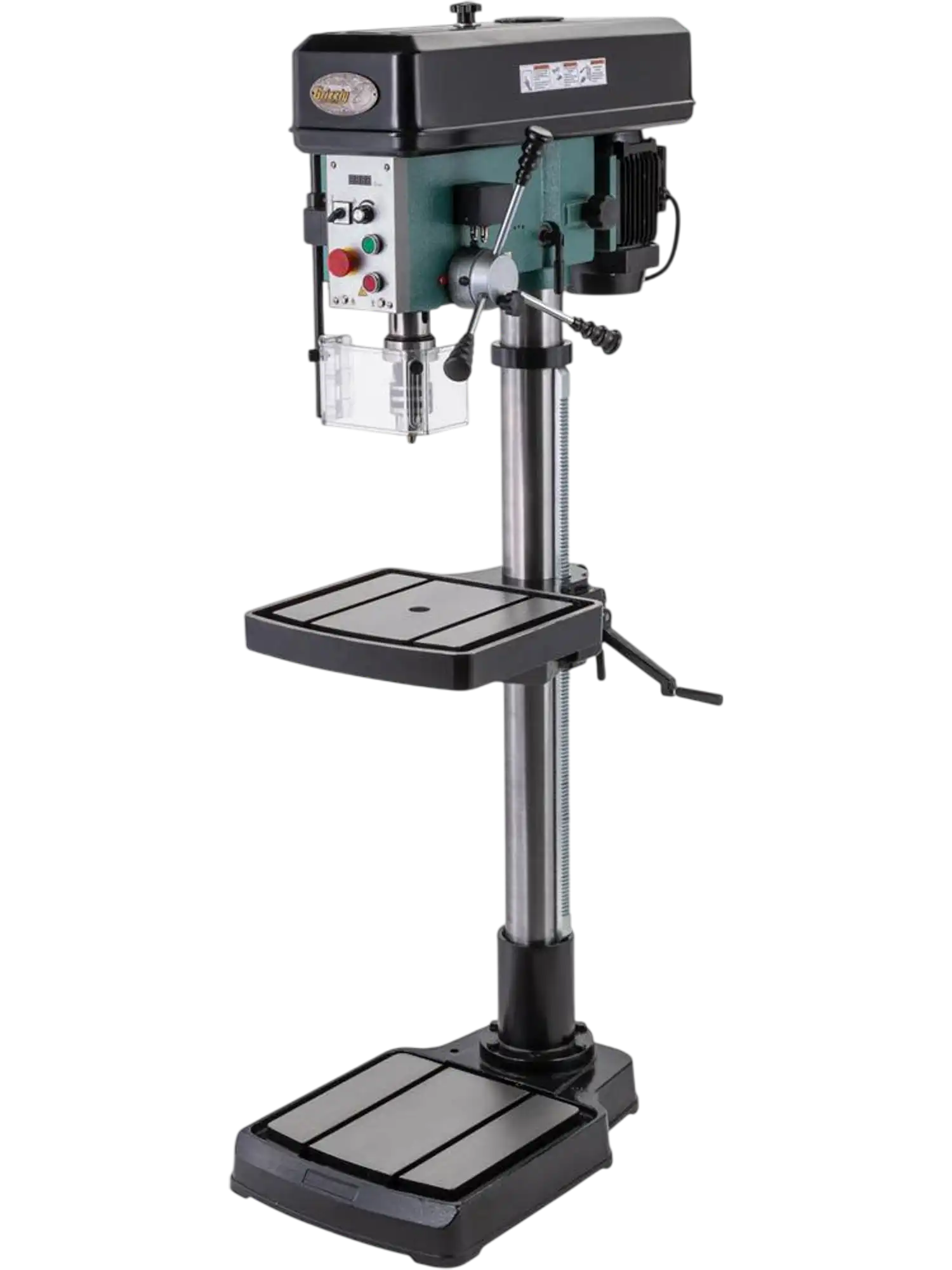

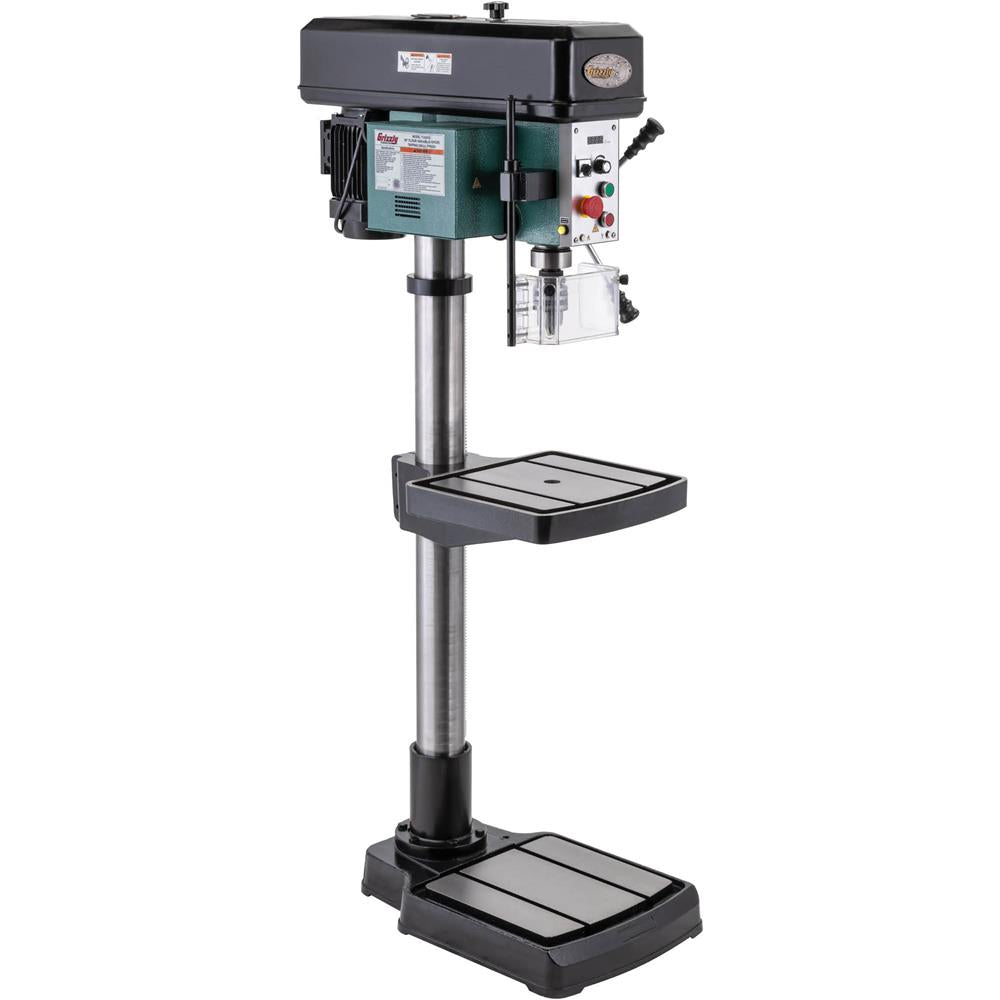

The Grizzly T33963 is a 20-inch floor drill press designed for precise drilling and tapping in metalworking applications. With a 1 HP motor, 1/2-inch tapping capacity, and reversible spindle rotation, it is built to help users cut accurate threaded holes and handle a wide range of shop tasks.
Variable-speed operation across two spindle speed ranges makes it easy to match the machine to the material and job at hand, while the digital speed readout helps with accurate setup. A 360-degree swiveling table, adjustable headstock height, rack-and-pinion table elevation, and dial depth stop give users added control for repeatable results.
An adjustable laser guide and built-in LED work light improve visibility and alignment, making this model a practical choice for fabricators, machinists, maintenance shops, and serious metalworking hobbyists. Its cast-iron base adds stability, and the overall design is suited for users who need a versatile floor-standing drill press with tapping capability.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power

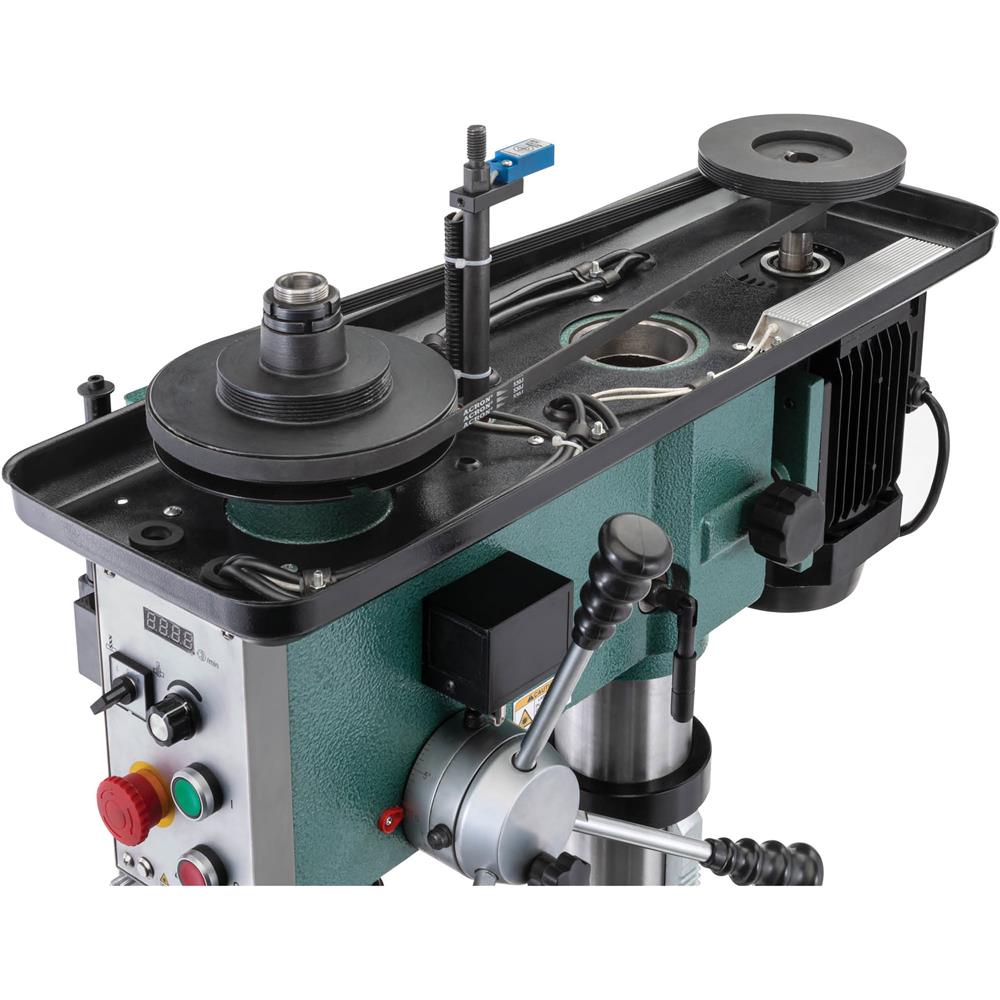

- Two variable-speed spindle speed ranges
- Reversible spindle rotation
- Adjustable headstock height
- Adjustable Class II laser guide

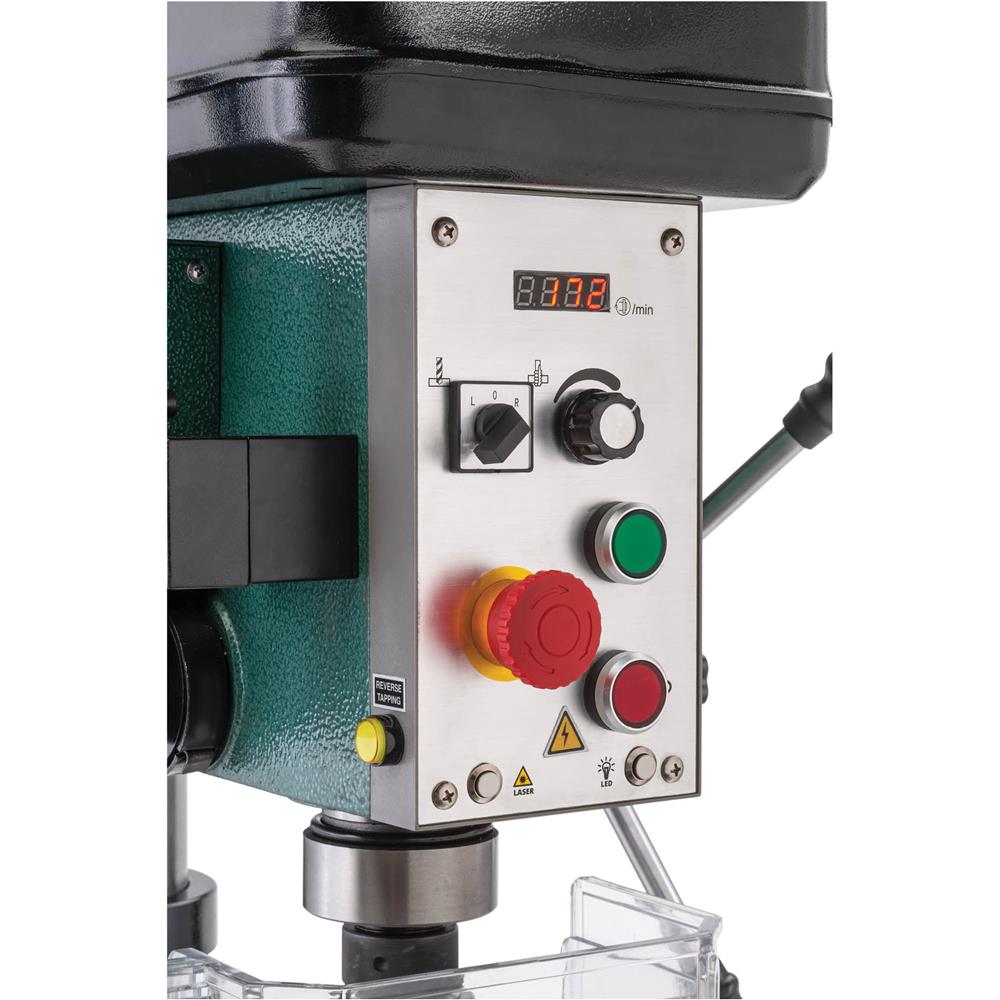

- Spindle speed digital readout

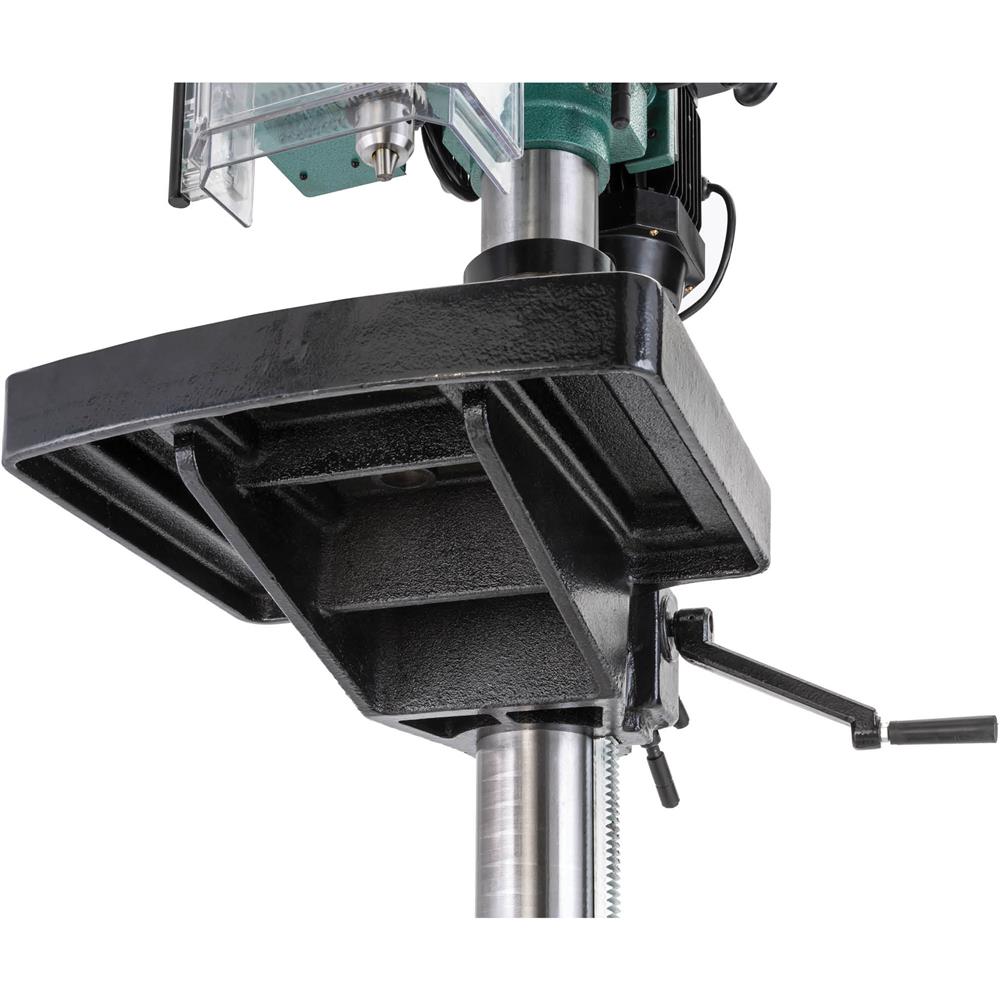

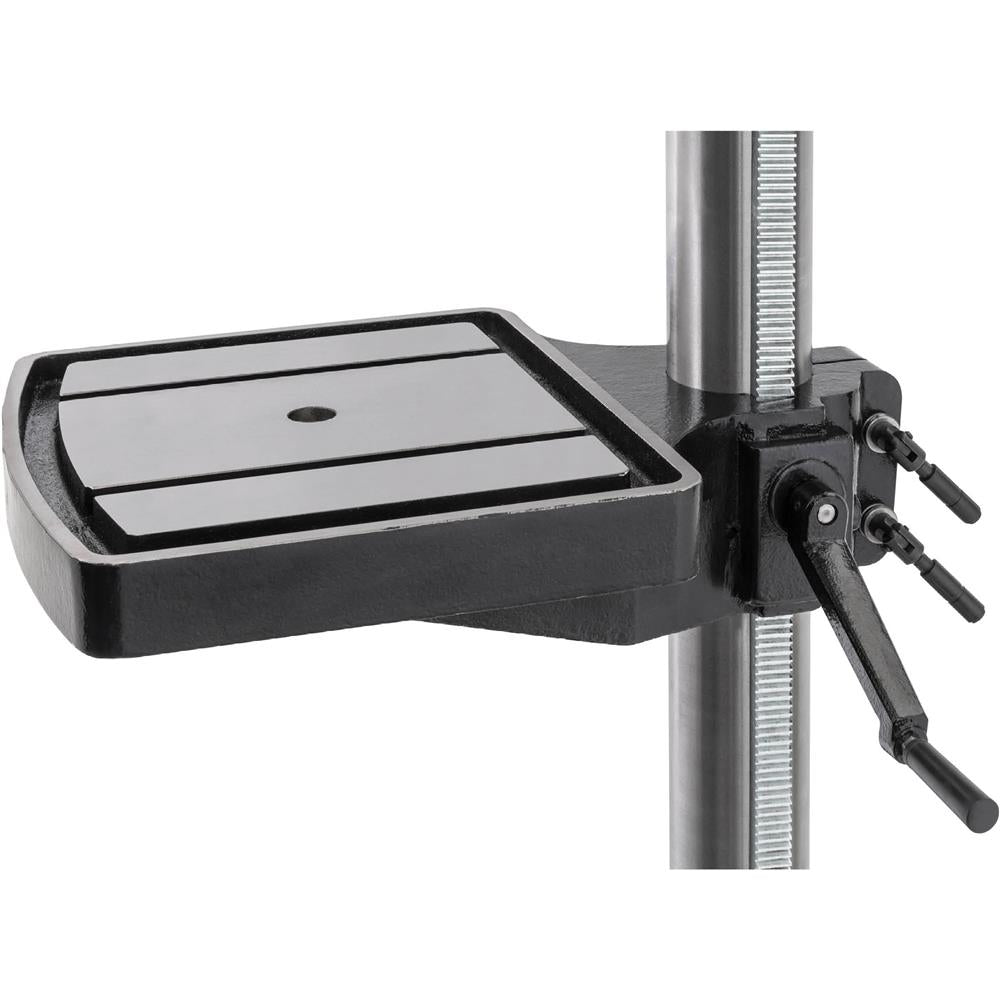

- Rack-and-pinion table elevation control
- Built-in LED work light

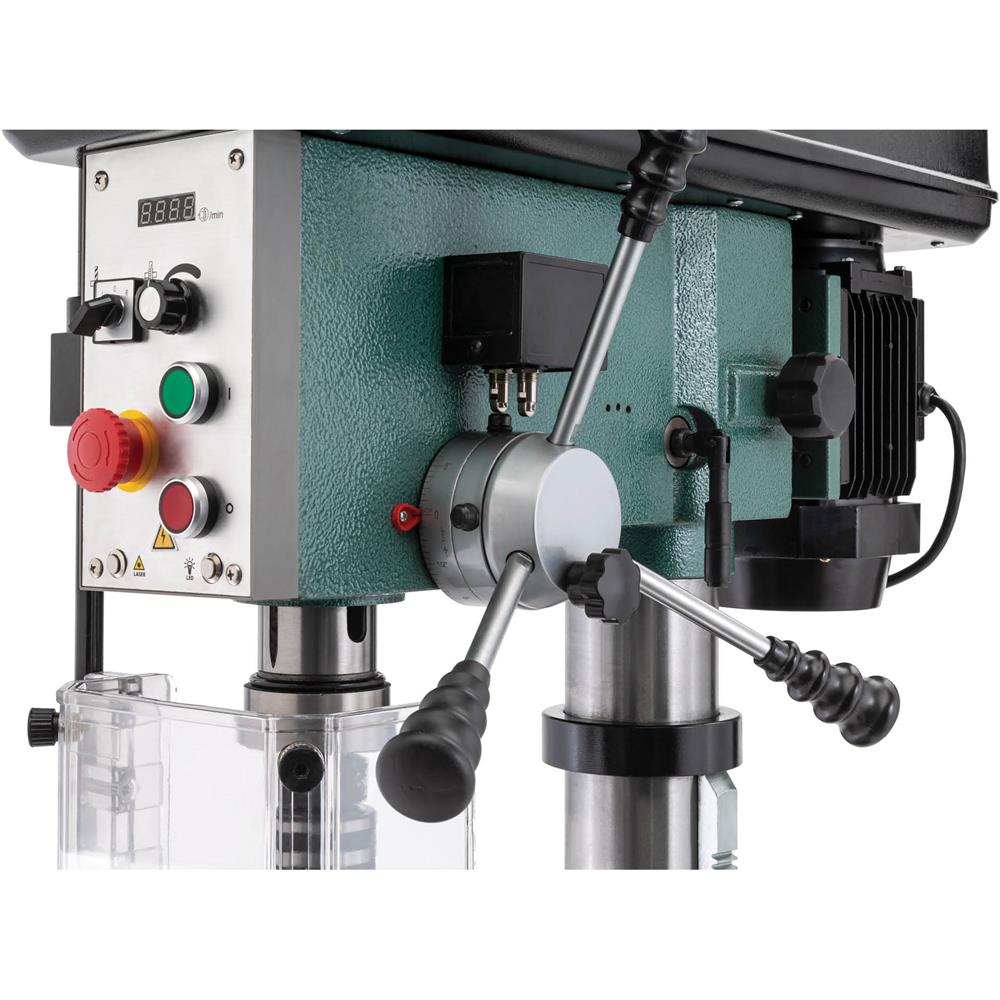

- Dial-type depth stop

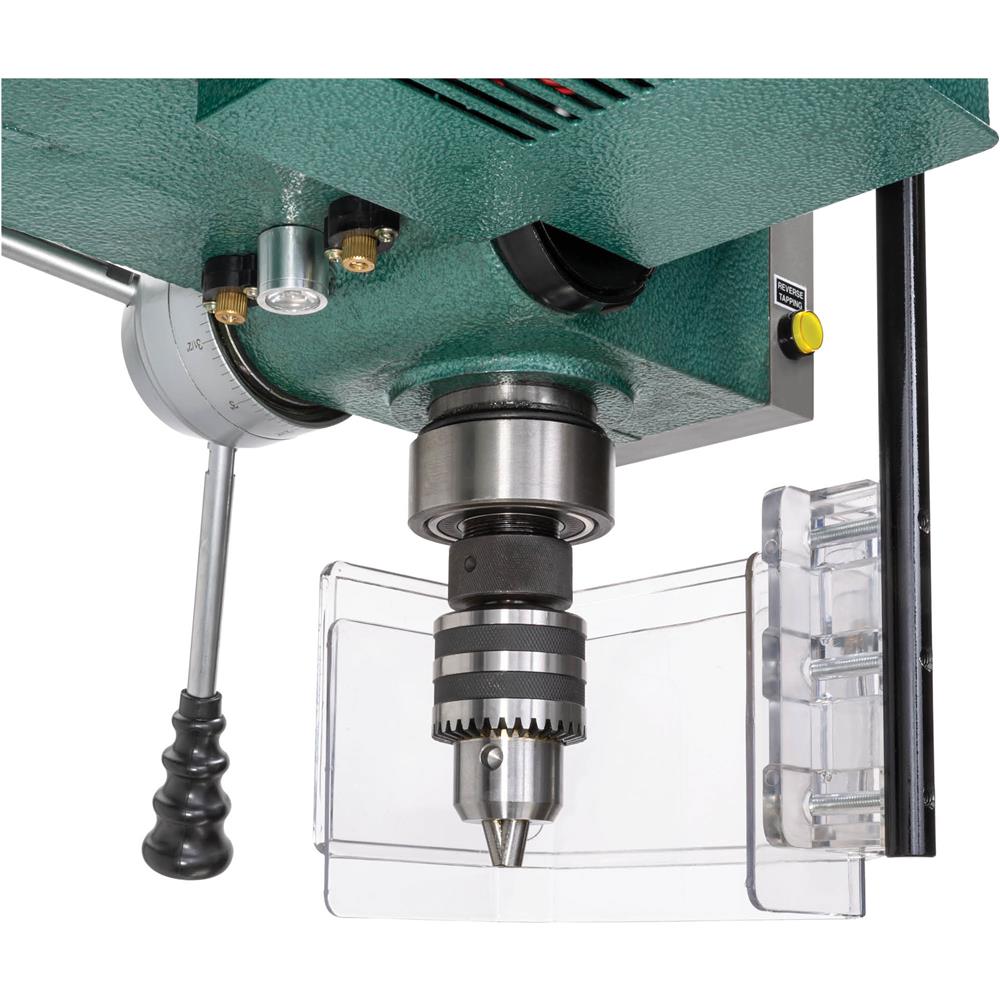

- Square chuck guard with micro switch
- Clear chip guard
- Belt cover safety switch
- Cast-iron base with two 9/16" T-slots
Specifications
| Required power source | 120V, single-phase, min. 20A circuit |
| Motor | 1 HP, 120V |
| Swing | 20" |
| Spindle taper | MT#3 |
| Spindle speed | Variable, 50-600 RPM, 600-2100 RPM |
| Drill chuck | 5/8", JT3 keyed |
| Tapping capacity | 1/2" |
| Table size | 15" x 16-1/4" |
| Table swivel around column | 360° |
| T-slots | (x2) 9/16", 7-5/8" on center |
| Footprint | 26" x 17-1/2" |
| Overall dimensions | 22" W x 33-1/2" D x 70" H |
| Approximate shipping weight | 496 lbs. |
Warranty
This item comes with a 1 year factory warranty.
