Grizzly T33989 Table Saw Accessories Taper Straight Line Jig for Table Saws New
Manufacturer: Grizzly
SKU: T33989
QTY
(888) 999-1522
$ 122.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Grizzly T33989 Table Saw Accessories Taper Straight Line Jig for Table Saws New
Product Overview

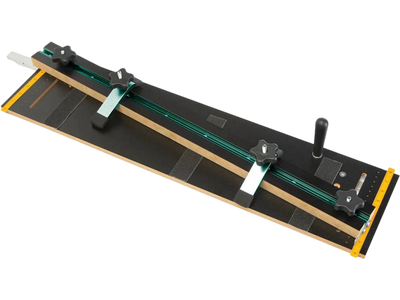

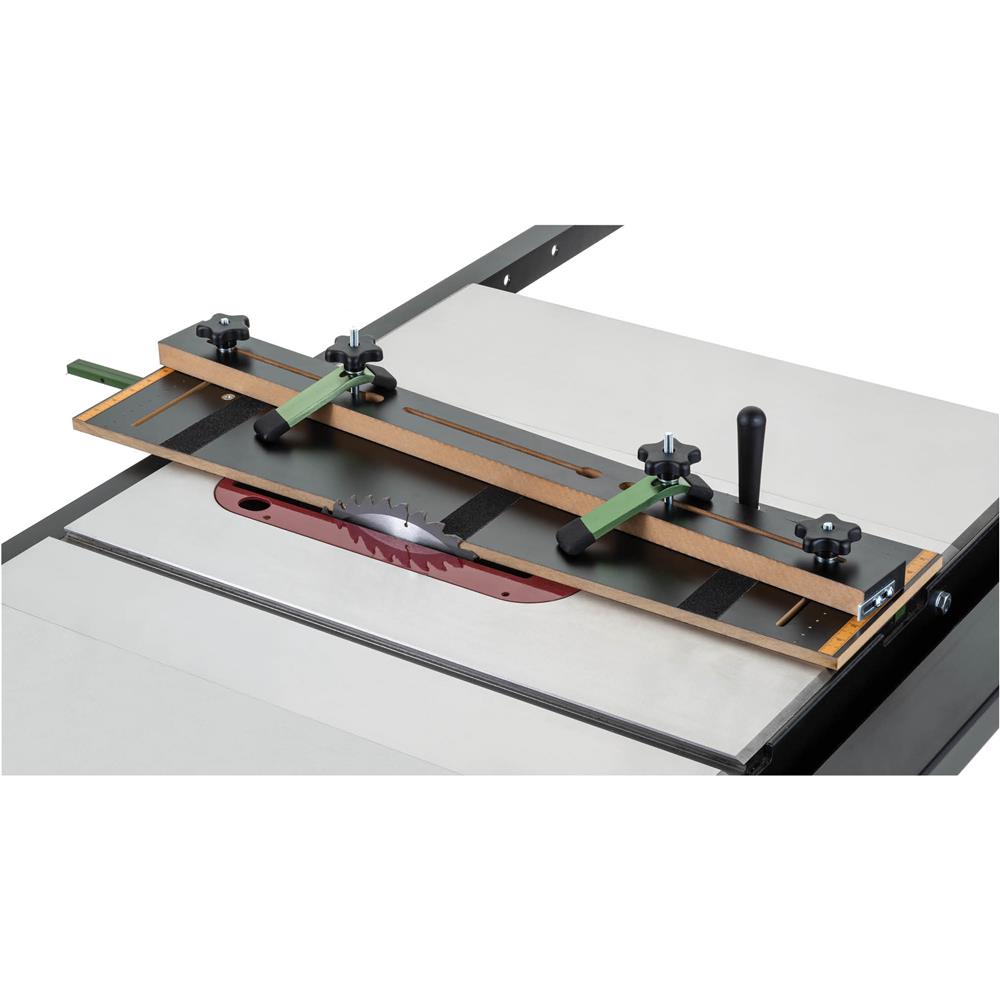

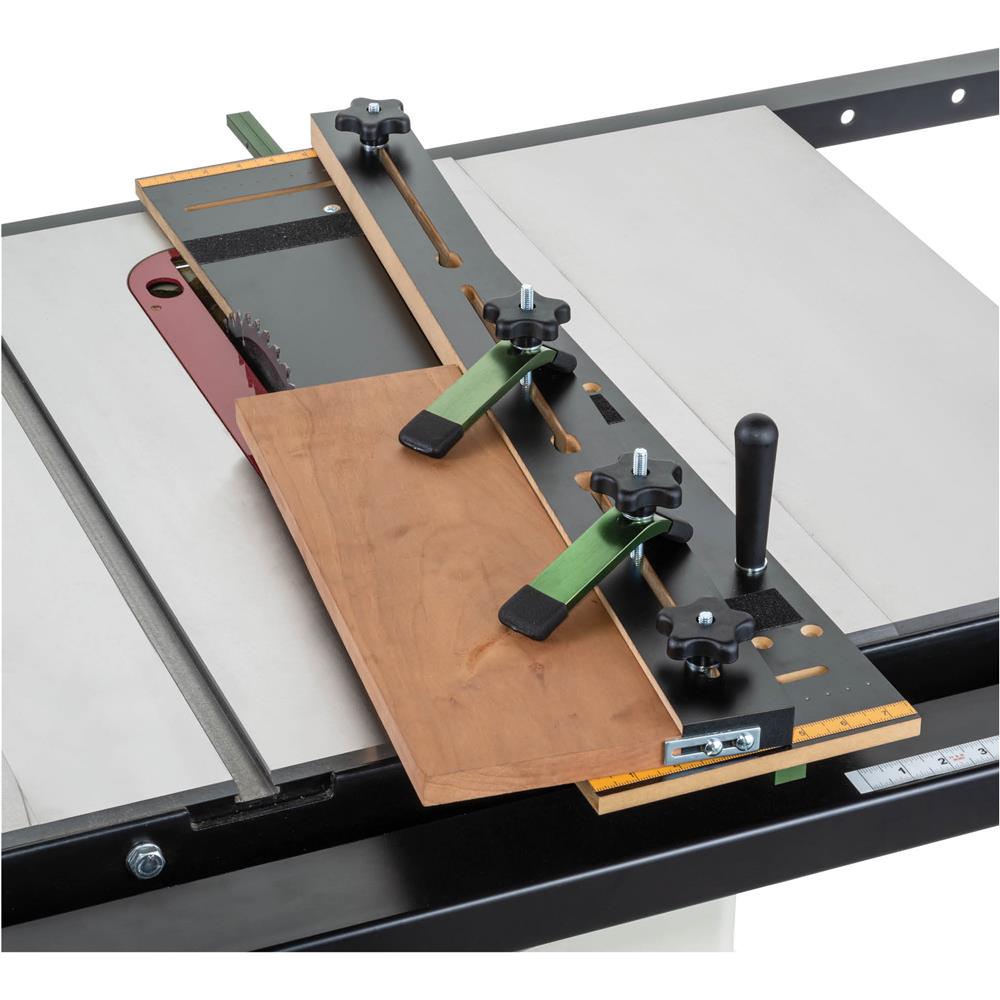

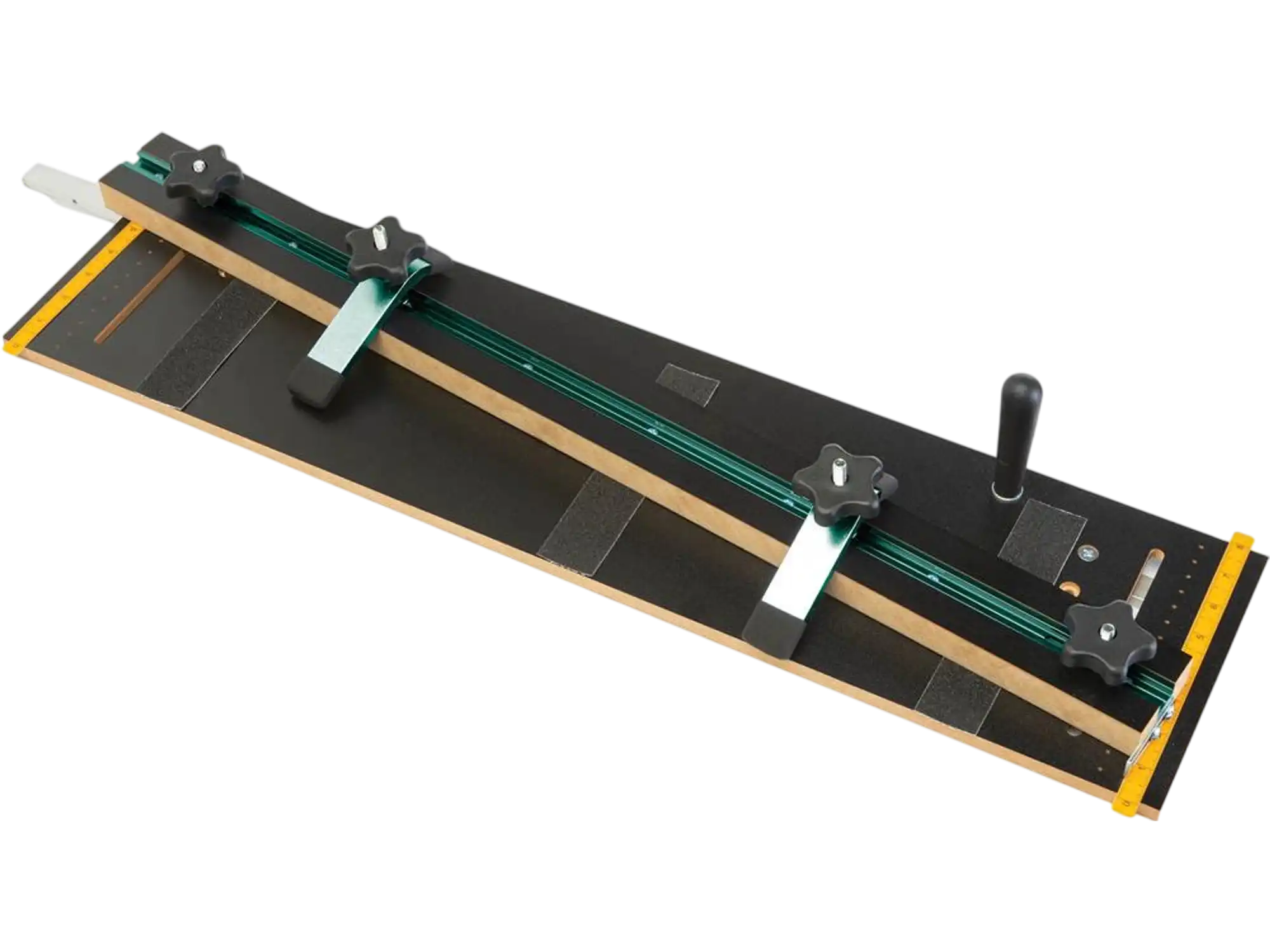

The Grizzly T33989 Taper Straight Line Jig is a table saw accessory designed to help woodworkers make accurate taper cuts and clean straight-line rips with greater control. It rides in the saw’s miter slot and uses an adjustable 36-inch guide to support consistent, repeatable results.

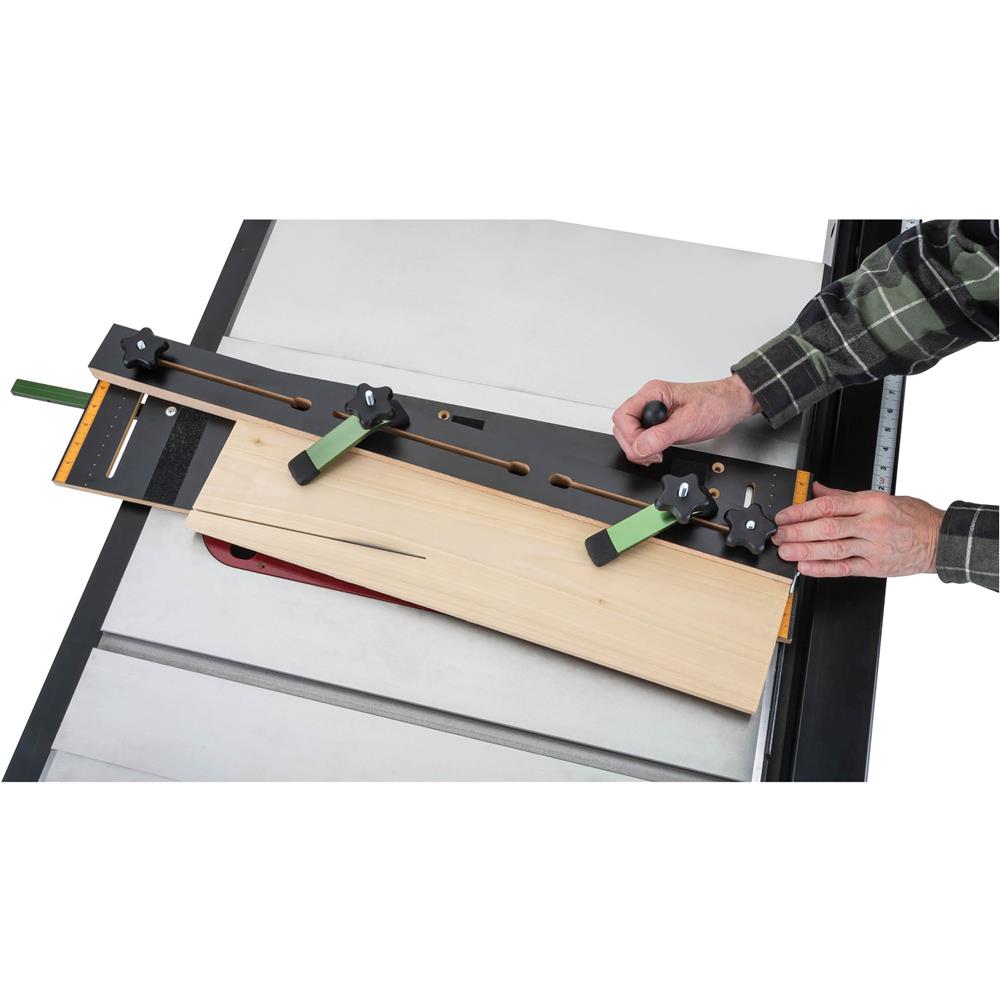

Two hold-down clamps keep the workpiece secure during the cut, while indexing scales help speed setup and alignment. The jig can also be set for parallel straight cuts, making it especially useful for trimming rough or live-edge stock that can be difficult to rip safely and accurately on its own.
Ideal for furniture makers, cabinet builders, and serious woodworking hobbyists, this jig is a practical addition for anyone who wants better precision from a table saw. It is suited for stock up to 2 inches thick and 4-1/2 inches wide.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- HOLD-DOWN CLAMPS: Two hold-down clamps with non-marring rubber caps secure your material to the sled while making your cut.
- 36" TAPER GUIDE: This adjustable guide provides plenty of length to support long tapers for just about any project.
- INDEXING SCALES: Scales at each end of the jig allow you to set up your taper cuts quickly and accurately.
- ERGONOMIC HANDLE: Allows for smooth push-through movement and ongoing jig use in high-production environments.
Specifications
| Overall dimensions | 10-1/4" W x 36" D x 4-3/4" H |
| Required table saw dimensions | 3/4" W x 3/8" D |
| Blade to right miter slot minimum distance | 3-3/4" |
| Maximum stock thickness | 2" |
| Maximum stock width | 4-1/2" |
| Fence dimensions | 32" x 2-1/2" x 1" |
| Product weight | 6 lbs. |
Warranty
This item comes with a 1 year factory warranty.
