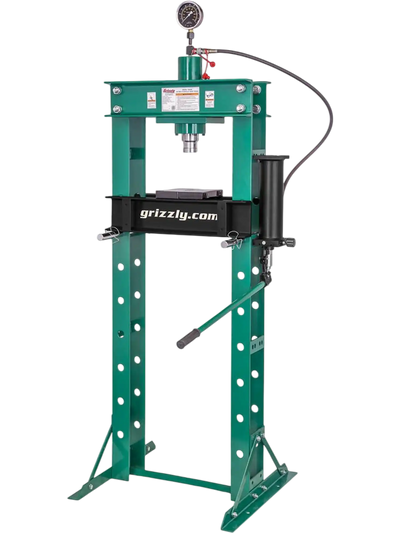

Grizzly T34348 Hydraulic Shop Press 30-Ton New
Manufacturer: Grizzly
SKU: T34348
QTY
or
(888) 999-1522
$ 795.00
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Grizzly T34348 Hydraulic Shop Press 30-Ton New
Product Overview

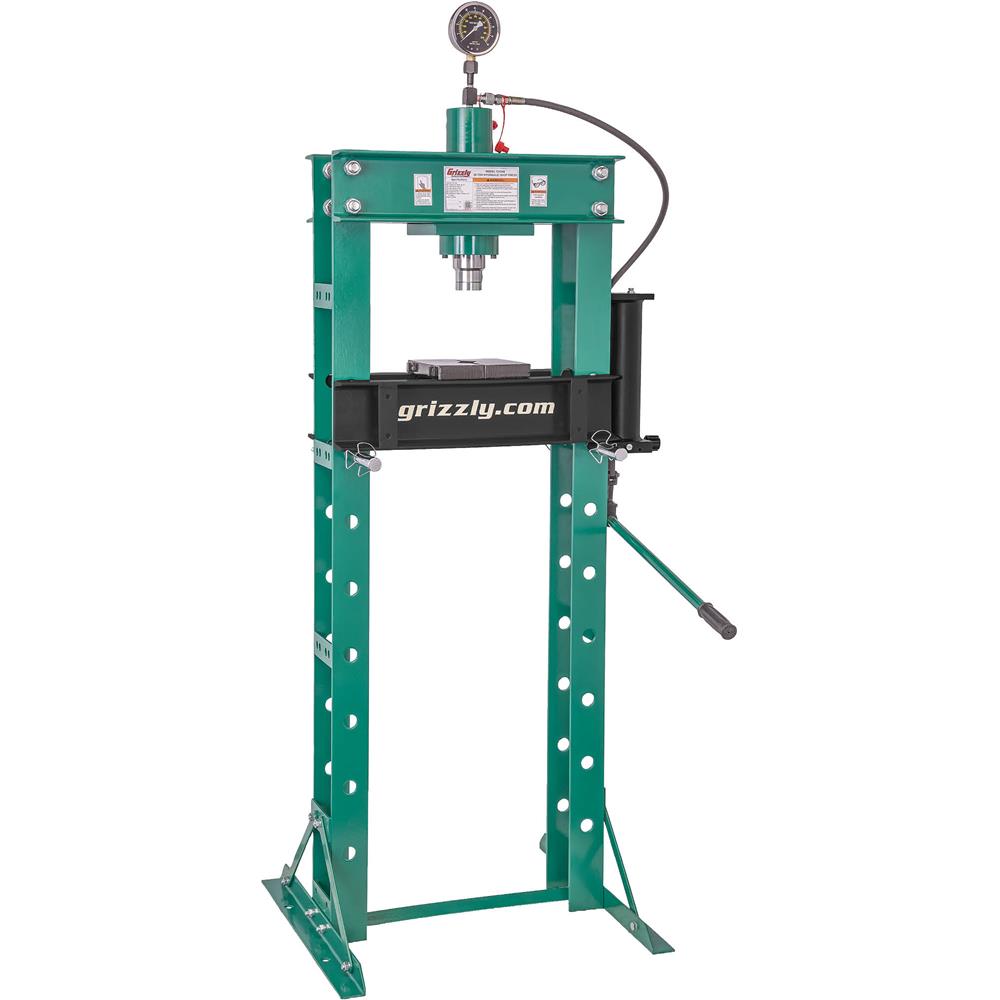

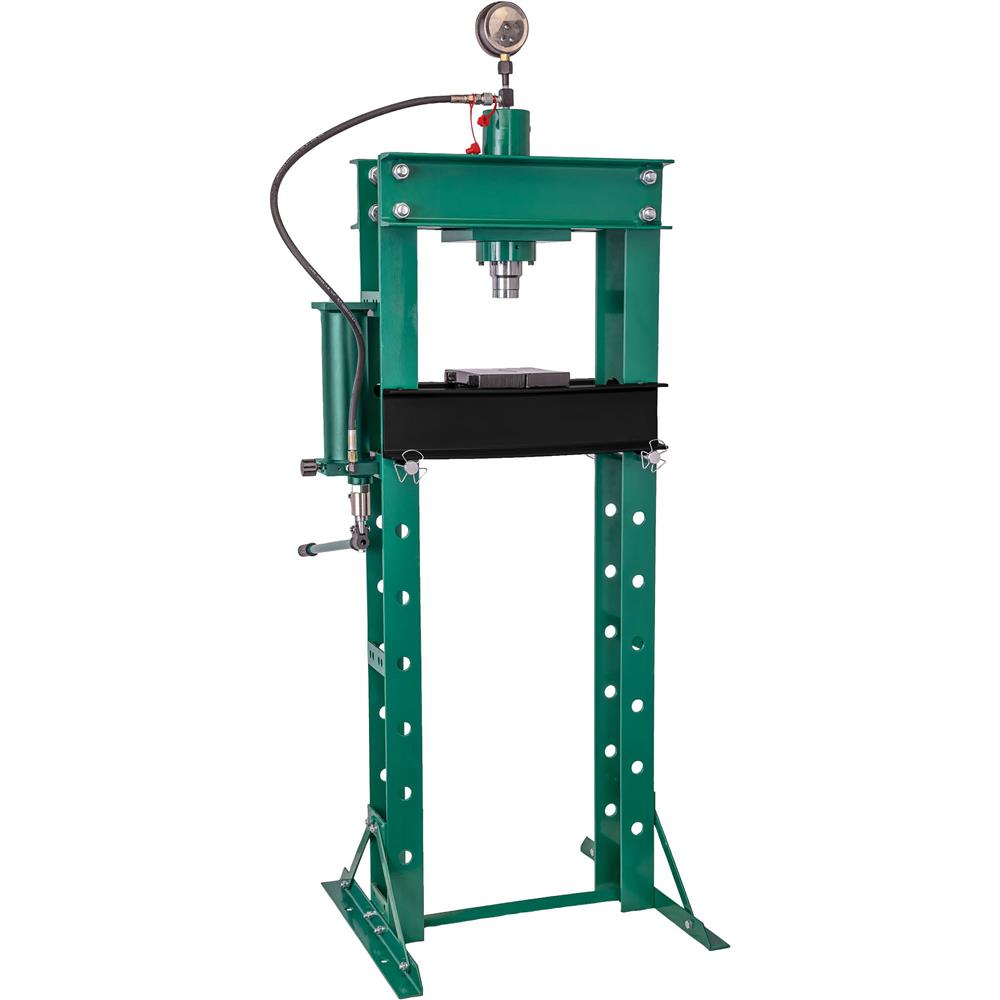

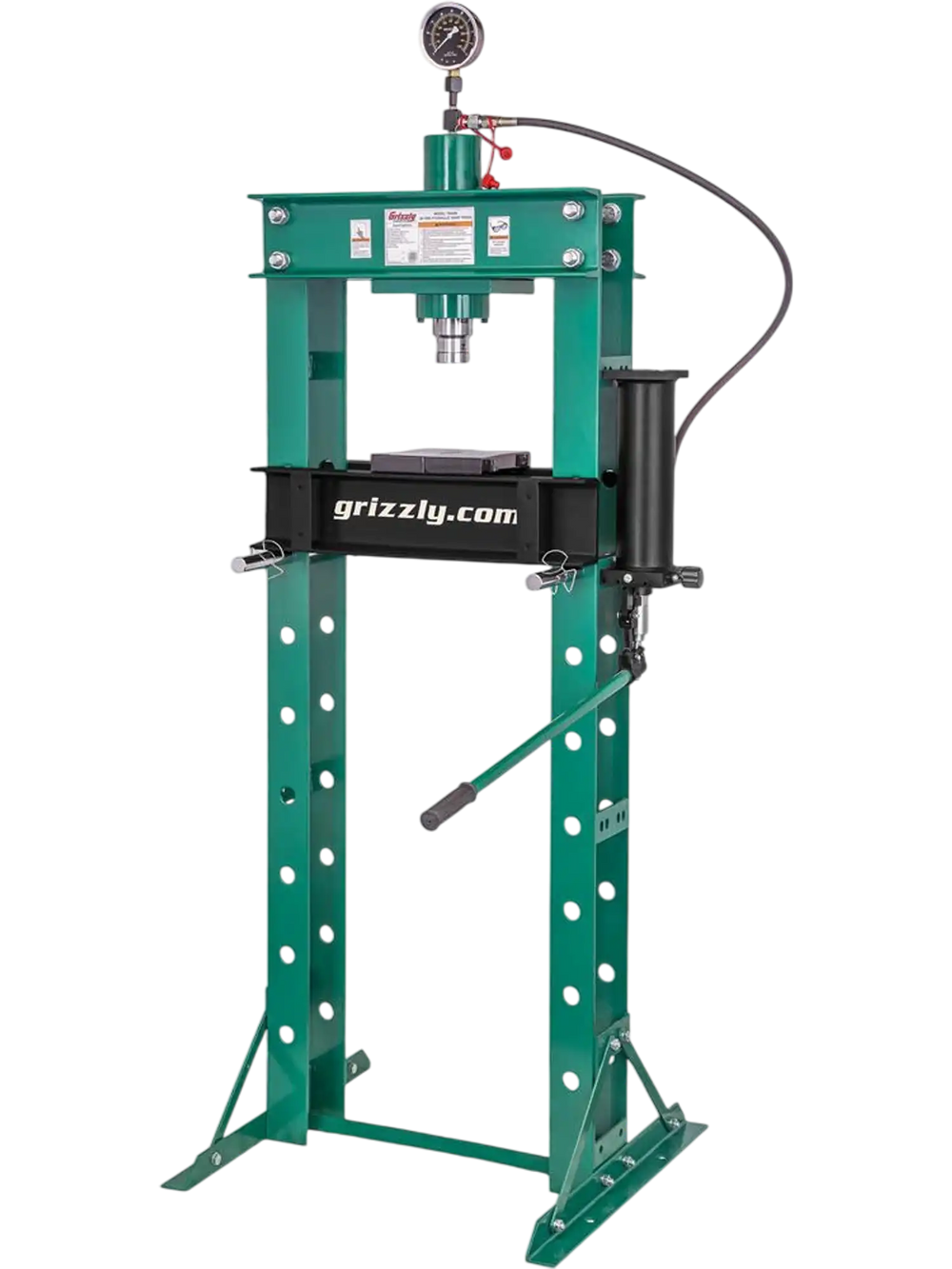

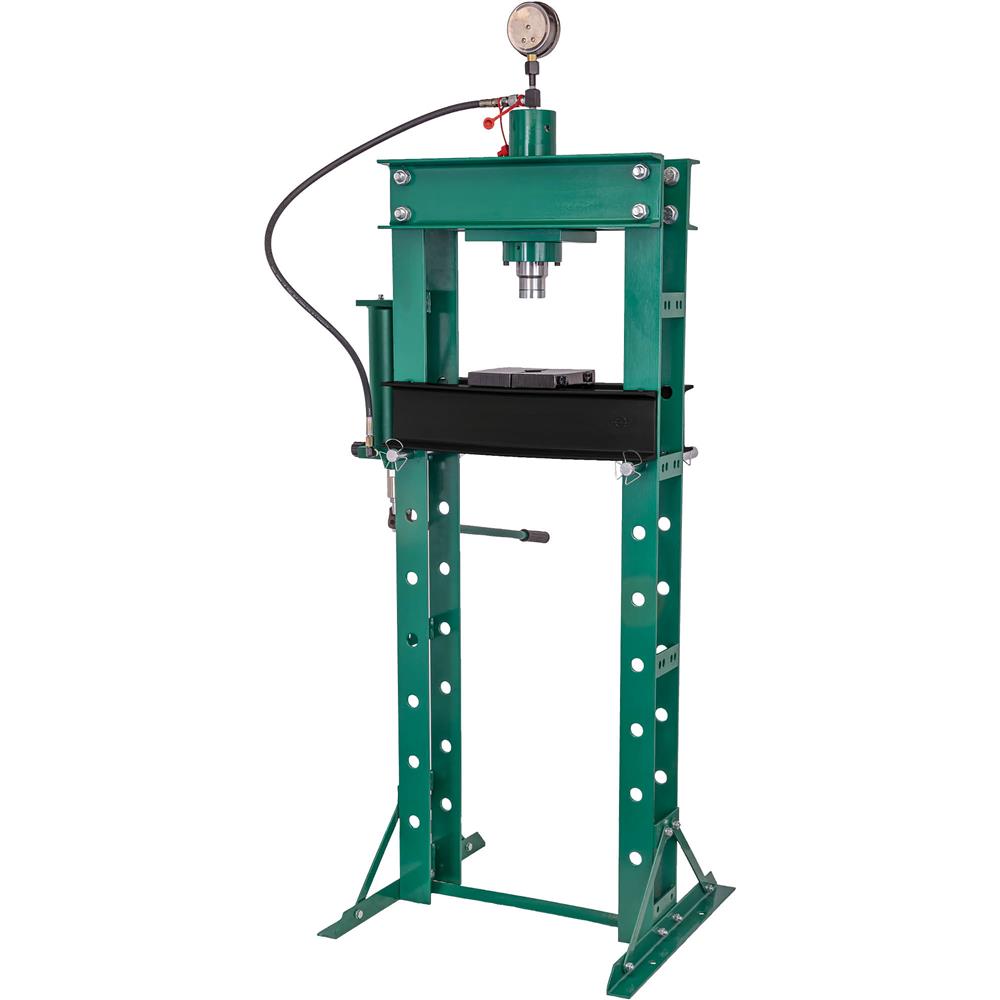

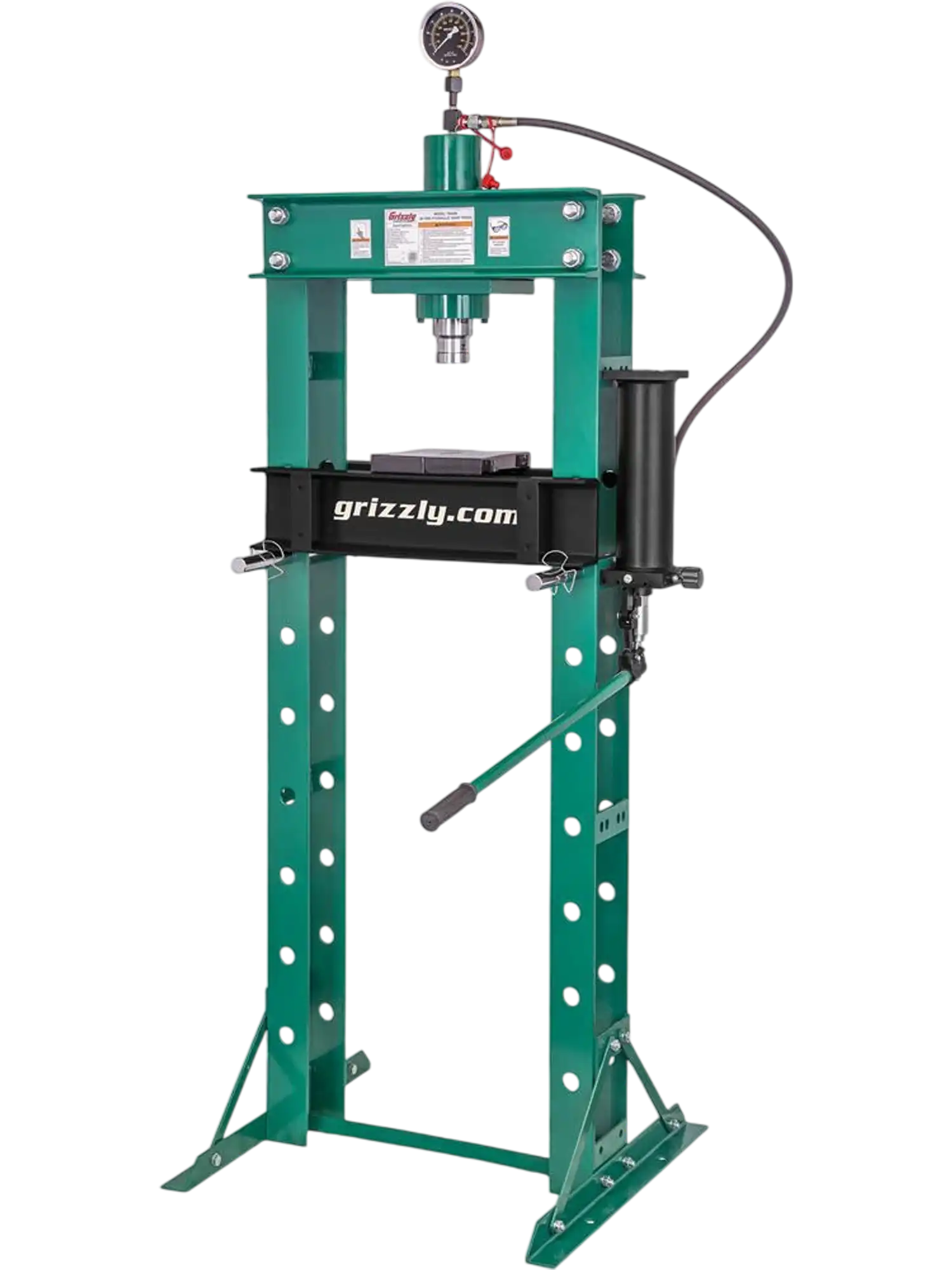

The Grizzly T34348 is a 30-ton hydraulic shop press built for high-force pressing, bending, broaching, staking, riveting, and disassembly work. Its rigid H-frame design and welded pump cylinder provide the strength and stability needed for repeated use in demanding shop environments.
Hand-pump operation gives you direct control over pressing force, while the liquid-filled gauge helps monitor pressure during each job. Two heavy-duty arbor plates support better load distribution and positioning, and the adjustable table height makes it easier to handle a wide range of part sizes and setups.
This press is a strong fit for automotive repair, fabrication, machine shops, and general metalworking applications. It is well suited for users who need consistent force, durable construction, and the flexibility to take on both production tasks and heavy-duty repair work.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- H-Frame Design: The sturdy H-frame shape offers maximum support and ensures accuracy during every press operation.

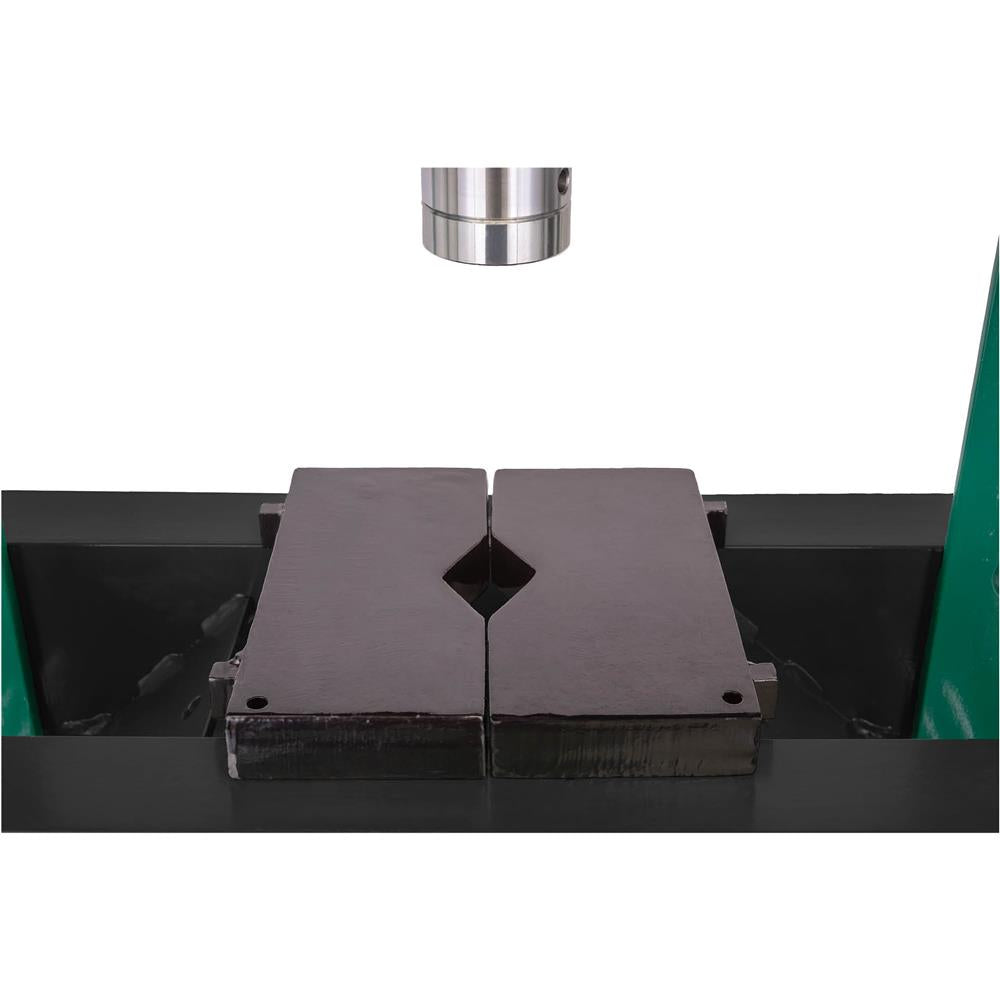

- Two Heavy-Duty Arbor Plates: Created to withstand high-pressure applications, these steel plates can be used for a wide range of tasks.

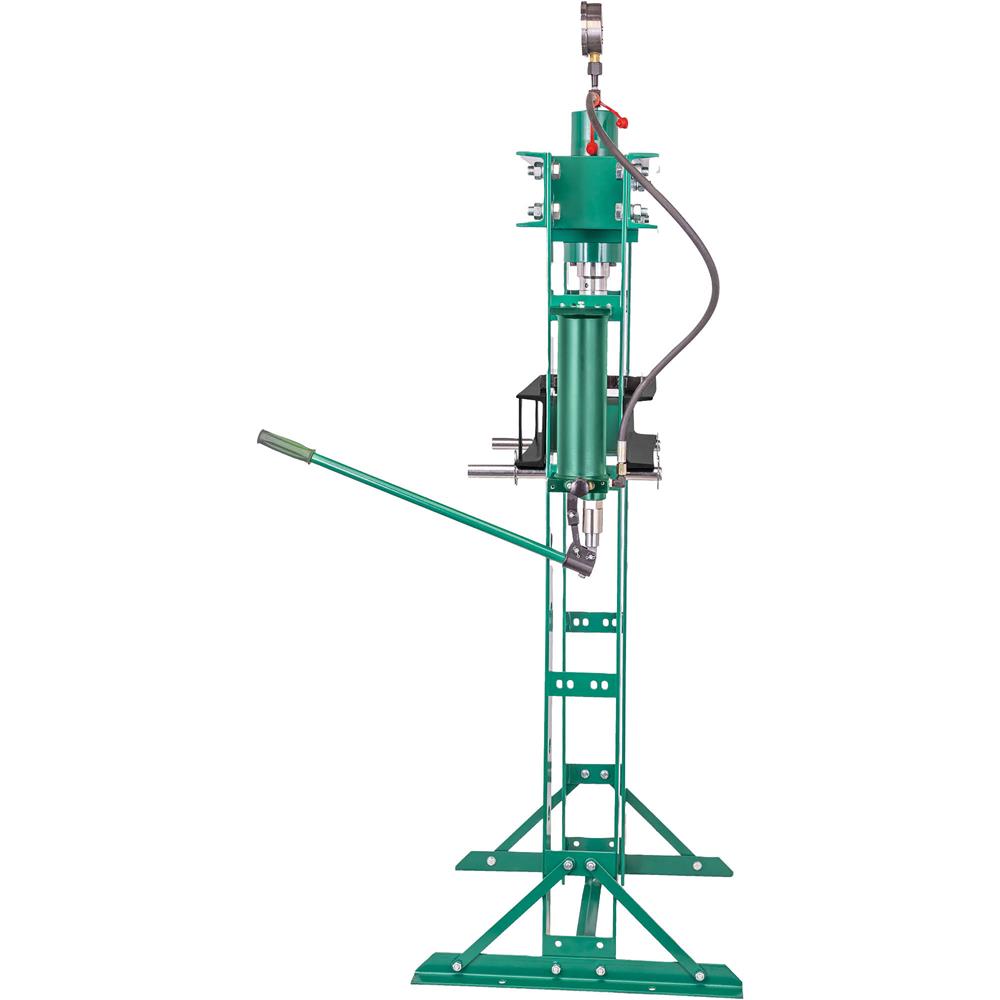

- Welded Pump Cylinder: Welded construction ensures durability, minimizing wear and tear and providing reliable performance over time, even with repeated use.
- Hand-Pump Operation: Get direct control over the amount of force applied and a more controlled press cycle.

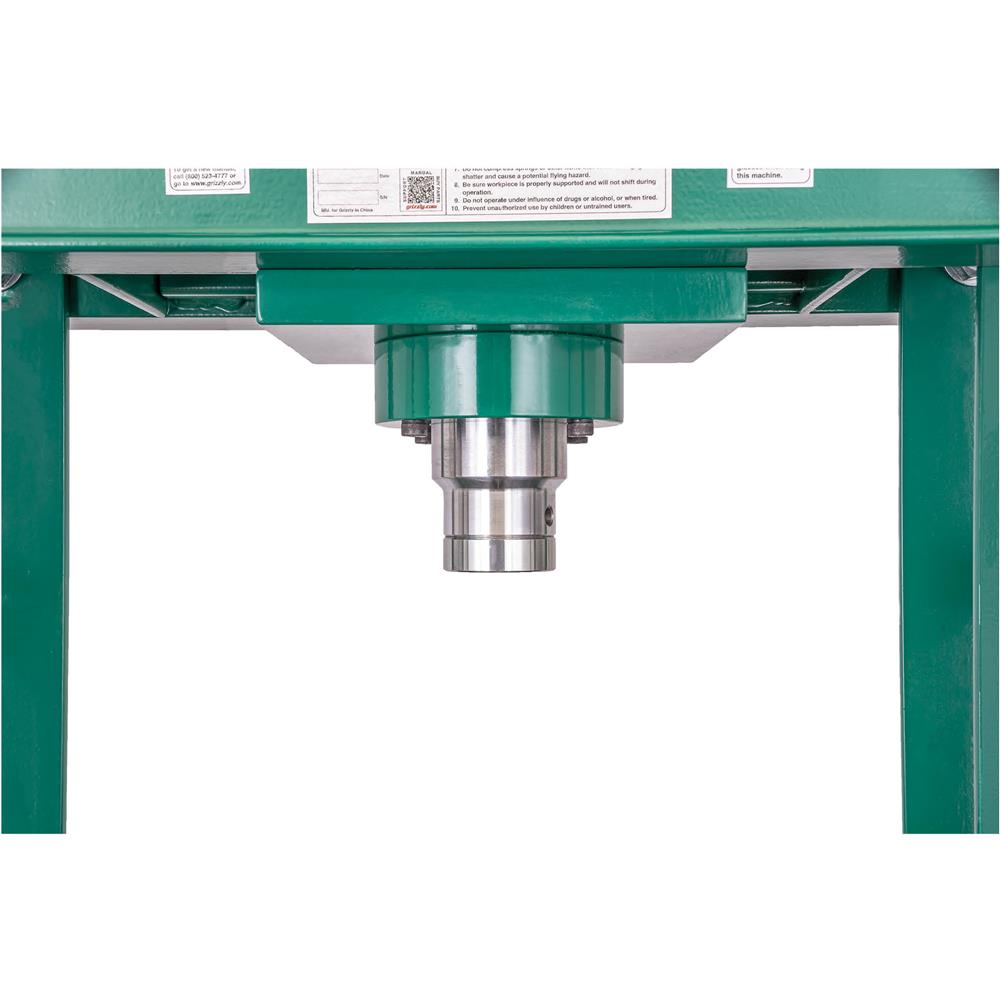

- Interchangeable Ram End: Easily switch between different ram ends as needed based on material type.

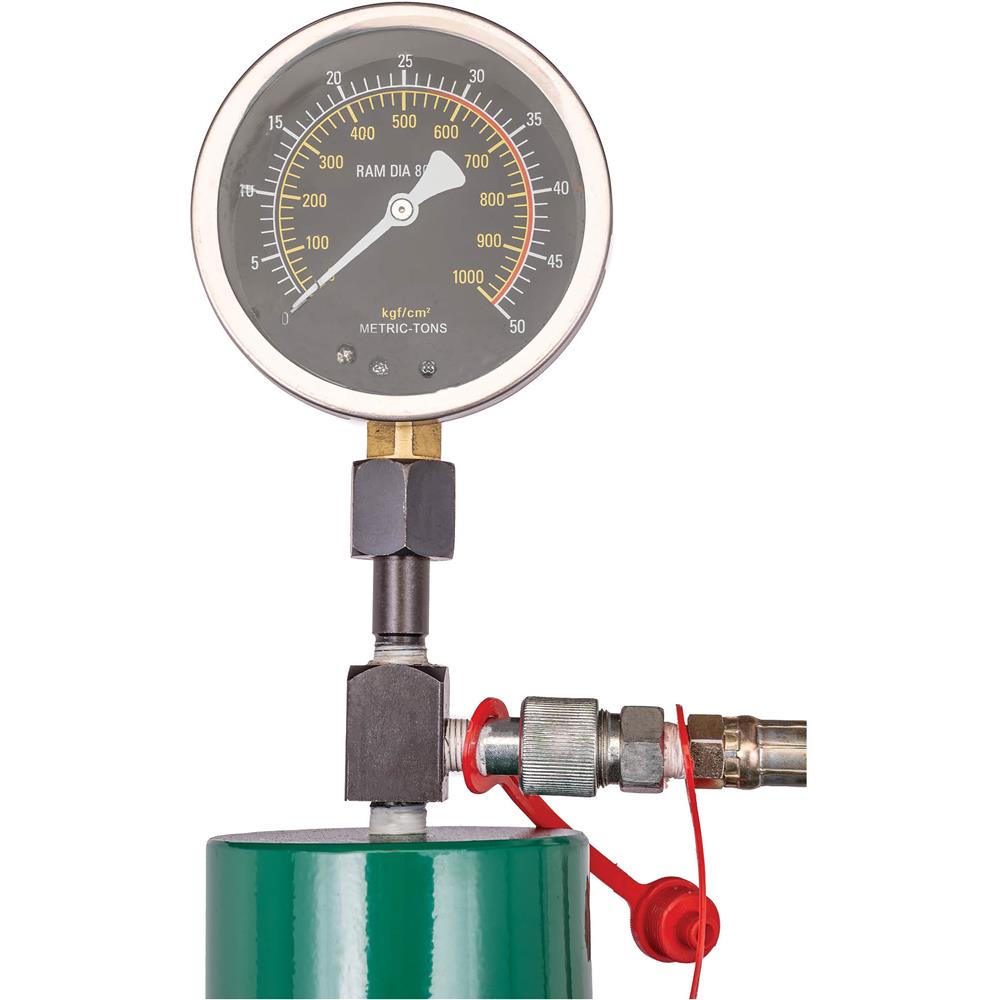

- Liquid-Filled Pressure Gauge: Provides highly accurate pressure readings even in harsh conditions.
- Adjustable Table Height: Modify the table height as needed based on workpiece size for the most effective ram travel and pressure.
Specifications
| Ram max applied force | 60,000 lbs. (30 tons) |
|---|---|
| Ram maximum stroke | 6-3/4" |
| Ram piston diameter | 2.75" |
| Ram face diameter | 2.28" |
| Maximum distance to table | 40-1/2" |
| Minimum distance to table | 2" |
| Bed support pin diameter | 1-1/8" |
| Bed adjustment holes | 8 |
| Bed adjustment hole spacing | 5-1/2" on center |
|---|---|
| Hydraulic fluid type | Standard hydraulic jack oil |
| Footprint | 28" x 26" |
| Overall dimensions | 32" W x 39" D x 77" H |
| Approximate shipping weight | 335 lbs. |
