Hathorn WMN-2123-SL Inspection Reel 200' x 3/8" Cable 1.23" Camera with Wi-Fi Streaming and 512Hz Sonde New
Product Overview

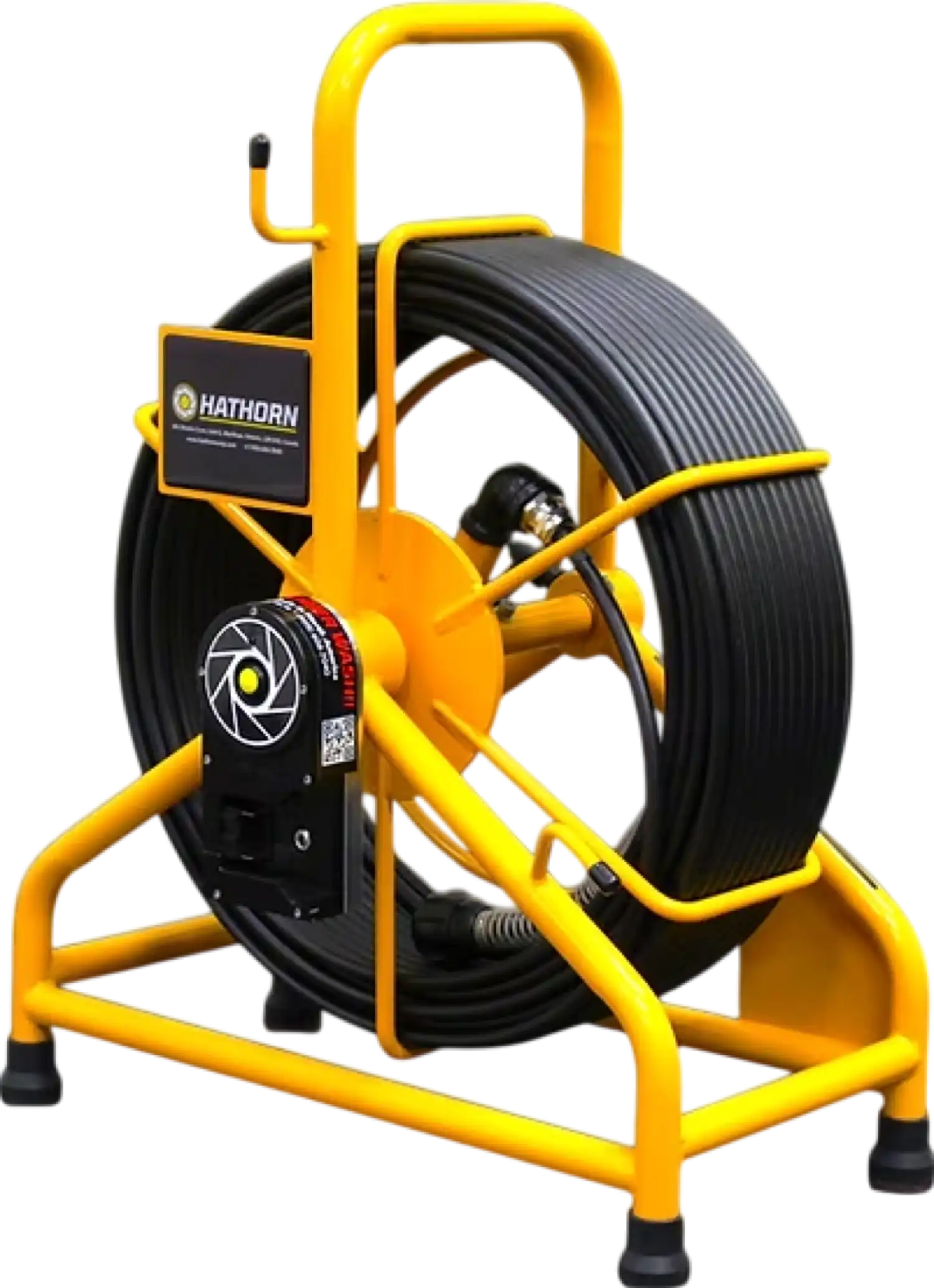

The Hathorn WMN-2123-SL Inspection Reel is a rugged, portable solution for pipe inspections up to 200ft in 6" lines. Featuring a 1.23" self-leveling camera head and a 512Hz sonde, it delivers high-quality visuals through industry-leading HDPE premium cable. Stream and record inspections wirelessly to up to three Apple or Android devices via the free Hathorn app. Powered by 18V Milwaukee-compatible batteries (not included), it offers over 12 hours of runtime with no external cradles. Weighing just 33 lbs, this North American-made reel is engineered for easy transport and professional performance.
Brand new
1 year factory warranty
Manufacturer direct shipping from MI
Authorized Hathorn dealer
Features
- Footage counter and reset
- Push around 1.5" elbows
- Push up to 200ft / 60m in a 6" pipe
- Includes 512Hz sonde
- Streams inspections directly to Apple or Android mobile devices using the free Hathorn® app
- Easy to carry at only 33 lbs
- Powered by 18v Milwaukee or compatible batteries (not included)
- Wi-Fi stream/record, up to three Apple or Android mobile devices at once
- Pause during record not available
- Genuinely North American made
- Butt-welded steel frame construction
- Industry-leading HDPE premium cables
- Equipped with a self-leveling camera head
Specifications
| Size & Type | Dependent upon Apple/Android Device |
| Recording Options | MPEG4 |
| Screen Shot | JPEG |
| File Storage | Mobile Device, cloud or USB |
| Camera Head | 1.23 in. |
| Self-Leveling | Yes |
| Rod Size | 3/8 in. |
| Min. 90° Elbow | 2 in. |
| Max Pipe Well Lit | 6 in. |
| Footage Counter | Feet or meters - resettable |
| Sonde Frequency | 512Hz |
| Push Rod | HDPE - 200 ft to 400 ft / 3/8" to 5/8" |
| Start Up Time | ~ 15 seconds |
| Battery (not included) | Only Milwaukee® M18 18V or equivalent |
| Battery Life | ~ 12Hrs. using 3.0Ah |
| AC/DC Adapter | 12V - 4.1A (included) |
| Water Resistance - Camera & Rod | IP68 to 60psi |
| Water Resistance - Reel Hub | IP65 |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Wi-Fi Frequency | IEEE802.11b/g/n |
| Weight | 25-33 lbs |
| Dimensions (L x W x H) | 24" x 18" x 10" |
Package Contents
Hathorn WMN-2123-SL Inspection Reel 200' x 3/8" Cable 1.23" Camera with Wi-Fi Streaming and 512Hz Sonde
User Manual
Warranty
This item comes with a 1 year factory warranty.
