Product Overview

The Hobart 500553 Handler 210MVP MIG Welder is an industrial performance welder that is spool gun ready for aluminum. Running on either 115V or 230V input power, this Hobart MIG welder welds up to 3/8 in. mild steel and is flux-cored or MIG ready. The seven voltage sections, enhanced magnetics, and infinite wire feed speed control of this Handler MIG welder allow you to fine control the output parameters for improved arc performance with less spatter. The 210MVP MIG welder also accepts an uncomplicated, easy-to-install direct plug-in SpoolRunner 100 spool gun that allows you to weld aluminum with enhanced feed ability and reduction of "bird-nesting".

vendor logo
divider
authorized dealer
checkmark

3 year limited factory warranty

checkmark

Brand new in box

checkmark

Fast shipping

checkmark

Ships directly from Hobart out of WI

checkmark

Authorized Hobart dealer

Hobart 500553 Handler 210MVP MIG 115V/230V Welder New

Hobart 500553 Handler 210MVP MIG 115V/230V Welder New

Features

  • 7 voltage selections (230V), 4 voltage selections (115V), enhanced magnetics and infinite wire feed speed control offers easier fine control for improved arc performance with less spatter for a better bead appearance and less cleanup
  • Built-in contactor eases use and is an excellent safety feature which makes wire electrically "cold" when not welding

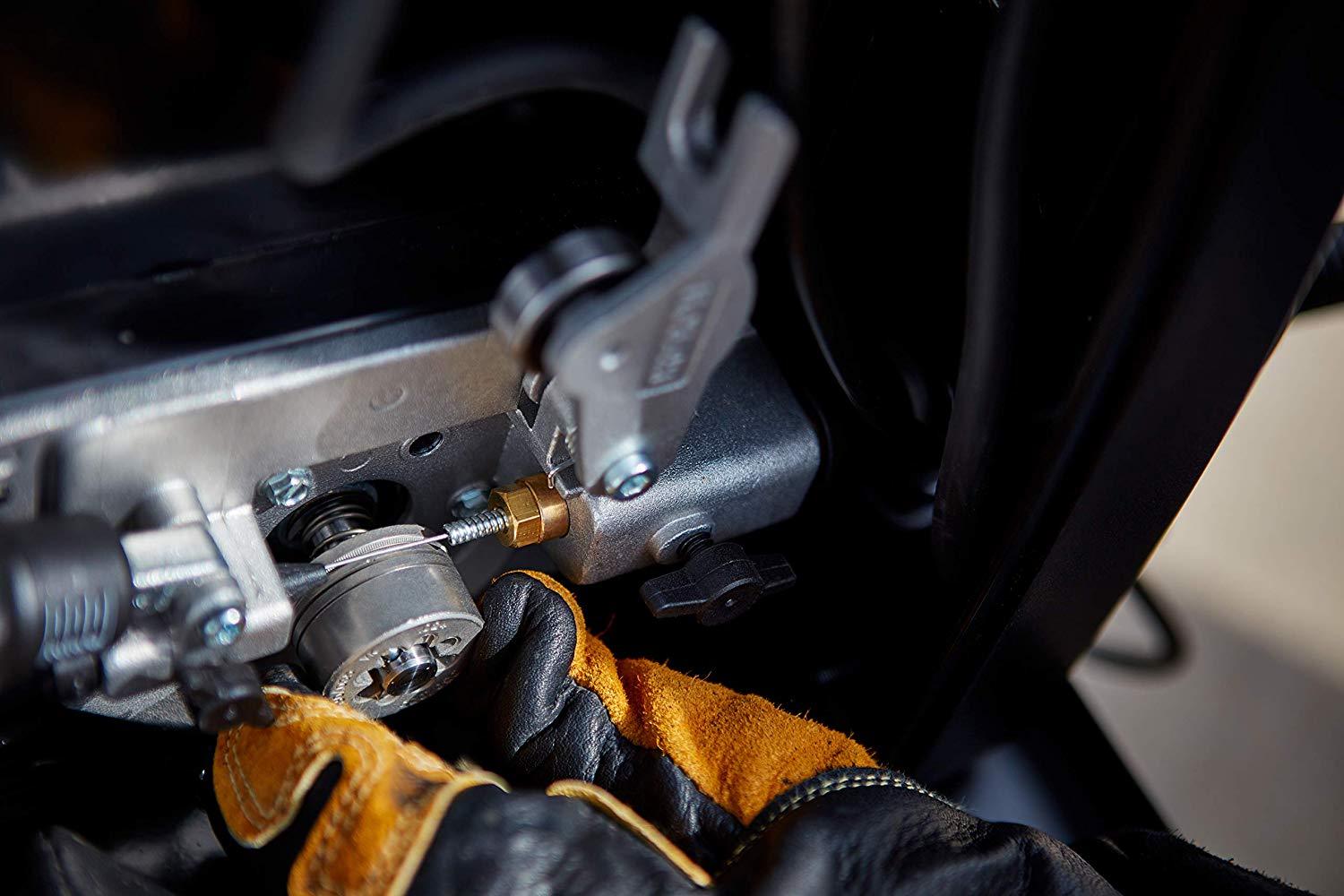

  • Patented, exclusive 3-groove drive roll makes switching from one groove to another extremely easy, eliminating the frustration for users running small diameter (.023/.024./.025) carbon steel MIG wire for exhaust work and auto body applications
  • Flux core and MIG welding capabilities
  • Welds mild steel, flux-cored, stainless and aluminum
  • Welds 24 ga. to 3/8 in. steel in a single pass
  • Operates on either 115V or 230V power with included Multi-Voltage Plug
  • Output range of 25–140A using 115V input and Output range of 25–210A using 230V input
  • 30% duty cycle at 150 amps
  • 3 groove roll handles 0.024 V-Smooth, 0.030/0.035 V-Smooth and 0.030/0.035 V-Knurled wire
  • Industrial cast aluminum drive system for extended durability
  • Handles 2lb. or 10lb. spools (sold separately)
  • Easy setup with the SpoolRunner 100 Spool gun (Item #20868, sold separately) allows for enhanced feedability and reduced “bird-nesting” associated with soft aluminum wires
  • Integrated spool gun control circuitry is standard, requiring no additional control box or adapter to connect the SpoolRunner 100 spool gun
  • Short circuit protection protects unit against current overload
  • Self-resetting thermal overload protects power transformer to ensure reliability
  • Self-resetting motor protection protects wire feed system from overload, no fuses to change or circuit breaker buttons to reset
  • Hobart's 5/3/1 Industrial Warranty five-year warranty on transformers, three years on electronics (drive motors, rectifiers) and one year on guns

Specifications

Material Thickness Mild Steel 1/4 in - 3/8 in.
Weldable Metals Stainless Steel, Steel, Aluminum
Input Voltage 110/115/120 V, 220/230/240 V
Input Phase 1-Phase
Input Hz 60 Hz
Current Type DC
Rated Output 115 V 90A @ 20%, 230V 150A @ 30%
Max Open Circuit Voltage 34 VDC
Wire Feed Speed 40 IPM - 770 IPM
Weld Output CV
Width 10.625 in
Height 12.375 in
Length 19.5 in
Weight 79 lbs

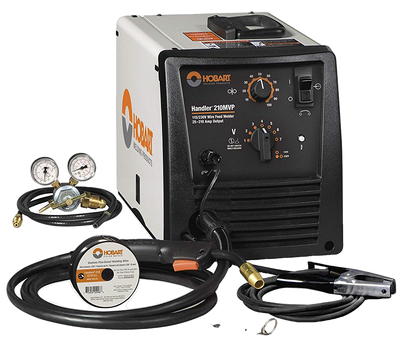

Package Contents

Comfortable 10 ft. (3m) H100S4-10 gun

Owner's manual with installation, operation and maintenance guidelines.

10 ft.(3m) work cable with clamp

Built-in gas solenoid value and dual-gauge regulator with gas hose

Spool hub assembly accommodates 4 or 8 in. spools

Sample spool of .030 in. self-shielding flux-cored wire

.030 (0.8mm) contact tips

Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in.

Power cord with 5-15 P (115 V, 15 A) and 6-50 P (230 V, 50 A) MVP (TM) plugs

Welding guide and material thickness gauge
