Hobart 500554 Handler 190 Flux-Cored 230V AC MIG Welder New
Manufacturer: Hobart
SKU: 500554
QTY
(888) 999-1522
$ 939.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Please allow 1-3 business days for processing
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 5 year limited factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 5 year limited factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Hobart 500554 Handler 190 Flux-Cored 230V AC MIG Welder New
Product Overview
The Hobart Handler® 190 Flux-Cored/MIG Welder is a powerful and portable wire-feed flux-cored and MIG welder designed to weld mild steel, flux-cored steel, aluminum and stainless steel.
With an arsenal of standard features such as 7 output voltage settings and a dual-groove quick change drive roll, the Handler 190 is as versatile as it is powerful.
5 year limited factory warranty
Includes all original accessories
Brand new in box
Ships directly from Hobart out of WI
Authorized Hobart dealer
Features
- 7 voltage selections, enhanced magnetics and infinite wire feed speed control offers easier fine control of the output parameters for improved arc performance with less spatter for a better bead appearance and less clean up
- Built-in contactor eases use and excellent safety feature which makes wire electrically “cold” until trigger is pulled
- Convenient polarity changeover with tip holder access makes it quick and easy to change polarity for solid or tubular wire
- Patented, exclusive 3-groove drive roll makes switching from one groove to another extremely easy, eliminating the frustration for users running small diameter (.023/.024./.025) carbon steel MIG wire for exhaust work and auto body applications
- Wire-feed flux-cored and MIG welding capabilities
- Welds mild steel, flux core steel, aluminum and stainless steel
- Welds 24 ga. to 5/16 in. steel in single pass
- Operates on 230V power
- Amperage output: 25–190
- 30% duty cycle @ 130 Amps
- Durable feed head with quick-release drive roll tension lever delivers positive feed with adjustable tension plus easy accessibility to thread new wire
- Industrial cast aluminum drive system for extended durability
- 3 groove roll handles 0.024 V-Smooth, 0.030/0.035 V-Smooth and 0.030/0.035 V-Knurled wire
- Includes convenient storage holes for spare tips
- Door chart with initial settings allows for quick reference of initial settings for different wires, gases, materials and thicknesses and provides a quick starting point for novices and professionals alike
- Convenient carry handle for portability
- Easy setup with the SpoolRunner 100 Spool Gun (sold separately) to enhance feedability and reduce “bird-nesting” associated with soft aluminum wires
- Integrated spool gun control circuitry is standard, requiring no additional control box or adapter to connect the SpoolRunner 100 spool gun
- Short circuit protection protects unit against current overload
- Self-resetting thermal overload protects power transformer to ensure reliability
- Self-resetting motor protection protects wire feed system from overload, no fuses to change or circuit breaker buttons to reset
- Hobart's 5/3/1 Industrial Warranty Five-year warranty on transformers, three years on electronics (drive motors, rectifiers) and one year on guns

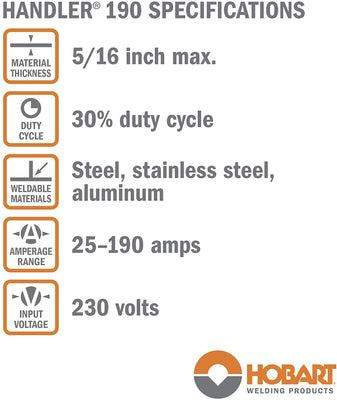

Specifications
| Dimensions L x W x H (in.) | 19.5 x 10.62 x 12.37 in |
| Shielding Gas Required | No |
| Manufacturer's Warranty | 5 year limited warranty |
| Ship Weight | 78.0 lbs |
| Multi-process | Yes |
| Volts | 230 |
| Amps | 130 |
| Mig Ready | Yes |
| Spoolgun Included | No |
| Cart Included | No |
| Duty Cycle | 30% at 130A |
| Max. Weld Thickness | 5/16 in |
| Weldable Materials | Steel, aluminum, stainless |
| Max. Welding Wire Diameter | 0.035 in |
| Wire Feed Speed Control | Yes |
| Power Cord Length | 10 ft |
| Clamp Cable Length | 10 ft |
| Regulator and Gas Hose Included | Yes |

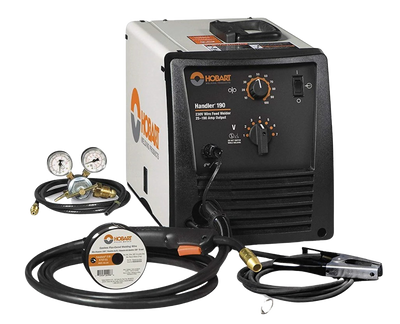

Package Contents
(1) Handler 190 wire-feed Welder
(1) 10-ft. MIG gun
(1) 10-ft. work cable with clamp
(1) Power cord with plug
(1) Built-in gas solenoid valve with dual-gauge regulator with gas hose
(3) .030 in. (0.8mm) contact tips Quick Select drive roll for .024in. (0.6mm) or .030/.035 in. (0.8/0.9mm) solid wire, and .030/.035in. (0.8/0.9mm) flux-cored wire
(1) Sample spool of .030in. (0.8mm) self-shielding flux-cored wire
(1) 4in. to 8in. wire spool adapter
(1) Material thickness gauge
(1) Owners manual
Warranty
This item comes with a 5 year limited factory warranty.
