  • Hobart 500554 Handler 190 MIG 230V Welder Manufacturer RFB
  • Hobart 500554 Handler 190 MIG 230V Welder Manufacturer RFB
  • Hobart 500554 Handler 190 MIG 230V Welder Manufacturer RFB
  • Hobart 500554 Handler 190 MIG 230V Welder Manufacturer RFB

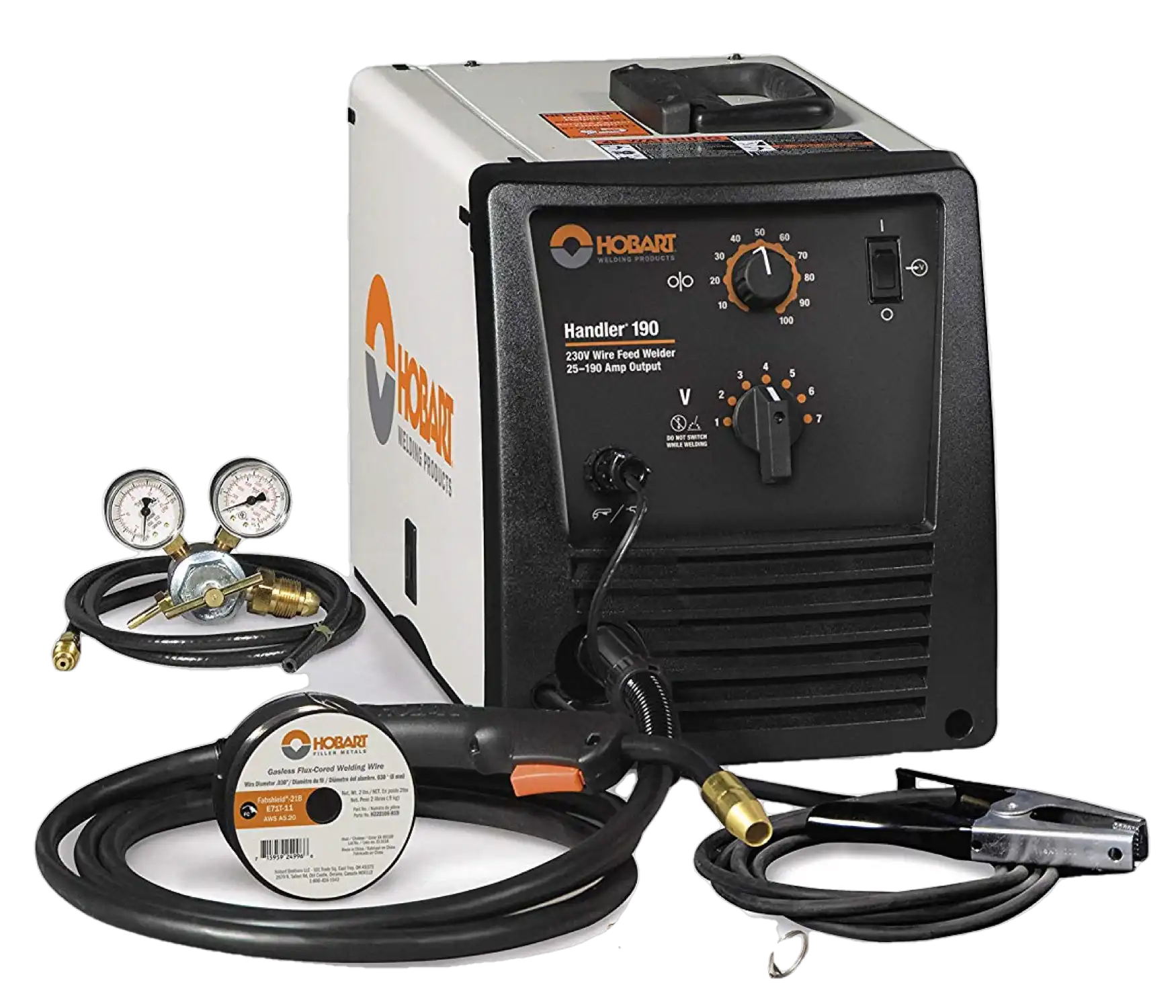

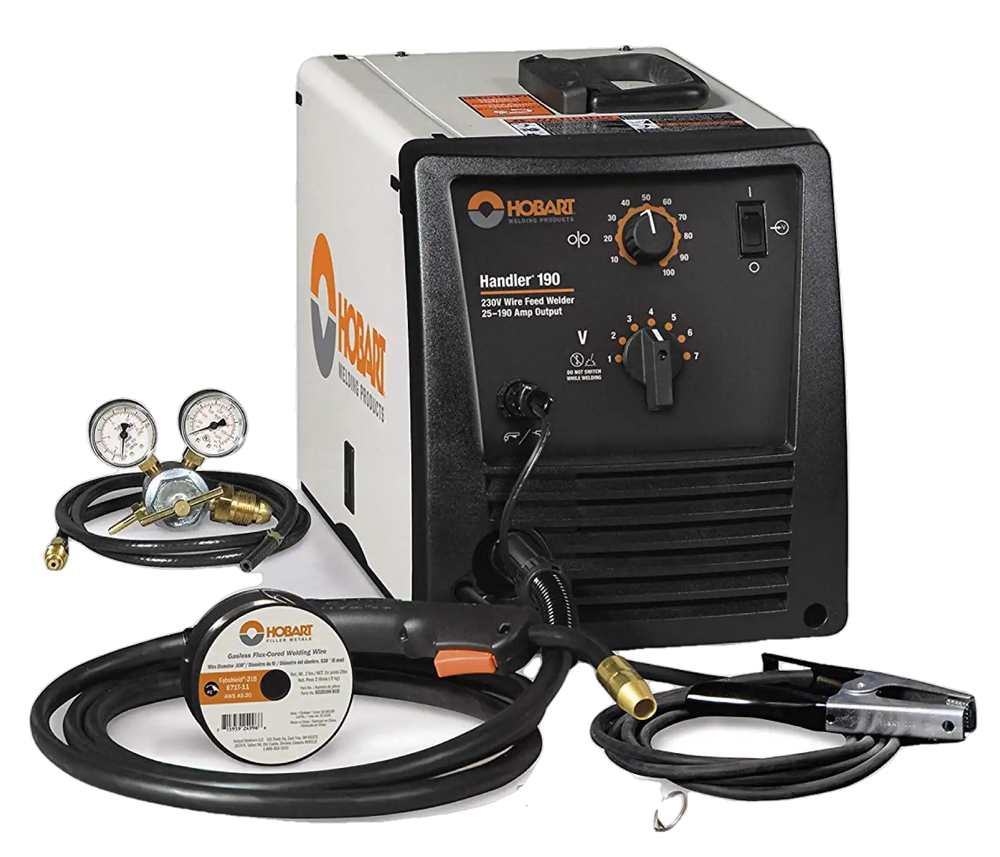

Hobart 500554 Handler 190 MIG 230V Welder Manufacturer RFB

$ 649.00
+
FREE Shipping
Out Of Stock
Manufacturer Direct Shipping
Please allow 3-5 business days for processing

Extended Warranty

Factory Warranty
$0 ()

Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in! Please click add to cart.
  Exceptional Customer Service   Manufacturer Direct
FactoryPure BBB Business Review Shopper Award



To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.
  • Free Shipping Options Available
  • Price Match On Most Items
  • Manufacturer Direct

Hobart 500554 Handler 190 MIG 230V Welder Manufacturer RFB
  Share
X

The Hobart 500554 Handler 190 MIG Welder is an industrial performance welder that is spool gun ready for aluminum. Running on 230V input power, this Hobart MIG welder welds up to 5/16 in. mild steel and is flux-cored or MIG ready. The seven voltage sections, enhanced magnetics, and infinite wire feed speed control of this Handler MIG welder allow you to fine control the output parameters for improved arc performance with less spatter.

Refurbished units are clean condition and most look brand new, but some may have some minor dings. Most are unused returns that have never been fired up except during testing. If there has been prior use, it is very minimal. Our welders are manufacturer refurbished by Hobart. All units are fully tested for performance and guaranteed to work like new. They come with a one year manufacturer's warranty.

Overview (Right Column)
1 year limited factory warranty
Includes all original accessories
Manufacturer refurbished
Ships directly from Hobart out of WI
Authorized Hobart dealer

 Outlets
Features (Left Column)
  • 7 (230 V) and 4 (115V) voltage settings, with infinite wire feed speed control
  • Accepts uncomplicated, easy-to-install direct plug-in SpoolRunner 100 spool gun
  • Integrated spool gun control circuitry is standard
  • Built-in contactor

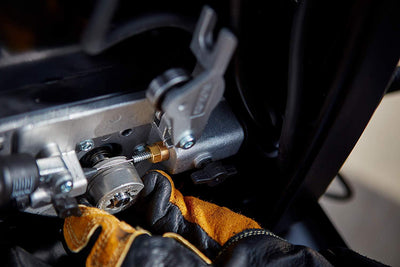

  • Industrial cast aluminum wire drive system
Features (Right Column)
  • Convenient polarity changeover
  • Quick Select drive roll
  • Short circuit protection
  • Self- resetting thermal overload protection
  • Self-resetting motor protection
Product Specifications (Left Column)
  • Material Thickness: Mild Steel 24 ga. (0.8 mm) - 5/16 in.
  • Weldable Metals: Aluminum, Stainless Steel, Steel
  • Input Voltage: 220/230/240 V
  • Input Phase: 1-Phase
  • Current Type: DC
  • Rated Output: 30% @ 130A
  • Amperage Range: Amperage Min Max 25 A - 190 A
  • Wire Feed Speed: IPM Range 40 IPM - 740 IPM
  • Weld Output: CV
  • Net Width: 10.625 in.
  • Net Height: 12.375 in.
  • Net Length: 19.5 in.
  • Net Weight: 68 lbs.
Product Specifications (Right Column)

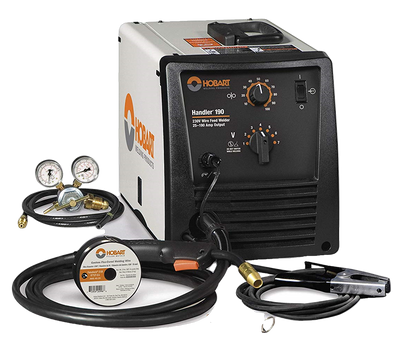

Package Contents:

  • Comfortable 10 ft. (3 m) H100S4-10 gun
  • Owner's manual with installation, operation and maintenance guidelines
  • 10 ft. (3 m) work cable with clamp
  • Built-in gas solenoid valve and dual-gauge regulator with gas hose.
  • Spool hub assembly accommodates 4 or 8 in. spools
  • Sample spool of .030 in (0.8mm) self-shielding flux-cored wire
  • .030 in. (0.8mm) contact tips
  • Quick Select™ drive roll for .024 in (0.6mm) or .030/.035 in. (0.8/0/9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
  • Power cord with plug
  • Welding guide and material thickness gauge
WARRANTY

This item comes with a 1 year limited factory warranty.
