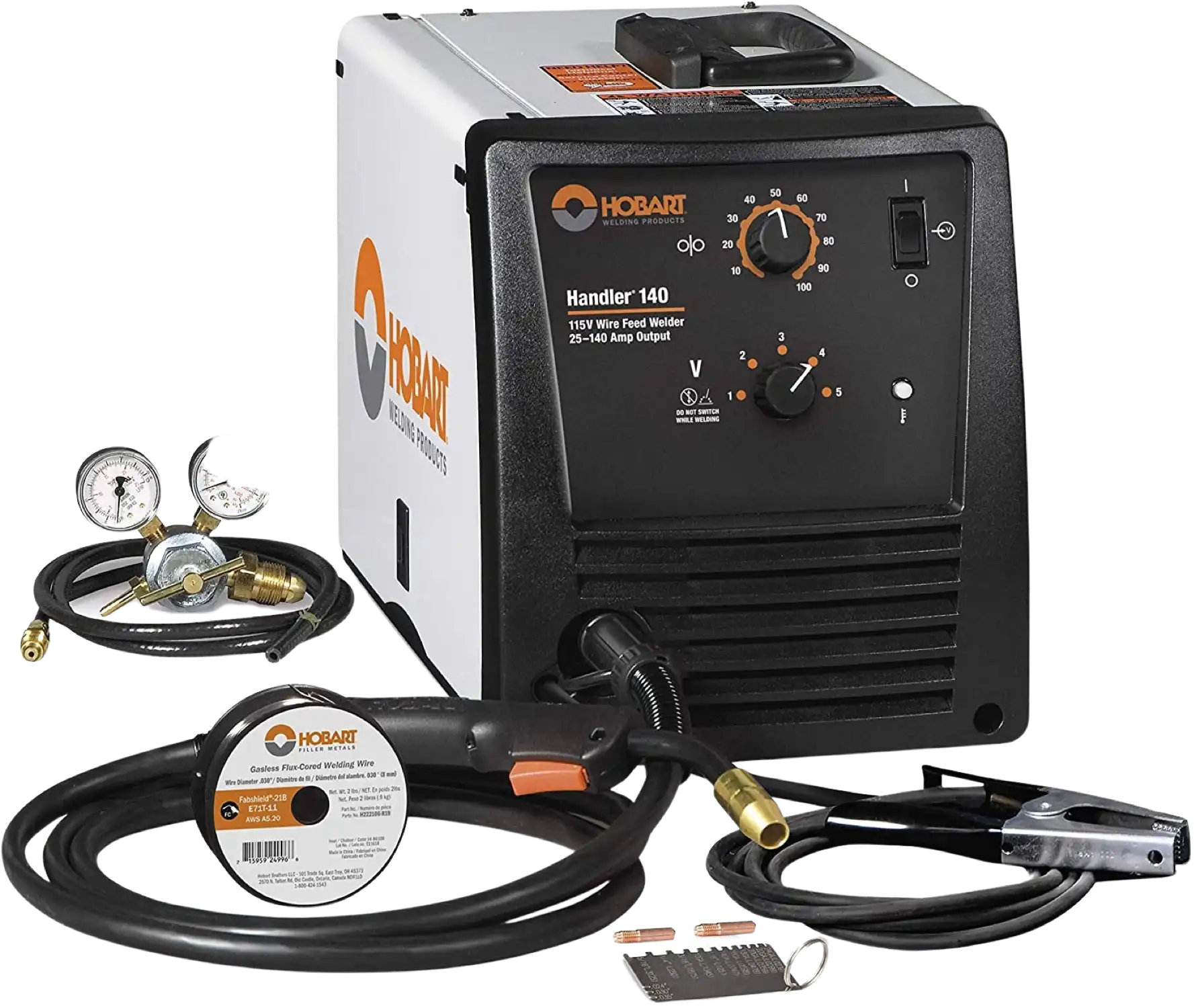

Hobart 500559 Handler MIG 115V 140 Amp Welder Manufacturer RFB

  • Model: Hobart
  • SKU: 500559
Hobart 500559 Handler MIG 115V 140 Amp Welder Manufacturer RFB
  • Details
  • Details
  • Details
  • Details
  • Details
Warranty has been added in!
41900

Out Of Stock
Ships Same or Next Day
If ordered by 12PM EST
  • Free Shipping Options Available
  • No Sales Tax *Except TX*
  • Price Match On Most Items
  • Manufacturer Direct
  • Exceptional Customer Service
  • Free Replacement Shipping
To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.



Manufacturer Refurbished Two year limited factory warranty
Manufacturer Refurbished 100% certified refurbished by the manufacturer
Manufacturer Refurbished Ships directly from Hobart
Manufacturer Refurbished Includes all original accessories
Manufacturer Refurbished Authorized Hobart dealer
Manufacturer Refurbished Free same or next day shipping


Refurbished units are clean condition and most look brand new, but some may have some minor dings.  Most are unused returns that have never been fired up except during testing.   If there has been prior use, it is very minimal.  Our welders are manufacturer refurbished by Hobart.  All units are fully tested for performance and guaranteed to work like new.  They come with a one year manufacturer's warranty.


Built with Hobart quality & durability, the Handler 140 is Hobart's most popular wire feed welder and the industry's best value - it is MIG ready, no additional kit required. Operating on standard 115V household current, the Handler 140 is extremely versatile and perfect for the welder that wants to work on auto body, household repairs, or even heavier farm projects that require extra welding power. A 5-position tapped voltage control selector gives you the ability to fine tune your arc offering a smooth stable arc on all thicknesses. Built with an industrial cast aluminum drive system and a heavy duty work clamp the Hander 140 delivers a wire welding package with industrial performance.



What's In the Box:

  • Handler 140 with built-in gas valve
  • 10 ft. MIG gun with liner
  • Dual gauge regulator & gas hose
  • 10-ft work cable & clamp
  • 10-ft power cord
  • Extra .030 contact tips
  • Sample spool of .030 flux-cored wire
  • 8 inch spool adapter
  • Owners manual
  • Set-up guide



Features:

Comes
complete
with:
  • Comfortable 10 ft. (3 m) H100S2-10 gun
  • 10 ft. (3 m) work cable with clamp
  • Built-in gas solenoid valve and dual-gauge regulator with gas hose
  • Spool hub assembly accommodates 4 or 8 in. spools
  • Sample spool of .030 in. (0.8 mm) self-shielding flux-cored wire
  • .030 in. (0.8 mm) contact tips
  • Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in.
    (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
  • Power cord with plug
  • Welding guide and material thickness gauge
  • Owner's manual with installation, operation and maintenance guidelines
Power:
  • CV
  • DC
  • 1 Phase
Processes:
MIG MIG [GMAW]
Flux Cored Flux Cored [FCAW]
Material Thickness: Welds 24 gauge up to 1/4 inch
Skill Level: Low
Applications:
  • Maintenance
  • Construction
  • Auto Body
  • Farm/Ranch
  • Rental
  • Home



  • Excellent Arc Performance

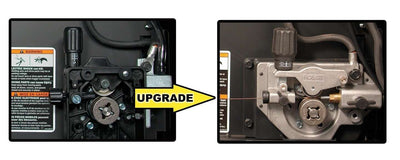

  • Industrial cast aluminum wire drive system

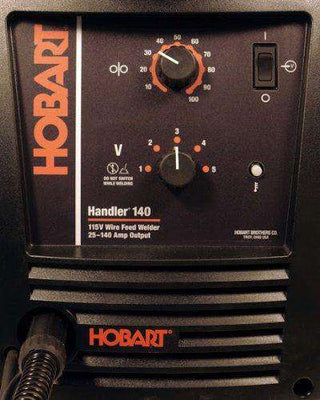

  • 5-position voltage control
  • Quick Select Drive Roll
  • Weighs only 57 lbs.
  • Convenient polarity changeover
  • Sloped control panel
  • Hobart's 5/3/1 Industrial Warranty



    Specifications:

    Stock Numbers #500559 115V, 60 Hz

    Rated Output at 20% Duty Cycle 90 A at 18.5 VDC
    63 A at 21 VDC
    Current Range 25 - 140 A
    Max. Open-Circuit Voltage 28 V
    Wire Feed Speed Range 40 - 700 IPM
    50 - 740 IPM at no load
    Amps Input at Rated Load, 60 Hz 115 V 20
    kVA 2.9
    kW 2.5
    Dimensions H: 12-3/8 in (315 mm)
    W: 10-5/8 in (270 mm)
    D: 19-1/2 in (495 mm)
    Net Weight 57 lb (26 kg)



    This Factory Reconditioned Limited Warranty applies to all factory reconditioned Hobart welding equipment and plasma cutters with a serial number preface of MC or newer. This limited warranty supersedes all previous factory reconditioned Hobart warranties and is exclusive with no other guarantees or warranties expressed or implied. Hobart factory reconditioned products are serviced by Hobart or Miller Authorized Service Agencies.

    LIMITED WARRANTY − Subject to the terms and conditions below, Hobart Brothers Co., Troy warrants to its original purchaser that factory reconditioned Hobart equipment sold after the effective date of this limited warranty is free of defects in material and workmanship at the time it is shipped by Hobart. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS. Within the warranty periods listed below, Hobart/Miller will repair or replace any warranted parts or components that fail due to such defects in material or workmanship. Hobart/Miller must be notified in writing within thirty (30) days of such defect or failure, at which time Hobart/Miller will provide instructions on the warranty claim procedures to be followed. Hobart/Miller shall honor warranty claims on warranted factory reconditioned equipment listed below in the event of such a failure within the warranty time periods. All warranty time periods start on the delivery date of the equipment to the original purchaser, and not to exceed one year after the equipment is shipped to a North American retailer.

    1. 2 Years — Parts and Labor

    * Original Main Power Rectifiers only to include SCRs,diodes, and discrete rectifier modules

    * Reactors

    * Stabilizers

    * Transformers

    2. 1 Years — Parts and Labor

    * Drive Systems

    * Idle Module

    * PC Boards

    * Rotors, Stators and Brushes

    * Solenoid Valves

    * Spot Welder Transformer

    * Switches and Controls

    3. 1 Year — Parts and Labor Unless Specified

    (90 days for industrial use)

    * Accessories

    * Batteries (Trek 180 Only)

    * Contactors

    * Field Options

    * Flowgauge and Flowmeter Regulators (No Labor)

    * HF Units

    * MIG Guns/TIG Torches

    * Plasma Cutting Torches

    * Regulators

    * Relays

    * Remote Controls

    * Replacement Parts (No labor) − 90 days

    * Running Gear/Trailers

    * Water Coolant Systems

    4.90 days – Parts and Labor

    * Motorized guns

    5. Engines, batteries (except Trek 180) and tires are warranted separately by the manufacturer.

    Hobart's Factory Reconditioned Limited Warranty shall not apply to:

    1. Consumable components; such as contact tips, cutting nozzles, contactors, brushes, relays, work station table tops and welding curtains, or parts that fail due to normal wear. (Exception: brushes and relays are covered on all engine-driven products.)

    2. Items furnished by Hobart/Miller, but manufactured by others, such as engines or trade accessories. These items are covered by the manufacturer's warranty, if any.

    3. Equipment that has been modified by any party other than Hobart/Miller, or equipment that has been improperly installed, improperly operated or misused based upon industry standards, or equipment which has not had reasonable and necessary maintenance, or equipment which has been used for operation outside of the specifications for the equipment.
