  • Hobart 500563 Champion 145 Arc Briggs & Stratton 4500W AC and 145A DC stick Welder Generator Combo New
Hobart 500563 Champion 145 Arc Briggs & Stratton 4500W AC and 145A DC stick Welder Generator Combo New

  • Hobart 500563 Champion 145 Arc Briggs & Stratton 4500W AC and 145A DC stick Welder Generator Combo New

$ 1,699.00
+
FREE Shipping
Out Of Stock
Manufacturer Direct Shipping
Please allow 5-8 business days for processing

Extended Warranty

Factory Warranty
$0 ()

Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in! Please click add to cart.
  Exceptional Customer Service   Manufacturer Direct
FactoryPure BBB Business Review Shopper Award



To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.
  • Free Shipping Options Available
  • Price Match On Most Items
  • Manufacturer Direct

Hobart 500563 Champion 145 Arc Briggs & Stratton 4500W AC and 145A DC stick Welder Generator Combo New
  Share
X

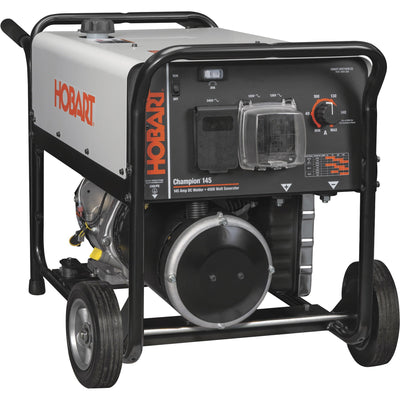

The Hobart 500563 Champion 145 Welder/Generator is for those who occasionally need and/or desire to weld. The stick welder offers an all-in-one solution for portable power and welding, up to 4,500 watts. for a quiet operation, the Hobart welder and generator has a large muffler. This 145A welder also features a 6.35 gal. Briggs & Stratton Intek engine for longer run times, so there is no need to take breaks and re-fill the tank.

Overview (Right Column)
3 year limited factory warranty
Includes all original accessories
Brand new in box
Ships directly from Hobart out of WI
Authorized Hobart dealer

 Outlets
Features (Left Column)
  • Large muffler provides a quiet operation
  • The 6.25-gallon fuel-efficient Briggs & Stratton Intek engine allows for longer run times and prevents you from having to take breaks
  • Versatile receptacle package (with four 20A, 120 VAC GFCI receptacles and one 240 VAC (6-50R) receptacle with covers) allows you to obtain power with 120 or 240 V tools or appliances
Features (Right Column)
  • 145 amp DC welder/generator allows you to weld DC stick electrodes up to 5/32 in. diameter
  • The lightweight, rugged, and portable stick welder comes with a running gear and roll-bar frame built for your added protection
  • Stick welder/generator offers an all-in-one solution for portable power and welding
  • Generator power: 4,500W (surge), 4,000W (continuous)
Product Specifications (Left Column)
  • Product Weight: 207 lb.
  • Amperage Adjustments: 40 - 145 amps.
  • Compatible Metals: Stainless Steel, Steel
  • Cooling Type: Air cooled
  • Country of Origin: Made in USA
  • Decibel Rating: 68 dB
  • Duty Cycle: 130 A @ 30% Duty Cycle
  • Engine Brand: Briggs & Stratton Intek engine
  • Engine Displacement: 306
  • Engine RPM: 3600
  • Frequency: 4 KVA/KW, 120/240 V, 60 HZ
  • Fuel Type: Gasoline
  • Full Load Fuel Consumption: 0.75 gal./hr
  • Input Voltage: 130 A at 25 V, 30% duty cycle
  • Intended Use Grade: Residential
  • Maximum Electrode Size: 5/32 in.
  • Maximum Material Thickness: 12 in.
  • Maximum Welding Amperage: 145 Amp
  • Minimum Amperage: 40A
  • Minimum Electrode Size: 0.09375 in.
  • Minimum Generator Power Required: 4,500 W
  • Minimum Welding Amperage: 40 Amps
  • Number of Circuits: 3
  • Phase: Single
  • Polarity: DC
  • Power Cord Length: 12 ft.
  • Product Length: 31.25 in.
  • Product Height: 24.75 in.
  • Product Width: 20.625 in.
  • Response Time: 15 seconds
  • Running Watts: 4,000 watts
Product Specifications (Right Column)

Package Contents:

  • Welder/Generator
  • User Manual
WARRANTY

This item comes with a 3 year limited factory warranty.
