Hobart 500573 Handler 125 Flux-Cored 205V MIG Welder New
Product Overview

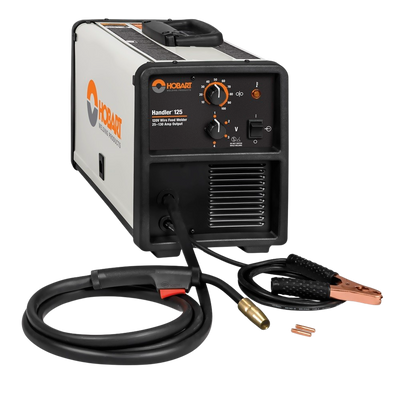

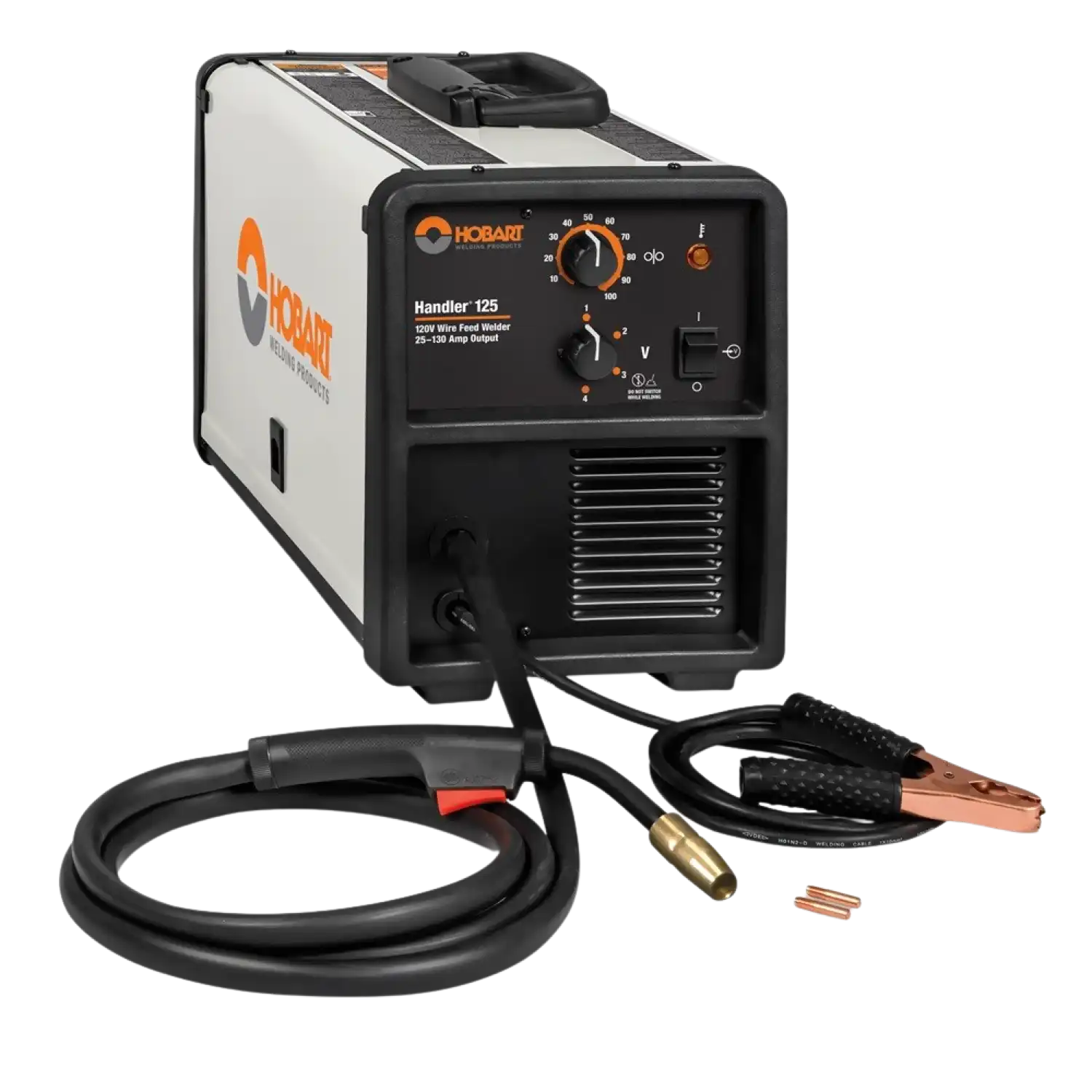

Hobart Handler® 125 Flux-Cored/MIG-Ready Welder has separate voltage and wire-feed speed knobs for customized control. Operates off 120V household current.
A gas solenoid makes it easy to change from flux-cored wire to MIG welding. Welds up to 3/16in. steel.
5 year limited factory warranty
Includes all original accessories
Brand new in box
Ships directly from Hobart out of WI
Authorized Hobart dealer
Features
- Self-resetting thermal overload protects the power transformer from overloads to ensure reliability
- Durable feed head with quick-release drive roll tension lever offers positive feed with adjustable tension, plus easy accessibility to thread new wire
- Spool hub assembly accommodates 4in. or 8in. spools for added flexibility
- Operates from 120V standard household current
- Includes H100F2-8 8ft. gun, 8ft. work cable with clamp and 2 contact tips
- Welds 24-ga. to 3/16in. steel with flux-cored wire
- No shielding gas required; using 0.030–0.035in. self-shielding flux-cored wire
- Infinite wire-feed speed control
- 4 output voltage settings provide a broad operating window for each wire, with quick and easy adjustment for different thicknesses and joints
- Rated output of 80 Amps @ 25% duty cycle; 50 Amps @ 60% duty cycle; 40Amps @ 100% duty cycle
- Safe, built-in contactor keeps wire electrically "cold" until trigger is pulled
Specifications
| Power Cord Length | 6 ft |
|---|---|
| Clamp Cable Length | 8 ft |
| Regulator and Gas Hose Included | No |
| Shielding Gas Required | No |
| Dimensions L x W x H (in.) | 19 13/32 x 10 x 13.5 in |
| Manufacturer's Warranty | 5 year limited warranty |
| Ship Weight | 57.5 lbs |
| Multi-process | No |
| Volts | 120 |
| Amps | 25–130 |
| Mig Ready | Yes |
| Spoolgun Included | No |
| Cart Included | No |
| Duty Cycle | 25% at 80A; 60% at 50A; 100% at 40A |
| Max. Weld Thickness | 5/16 in |
| Weldable Materials | Steel, stainless steel |
|---|---|
| Max. Welding Wire Diameter | 0.030 in |
| Min. Output Amps | 25 |
| Max. Output Amps | 130 |
| Wire Feed Speed Control | Yes |
Package Contents
(1) Handler 125 Wire-Feed Welder
(1) 8ft. gun
(1) 8ft. work cable with clamp
(1) 6ft. power cord with plug
(2) Contact tips
(1) Weld setup chart
(1) Owners Manual
Warranty
This item comes with a 5 year limited factory warranty.
