Iron Horse Stationary Air Compressor 60 Gal. 6.5 HP 11.2 CFM 150 PSI 208/230V IHD6160V1 New
Product Overview

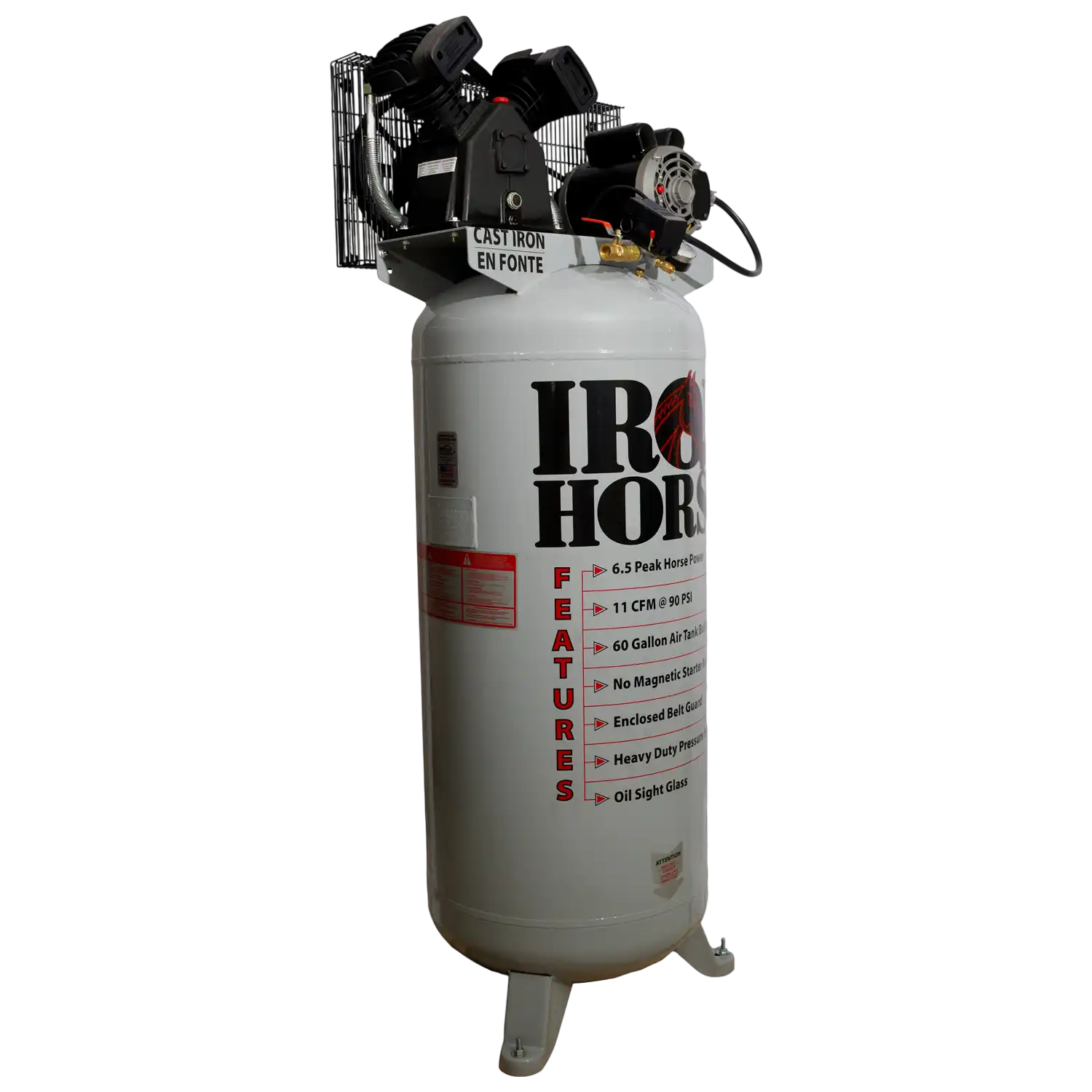

This Iron Horse 60-gallon stationary air compressor is paired with a heavy-duty V-twin cast iron compressor head that produces 11.2 CFM at 90 PSI with up to 150 PSI max pressure. The vertical space-saving tank design, high efficiency reed valves, and 1/2 in. ball valve outlet help support demanding shop air tool use. Built-in features like an easy view oil sight glass, heavy duty pressure switch, and heavy-duty metal belt guard are included for easier maintenance and durability.
Brand new
1 year factory warranty
Manufacturer direct shipping from MS
Authorized Iron Horse dealer

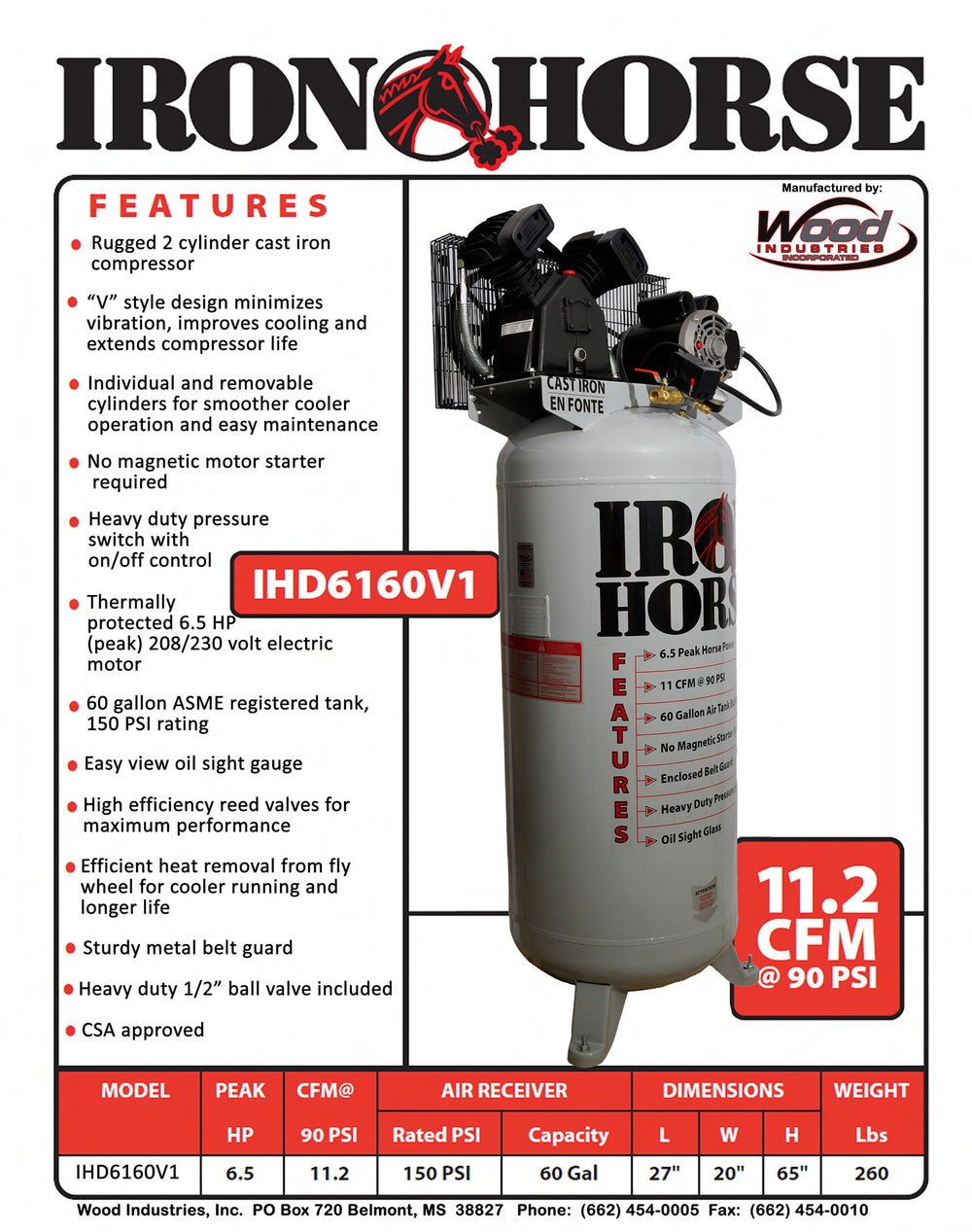

Features
- Rugged 2 cylinder cast iron compressor
- "V" style design minimizes vibration, improves cooling and extends compressor life
- Individual and removable cylinders for smoother cooler operation and easy maintenance
- No magnetic motor starter required
- Heavy duty pressure switch with on/off control
- Thermally protected 6.5 HP (peak) 208/230 volt electric motor
- 60 gallon ASME registered tank, 150 PSI rating
- Easy view oil sight gauge
- High efficiency reed valves for maximum performance
- Efficient heat removal from fly wheel for cooler running and longer life
- Sturdy metal belt guard
- Heavy duty 1/2" ball valve included
- CSA approved
Specifications
| Model | IHD6160V1 |
| Air Tank Size | 60 gal |
| Tank Orientation | Vertical |
| Horsepower | 6.5 HP |
| Volts | 208/230 Volt |
| CFM at 90 PSI | 11.2 |
| Max PSI | 150 |
| Stage | 1 |
| Pump Material | Cast Iron |
| Pump Drive | Belt |
| Air Outlet Size | 1/2 in. NPT |
| Amps | 15 |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Product Weight | 280 lbs |
| Dimensions L x W x H | 27 x 20 x 66 in |
Package Contents
IHD6160V1 Stationary Air Compressor
User Manual
Warranty
This item comes with a 1 year warranty.
