Iron Horse Stationary Air Compressor 60 Gal. 7 HP 16.5 CFM 150 PSI 208/230V IHD7160V1 New
Manufacturer: Iron Horse
SKU: IHD7160V1
QTY
or
(888) 999-1522
$ 1,579.00
$ 1,559.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Ships in (est) 4-5 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Iron Horse Stationary Air Compressor 60 Gal. 7 HP 16.5 CFM 150 PSI 208/230V IHD7160V1 New
Product Overview

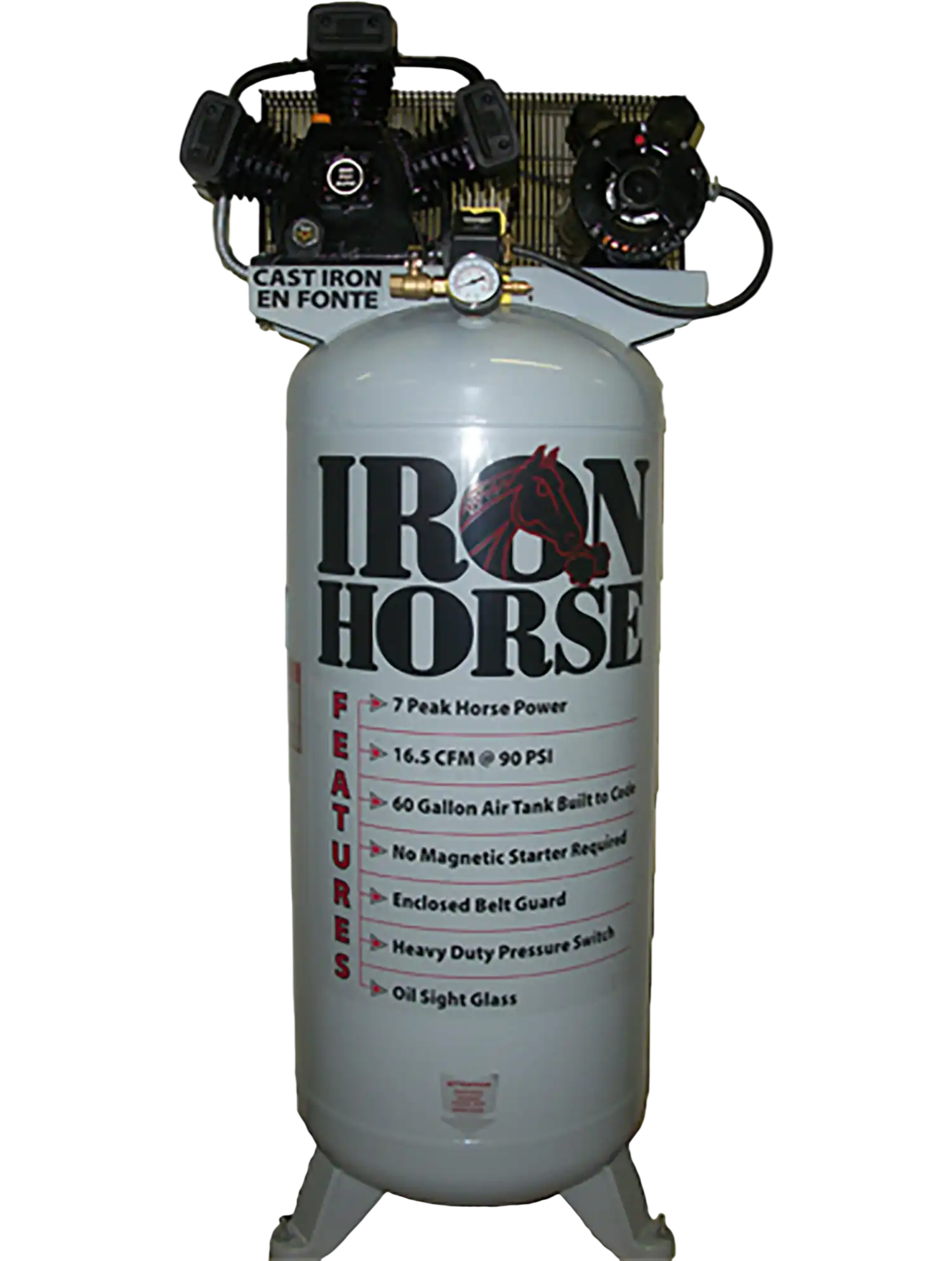

The Iron Horse 60-gallon stationary air compressor is a belt-driven shop unit designed for high air delivery and longer run times between cycles. It uses a heavy-duty V-style cast iron compressor pump and produces 16.5 CFM at 90 PSI with up to 150 PSI max pressure. A vertical space-saving tank design, large easy-read pressure gauge, and 1/2 in. ball valve outlet help support demanding shop air tool use. Built-in features like an oil sight glass, manual tank drain, and heavy-duty metal belt guard are included for easier maintenance and durability.
Brand new
1 year factory warranty
Manufacturer direct shipping from MS
Authorized Iron Horse dealer

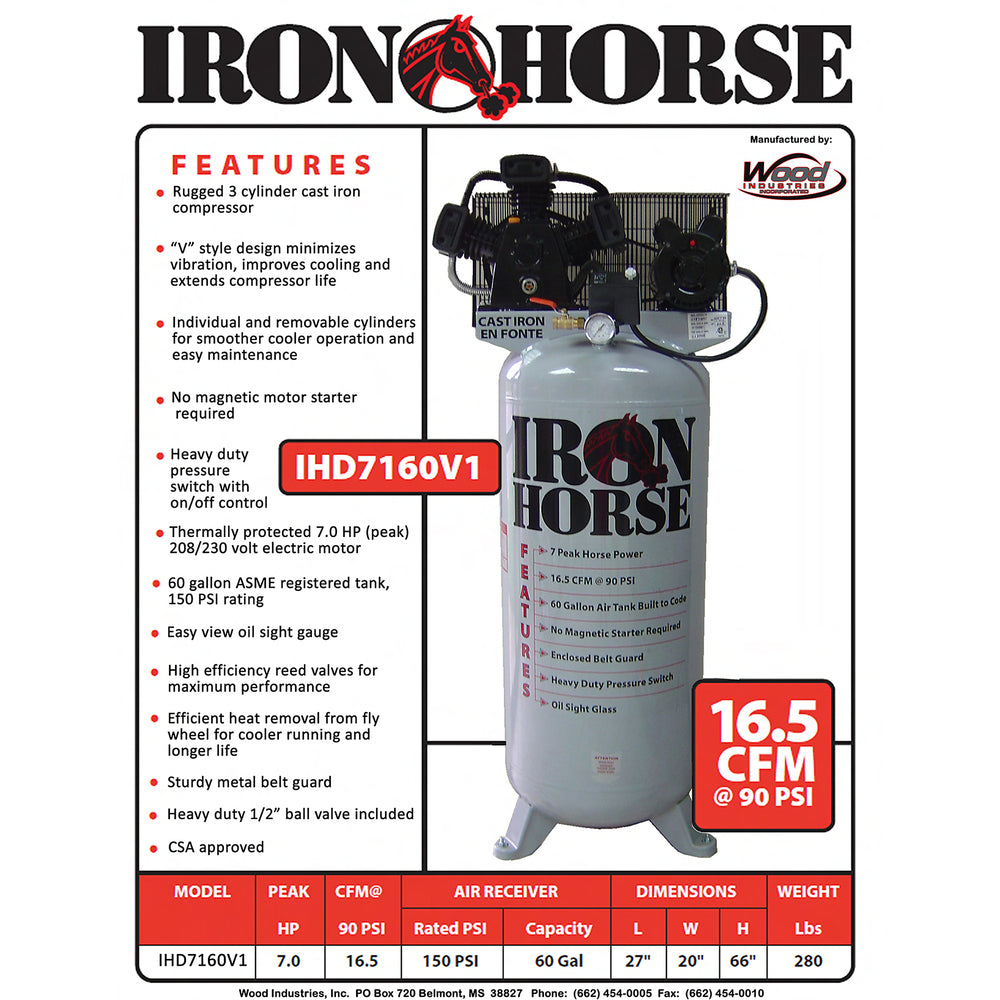

Features
- Heavy Duty Three Cylinder Cast Iron Compressor Pump
- 16.5 CFMs @ 90 PSI
- Extra Large Easy Read Pressure Gauge
- 1/2" Ball Valve Air Outlet Included
- "V" Style Pump Improves Cooling & Minimizes Vibration
- Heavy Duty Metal Belt Guard
- No magnetic motor starter required
- Use Multiple Tools at Once
- 150 PSI Max Pressure
- Vertical Space Saving Design
- 60 Gallon ASME registered tank
- CSA Approved
Specifications
| Model | IHD7160V1 |
| Air Tank Size | 60 gal |
| Tank Orientation | Vertical |
| Horsepower | 7 HP |
| Volts | 208/230 Volt |
| CFM at 90 PSI | 16.5 |
| Max PSI | 150 |
| Stage | 1 |
| Pump Material | Cast Iron |
| Pump Drive | Belt |
| Air Outlet Size | 1/2 in. NPT |
| Amps | 22 |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Product Weight | 280 lbs |
| Dimensions L x W x H | 27 x 20 x 66 in |
Package Contents
IHD7160V1 Stationary Air Compressor
User Manual
Warranty
This item comes with a 1 year warranty.
