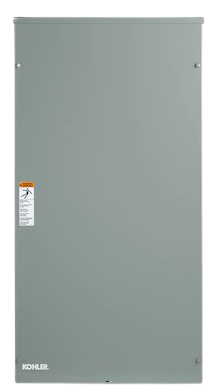

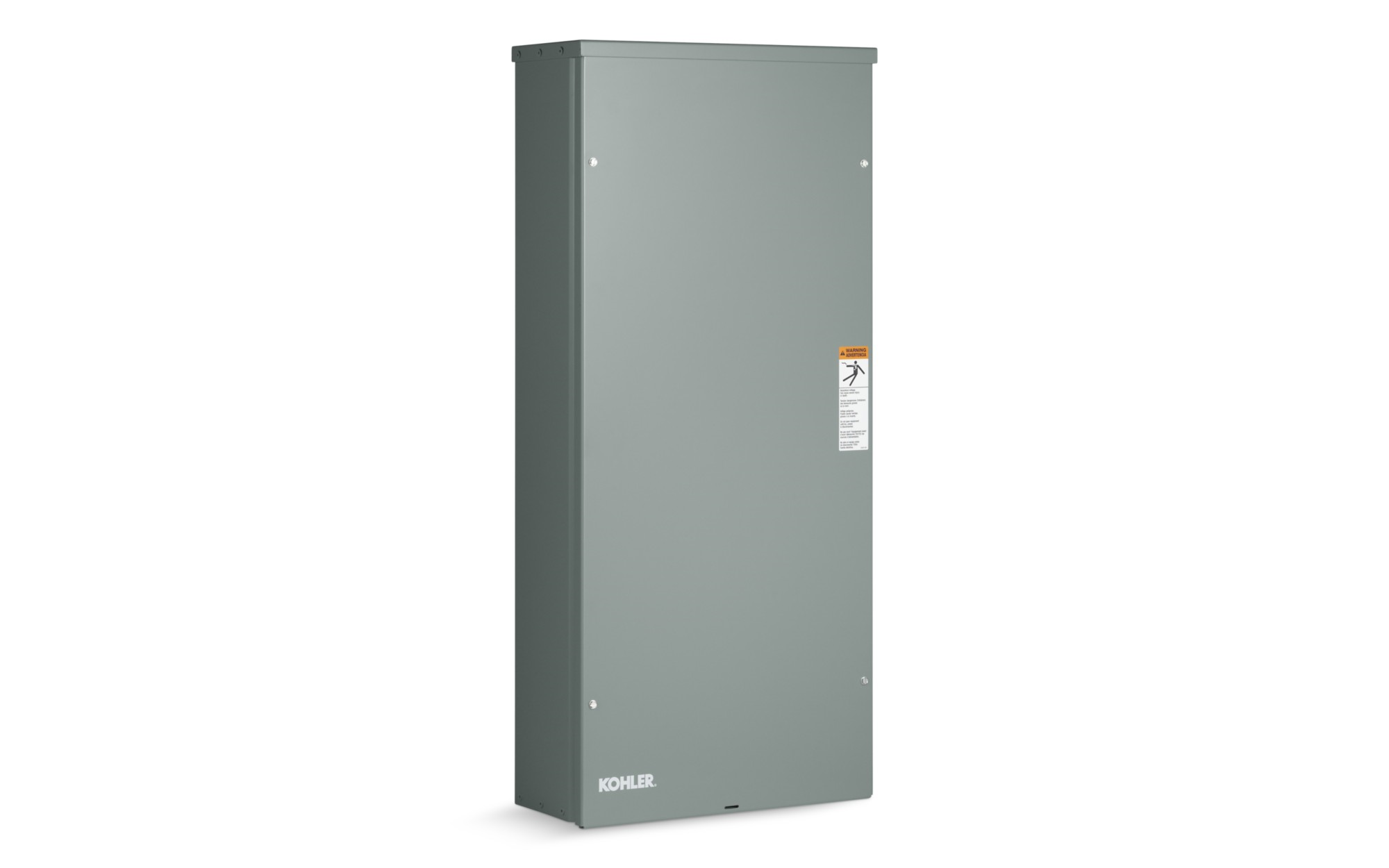

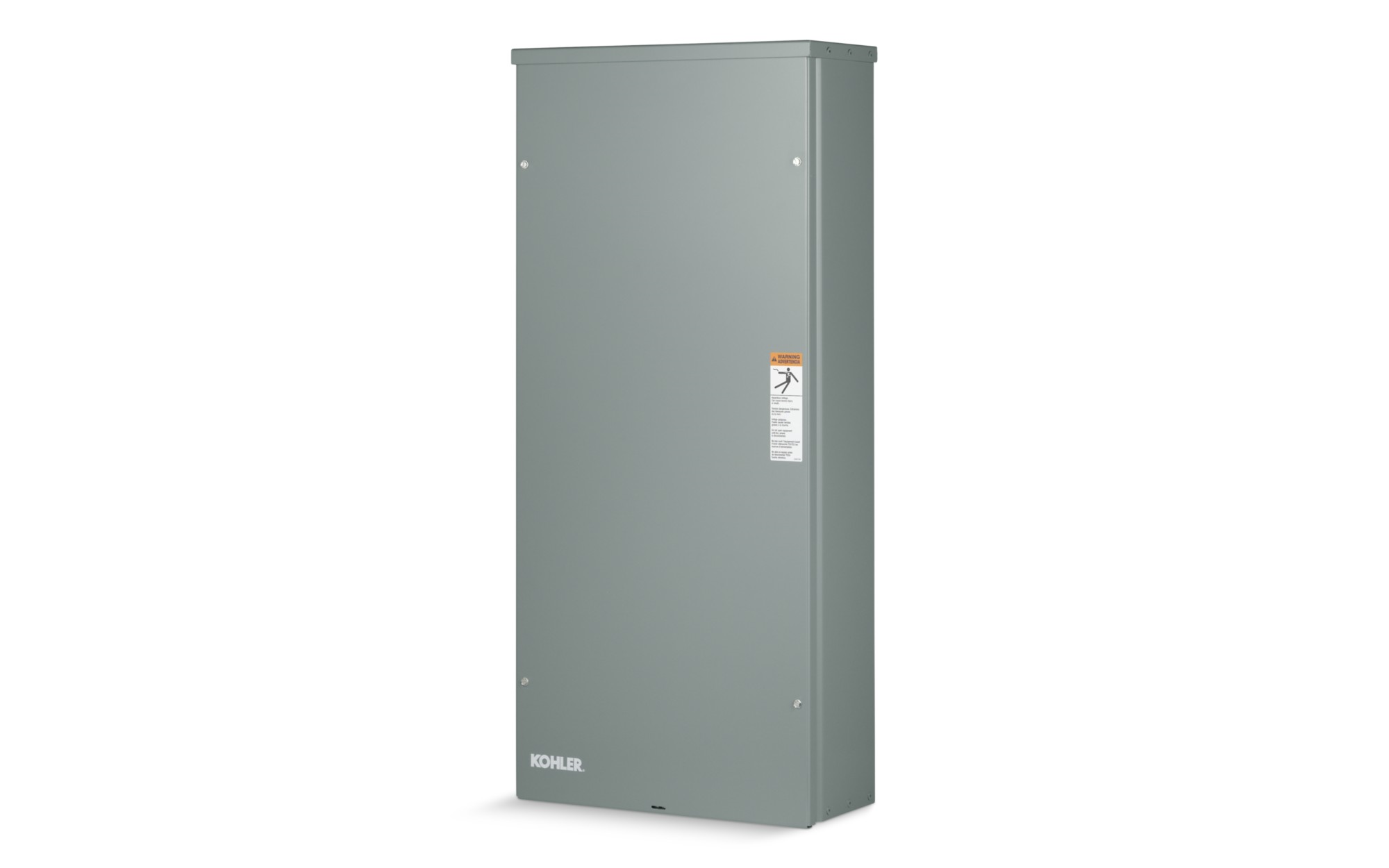

Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch with 24 Circuit Load Center New
Manufacturer: Kohler
SKU: RDT-CFNC-0200B-QS7
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 1,319.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 2 weeks
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch with 24 Circuit Load Center New
Product Overview
It's the brains behind your generator system. The automatic transfer switch (ATS) continuously monitors the power coming from your utility. When the power goes out, the ATS automatically transfers power from the utility to your generator. When utility power is restored, the ATS turns off your generator and transfers back to power from the utility grid.
Brand new in box
Free shipping
Authorized Kohler dealer
Features
- Compatible with all KOHLER generators.
- User-friendly LED display indicates performance status.
- Ideal for adding generator to buildings with previously installed electrical.
- Options available to install indoors or outdoors.
- Available in service entrance models.
- Provides quiet weekly exercise with complete system diagnostics.
- Steel or aluminum enclosures available.
- Ask your dealer about available accessories that let you customize your system.
- 5-year, 2000-hour limited warranty.
- 200-amp models available, with or without load centers; Volts: 240; Poles: 2
Specifications
| Model | RDT-CFNC-0200B-QS7 |
|---|---|
| Amps | 200 |
| Phase | Single Phase |
| Voltage @ 60 Hz | 240 |
| Frequency | 60 Hz |
| Wires | 3 |
| Poles | 2 |
| Transfer Switch Type | Standard |
| Load Center | w/Load Center |
| # of circuits in the Load Center | 24 spaces |
| Generator Compatibility | All Single Phase KOHLER Residential/Small Business Generators |
| Load Control Time Delay | Yes |
| Enclosure Material | Aluminum |
| Enclosure Type | Indoor or Outdoor |
| Certifications/Listings | UL Listed |
| Controller | MPAC 500 |
|---|---|
| Position indicating LEDs | Yes |
| Source available indicating LEDs | Yes |
| Common / fault relay | Yes |
| All-in-one main distribution panel and ATS | No |
| Weight | 18 lbs. (8 kg) |
| Dimensions | 36.1 in. x 16.4 in. x 7.0 in. (917 mm x 416 mm x 177 mm) |
| Warranty | 5-year limited |
| Country of Origin | US |
Package Contents
200 Amp Outdoor Automatic Transfer Switch with Load Center
User's Manual
Warranty
This item comes with a five year warranty.
