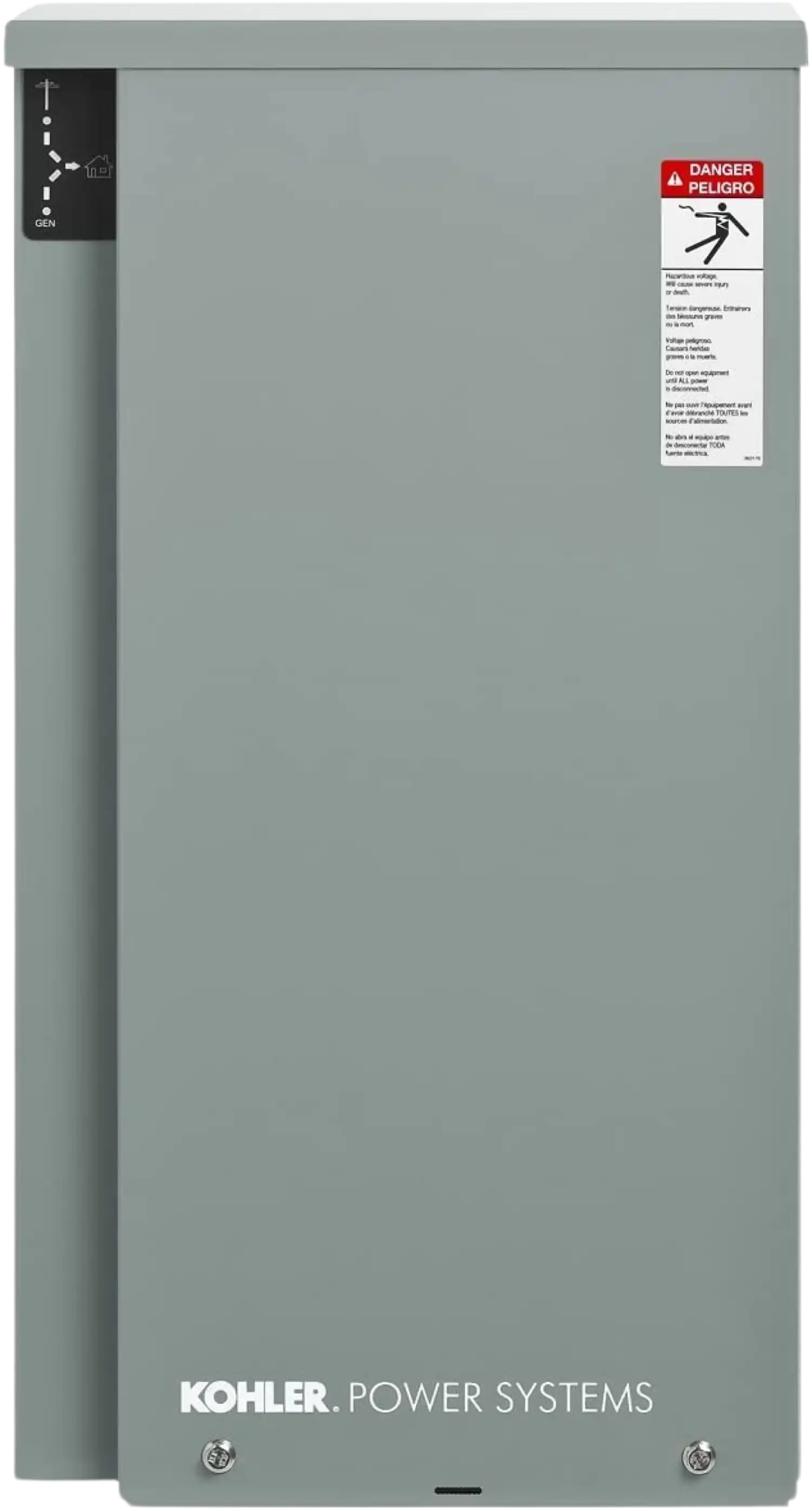

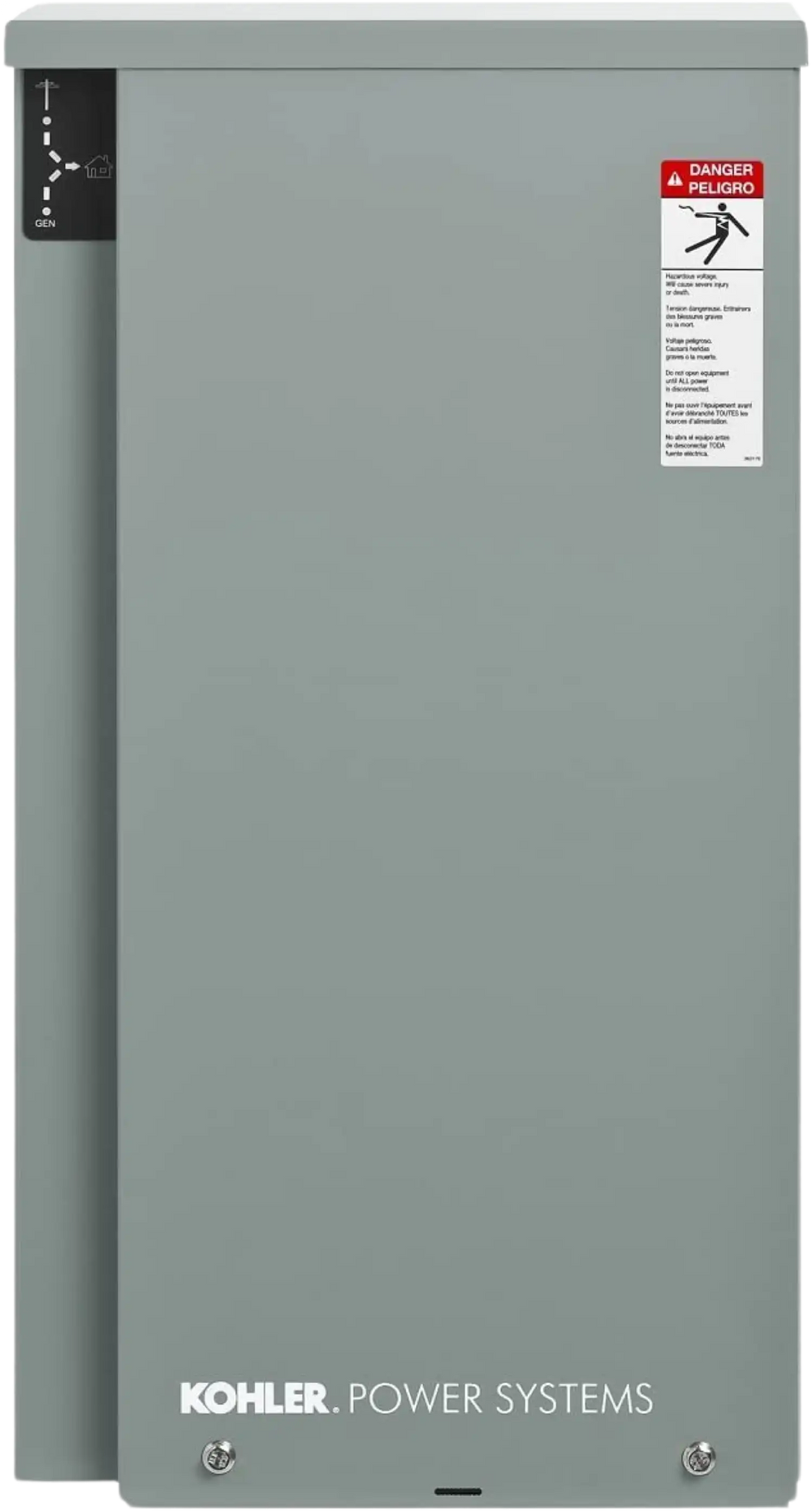

Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New
Manufacturer: Kohler
SKU: RXT-JFNC-0200A-QS7
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 769.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Add to cart for new customer discounts
Ships in (est) 4-6 weeks
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New
Product Overview
It's the brains behind your generator system. The automatic transfer switch (ATS) continuously monitors the power coming from your utility. When the power goes out, the ATS automatically transfers power from the utility to your generator. When utility power is restored, the ATS turns off your generator and transfers back to power from the utility grid.
Brand new in box
Free shipping
Authorized Kohler dealer
Features
- Kohler RXT Series 200-Amp Automatic Transfer Switch
- Only compatible with Kohler generators with RDC2/DC2 controllers
- Corrosion-Resistant NEMA 3R Aluminum Enclosure
- Approved for indoor or outdoor installations
- Switch can be padlocked for additional safety
- Standard Features
- Allows utility voltage display on RDC2/DC2 controller
- Interface board for connection to the RDC2/DC2 controller
- Double throw inherently interlocked design
- Combined Interface / Load Management Board
- Built-In Load Shed - Manage (2) HVAC loads
- Manage up to (4) Non-Essential loads
- Contractor manually operable for maintenance purposes
- Rated at 200-Amps @ 240-Volts
- Requires PRM (Sold Separately)
- 5-Year Limited Warranty
Specifications
| Product Category | Generator Transfer Switches |
| Weight | 15 Pounds |
| Consumer Warranty | 5 Years |
| Product Depth | 7.1 Inches |
| Product Width | 13.2 Inches |
| Product Height | 24.5 Inches |
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Amps | 200 Amps |
| Enclosure | NEMA 3R |
| Transfer Switch Style | Standard Installation |
| ATS Load Shedding | Built-In |
| ATS Poles | 2 Poles |
| ATS Service Disconnect | No |
| Max Utility Input | 200 Amps |
| Max Generator Input | 200 Amps |
| Maximum Wattage | 48000 Watts |
| UL Listed | Yes |
Package Contents
200 Amp Outdoor Automatic Transfer Switch
User's manual
Warranty
This item comes with a five year warranty.
