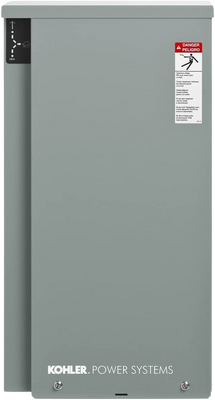

Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New

Manufacturer: Kohler

SKU: RXT-JFNC-0200A-QS7

Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New

QTY

(888) 999-1522

$ 745.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

Pre-Order

tags

ON SALE!

truck icon

Current special - Add to cart to see lower price

Ships in (est) 3-8 business days

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New

Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New

Product Overview

It's the brains behind your generator system. The automatic transfer switch (ATS) continuously monitors the power coming from your utility. When the power goes out, the ATS automatically transfers power from the utility to your generator. When utility power is restored, the ATS turns off your generator and transfers back to power from the utility grid.
vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

Free shipping

checkmark

Authorized Kohler dealer

Features

  • Kohler RXT Series 200-Amp Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Combined Interface / Load Management Board
  • Built-In Load Shed - Manage (2) HVAC loads
  • Manage up to (4) Non-Essential loads
  • Contractor manually operable for maintenance purposes
  • Rated at 200-Amps @ 240-Volts
  • Requires PRM (Sold Separately)
  • 5-Year Limited Warranty

Specifications

Product Category Generator Transfer Switches
Weight 15 Pounds
Consumer Warranty 5 Years
Product Depth 7.1 Inches
Product Width 13.2 Inches
Product Height 24.5 Inches
Voltage 120/240 Single-Phase
Frequency 60 Hertz
Rated Amps 200 Amps
Enclosure NEMA 3R
Transfer Switch Style Standard Installation
ATS Load Shedding Built-In
ATS Poles 2 Poles
ATS Service Disconnect No
Max Utility Input 200 Amps
Max Generator Input 200 Amps
Maximum Wattage 48000 Watts
UL Listed Yes

Package Contents

200 Amp Outdoor Automatic Transfer Switch

User's manual

Warranty
