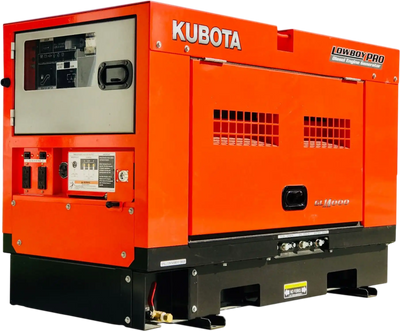

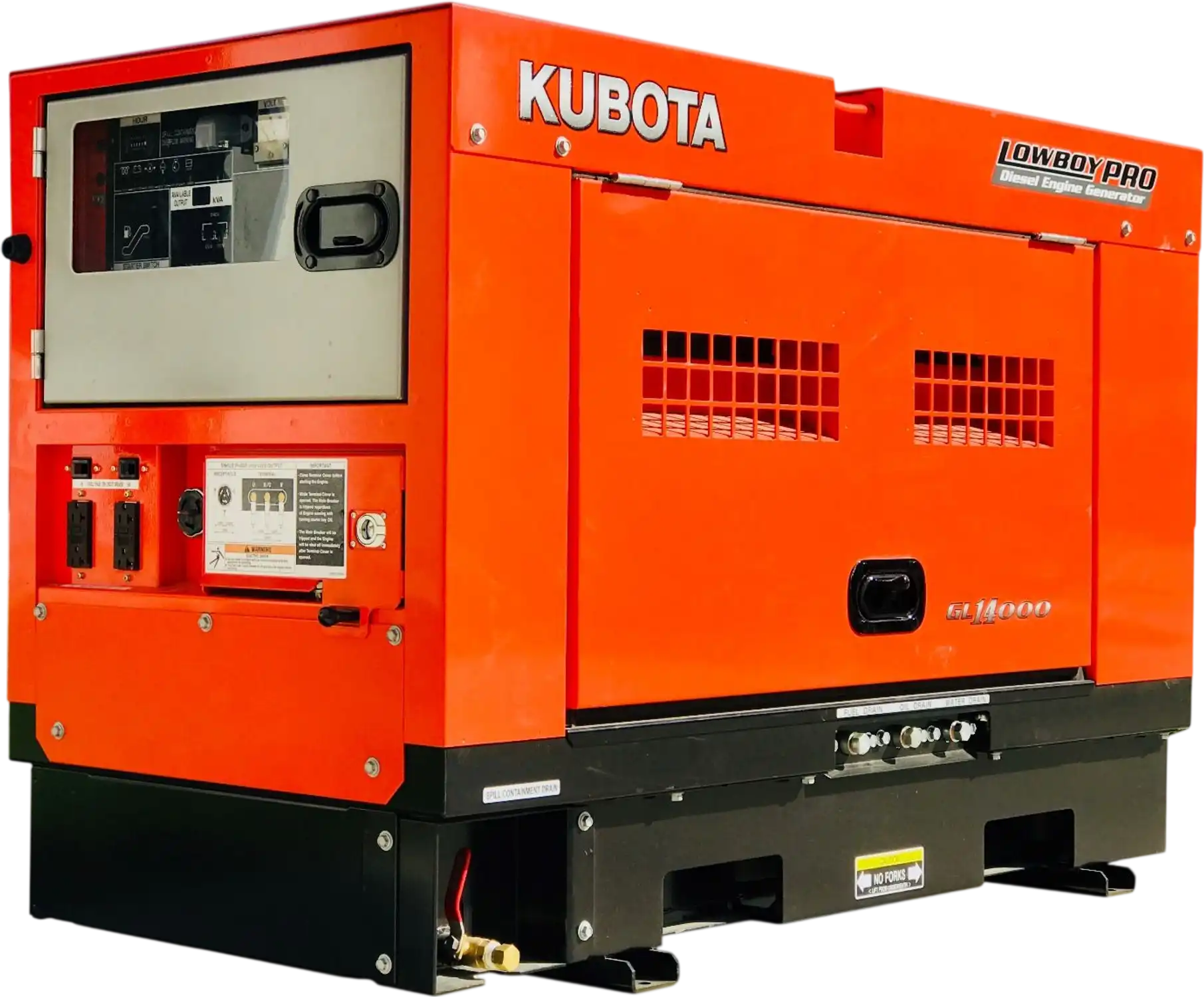

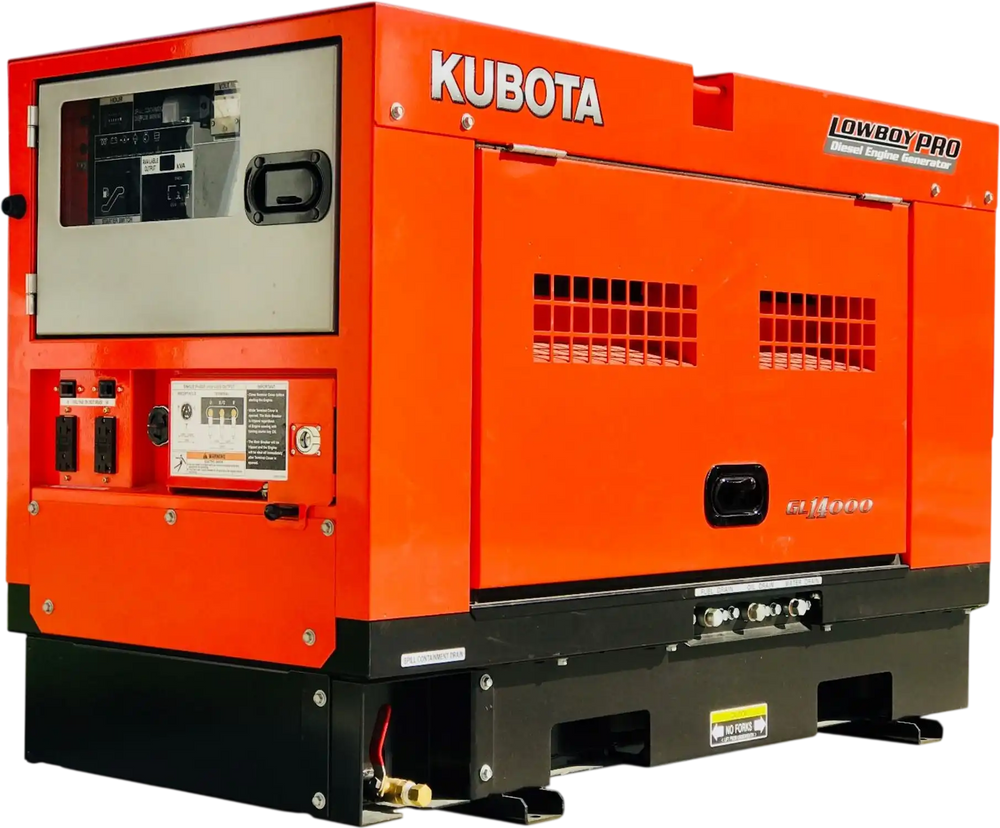

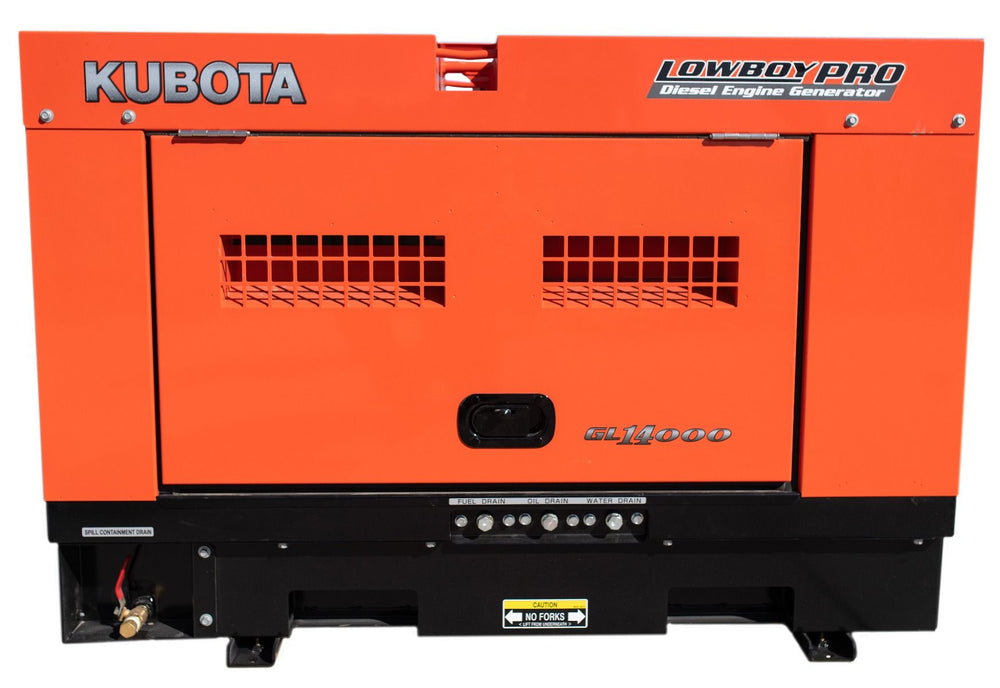

Kubota GL14000 Generator 14kW Diesel Liquid Cooled 120/240V with Receptacles and Output Terminals New
Manufacturer: Kubota
SKU: GL14000
QTY
or
(888) 999-1522
$ 13,575.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1 business day
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Kubota GL14000 Generator 14kW Diesel Liquid Cooled 120/240V with Receptacles and Output Terminals New
Product Overview
The Kubota GL14000 is a diesel generator designed to deliver dependable power for demanding applications. It offers 12 kVA prime output and 14 kVA standby output with a compact low-profile design for easier placement. Its direct-coupled generator and engine help provide reliable power with minimal loss, while one-side maintenance simplifies service access. Built-in safety systems and standard ATS connection capability make it suitable for both mobile and stationary use. This unit features receptacles and output terminals.
Brand new
3 year / 3000 hour warranty
Manufacturer direct shipping from TX
Authorized Kubota dealer
Plug Types
×2
20 Amp GFCI Standard Receptacle
(20A-GFCI)
×1
125v/250v 50 Amp Twist Lock
(CS6369)
Plug Types
×2
20 Amp GFCI Standard Receptacle
(20A-GFCI)
×1
125v/250v 50 Amp Twist Lock
(CS6369)
Features
- Generator and engine are direct-coupled to ensure a more reliable power supply with minimum power loss.
- Large-capacity fuel tank (36.4L / 9.62 U.S gal.) enables longer continuous operation on a single tank.
- One-side maintenance to reduce the operator’s work load.
- Larger-capacity oil pan employed to stretch the oil change intervals up to 200 operating hours.
- Protective covers on all moving parts (for the engine’s cooling fan and the generator).
- Automatically shuts the engine down in case the water temperature rises excessively or the oil pressure drops below a safe level.
- Double element air cleaners are standard equipment. Ideal for heavy-duty application in dusty environments.
- An access terminal to connect to the ATS (Automatic Transfer Switches) is standard equipment. Applicable for stationary use as well.
Specifications
| Model | GL14000 |
| Frequency | 60 Hz |
| Prime Output | 12 kVA |
| Standby Output | 14 kVA |
| Rated Voltage | 240/120 V |
| Rated Current | 50/100 A |
| Phase / Wire | 1-3 |
| Power Factor | 1.0 |
| Output Terminal Block | Single phase - 3 wires U-N/G-W |
| Terminal Size | M8 |
| Engine Manufacturer / Model | Kubota / D902 |
| Engine Speed | 3600 RPM |
| Emission Standard | EPA Tier 4 Final, CARB |

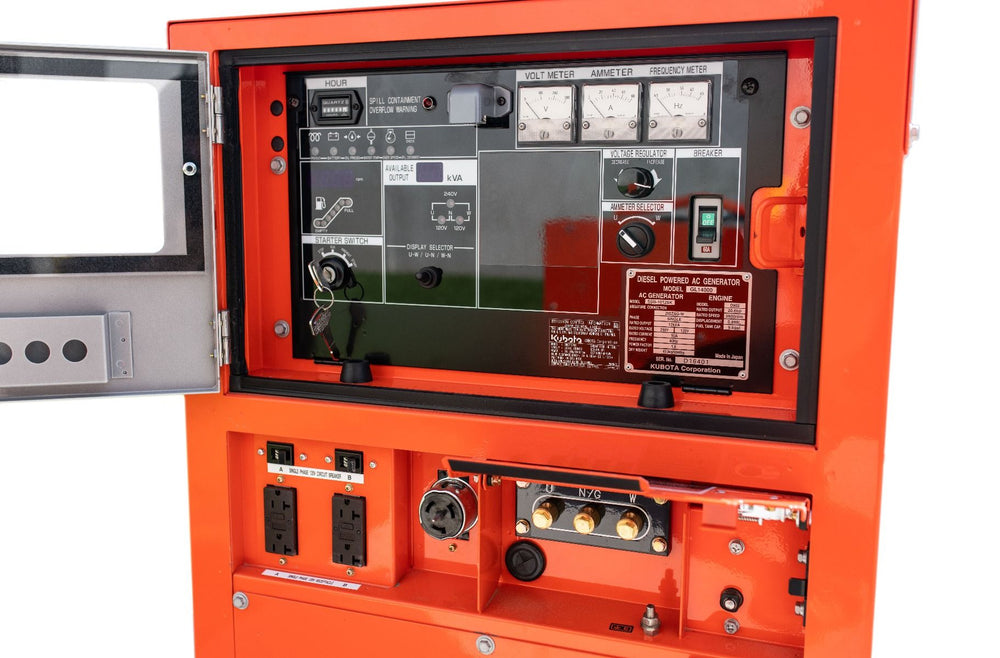

| Control Panel | Voltmeter, Ammeter, Frequency Meter |
| Fuel Consumption 100% Load | 4.9 L/hr (1.29 gal/hr) |
| Fuel Consumption 50% Load | 3.2 L/hr (0.85 gal/hr) |
| Fuel Tank Capacity Net Volume | 36.4 L (9.62 gal) |
| Continuous Operating Hours 100% Load | 7.0 hr |
| Continuous Operating Hours 50% Load | 11.0 hr |
| Dimensions | 51.57 x 25.2 x 35.24" |
| Dry Weight | 904 lbs |
| Net Weight | 1003 lbs |
| Noise Level No Load / Rated Operation | 65 / 67 dB at 7 m |
Package Contents
Kubota GL14000 Generator
User Manual
Warranty
This item comes with a 3 year / 3,000 hour warranty.
