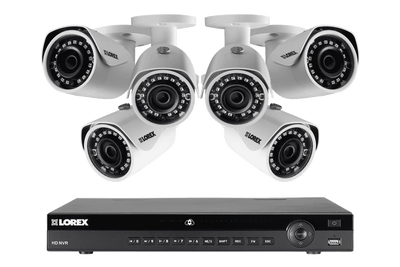

Lorex HDIP86W 6 Camera 8 Channel Weatherproof 2K Resolution Security Surveillance System New

Manufacturer: Lorex by Flir


  • Lorex HDIP86W 6 Camera 8 Channel Weatherproof 2K Resolution Security Surveillance System New
  • Lorex HDIP86W 6 Camera 8 Channel Weatherproof 2K Resolution Security Surveillance System New
  • Lorex HDIP86W 6 Camera 8 Channel Weatherproof 2K Resolution Security Surveillance System New
  • Lorex HDIP86W 6 Camera 8 Channel Weatherproof 2K Resolution Security Surveillance System New
  • Lorex HDIP86W 6 Camera 8 Channel Weatherproof 2K Resolution Security Surveillance System New
  • Lorex HDIP86W 6 Camera 8 Channel Weatherproof 2K Resolution Security Surveillance System New


$ 859.00

shipping box
FREE Shipping

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
Lorex HDIP86W 6 Camera 8 Channel Weatherproof 2K Resolution Security Surveillance System New

Lorex HDIP86W 6 Camera 8 Channel Weatherproof 2K Resolution Security Surveillance System New

 Brand new in box & manufacturer direct
 2 year factory warranty
 Remote monitoring using the Flir app
 All original accessories included
 Authorized Lorex dealer
 Ships same or next business day

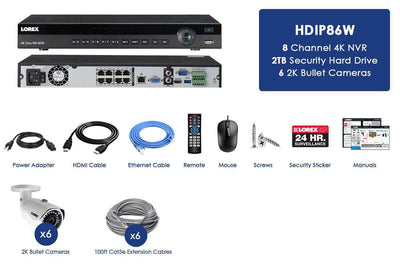

What's in the box:

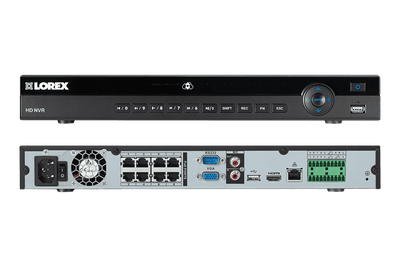

  • 8 channel 4K  network video recorder

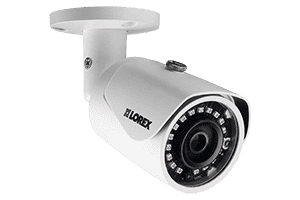

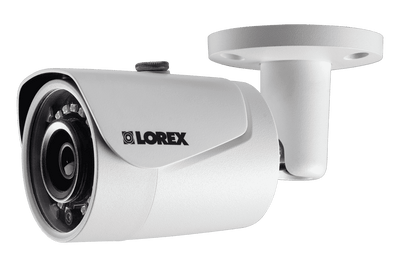

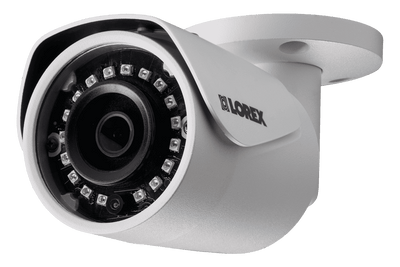

  • 2K Bullet Cameras (6)
  • 100ft Cat5e Extension Cable (6)
  • Power Cable
  • HDMI Cable
  • Ethernet Cable
  • Remote
  • Mouse
  • Manuals





4K NVR can support up to 8 cameras



6 x 2K IP cameras



Maximum night vision with Color Night Vision



Maximum Capacity 2 x 6TB hard drives

  • Real-time recording up to 8MP on all channels - 4× the detail of 1080p
  • Supports industry-leading 4K recording1
  • 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • RapidRecap® - see the day in a minute with hours of activity compiled into a short video summary
  • FLIR Secure™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™)2
  • PC and Mac compatible - FLIR Cloud™ video management software gives you complete control over your security system from anywhere 2
  • 24/7 security-grade pre-installed hard drive3
  • Expandable high capacity storage up to 12TB (2×6TB HDD)
  • Automatically detects compatible IP cameras in the network4
  • 4K video output - view multiple HD channels at once in full resolution on a 4K TV
  • H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing3
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive5
  • Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date6
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD amp; 4K TVs


Enhanced Security Monitoring with HDR

Your security camera uses HDR (High Dynamic Range) technology that works to ensure you capture the most important details, regardless of lighting conditions. Dynamic range is measured as the difference between the brightest point and the darkest point of the video. HDR technology uses this difference to automatically adjust the picture's brightness, resulting in optimized, highly-detailed security video.

Enhanced Clarity in Low-Light Situations

Your camera uses DNR (Digital Noise Reduction) technology to filter out noise from low-light settings as well any noise caused by motion. By eliminating graininess, your camera provides a cleaner, more accurate image with better clarity, sharpness, and improved motion detection, enhancing your HD experience even in the dark! Not only does DNR reduce noise, but it reduces video file sizes as well, giving you greater disc space for storage.

Color Night Vision™ and True HDR

Our exclusive Color Night Vision™ (CNV) lets you see fully colored images in low-light conditions for clear identification at night. Most security cameras rely on IR night vision in low-lighting, which only provides black & white images. Capture more informative video evidence with full-color images. For a security camera that performs in all sorts of challenging lighting conditions, True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image.

Use our FLIR Secure app to stay connected with your mobile App

Consolidate your entire security system into your handheld device or desktop computer simply by connecting your NR900 NVR to our hassle-free FLIR Secure™ app. Eliminate complicated network setups and avoid port-forwarding issues. FLIR Secure organizes your security system (along with other FLIR Secure compatible cameras or systems) with a simple 3-step installation process. Just download the app for your smartphone, tablet, or computer, scan the QR code on your NVR and start accessing your entire security system via your mobile device or computer. App features include cloud storage, RapidRecap® videos, privacy mode (a first for DVR security systems), and custom mobile notifications for motion events.


    Operating SystemLinux (embedded)
    PentaplexSimultaneous View, Record, Playback, Backup & Remote Monitoring
    Number of Channels8/16/32 Channels
    Video IN8ch: 8 PoE, 16/32ch: 16 PoE
    Video OUTNo
    VGA OUTYes
    Audio IN1 Line IN (RCA) for service only
    Audio OUT1 Line OUT (RCA) for service only
    USB Port1 at the back, 1 at the front
    Alarm IN4 Alarm IN
    Alarm OUT2 Alarm OUT
    Video Output Resolution3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
    PTZ controlLorex IP PTZ cameras only
    Display8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36
    Live Display Speed8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL
    System NavigationUSB Mouse, IR Remote Control, Front Panel Buttons
    Motion Area SettingFixed Grid (22×18)
    Sensitivity Levels100
    Firmware UpgradeAutomatic over the Internet & via USB device and network
    User AuthorityBy user group
    Time SynchronizationAutomatic time sync by NTP server
    Video CompressionH.264 / H.265
    Audio CompressionG.711
    ResolutionUp to 4K (3840×2160), 1080p (1920×1080)
    Record Rate8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP
    Recording Resolution SettingPer camera for different resolutions
    Recording Quality Control6 Levels
    Recording ScheduleBy hour, by day, by recording mode, by motion, by alarm, by channel
    Pre RecordingMax. 4 Secs
    Post RecordingMax. 5 Minutes
    ReliabilityWatch-Dog, auto-recovery after power failure
    Covert VideoYes
    Playback Channel1CH/4CH@4K, 8CH@4MP, 16CH@2MP
    Playback SpeedVariable Max 16x
    Playback PlayersBackup Player
    SearchBy Time & Event
    Log SearchUp to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss
    Audio PlayYes (audio camera required)
    StorageUp to 2 HDDs (SATA)
    Maximum CapacityUp to 2×6TB (12TB Max)
    Backup MediaUSB Flash Drive & HDD
    Backup File FormatDAV or ASF File
    Cloud ConnectionFLIR Secure™
    Supported Operating SystemsWindows™ / Mac OS X
    Remote SoftwareClient Software (PC & Mac)
    Email NotificationText with snapshot
    Instant Smart Phone & TabletAndroid™, iPad®, iPhone®
    DDNSFree Lorex DDNS
    System ConfigurationFull setup configuration over network
    PortsProgrammable by User
    Network ProtocolHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
    Network Interface10/100/1000-Base-TX, RJ-45
    Network Bit Rate320Mbps total, 48~8192kbps per camera
    Power ConsumptionApprox. 15W (no HDD included)
    Supply Voltage100VAC-240VAC, 50/60Hz
    Total PoE Power Output130W (Max 25W per Camera)
    Unit Dimensions (W × D × H)14.7 × 12.9 × 2.1" / 375 × 327 × 53mm
    Unit Weight8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg
    Operating Temperature14° ~ 131°F / -10° ~ 55°C
    Humidity10 ~ 90% RH
      Image Sensor1/3" 4MP
      Video FormatNTSC / PAL
      Effective PixelsH: 2688 × V: 1520
      Resolution4MP (2688×1520) @ 20fps
      Scan SystemProgressive
      Sync SystemInternal
      S/N Ratio≥42dB (AGC OFF)
      AES Shutter Speed1/3 (1/4) ~ 1/100,000s
      Min. Illumination0.38 lux without IR, 0.28 lux with IR
      Video OutputIP
      Lens / Lens Type3.6mm F2.0 / Fixed
      Field of View (Horizontal)83°
      TerminationRJ45 Ethernet / 12V DC Power Barrel (optional)
      IR LED Type850nm
      Night Vision Range130ft (40m) / 90ft (27m)
      Color Night Vision™Yes
      Power RequirementPoE (Power over Ethernet) Class 1 / 12V DC
      Power ConsumptionMax. 265mA / 3.2W
      Operating Temp. Range-22° ~ 140°F / -30° ~ 60°C
      Operating Humidity Range<95% RH
      Environmental RatingIP66 (Indoor / Outdoor)
      Weight0.9lbs / 0.4kg
      As a Lorex authorized dealer, this product comes with a 2 year factory warranty.
