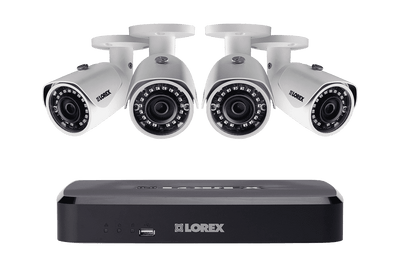

Lorex LN10802-84W 4 Camera 8 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New

  • Model: Lorex by Flir
  • SKU: LN10802-84W
Lorex LN10802-84W 4 Camera 8 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New

Warranty Options Available

  • Details
  • Details
  • Details
Warranty has been added in!
54900

In Stock
Ships Directly From Lorex
Please allow 1-3 business days for processing
  • Free Shipping Options Available
  • No Sales Tax *Except TX*
  • Price Match On Most Items
  • Manufacturer Direct
  • Exceptional Customer Service
  • Free Replacement Shipping
To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.

 Brand new in box & manufacturer direct
 2 year factory warranty
 Remote monitoring using the Flir app
 All original accessories included
 Authorized Lorex dealer
 Free same or next day shipping

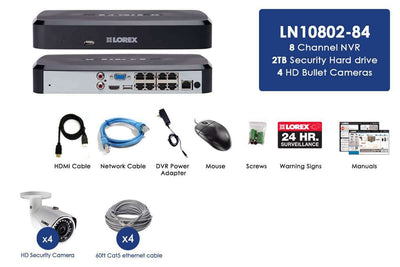

What's in the box:

  • 8 channel 2K HD network video recorder
  • HD Security Cameras (4)
  • 60ft Cat5e Extension Cable (4)
  • Network Cable
  • HDMI Cable
  • DVR Power Adapter
  • Mouse
  • Manuals



Features:

8

CHANNELS

HD NVR supports up to 8 cameras

4

CAMERAS

4 × 4MP HD bullet cameras

130FT

NIGHT VISION

Maximum night vision

2TB

HARD DRIVE

Maximum capacity 1 x 4TB hard drive

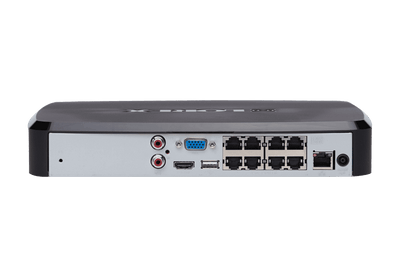

LNR1182

8 channel HD 2K security NVR

  • High definition 2K recording
  • Real-time recording at 25/30fps per channel1
  • 8 built-in PoE (Power over Ethernet) ports providing video and power on a single Ethernet cable
  • Automatically detects compatible IP cameras in the network2
  • Expand your system with a network PoE switch, sold separately3
  • 24/7 security-grade hard drive4
  • Continuous, scheduled and motion recording
  • Simultaneous playback and live view on the same screen
  • Selectable area digital zoom in live view and playback
  • Accurate time stamps with NTP & daylight savings time
  • H.264 video compression4
  • Instant USB backup of live video from selected camera
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD TVs
  • Keep up to date with automatic firmware upgrades5
  • 3-step remote view with FLIR Cloud™6
  • PC and Mac compatible7
  • Free iOS® and Android™ compatible apps with live viewing, playback, video recording, and snap shot7
  • Dedicated iPad app with multi-channel live viewing and playback7
  • Push notifications of motion events
  • Instant email alerts with snap shot attachment
  • Dual streaming to conserve bandwidth

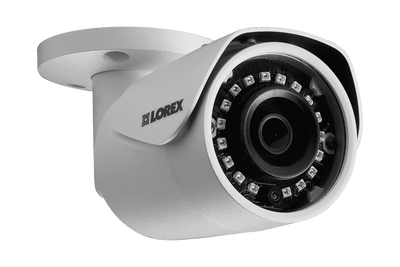

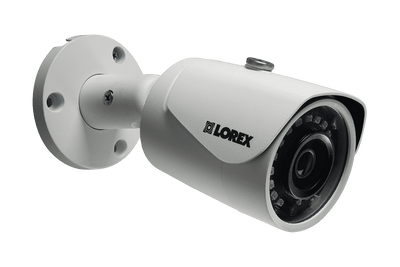

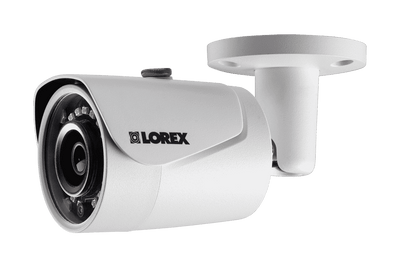

LNB3163B

3MP HD IP security camera features:

  • High definition 3MP image sensor delivers 50% more detail than 1080p1
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness2
  • Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • 75° field of view (horizontal)
  • Ceiling / wall mountable
  • Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
  • 60ft (18m) UL-compliant cable suitable for surface and in-wall installation
  • Extend the camera’s video and power with a single Ethernet cable up to 300ft (91m) from the recorder
  • Single-screw bracket adjustment for faster installation
  • Cold climate capability (-22°F / -30°C)
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3

Specifications:

Image Sensor 1/3" 3MP
Video Format NTSC / PAL
Effective Pixels H: 2304 × V: 1536
Resolution 3MP (2048×1536) @ 25fps
Scan System Progressive
S/N Ratio ≥56dB (AGC OFF)
Iris EIS
AES Shutter Speed 1/3 (1/4) ~ 1/100,000s
Min. Illumination 0.7 lux without IR, 0.4 lux with IR
Video Output IP
Lens / Lens Type 2.8mm F2.0 / Fixed
Field of View (Horizontal) 75°
Termination RJ45 Ethernet / 12V DC Power Barrel (optional)
IR LED Type 850nm
Night Vision Range 130ft (40m) / 90ft (27m)
Color Night Vision™ Yes
Power Requirement PoE (Power over Ethernet) Class 3 / 12V DC
Power Consumption Max. 285mA / 3.4W
Operating Temp. Range -22° ~ 140°F / -30° ~ 60°C
Operating Humidity Range <95% RH
Environmental Rating IP66 (Indoor / Outdoor)
Weight 0.9lbs / 0.4kg
Operating System Linux (embedded)
Pentaplex Simultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels 8/16/32 Channels
Video IN 8ch: 8 PoE, 16/32ch: 16 PoE
Video OUT No
VGA OUT Yes
HDMI Yes
Audio IN 1 Line IN (RCA) for service only
Audio OUT 1 Line OUT (RCA) for service only
USB Port 1 at the back, 1 at the front
Alarm IN 4 Alarm IN
Alarm OUT 2 Alarm OUT
Video Output Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
PTZ control Lorex IP PTZ cameras only
Display 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36
Live Display Speed 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL
OSD ON/OFF
System Navigation USB Mouse, IR Remote Control, Front Panel Buttons
Motion Area Setting Fixed Grid (22×18)
Sensitivity Levels 100
Firmware Upgrade Automatic over the Internet & via USB device and network
User Authority By user group
Time Synchronization Automatic time sync by NTP server
Video Compression H.264 / H.265
Audio Compression G.711
Resolution Up to 4K (3840×2160), 1080p (1920×1080)
Record Rate 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP
Recording Resolution Setting Per camera for different resolutions
Recording Quality Control 6 Levels
Recording Schedule By hour, by day, by recording mode, by motion, by alarm, by channel
Pre Recording Max. 4 Secs
Post Recording Max. 5 Minutes
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes
Playback Channel 1CH/4CH@4K, 8CH@4MP, 16CH@2MP
Playback Speed Variable Max 16x
Playback Players Backup Player
Search By Time & Event
Log Search Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss
Audio Play Yes (audio camera required)
Storage Up to 2 HDDs (SATA)
Maximum Capacity Up to 2×6TB (12TB Max)
Backup Media USB Flash Drive & HDD
Backup File Format DAV or ASF File
Cloud Connection FLIR Secure™
Supported Operating Systems Windows™ / Mac OS X
Remote Software Client Software (PC & Mac)
Email Notification Text with snapshot
Instant Smart Phone & Tablet Android™, iPad®, iPhone®
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Network Interface 10/100/1000-Base-TX, RJ-45
Network Bit Rate 320Mbps total, 48~8192kbps per camera
Power Consumption Approx. 15W (no HDD included)
Supply Voltage 100VAC-240VAC, 50/60Hz
Total PoE Power Output 130W (Max 25W per Camera)
Unit Dimensions (W × D × H) 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm
Unit Weight 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH
    As a Lorex authorized dealer, this product comes with a 2 year factory warranty.
