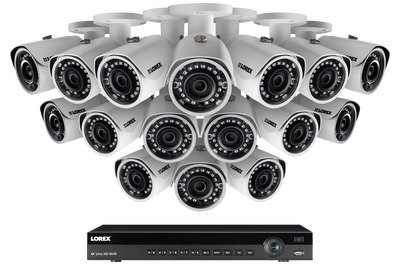

Lorex LN10804-1616W 16 Camera 16 Channel 4MP IP Outdoor Surveillance Security System New

  • Model: Lorex by Flir
  • SKU: LN10804-1616W
Lorex LN10804-1616W 16 Camera 16 Channel 4MP IP Outdoor Surveillance Security System New

Warranty Options Available

  • Details
  • Details
  • Details
Warranty has been added in!
201900

In Stock
Ships Directly From Lorex
Please allow 1-3 business days for processing
  • Free Shipping Options Available
  • No Sales Tax *Except TX*
  • Price Match On Most Items
  • Manufacturer Direct
  • Exceptional Customer Service
  • Free Replacement Shipping
To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.

 Brand new in box & manufacturer direct
 2 year factory warranty
 Remote monitoring using the Flir app
 All original accessories included
 Authorized Lorex dealer
 Free same or next day shipping

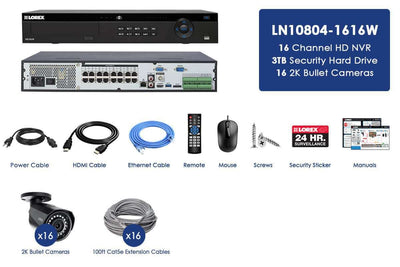

What's in the box:

  • 16 Channel network video recorder
  • 2K Bullet Cameras (16)
  • 100ft Cat5e Extension Cable (16)
  • Power Cable
  • HDMI Cable
  • Ethernet Cable
  • Remote
  • Mouse
  • Manuals



Features:

16

CHANNELS

4K NVR can support up to 16 cameras

16

CAMERAS

16 bullet 2K 4MP IP cameras

150FT

NIGHT VISION

Maximum night vision with Color Night Vision

3TB

HARD DRIVE

Maximum Capacity 2 x 6TB hard drives


  • Real-time recording up to 8MP on all channels - 4× the detail of 1080p
  • Supports industry-leading 4K recording1
  • 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • RapidRecap® - see the day in a minute with hours of activity compiled into a short video summary
  • FLIR Secure™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™)2
  • PC and Mac compatible - FLIR Cloud™ video management software gives you complete control over your security system from anywhere 2
  • 24/7 security-grade pre-installed hard drive3
  • Expandable high capacity storage up to 12TB (2×6TB HDD)
  • Automatically detects compatible IP cameras in the network4
  • 4K video output - view multiple HD channels at once in full resolution on a 4K TV
  • H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing3
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive5
  • Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date6
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD amp; 4K TVs



LNB4421

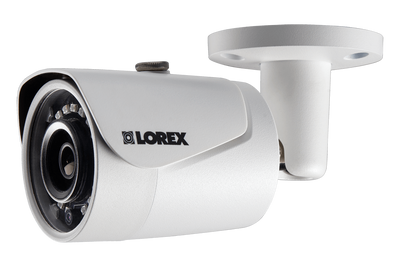

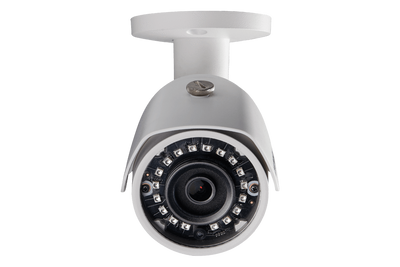

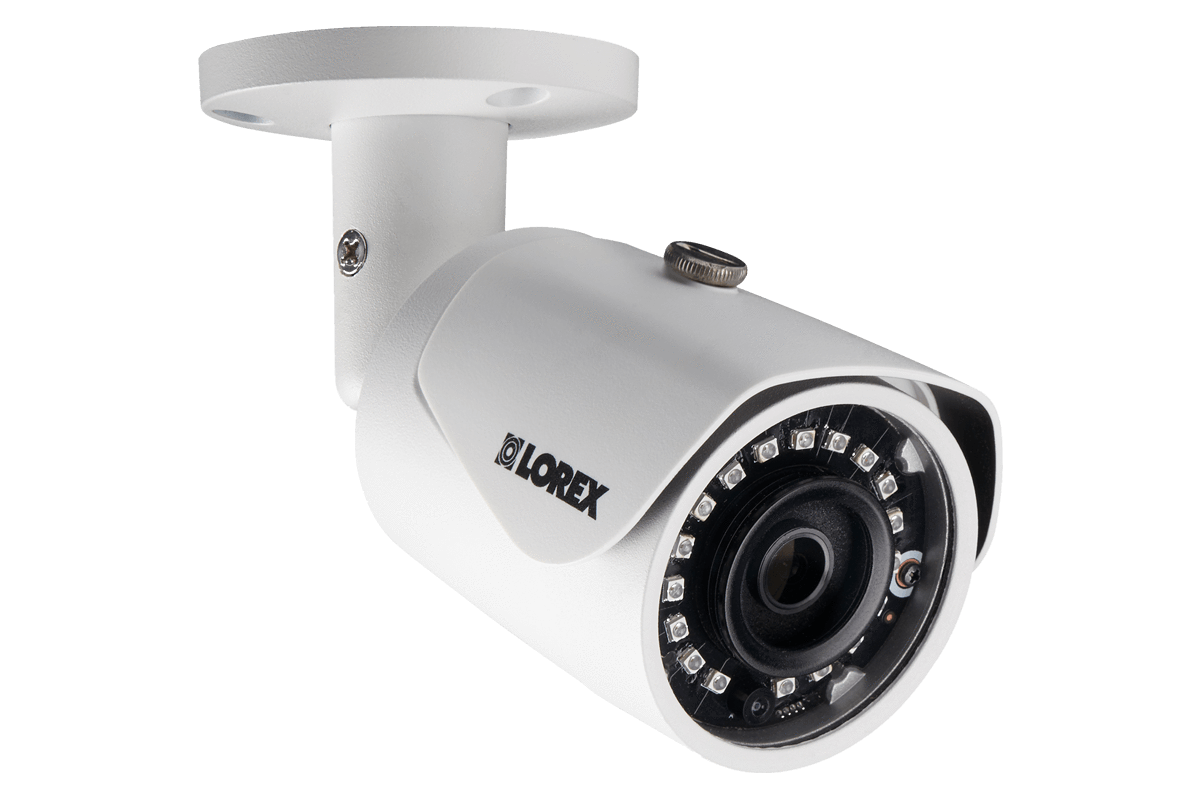

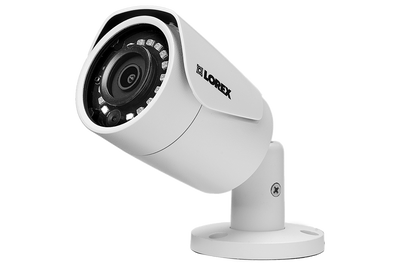

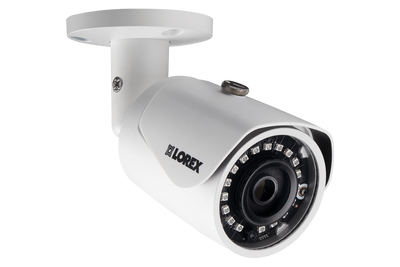

Weatherproof 2K 4mp HD Night Vision IP Security Camera Features:

  • High definition 4mp image sensor delivers double the detail of 1080p1
  • 4mp Super HD video recording provides superior quality for reviewing fine details in heightened resolution
  • Color Night Vision™ provides full color images at night, letting you identify objects and people more accurately than in black & white2
  • IR night vision range up to 150ft (46m) in ambient lighting and 100ft (31m) in total darkness3
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4
  • True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
  • Intelligent compression saves recording space by optimizing video performance based on available bandwidth
  • Wide angle 90° field of view (horizontal)
  • Ceiling / wall mountable
  • Simple camera installation using a single Cat5e cable with Power over Ethernet (PoE)
  • 100ft (30m) Ethernet cable included for camera video and power
  • Extend the camera's video and power with a single Ethernet cable up to 300ft (91m) from the recorder
  • Single-screw bracket adjustment for faster installation
  • Cold climate capability (-22°F / -30°C)
  • Weatherproof for outdoor & indoor installation (IP66 Rated)5

Specifications:

Operating System Linux (embedded)
Pentaplex Simultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels 8/16/32 Channels
Video IN 8ch: 8 PoE, 16/32ch: 16 PoE
Video OUT No
VGA OUT Yes
HDMI Yes
Audio IN 1 Line IN (RCA) for service only
Audio OUT 1 Line OUT (RCA) for service only
USB Port 1 at the back, 1 at the front
Alarm IN 4 Alarm IN
Alarm OUT 2 Alarm OUT
Video Output Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
PTZ control Lorex IP PTZ cameras only
Display 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36
Live Display Speed 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL
OSD ON/OFF
System Navigation USB Mouse, IR Remote Control, Front Panel Buttons
Motion Area Setting Fixed Grid (22×18)
Sensitivity Levels 100
Firmware Upgrade Automatic over the Internet & via USB device and network
User Authority By user group
Time Synchronization Automatic time sync by NTP server
Video Compression H.264 / H.265
Audio Compression G.711
Resolution Up to 4K (3840×2160), 1080p (1920×1080)
Record Rate 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP
Recording Resolution Setting Per camera for different resolutions
Recording Quality Control 6 Levels
Recording Schedule By hour, by day, by recording mode, by motion, by alarm, by channel
Pre Recording Max. 4 Secs
Post Recording Max. 5 Minutes
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes
Playback Channel 1CH/4CH@4K, 8CH@4MP, 16CH@2MP
Playback Speed Variable Max 16x
Playback Players Backup Player
Search By Time & Event
Log Search Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss
Audio Play Yes (audio camera required)
Storage Up to 2 HDDs (SATA)
Maximum Capacity Up to 2×6TB (12TB Max)
Backup Media USB Flash Drive & HDD
Backup File Format DAV or ASF File
Cloud Connection FLIR Secure™
Supported Operating Systems Windows™ / Mac OS X
Remote Software Client Software (PC & Mac)
Email Notification Text with snapshot
Instant Smart Phone & Tablet Android™, iPad®, iPhone®
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Network Interface 10/100/1000-Base-TX, RJ-45
Network Bit Rate 320Mbps total, 48~8192kbps per camera
Power Consumption Approx. 15W (no HDD included)
Supply Voltage 100VAC-240VAC, 50/60Hz
Total PoE Power Output 130W (Max 25W per Camera)
Unit Dimensions (W × D × H) 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm
Unit Weight 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH
    As a Lorex authorized dealer, this product comes with a 2 year factory warranty.
