Brand new in box & manufacturer direct |
|
2 year factory warranty |
|
Remote monitoring using the Flir app |
|
All original accessories included |
|
Authorized Lorex dealer |
|
Free same or next day shipping |

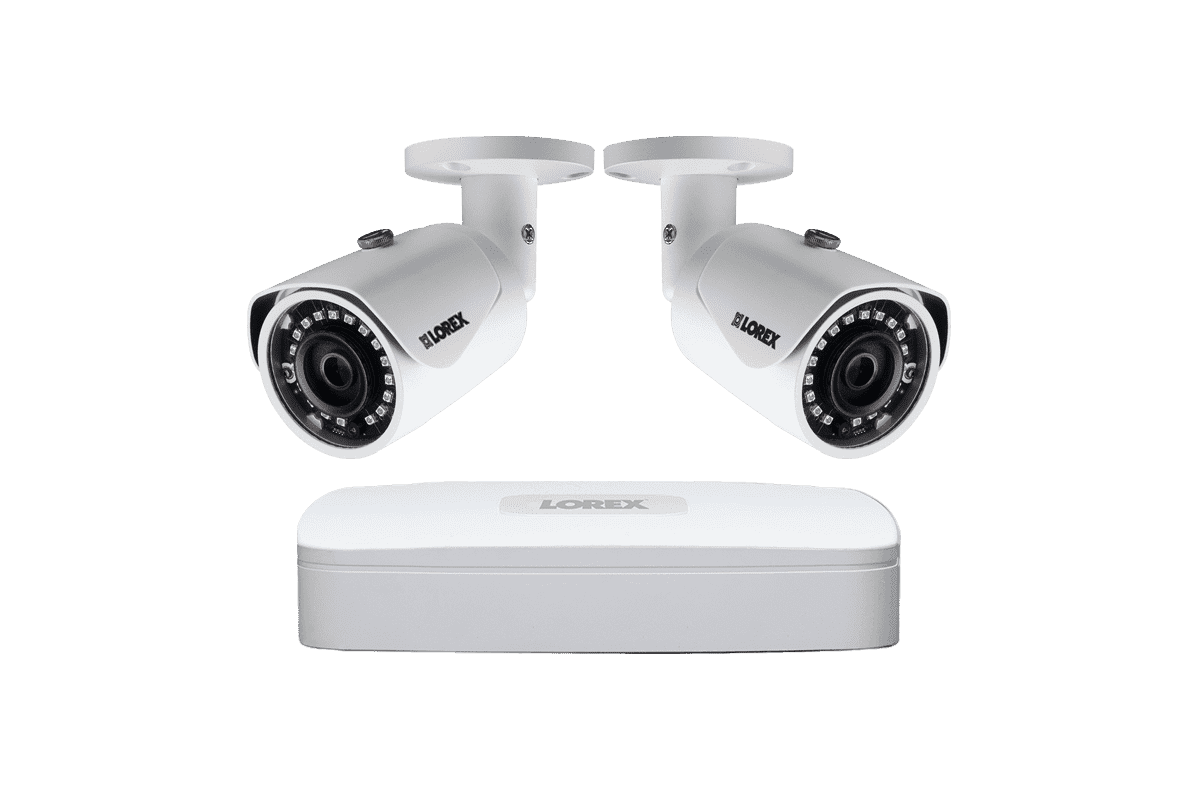

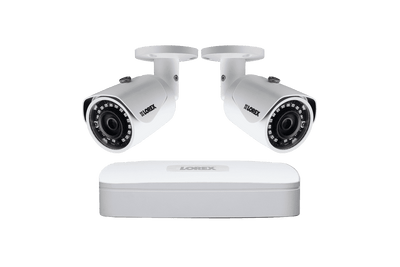

What's in the box:
- 4 channel DVR
- 1 TB Security Hard Drive
- HD 1080p Bullet Cameras (2)
- 100ft Cat5 Ethernet Cables (2)
- HDMI Cable
- Network Cable
- DVR Power Adapter
- Remote
- Mouse
- Manuals
Features:
NR8141
4K Ultra HD NVR Features:
- Supports real-time recording up to 8MP on all channels – 4× the detail of 1080p @ up to 25/30fps
- Supports industry-leading 4K recording1
- 4/8 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
- Lorex Cloud™ app for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™)2
- PC and Mac compatible – Lorex Cloud™ video management software gives you complete control over your security system from anywhere2
- 24/7 security-grade pre-installed hard drive3
- Expandable high capacity storage up to 8TB
- Automatically detects compatible IP cameras in the network4
- 4K video output – view multiple HD channels in full resolution on a 4K TV
- H.265 / H.264 video compression offers reduced file size, improved storage and network efficiency3
- Pentaplex Operation – view, record, playback, back up & remotely control the system simultaneously
- Click-and-drag digital zoom in live view and playback
- Convenient front panel button controls
- Accurate time stamps with NTP & daylight savings time
- Instant backup of live video to a USB flash drive
- Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date5
- Push notifications of motion events
- Instant email alerts with snapshot attachment
- Multi-streaming to conserve bandwidth
- Continuous, scheduled, and motion recording
- Dual video outputs (HDMI and VGA) to connect multiple monitors

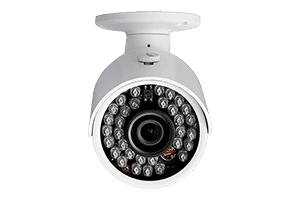

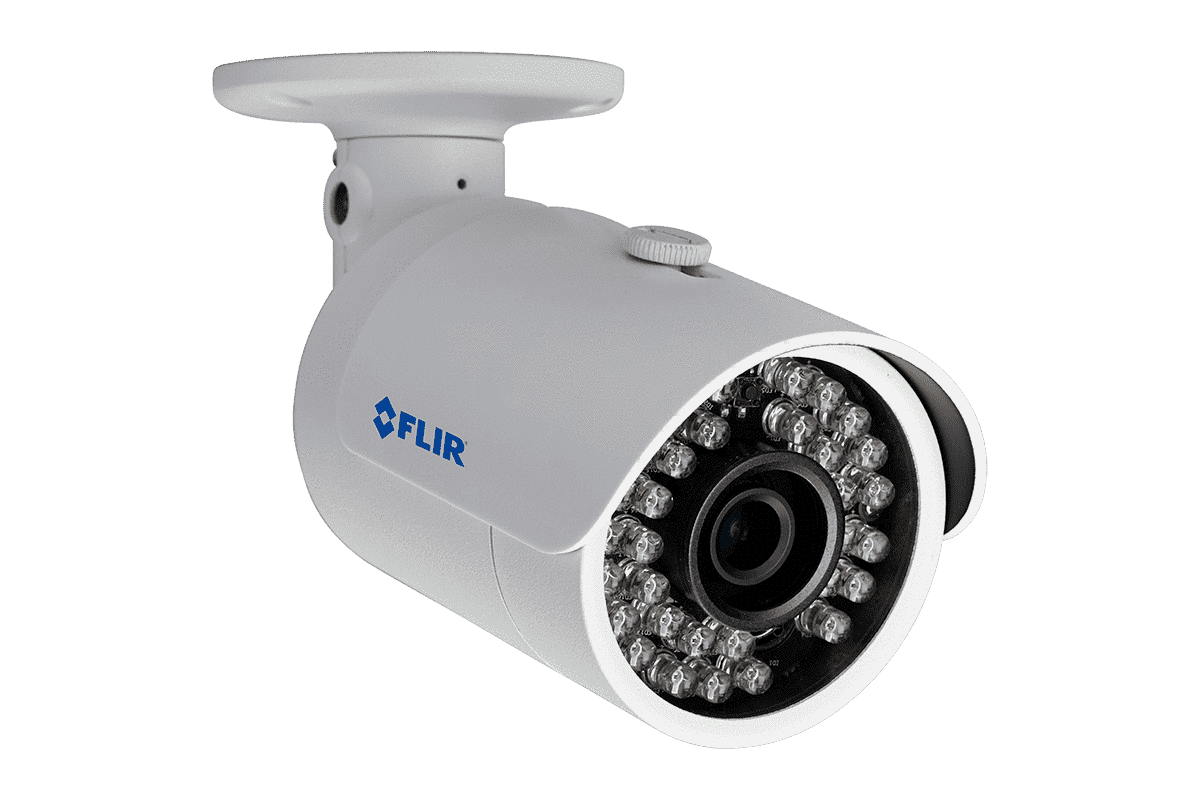

LNB4173
4MP High Definition IP Camera Features:
- High definition 4MP image sensor delivers double the detail of 1080p1
- 4MP video recording provides HD quality even when zoomed, offering clearer identification in video evidence
- Color Night Vision™ delivers full color nighttime video for improved recognition of objects in low light conditions2
- IR night vision range up to 130ft (40m) in ambient lighting and 90ft (27m) in total darkness3
- ClearNight imaging for improved low light performance and improved recording efficiency
- True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
- Intelligent compression saves recording space by optimizing video performance based on available bandwidth
- Wide angle 83° field of view (horizontal)
- Ceiling / wall mountable
- Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
- 100ft (18m) able suitable
- Extend the camera’s video and power with a single Ethernet cable up to 300ft (91m) from the recorder
- Cold climate capability (-22°F / -30°C)
- Weatherproof for outdoor & indoor installation (IP66 Rated)4
| Image Sensor |
1/3" 4MP |
| Video Format |
NTSC / PAL |
| Compression |
H.265/H.264 |
| Effective Pixels |
H: 2688 × V: 1520 |
| Resolution |
4MP (2688×1520) @ 20fps |
| Scan System |
Progressive |
| Sync System |
Internal |
| S/N Ratio |
≥42dB (AGC OFF) |
| Iris |
EIS |
| AES Shutter Speed |
1/3 (1/4) ~ 1/100,000s |
| Min. Illumination |
0.38 lux without IR, 0.28 lux with IR |
| Video Output |
IP |
| Lens / Lens Type |
3.6mm F2.0 / Fixed |
| Field of View (Horizontal) |
83° |
| Termination |
RJ45 Ethernet / 12V DC Power Barrel (optional) |
| IR LED Type |
850nm |
| Night Vision Range |
130ft (40m) / 90ft (27m) |
| Color Night Vision™ |
Yes |
| Power Requirement |
PoE (Power over Ethernet) Class 1 / 12V DC |
| Power Consumption |
Max. 265mA / 3.2W |
| Operating Temp. Range |
-22° ~ 140°F / -30° ~ 60°C |
| Operating Humidity Range |
<95% RH |
| Environmental Rating |
IP66 (Indoor / Outdoor) |
| Weight |
0.9lbs / 0.4kg |
Additional Features:
Infrared night vision for 24/7 coverage
Be confident that your security cameras won't leave you in the dark. They come with powerful infrared LEDs that can see up to 130ft in low-light conditions.
Rugged and relentless security cameras
Your security cameras are rated IP66 (weatherproof) and can withstand whatever mother nature throws at them. This includes heavy winds, furious rainstorms, or freezing snow storms.
With or Without the Internet
Standalone camera systems do not need the internet to operate. However, an internet connection will be necessary if you wish to use a smartphone, tablet or computer to access features such as remote monitoring.
Connects directly to TVs and Monitors
Easily watch live video feeds or review video footage on most Monitors or HD TVs by using the included HDMI cable.
FLIR Cloud Connection and Apps
FLIR Cloud is a cloud-enabled software platform to connect to all FLIR NVRs and MPX DVRs. The FLIR Cloud apps give you access to FLIR systems from any iPhone®, iPad® or Android® device.
NVR Network Video Recorder
Security NVRs will connect to IP cameras using CAT5 network cables and will store pre-compressed video footage from IP cameras.
HD 1080P Resolution 1920 x 1080 pixels
Record and capture all the details, don't miss out anything. Full HD resolution with accurate color reproduction brings your recorded video to life.
24/7 100% Duty cycle hard drive pre-installed
The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.
As a Lorex authorized dealer, this product comes with a 2 year factory warranty.
