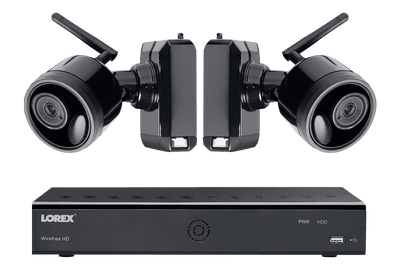

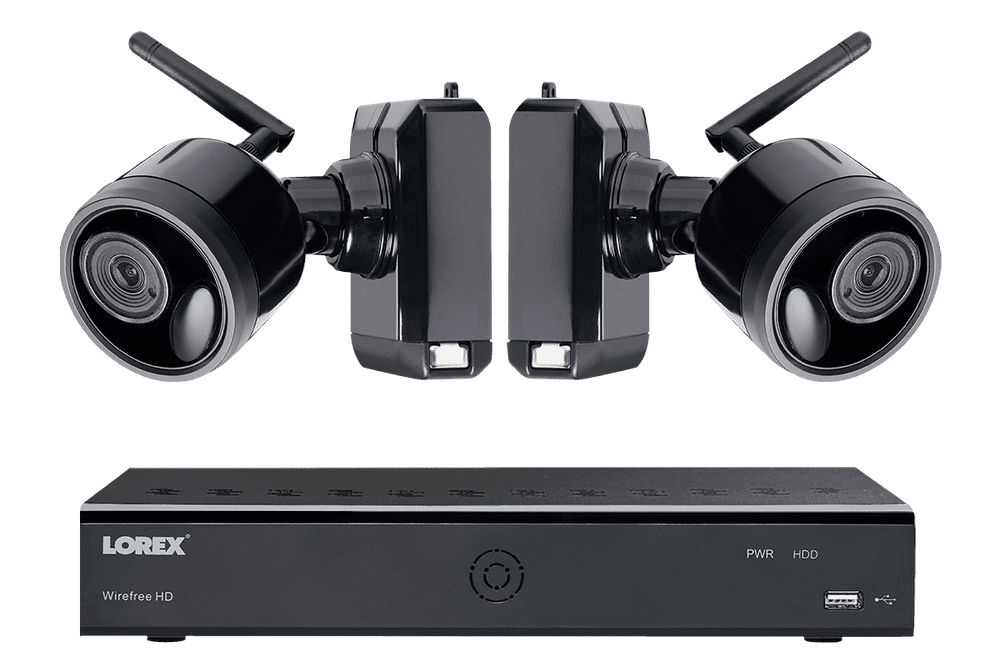

Lorex LWF1080B-66 Wire Free Battery Powered 6 Camera 6 Channel Indoor/Outdoor Security Surveillance System New

Installation and operation

Wire-free security systems can be up and running in a matter of minutes

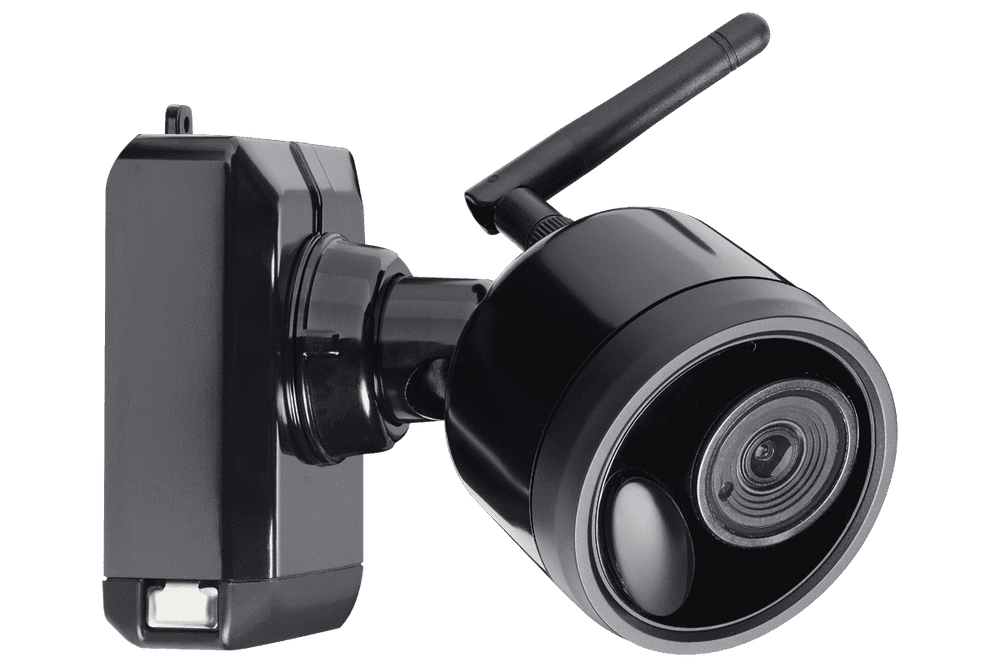

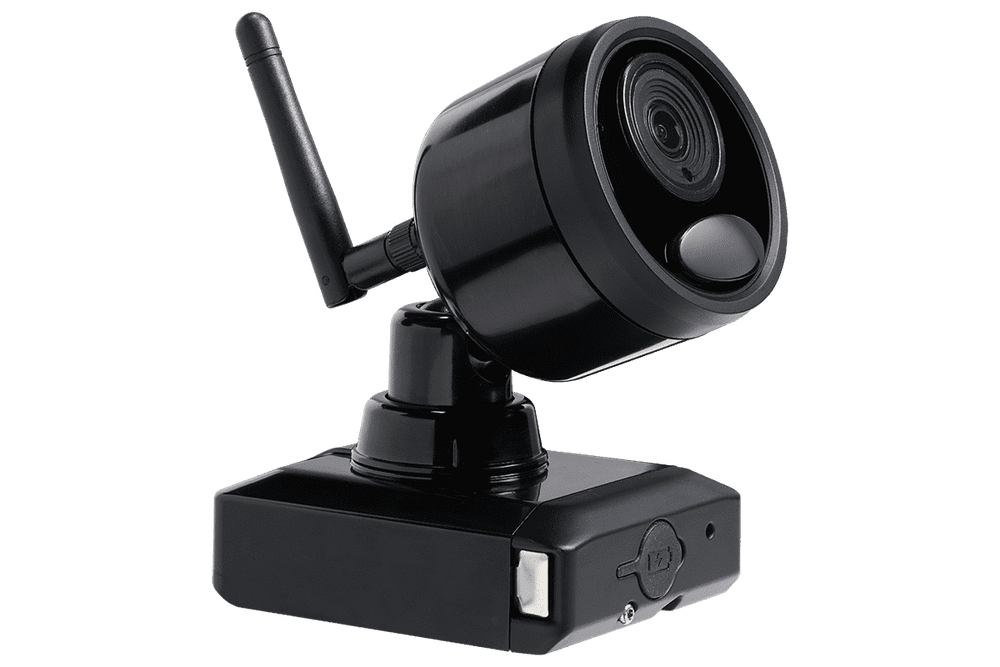

Wire-free camera features

Serious security deserves a serious security camera with top-of-the-line features

Remote viewing and mobile support

Use your mobile phone or tablet to stay connected to events around your property

Weatherproof receiver

The included wireless receiver is fully weatherproof. This means that you can run the USB cable from your DVR to install the receiver outdoors for even better wireless reception.

Connect up to 3 devices at once

Up to three different users can use the Lorex Secure at the same time. This will help keep your whole family in the know of any motion activity around your house. Additionally, there is no limit to how many accounts the system is linked to as well. So your whole family can download the app on their smart phones or tablets.

Long distance wireless range

Wire-free cameras can be installed up to 450ft away from the receiver. This distance allows you to place your wire-free security cameras in the locations you need them most, including detached buildings, barns, or along your distant property line. Please note that concrete, trees, or other dense objects between the camera and receiver will reduce the strength of your signal, however. These cameras also use adaptive DSSS (Direct-Sequence Spread Spectrum) technology to reduce signal interference and minimize conflicts with other competing wireless signals, such as your modem or cordless phone signals.

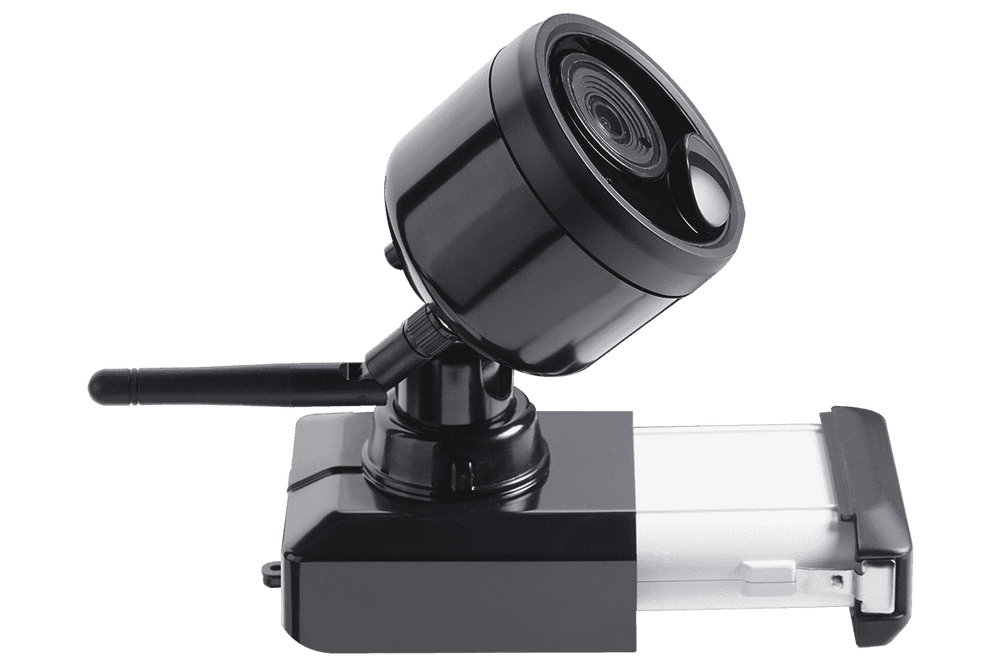

Long lasting lithium-ion battery

Wire-free cameras include a powerful and long lasting battery Power Pack. With these two-cell rechargeable lithium-ion batteries, you can expect up to four months of use before having to recharge them.^* The ultimate life of your battery will depend on the usage of the camera. If it is in a high traffic area, the battery life will be shorter. Don't worry, though, you can always check the battery life through the Lorex Secure app. You will also receive low battery notifications through the app as well. Another important feature is the Power Pack's convenient quick-release function, which allows for easy battery replacement without having to remove the camera from its mount.

^{*This average is based on an average of 4 minutes of recording per day.}

Motion alerts

Program your cameras to send push notifications straight to your smart phone or tablet whenever motion is detected.

Privacy mode

Tap the privacy toggle to disable live video, recording, and push notifications. Tap again to enable the camera.

No monthly fees

Not only is the Lorex Secure app absolutely free, there are no hidden fees or monthly cloud storage subscriptions with this wire-free system.

Hybrid Wireless / Wired Capability

Your wire-free cameras are completely cable free. In short, they're motion-triggered (that is, it only wakes up when motion is detected and goes back to stand-by mode when there is no motion) to save and lengthen its battery life. But if you desire so, they can also be converted into 24/7 wireless cameras by plugging them directly into a power source using a power adapter.

Infrared night vision

Securing your loved ones and property is a 24-hour operation. Fortunately, this Lorex wire-free security camera has you covered day and night ? thanks to their infrared night vision capabilities. Around the camera's lens are 6 powerful infrared LED's that capture high-quality video at night up to 95 feet away. The cameras also feature an automatic infrared cut filter that will automatically disengage at night. This ensures accurate color representation during the day and high-quality black and white infrared video through the night.

• Full 1080p HD wire-free video resolution
• Up to 600ft wireless signal range provides many placement options ¹
• Receive low battery notifications through the Lorex Cirrus app (on compatible DVR) ²
• Adaptive Frequency Hopping Spread Spectrum (FHSS) technology greatly reduces conflicts with competing signals
• Don't pay a professional. Cameras are easy to install by yourself
• Night vision up to 95ft (23m) ³
• Weather-resistant (IP66) battery-operated cameras go almost anywhere, indoor or out ⁴
• Built-in PIR camera motion sensor alerts you on the Lorex Cirrus app when activity is detected (on compatible DVR).

LHB926

Wire-Free DVR Features:

• See more detail with full 1080p HD resolution video¹
• View connected cameras remotely on the free Lorex Cirrus™ app with easy connect and setup
• DVR supports up to 6 wire-free cameras
• Customizable motion detection for accurate instant alerts
• Reduce false alerts by choosing only the most important areas to monitor
• Choose the distance and range for the camera to further refine the detection zone
• Receive accurate motion alert push notifications from the mobile app
• Record up to 2 years of motion video clips and never pay costly Cloud storage fees
• Recordings and important motion events are easy to review and stored on your own secure DVR
• Up to 2 years of local video storage with no hidden or monthly cloud storage fees²
• H.264 video compression maximizes video storage, and offers more efficient remote connectivity

• HD 1080p recording resolution ¹
• Tablet / smartphone viewing and playback on iOS® and Android™ devices ²
• Lorex Secure™ app with 3-Step setup connects all your cameras and systems from any iOS or Android smartphone, tablet, PC or Mac ²
• HDMI cable included for simple connection to HDTVs
• Record to included security grade hard drive with no recurring fees
• H.264 video compression offers reduced file size and network strain for remote viewing
• Live viewing and motion recording
• Pentaplex operation – view, record, playback, back up & remotely control the system simultaneously
• Dual video outputs (HDMI & VGA) to connect multiple monitors
• Advanced mobile apps with live viewing, playback & video recording
• PC and Mac compatible
• Instant email alerts with snap shot attachment
• Accurate time stamps with NTP & Daylight Savings Time
• Automatic firmware upgrades over the Internet ensures your system is always up to date ³

Specifications:

Pentaplex	Simultaneous View, Playback, Backup & Remote monitoring
Number of Channels	6 Channel
VGA OUT	Yes
HDMI	Yes
USB Port	1 in rear, 1 in front
Video Output Resolution	1920×1080; 1440×900; 1280×1024; 1280×720; 1024×768
Live Display	1/6
Live Display Speed	72fps@1080P; 90fps@720P
OSD	ON
System Navigation	USB Mouse
Firmware Upgrade	Network / USB Device
User Authority	By User Group
Time Synchronization	Auto time sync by NTP server
Video Compression	H.264
Recording Resolution	NTSC: 1080p / 720p
Recording Frame Rate	1080p: 12fps (per ch), 720p: 15fps (per ch)
Recording Resolution Setting	Per camera for different resolutions
Recording Schedule	Per camera for different resolutions
Recording Schedule	By Motion, Manual
Reliability	Watch-Dog, auto-recovery after power failure
Playback Channel	1/4/6
Playback Speed	Variable max 2×

Playback Players	Backup Player
Search	By Time/Date & Motion Event
Log Search	Up to 4000 lines for system, configuration changes, motion/alarm detected, account, record and storage
Storage	1 HDD (SATA)
Maximum Capacity	1× 6TB
Backup Media	USB flash drive & HDD & Network
Backup File Format	LF / MP4
Cloud Operation	P2P connectivity
Supported Operating Systems	Windows™, Mac OSX
Remote Software	Client Software (PC) & Safari (Mac)
Email Notification	Text with snapshot
Instant Smart Phone & Tablet	iPad®, iPhone®, Android™
System Configuration	Full setup configuration over network
Ports	Programmable by user
Network Protocol	HTTP, IPv4, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Network Interface	10/100-Base-TX, RJ-45
Network Bit Rate	Max 32Mbps total
Power Consumption	3 watts (No HDD Installed)
Supply Voltage	100VAC-240VAC, 12VDC, 2A, 50/60Hz
Unit Dimensions	12.2 × 8.3 × 2.0" / 310 × 210 × 50mm
Unit Weight	2.6lb / 1.2kg
Operating Temperature	14°F ~ 130°F / -10°C ~ 55°C
Humidity	10 ~ 90% RH
