Installation and operation

Wire-free security systems can be up and running in a matter of minutes

Wire-free camera features

Serious security deserves a serious security camera with top-of-the-line features

Remote viewing and mobile support

Use your mobile phone or tablet to stay connected to events around your property

Weatherproof receiver

The included wireless receiver is fully weatherproof. This means that you can run the USB cable from your DVR to install the receiver outdoors for even better wireless reception.

Connect up to 3 devices at once

Up to three different users can use the Lorex Secure at the same time. This will help keep your whole family in the know of any motion activity around your house. Additionally, there is no limit to how many accounts the system is linked to as well. So your whole family can download the app on their smart phones or tablets.

Long distance wireless range

Wire-free cameras can be installed up to 450ft away from the receiver. This distance allows you to place your wire-free security cameras in the locations you need them most, including detached buildings, barns, or along your distant property line. Please note that concrete, trees, or other dense objects between the camera and receiver will reduce the strength of your signal, however. These cameras also use adaptive DSSS (Direct-Sequence Spread Spectrum) technology to reduce signal interference and minimize conflicts with other competing wireless signals, such as your modem or cordless phone signals.

Long lasting lithium-ion battery

Wire-free cameras include a powerful and long lasting battery Power Pack. With these two-cell rechargeable lithium-ion batteries, you can expect up to four months of use before having to recharge them.^* The ultimate life of your battery will depend on the usage of the camera. If it is in a high traffic area, the battery life will be shorter. Don't worry, though, you can always check the battery life through the Lorex Secure app. You will also receive low battery notifications through the app as well. Another important feature is the Power Pack's convenient quick-release function, which allows for easy battery replacement without having to remove the camera from its mount.

^{*This average is based on an average of 4 minutes of recording per day.}

Motion alerts

Program your cameras to send push notifications straight to your smart phone or tablet whenever motion is detected.

Privacy mode

Tap the privacy toggle to disable live video, recording, and push notifications. Tap again to enable the camera.

No monthly fees

Not only is the Lorex Secure app absolutely free, there are no hidden fees or monthly cloud storage subscriptions with this wire-free system.

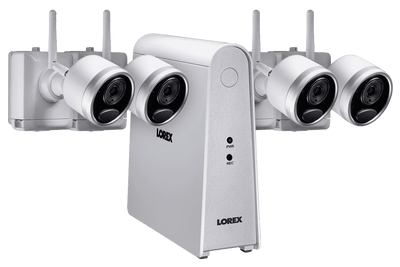

LHB9061T

Wire-Free DVR Features:

• HD 1080p recording resolution ¹
• Tablet / smartphone viewing and playback on iOS® and Android™ devices ²
• Lorex Secure™ app with 3-Step setup connects all your cameras and systems from any iOS or Android smartphone, tablet, PC or Mac ²
• HDMI cable included for simple connection to HDTVs
• Record to included security grade hard drive with no recurring fees
• H.264 video compression offers reduced file size and network strain for remote viewing
• Live viewing and motion recording
• Pentaplex operation – view, record, playback, back up & remotely control the system simultaneously
• Dual video outputs (HDMI & VGA) to connect multiple monitors
• Advanced mobile apps with live viewing, playback & video recording
• PC and Mac compatible
• Instant email alerts with snap shot attachment
• Accurate time stamps with NTP & Daylight Savings Time
• Automatic firmware upgrades over the Internet ensures your system is always up to date ³

Specifications:

Pentaplex	Simultaneous View, Playback, Backup & Remote monitoring
Number of Channels	6 Channel
VGA OUT	Yes
HDMI	Yes
USB Port	1 in rear, 1 in front
Video Output Resolution	1920×1080; 1440×900; 1280×1024; 1280×720; 1024×768
Live Display	1/6
Live Display Speed	72fps@1080P; 90fps@720P
OSD	ON
System Navigation	USB Mouse
Firmware Upgrade	Network / USB Device
User Authority	By User Group
Time Synchronization	Auto time sync by NTP server
Video Compression	H.264
Recording Resolution	NTSC: 1080p / 720p
Recording Frame Rate	1080p: 12fps (per ch), 720p: 15fps (per ch)
Recording Resolution Setting	Per camera for different resolutions
Recording Schedule	Per camera for different resolutions
Recording Schedule	By Motion, Manual
Reliability	Watch-Dog, auto-recovery after power failure
Playback Channel	1/4/6
Playback Speed	Variable max 2×

Playback Players	Backup Player
Search	By Time/Date & Motion Event
Log Search	Up to 4000 lines for system, configuration changes, motion/alarm detected, account, record and storage
Storage	1 HDD (SATA)
Maximum Capacity	1× 6TB
Backup Media	USB flash drive & HDD & Network
Backup File Format	LF / MP4
Cloud Operation	P2P connectivity
Supported Operating Systems	Windows™, Mac OSX
Remote Software	Client Software (PC) & Safari (Mac)
Email Notification	Text with snapshot
Instant Smart Phone & Tablet	iPad®, iPhone®, Android™
System Configuration	Full setup configuration over network
Ports	Programmable by user
Network Protocol	HTTP, IPv4, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Network Interface	10/100-Base-TX, RJ-45
Network Bit Rate	Max 32Mbps total
Power Consumption	3 watts (No HDD Installed)
Supply Voltage	100VAC-240VAC, 12VDC, 2A, 50/60Hz
Unit Dimensions	12.2 × 8.3 × 2.0" / 310 × 210 × 50mm
Unit Weight	2.6lb / 1.2kg
Operating Temperature	14°F ~ 130°F / -10°C ~ 55°C
Humidity	10 ~ 90% RH

LWB3801-Series

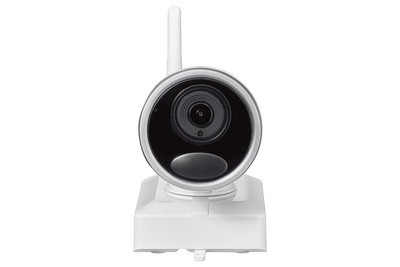

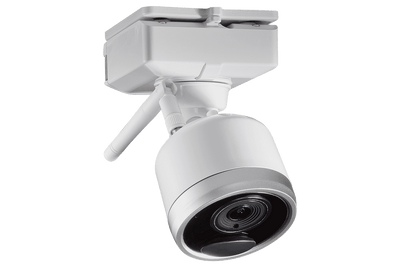

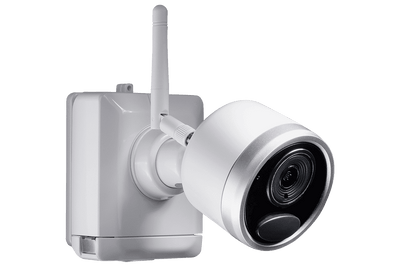

Wire-Free 1080p HD Video Security Camera features:

• Full 1080p HD wire-free video resolution
• Up to 450ft wireless signal range provides many placement options¹
• Get up to 4 months of battery life without having to recharge the Power Pack²
• Receive low battery notifications through the Lorex Secure app (on compatible DVR)³
• DSSS (Direct-Sequence Spread Spectrum) technology greatly reduces conflicts with competing signals
• Don't pay a professional. Cameras are easy to install by yourself.
• Night vision up to 40ft (12m) or 26ft (8m)⁴
• Weather-resistant (IP65) battery-operated cameras go almost anywhere, indoor or out⁵
• Built-in PIR camera motion sensor alerts you on the Lorex Secure app when activity is detected (on compatible DVR).

Unobstructed Wireless Range	450ft / 137m
Operating Frequency	2.4GHz
Video Resolution	Up to 1080p (1920×1080)
Image Sensor	2.1MP CMOS
Video Compression	H.264
IR cut-off filter	Yes
Night vision	Yes, 12× 850nm LEDs, Up to 40/26ft - 12/8m
Field of View	88°

PIR Motion Sensor	Yes, up to 20ft/6m detection range
Battery	5200mAh (2 cell Power Pack)
Battery Level Indication	Yes
Environmental Rating	IP65, Weather Resistant
Operating Temperature	-4° to 113° F (-20° C to 45° C)
Operating Humidity Range	30~90 % RH
Dimensions (W × D × H)	3.8 × 7.2 × 6.1", 96 × 182 × 154mm
Weight	0.9lb/0.4kg (incl. Power Pack)
