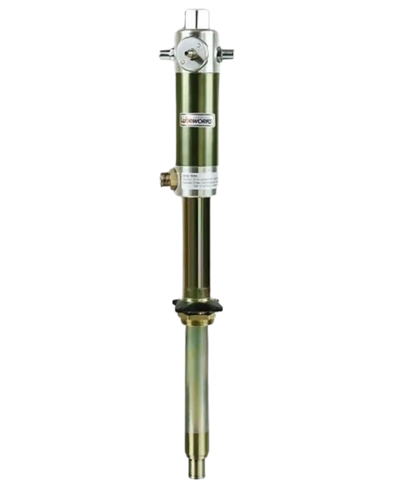

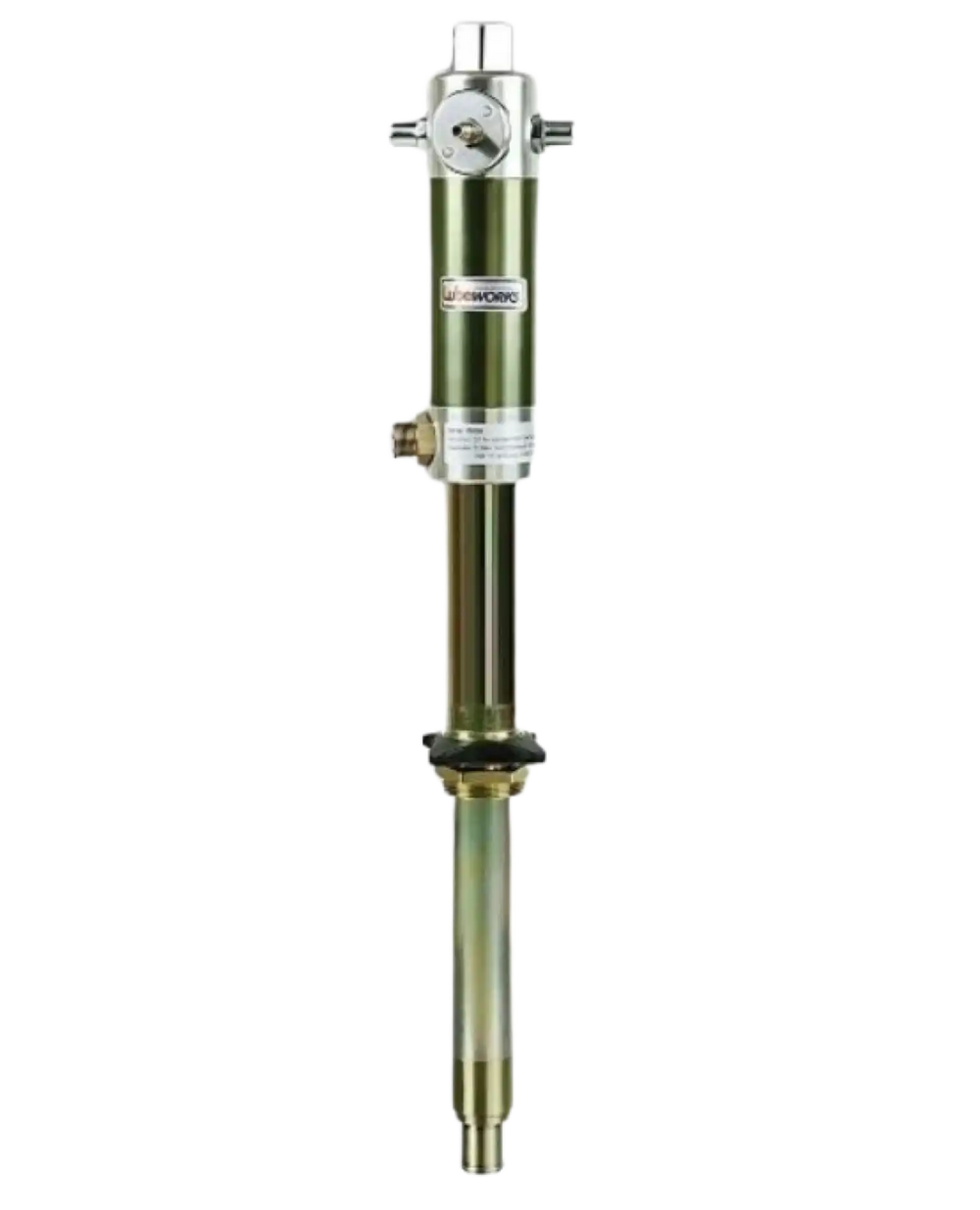

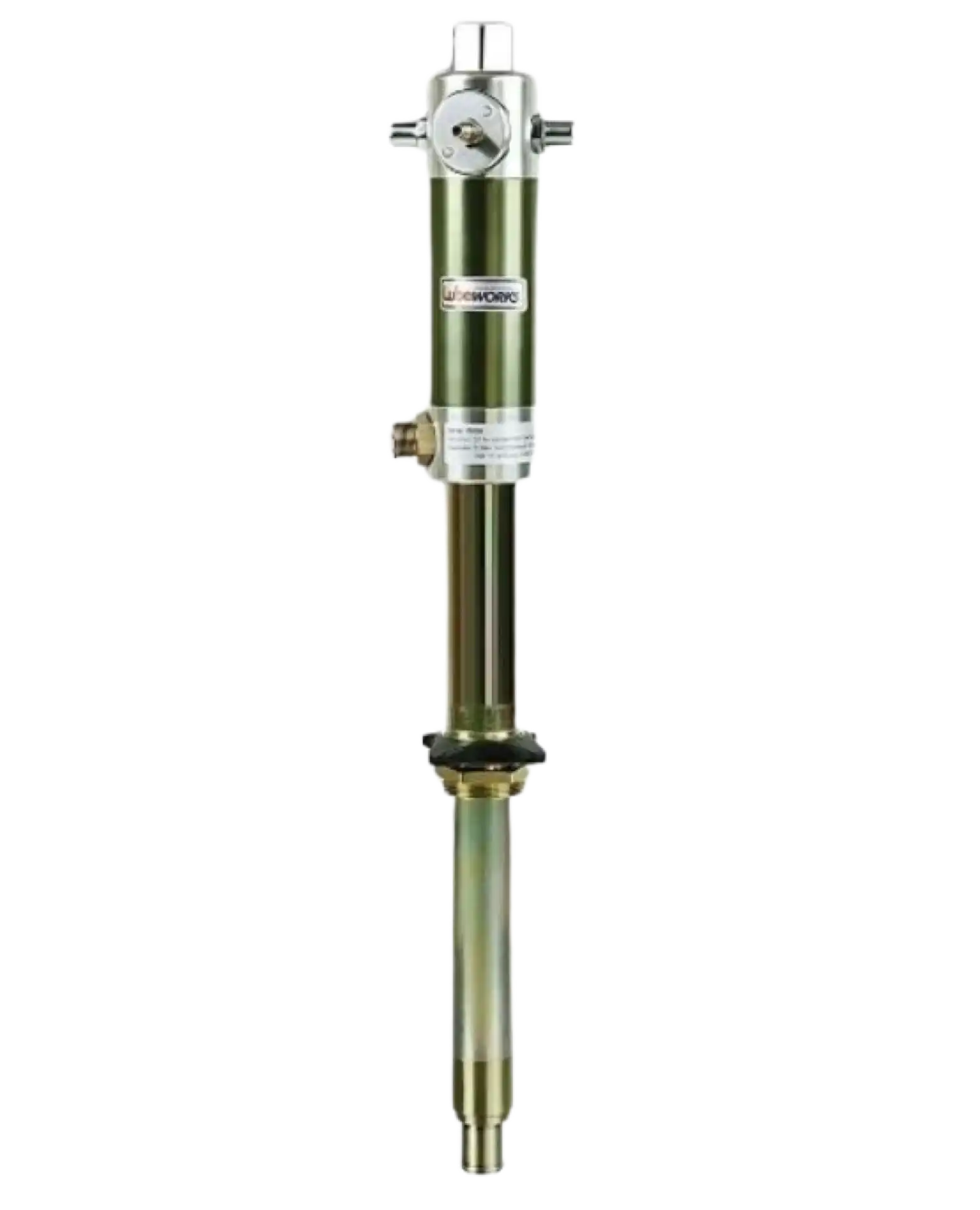

Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New

Manufacturer: Lubeworks

SKU: 1701034

Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New
Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New
Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New
Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New
Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New
Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New
Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New
Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New
Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New
Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New

QTY

(888) 999-1522

$ 299.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

delivery truck icon

Ships Same or Next Day

If ordered by 12PM EST

Extended Warranty

×

Factory Warranty

  • Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.

$39.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees
  • Brand NewFull parts and labor warranty

$59.00

(Details)

  • WarrantyExtends factory warranty to 3 total years
  • WarrantyCovers functionality issues for 3 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

$89.00

(Details)

  • WarrantyExtends factory warranty to 5 total years
  • WarrantyCovers functionality issues for 5 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New

Lubeworks Air-Powered Oil Transfer Drum Pump High Flow Rate 7.4 GPM 28LPM 3:1 Double Action 1701034 New

Product Overview

Our transfer pumps are double action and self priming designed, delivering fast and precise flow rates. This smart design uses fewer parts for less pump wear and tear, making it easy to use and maintain.

vendor logo
divider
authorized dealer
checkmark

1 year factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Lubeworks out of CA

checkmark

Authorized Lubeworks dealer

Features

  • PROPER USE and SAFETY - All our pumps come with a 2" inch Adjustable Bung adapter, for easy installation for barrel-mounted applications; This pump can be a barrel, cart or wall mounted; A Wall Mount Kit or Extension Tube Kit is Sold SEPARATELY; Follow manual for setup and always use the proper additional equipment as listed in the manual when installing the pump and always wear protective glasses/goggles or gear when operating equipment
  • EFFICIENT DESIGN and CAPABILITIES - This pump is best suited for Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid and suitable up to SAE130 grade oil
  • PUMP SPECS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 7.4GPM / 28LPM; A Max Pressure Ratio of 3:1; A Max Air Inlet Pressure of 5-8BAR / 70-115PSI; Max Fluid Pressure of 24BAR / 350PSI; An Air Motor Effective Dia. of 63mm 2.5" inch; An Air Consumption (per minute) at 8BAR / 140L at 115PSI / 5.0CFM; Air Inlet Connection of 1/4" inch and Oil Outlet Connection of 3/4" inch Male; A Long Pump Life of 840k Liters / 221k+ Gallons

Specifications

Compression Ratio 3:1
Operating Pressure(bar/psi) 5-8 / 70-115
Max. fluid Pressure (bar/psi) 24/348
Air Consumption (L/min M3/hour) 140/5.0
Capacity (L/min Gallon/min) 28/7.5
Tube Diameter (mm/inch) 42/1.65
Suction Tube Length (mm/inch) 270/10.6, Wall installed/ Extension transfer
Air Inlet Connection 1/4” quick plug / 1/4” NPT female
Oil delivery Connection Male 3/4”
Max. Viscosity Oil Delivered SAE 150
Temperature Oil Delivered -10~50°C
Noise Level (dB) 82

Package Contents

Air Operated Oil Transfer Pump

Instruction Manual

Warranty
