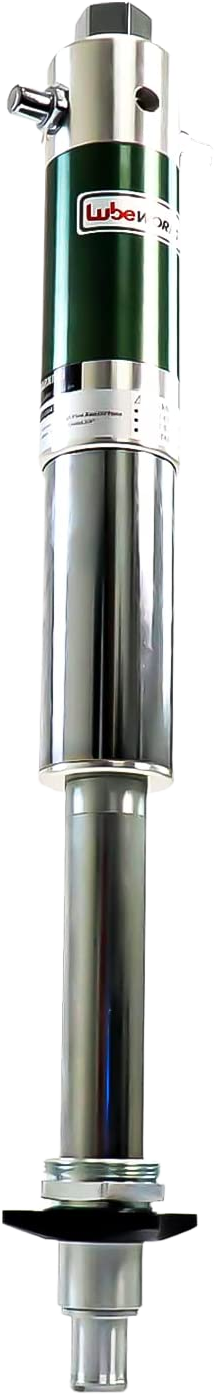

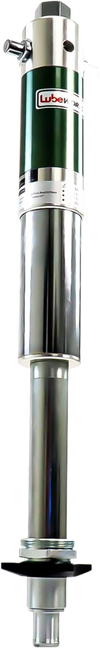

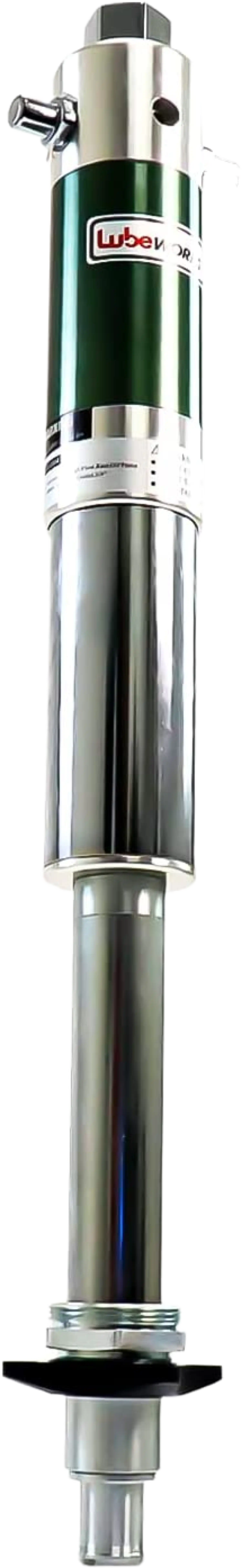

Lubeworks GUL003 5 in 1 Fast Flow Rate 6.6 GPM / 25LPM for SAE240 Oil/Fluids Transfer Drum Pump Double Action New
Share
Product Overview

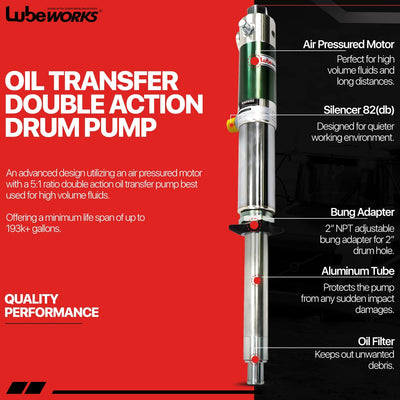

Our Transfer Pumps are Double Action and Self Priming designed, delivering fast and precise flow rates. This smart design uses fewer parts for less pump wear and tear, making it is easy to use and maintain. This pump is best suited for multiple fluid types of medium to high viscosity at a short to medium distance. Typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid and suitable up to SAE240 grade oil.
1 year factory warranty
Brand new in box
Ships directly from Lubeworks out of CA
Authorized Lubeworks dealer
Features
- SPECIFICATIONS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 6.6GPM / 25LPM; A Max Pressure Ratio of 5:1; A Max Air Inlet Pressure of 5-8BAR / 70-115PSI; A Max Fluid Pressure of 40BAR / 580PSI; An Air Motor Effective Diameter of 63mm 2.5" inch; An Air Consumption (per minute) at 8BAR / 180L at 115PSI / 6.5CFM; An Air Inlet Connection of 1/4" inch and Oil Outlet Connection of 3/4" inch Male; A Long Pump Life of 750k Liters / 198k+ Gallons
- PROPER USE and SAFETY - All our pumps come with a 2" inch Adjustable Bung adapter, for easy installation for barrel mounted applications; This pump can be a barrel, cart or wall-mounted; A Wall Mount Kit or Extension Tube Kit are Sold SEPARATELY; Follow manual for setup and always use the proper additional equipment as listed in the manual when installing the pump and always wear protective glasses/goggles or gear when operating equipment
Specifications
| Air Operated (Pneumatic) | Double Action Oil Transfer Pump |
| High Flow rate | Max 6.6 GPM / 25LPM |
| Max Pressure Ratio | 5 to 1 |
| Max Air Inlet Pressure | 5-8BAR / 70-115PSI |
| Max Fluid Pressure | 40BAR / 580PSI |
| Air Motor Diameter | 63mm 2.5" inch |
| Air Consumption (per minute) | 8BAR / 180L at 115PSI / 6.5CFM |
| Air Inlet Connection | 1/4" inch |
| Oil Outlet Connection | 3/4" inch Male |
| Pump Life | 750k Liters / 198k+ Gallons |
Package Contents
Oil Transfer Drum Pump
Instruction Manual
Warranty
Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.
