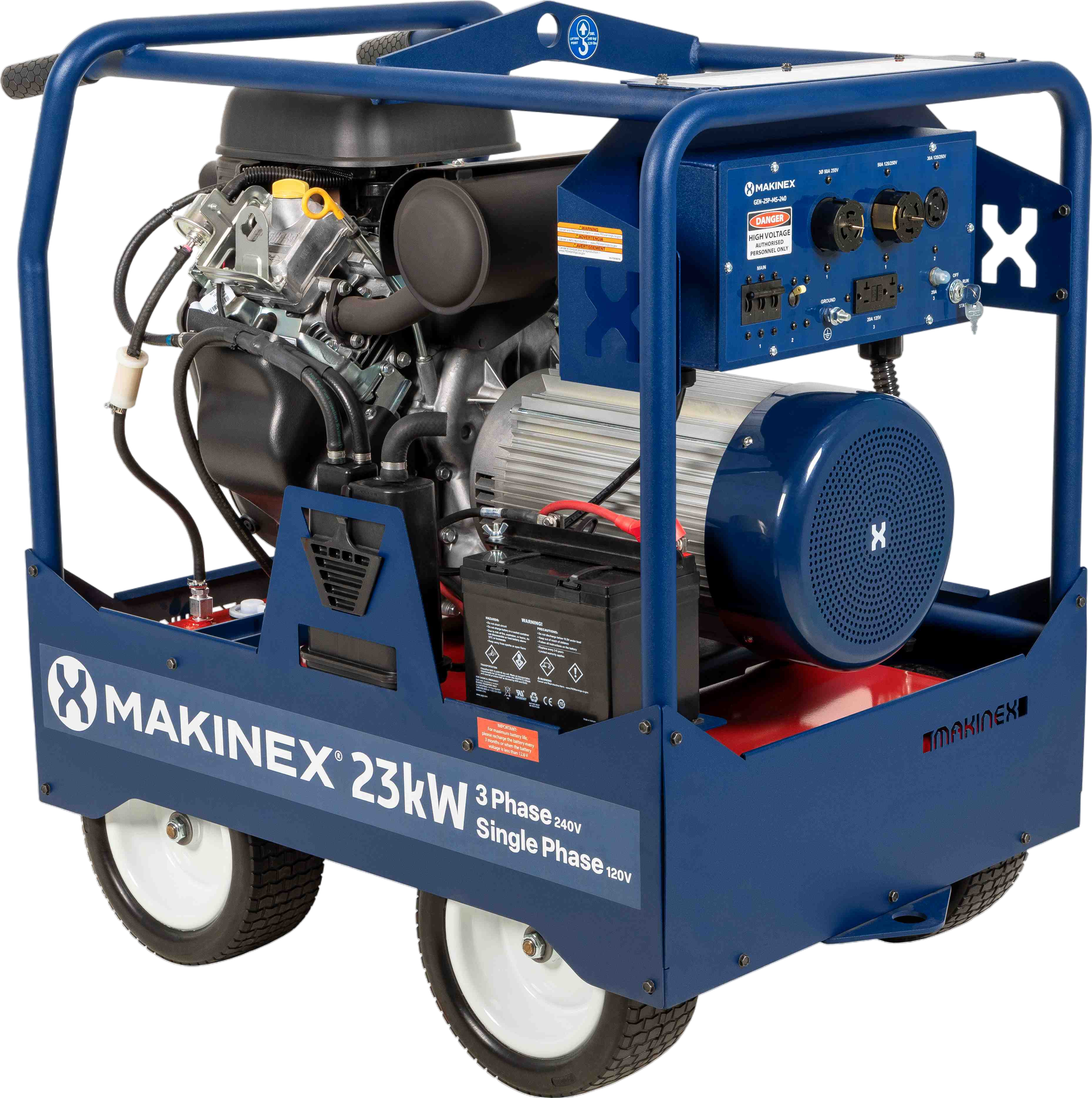

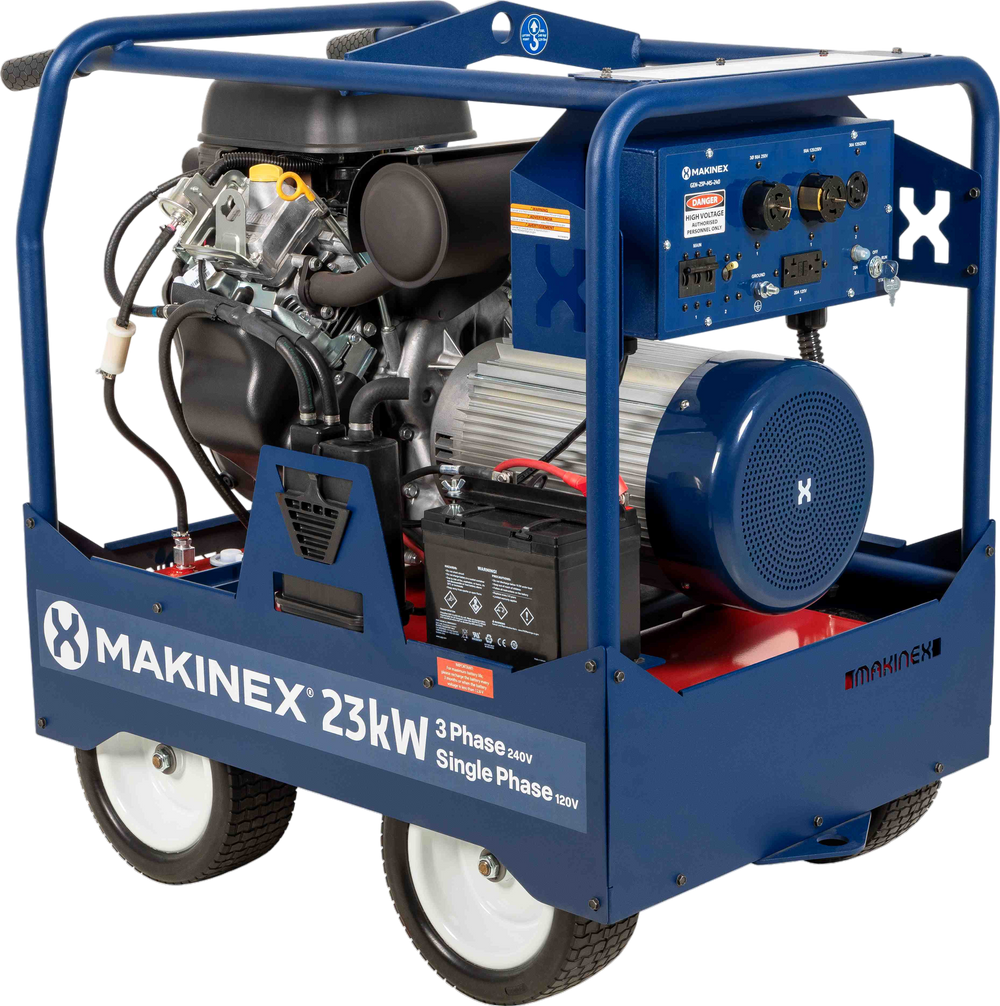

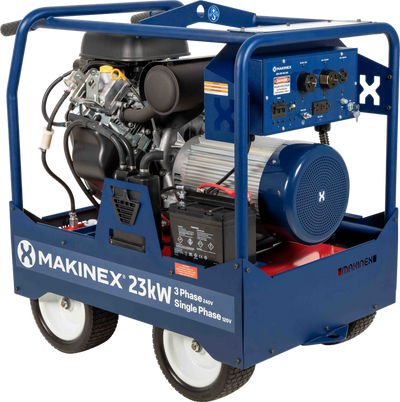

Makinex 23000W/24000W Generator 120V/240V Dual Phase Gas Vanguard 61G277 Engine Electric Start New
Manufacturer: Makinex
SKU: GEN-23P-MS-240
QTY
or
(888) 999-1522
$ 16,556.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 2-3 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Makinex 23000W/24000W Generator 120V/240V Dual Phase Gas Vanguard 61G277 Engine Electric Start New
Product Overview
Less than one third the size and weight of comparable towable and SKID generators, the Makinex 23kW is the world's smallest 3-phase 240V generator in its class. The 23kW 240V is so small it fits in your equipment trailer or truck, and fits through standard doorways. The generator uses permanent-magnet brushless alternator technology and has totally independent circuits for 120V and 240V. This guarantees clean 240V three-phase power that is completely unaffected by the load on the 120V circuit during simultaneous 120V/240V operation. Equipped with industry-standard 50A, 30A, and 20A outlets.
Brand new
1 year limited warranty
Manufacturer direct shipping from TX
Authorized Makinex dealer
Plug Types
×2
120v 20 Amp Standard Receptacle
(5-20R)
×1
120/240v 30 Amp Twist Lock
(L14-30R)
×1
250v 50 Amp Twist Lock
(CS8369)
×1
125v/250v 50 Amp Twist Lock
(CS6369)
Plug Types
×2
120v 20 Amp Standard Receptacle
(5-20R)
×1
120/240v 30 Amp Twist Lock
(L14-30R)
×1
250v 50 Amp Twist Lock
(CS8369)
×1
125v/250v 50 Amp Twist Lock
(CS6369)
Features
- Light and small enough to carry on your truck
- Independent single and 3-phase power generation
- Simultaneous single and three phase operation
- Highly portable, equipped with 4 large wheels
- Electric/Key Start
Specifications
| Rated Output | 23000W |
| Max Output | 24.1kW |
| Frequency | 60Hz |
| Voltage | 120V Single Phase; 240V Three Phase |
| Sockets | 50 Amp 240V 3-phase / 50 Amp 120V-250V Single-phase / 30 Amp 120V-250V Single-phase / 20 Amp 120V Dual GFC |
| Engine | Vanguard |
| Engine Type | 40 HP EFI |
| Start System | Electric/Key Start |
| Displacement | 993cc |
| Engine Fuel Economy | 1.5gal @ 50% Load |
| Fuel Tank | 13.2 gal. |
| Noise Level | 50% Load – 80dB |
| Product Dimensions | 43" x 25" x 40" |
| Weight | 573 lbs |
Package Contents
Makinex Dual Phase Generator 23kW 240V
User Manual
Warranty
This item comes with a 1 year limited warranty.
