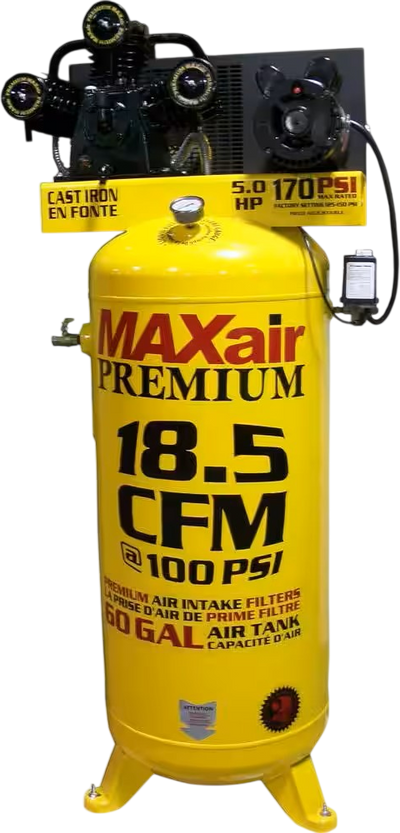

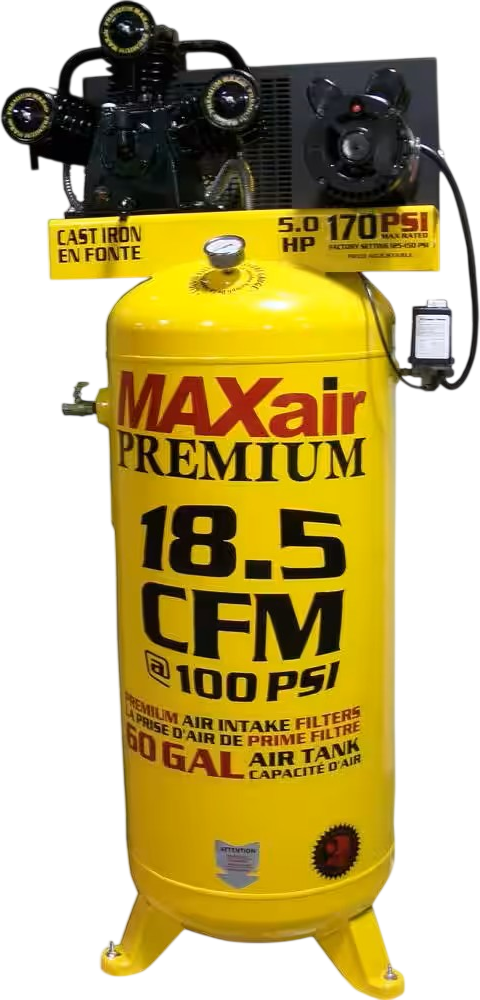

MaxAir Electric Air Compressor 170 PSI 5 HP 60 Gal. Single Stage 220V C5160V1-MAP New
Product Overview
The MAXair C5160V1-MAP is a 5 HP single stage air compressor built for professional shop use and DIYers. It features a solid cast iron pump, 60-gallon capacity tank, and delivers 18.5 CFM at 100 PSI, with a max of 170 PSI. The V-design pump helps reduce vibration, improve cooling, and extend compressor life. With convenient extended oil drain and an easy view oil sight gauge, it is designed for reliable operation and service-friendly maintenance.
Brand new
2 year factory warranty
Manufacturer direct shipping from MS
Authorized Max Air dealer

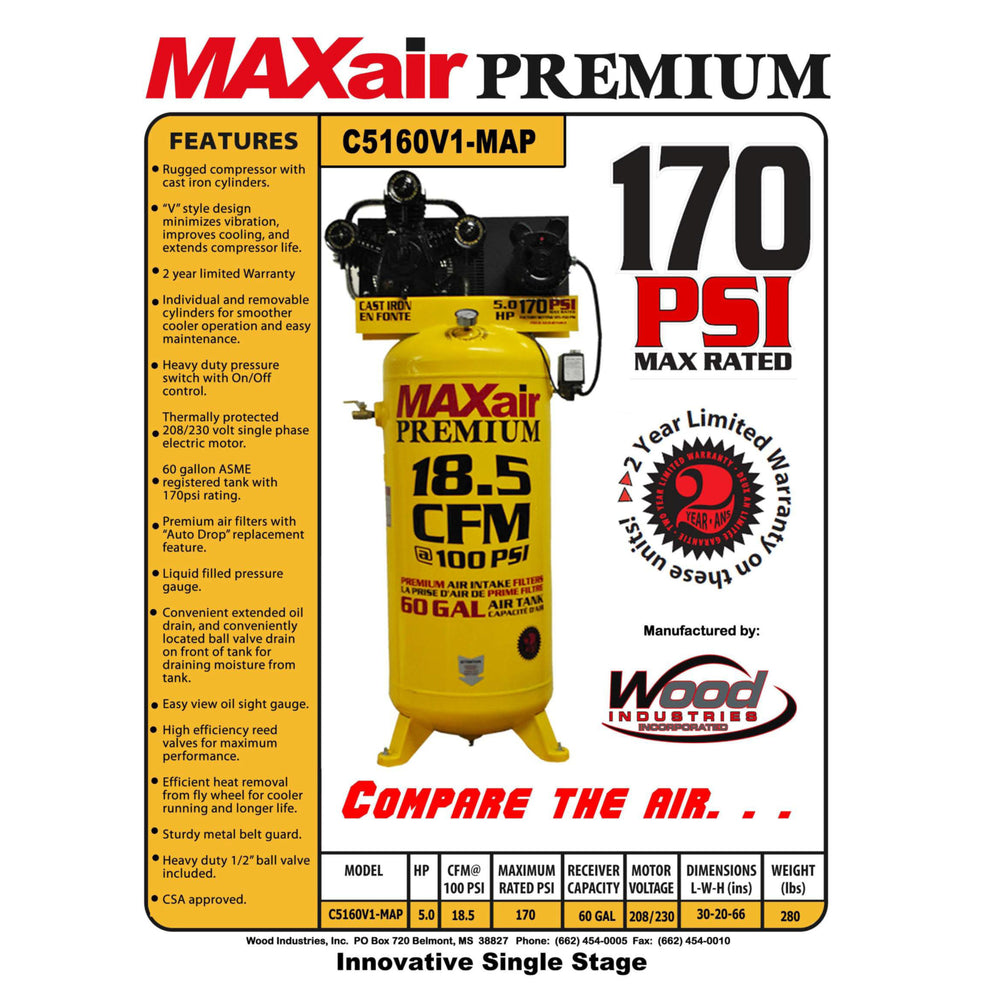

Features
- Rugged compressor with cast iron cylinders
- "V" design minimizes vibration, improves cooling and extends compressor life
- Individual and removable cylinders for smoother and cooler operation
- Heavy duty pressure switch with On/Off control
- Thermally protected 208/230V single phase electric motor
- 60 gal. ASME registered tank with 170 PSI rating
- Convenient extended oil drain on front of unit
- Easy view oil sight gauge
- Premium air filters with "Auto Drop" replacement feature
- Liquid filled pressure gauge
- High efficiency reed valves for maximum performance
- Efficient heat removal from pulley-fan for cooler running and longer life
- Sturdy metal belt guard
- Heavy duty 1/2" ball valve included
Specifications
| Model Number | C5160V1-MAP |
| CFM @ 100 PSI | 18.5 |
| Max Rated PSI | 170 |
| Tank Size | 60 Gallon |
| Pump Type | Single Stage |
| Horsepower | 5 |
| Power Type | Electric |
| Drive Type | Belt Drive |
| Tank Outlet Size | 1/2 Inch |
| Dimensions | 30 x 20 x 66 in |
| Weight | 280 lbs |
Package Contents
C5160V1-MAP Air Compressor
User Manual
Warranty
This item comes with a 2 year warranty.
