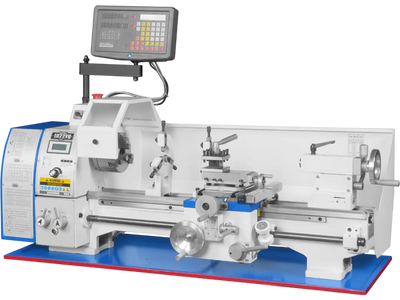

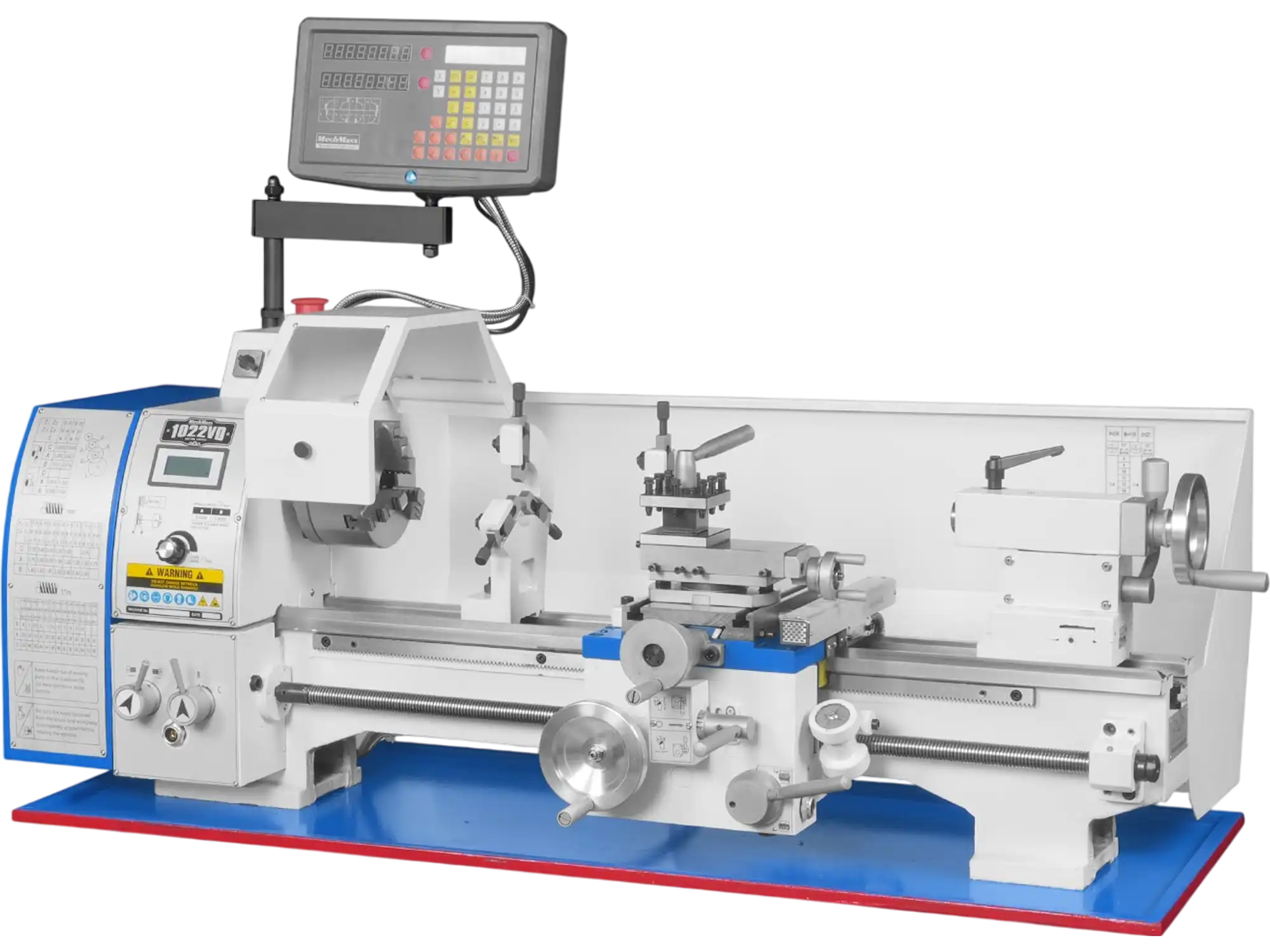

MechMaxx 1022VD Metal Lathe 10 x 22" Industrial Benchtop DRO Variable Speed 1.5HP Brushless Motor New
Product Overview

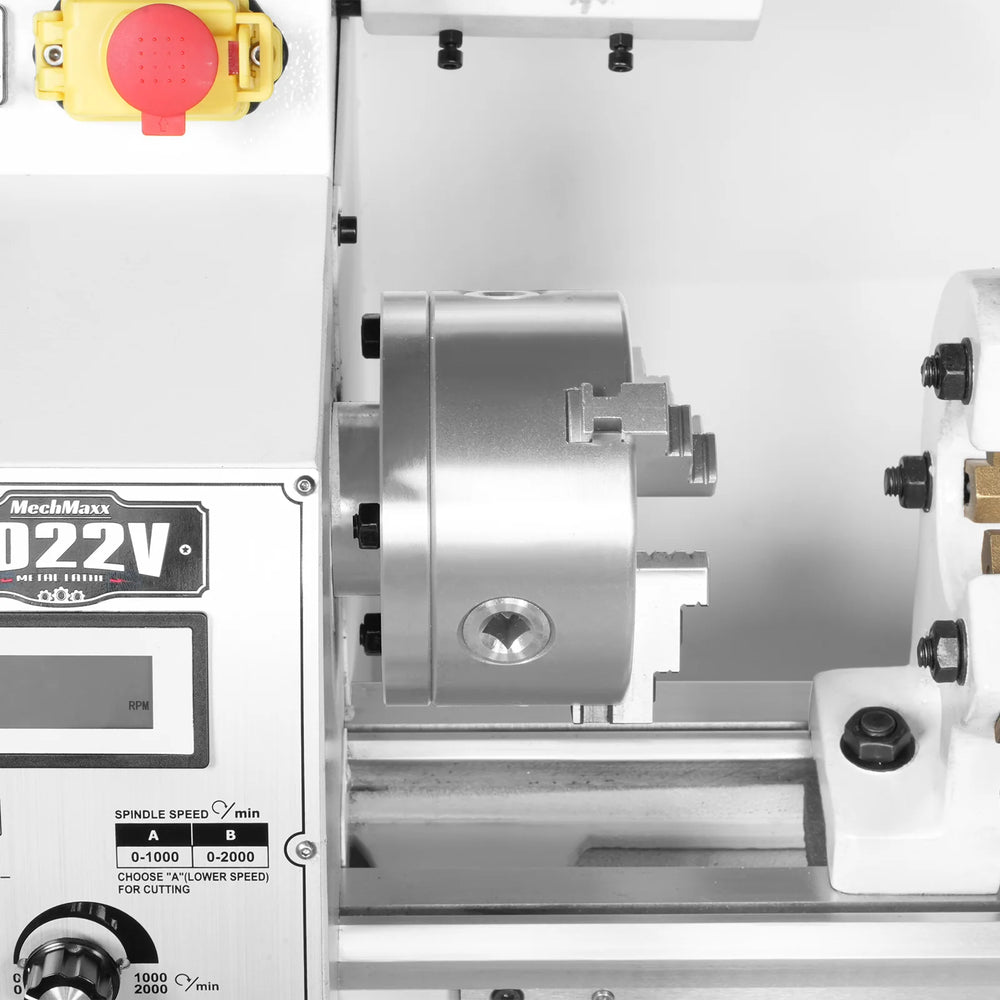

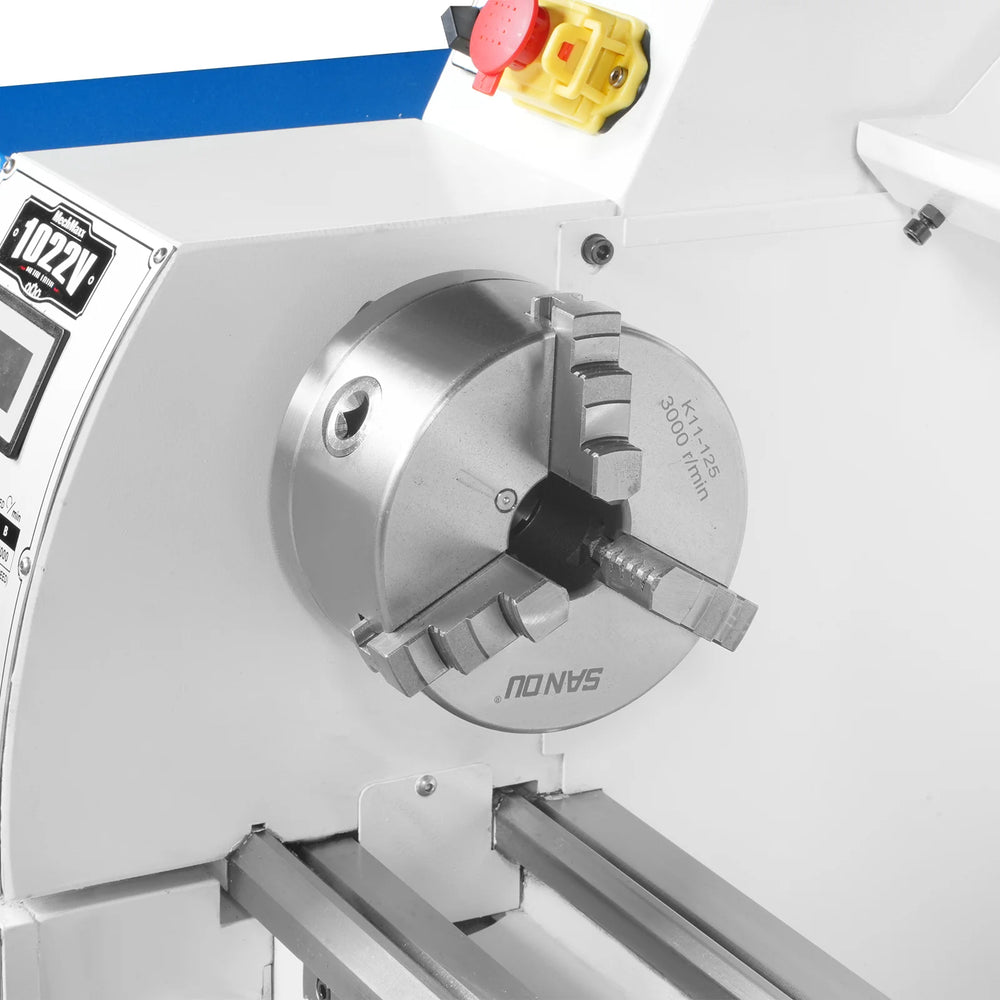

- Larger Spindle Bore for Increased Flexibility: With a 1-1/2" (38 mm) spindle bore, this lathe can accommodate larger workpieces than typical lathes, providing more flexibility and versatility for various projects. The MT#5 spindle taper supports a wide range of tooling options, adding to its adaptability.
- Powerful and Flexible Performance: The lathe features variable spindle speeds from 0 to 2000 RPM, giving you full control for different materials and tasks. The 1.5 HP motor provides ample power, ensuring smooth operation even for more demanding machining tasks.

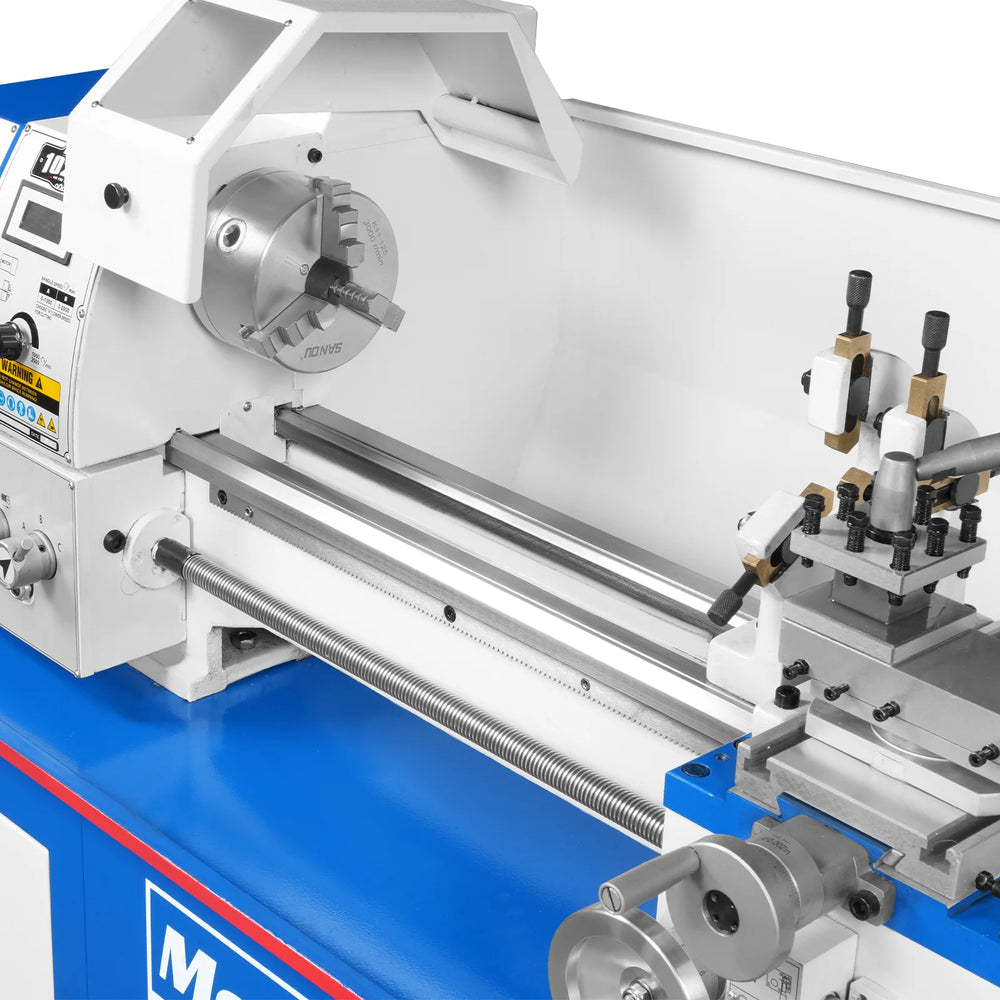

- High-Quality Construction: The lathe is constructed with premium cast iron, which is quench-hardened for added strength and rigidity. Compared to other lathes in its class, the heavier bed ensures better stability, allowing for more precise machining and minimal vibrations during operation.
- Precision Machining: With an 9-7/8" (250 mm) swing over bed and 21-5/8" (550 mm) distance between centers, this lathe is ideal for handling a variety of small to medium-sized workpieces. The cross slide travel and compound slide travel ensure smooth and precise movements, making internal cutting, face cutting, and bevel cutting quick and easy.

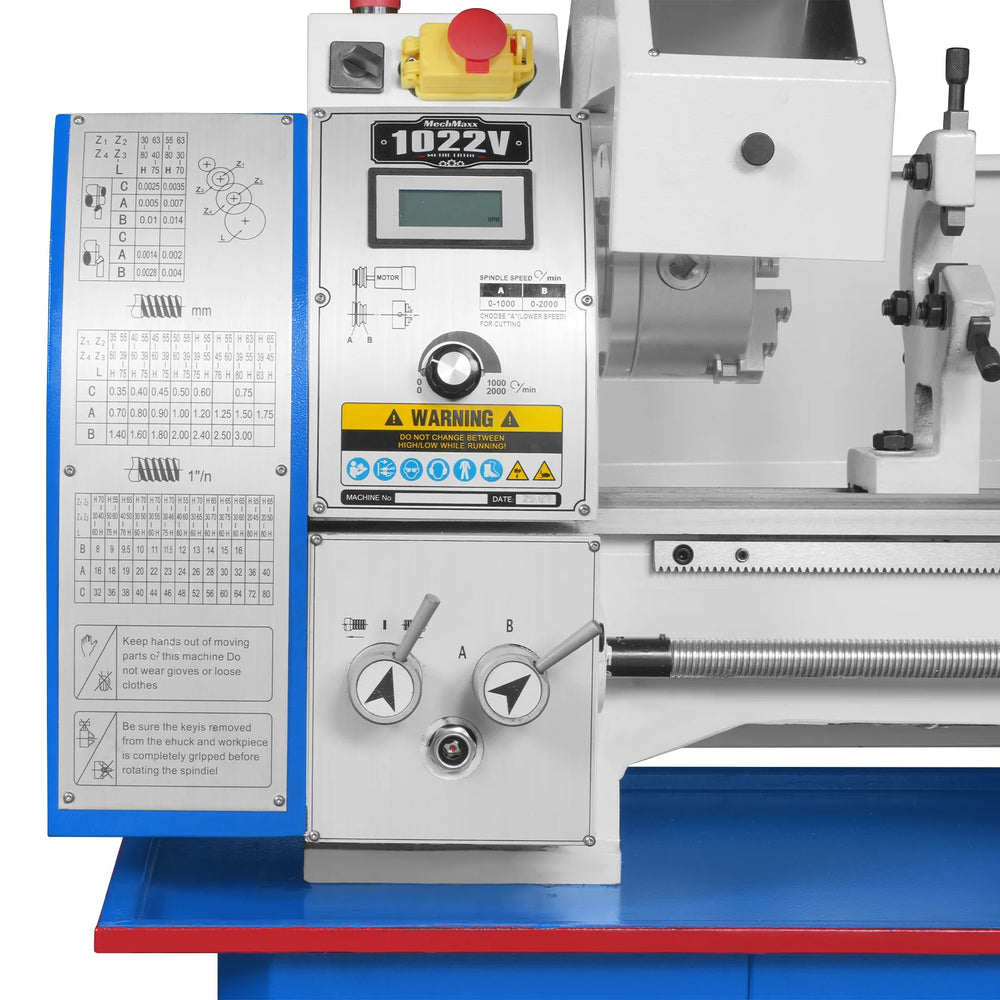

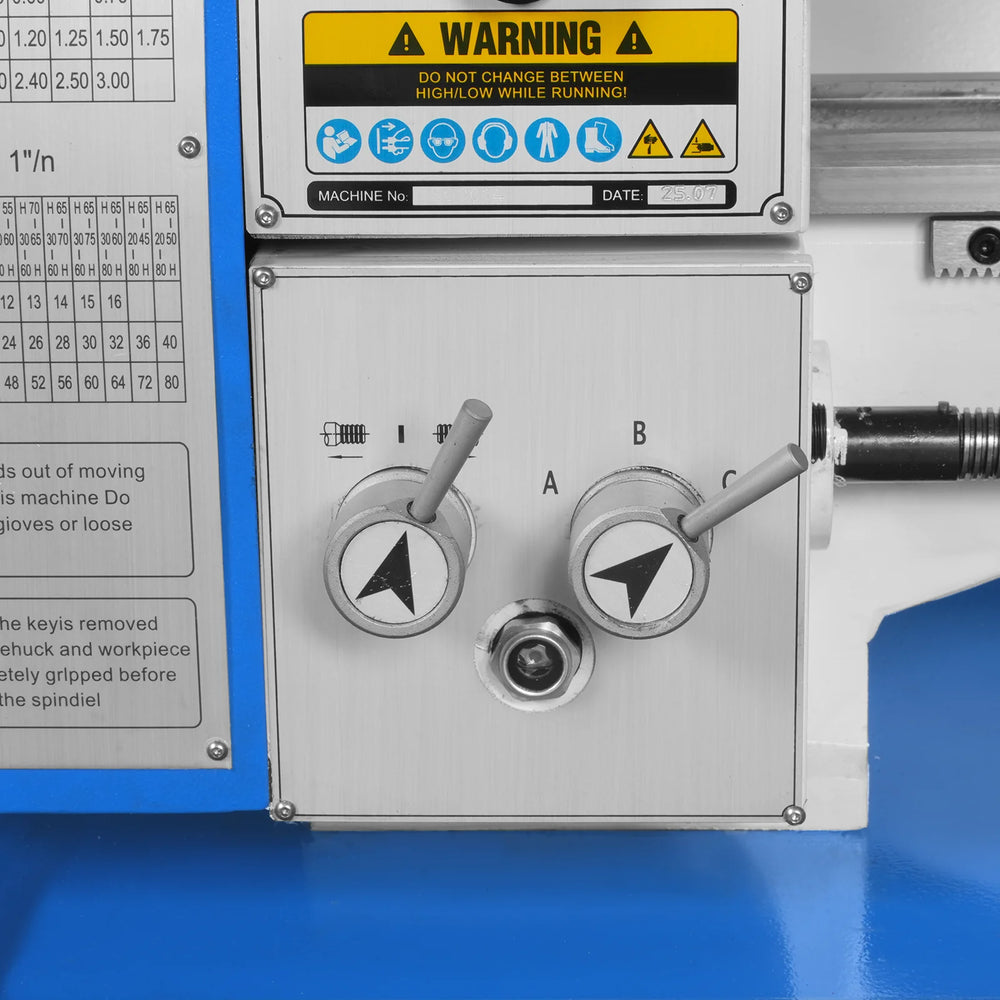

- Enhanced Thread Cutting: Equipped with a thread dial indicator, it simplifies the threading process, ensuring precise and repeatable thread cuts.

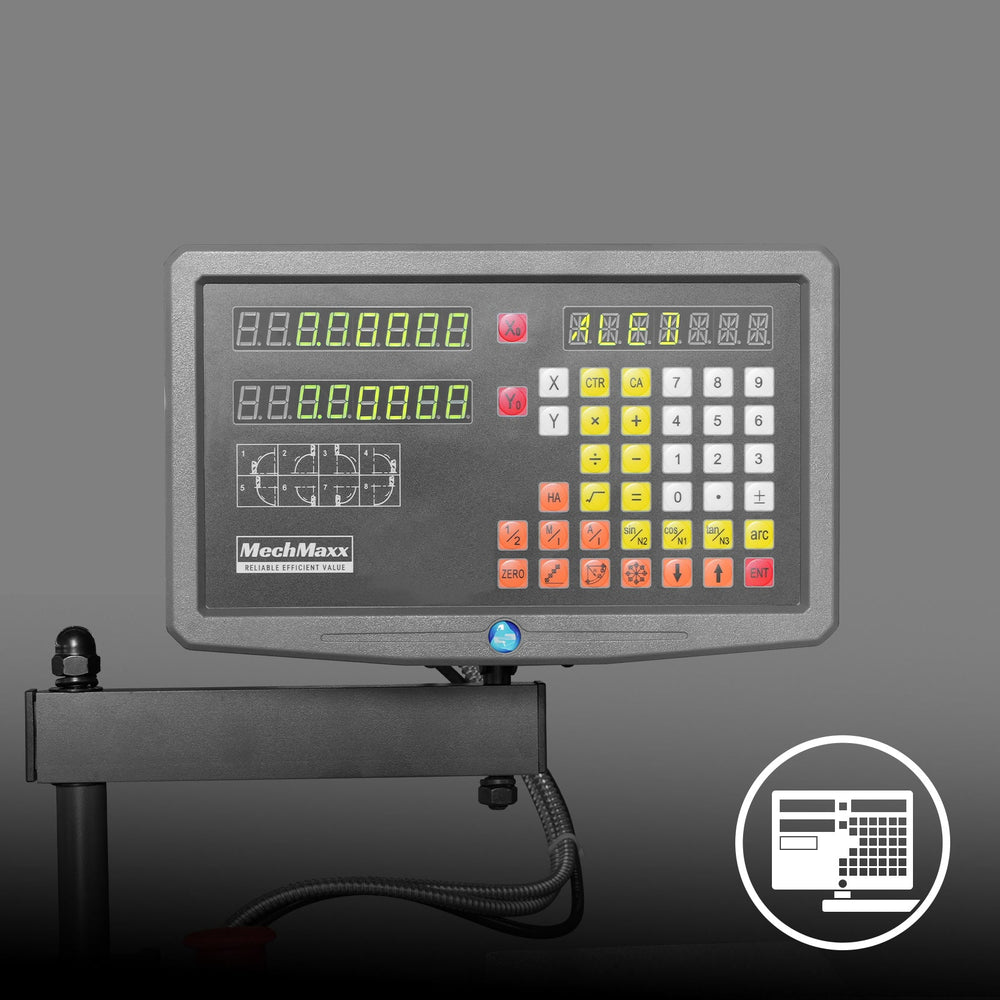

- Enhanced Precision with DRO: Digital Readout (DRO) system provides real-time measurements for increased accuracy, allowing for quicker setups and precise adjustments across all axes.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Specifications
| Specification | 1022VD |
| Motor | 1.5 HP, 110V, single-phase, 10A |
| Swing Over Bed | 9-7/8" (250 mm) |
| Swing Over Cross Slide | 5-1/2" (140 mm) |
| Swing Over Saddle | 5" (127 mm) |
| Distance Between Centers | 21-5/8" (550 mm) |
| Bed Width | 5-3/8" (135mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic back plate |
| Spindle Type | One-piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |
| Tailstock Quill Travel | 3" (75 mm) |
| Cross Slide Travel | 5" (127 mm) |
| Compound Slide Travel | 3" (75 mm) |
| Carriage Travel | 19-5/8"(500mm) |
| Spindle Speeds | 0–2000 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feeds | 0.0025 – 0.014 in./rev. |
| Transverse Feed Rate | 0.0014 – 0.004 in./rev. |
| Leadscrew Size & Pitch | 20mm(8TPI) |
| Threading Capacity - Inch | 8–80 TPI(37KINDS) |
| Threading Capacity - Metric | 0.35 – 3.0 mm(21kinds) |
| Maximum Tool Bit Size | 15/32''(12mm) |
| Thread Dial Indicator | YES |
| Coolant System | OPTIONAL |
| Overall Dimensions | 44.0" × 25.0" × 19.0" (1220 × 635 × 480 mm) |
| Approximate Shipping Weight | 308/352 lbs (140/160 kg) |
Warranty
This item comes with a factory warranty.
