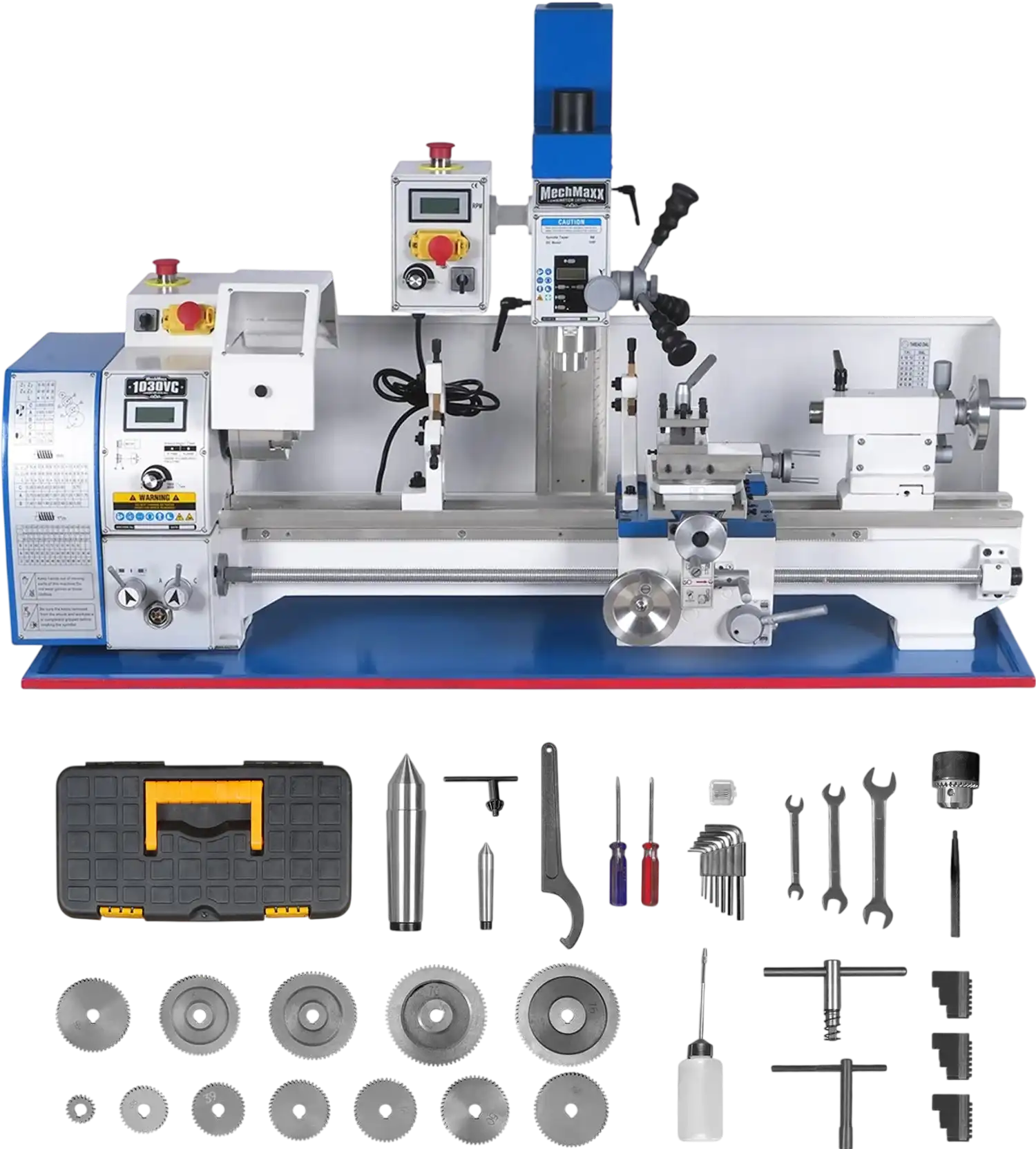

MechMaxx 1030VC Combination Lathe Milling Machine 1.5 HP 10" x 30" Variable Speed Benchtop Metalworking Drilling High Precision New
Manufacturer: MechMaxx
SKU: 500101
Model Options
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 4,199.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
×
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

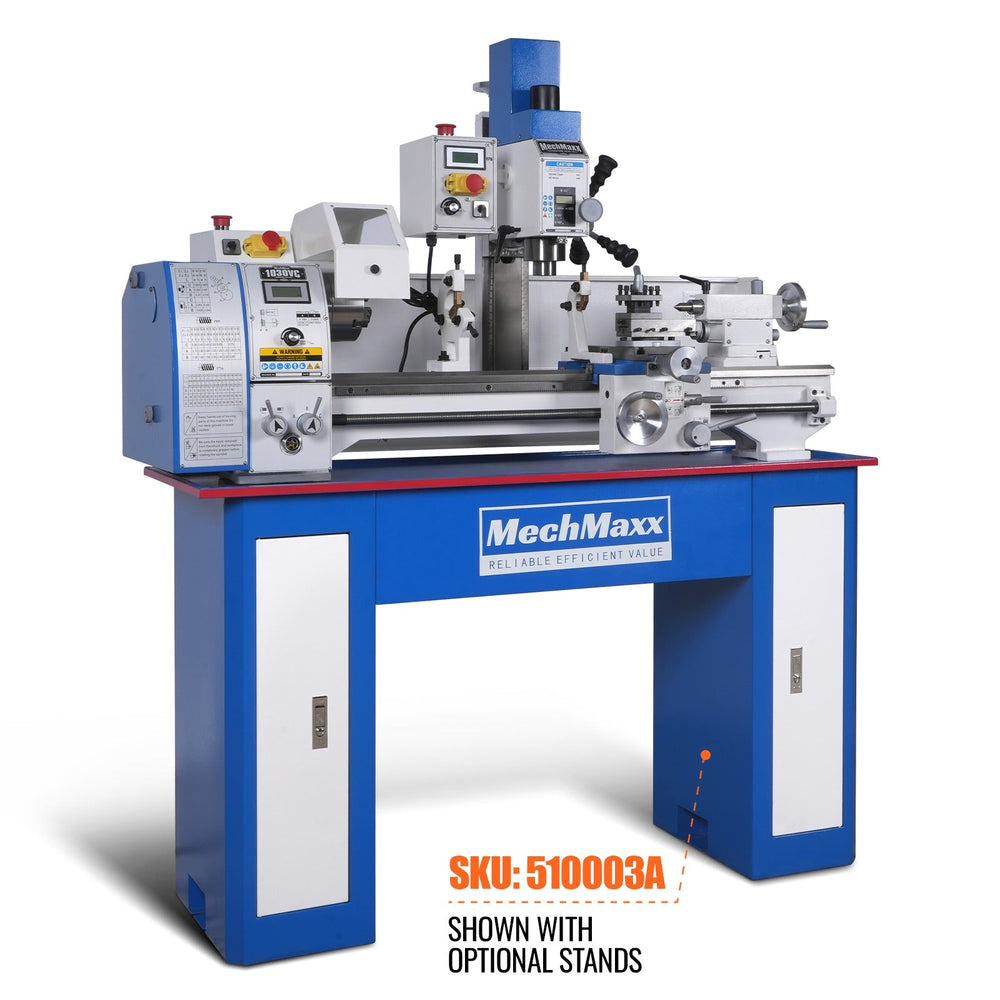

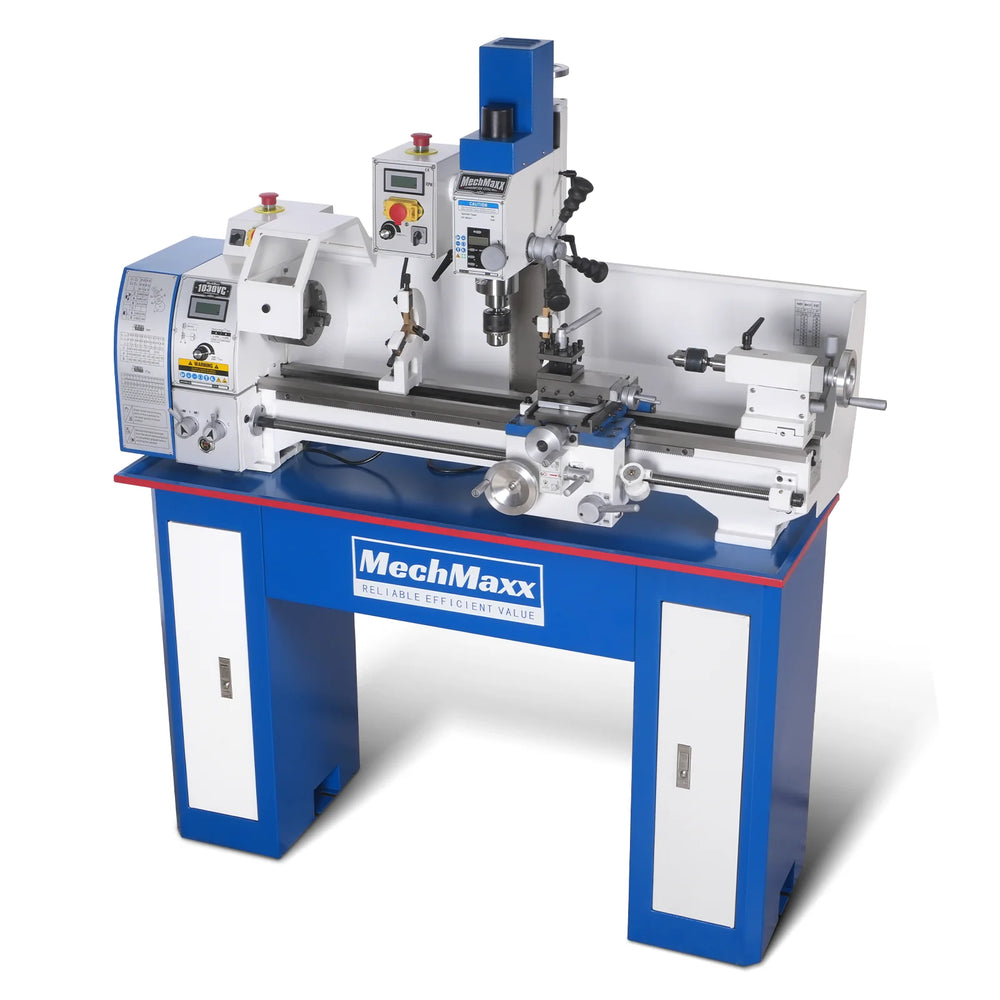

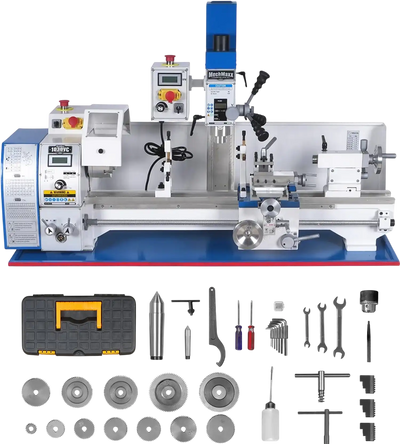

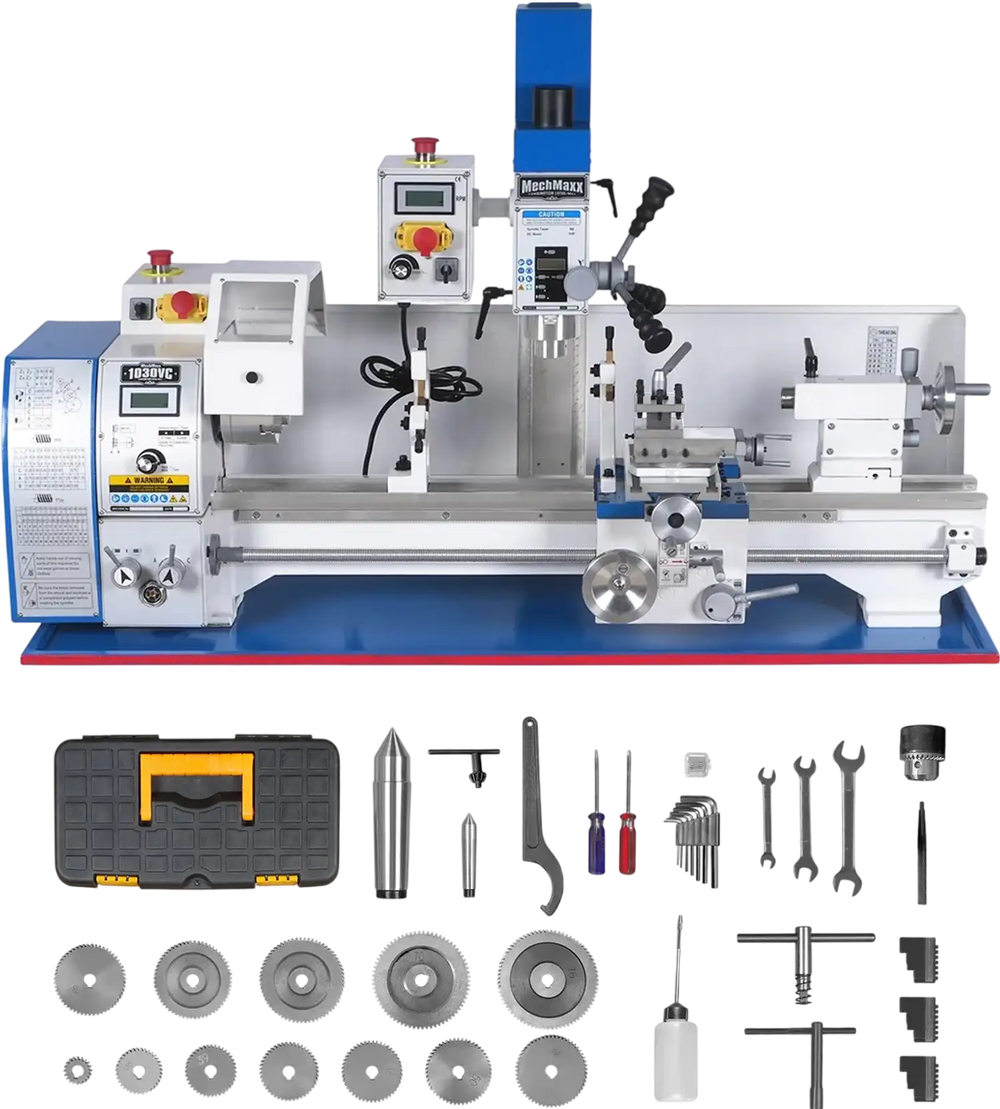

MechMaxx 1030VC Combination Lathe Milling Machine 1.5 HP 10" x 30" Variable Speed Benchtop Metalworking Drilling High Precision New
Product Overview
- Larger 1.5''(38mm) Spindle Bore：The 1-1/2" (38mm) spindle bore is significantly larger than typical models, allowing for the processing of larger workpieces with greater flexibility and improving overall workpiece handling capabilities. This feature is perfect for larger diameter materials and enhances the lathe's cutting capacity.
- Powerful 1.5 HP Brushless Motor: Equipped with a 1.5 HP brushless motor, the machine offers smooth and consistent power for demanding tasks. The brushless technology ensures longer lifespan, reduced maintenance, and quiet operation, making it perfect for both small projects and heavy-duty machining.
- R8 Spindle Taper: The R8 spindle taper offers excellent compatibility with a wide range of milling and drilling tools, providing users with more versatility in tooling. This feature ensures that you can easily switch between turning, milling, and drilling operations, all in one machine.
- ±90° Tilting Head for Versatile Machining: The ±90° head tilt allows for angling cuts and milling operations, giving you greater flexibility in handling complex machining tasks. The head's tilt ensures that the machine can accommodate different machining angles, making it ideal for tasks that require precision and flexibility.
- Variable Speed Control (0–2000 RPM): The variable spindle speed range of 0–2000 RPM ensures the machine is highly adaptable to different materials. Whether you're working with softwoods, metals, or plastics, the adjustable speed ensures optimal cutting conditions for each task, providing consistent performance across materials of varying hardness.
-

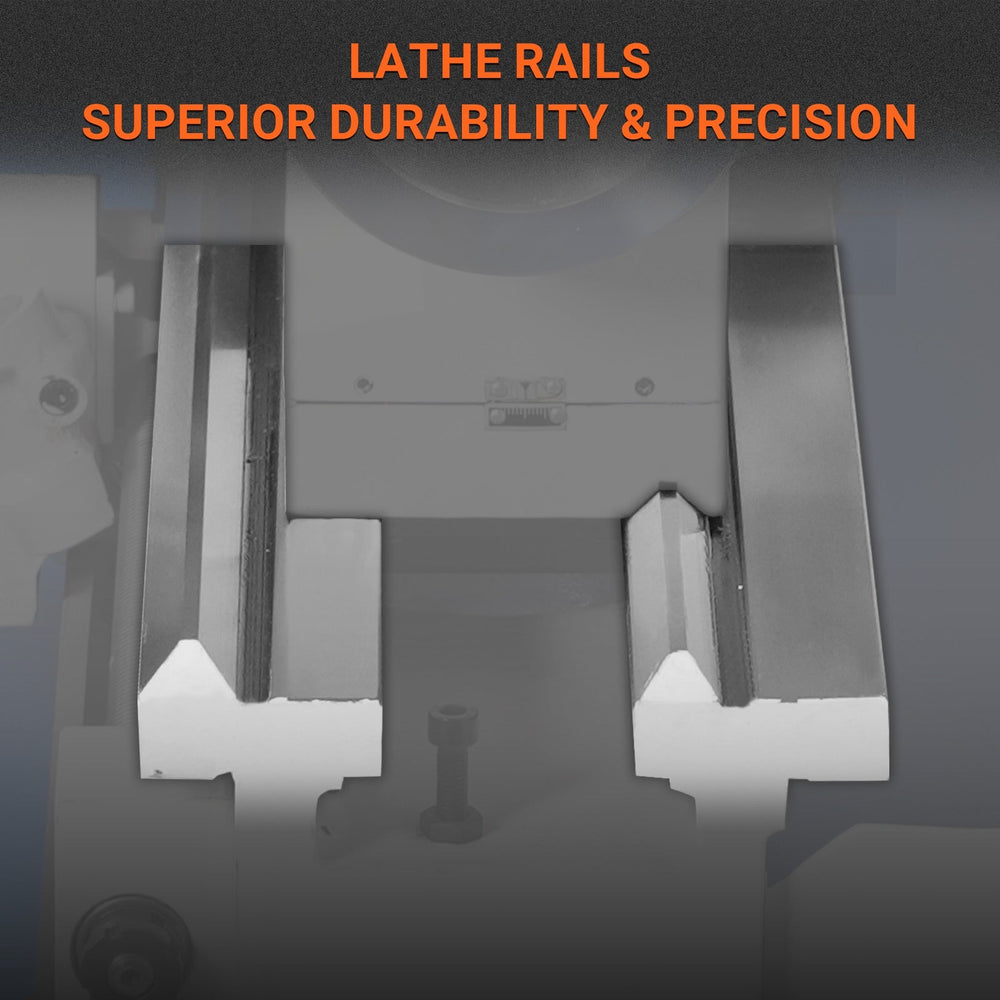

Precision Ground Bed for Smoother Movement:
The precision-ground bed provides smooth and consistent movement of the carriage and slides, ensuring higher accuracy in your machining operations. The ground surface reduces vibrations and increases the precision of cuts and milling operations. - Compact yet Robust Design: The 1030VC is designed to provide high performance in a compact form factor. Its sturdy construction, built with durable materials, ensures long-term reliability. Despite its robust build, it maintains a small footprint, making it suitable for workshops with limited space.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

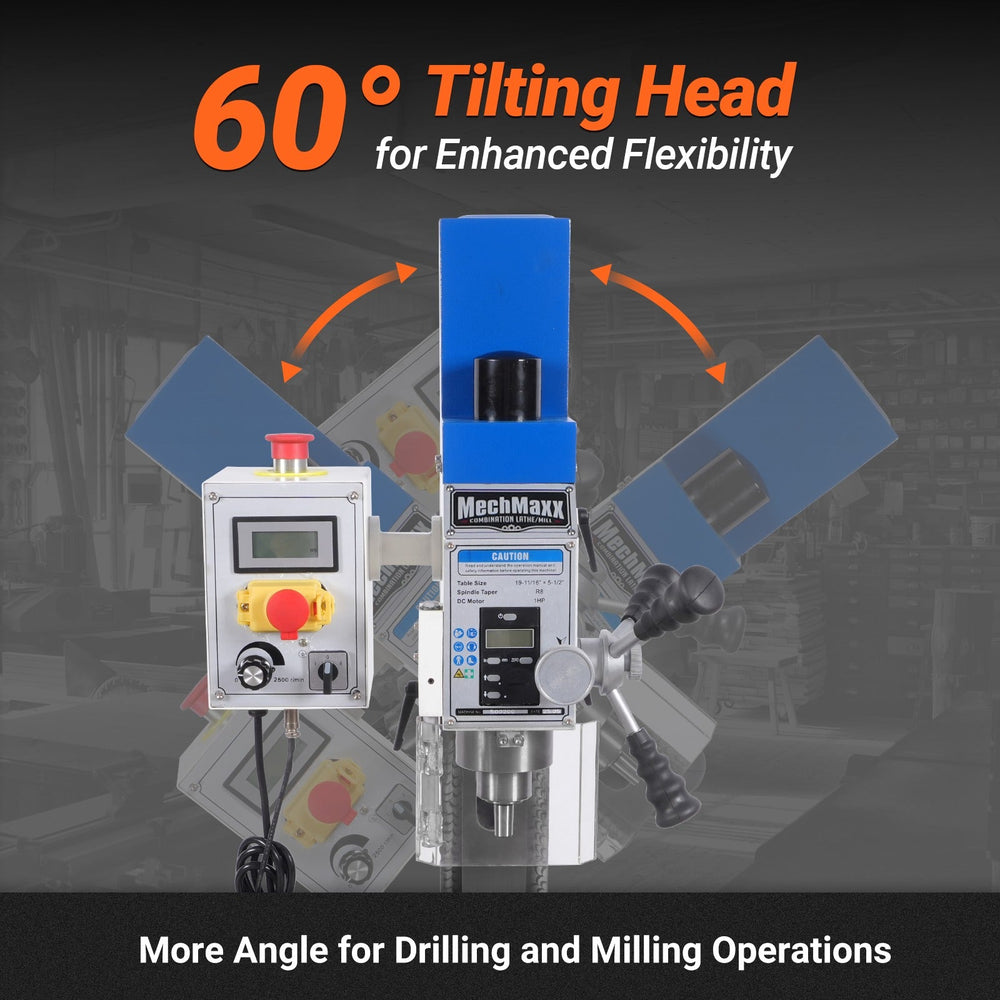

- ±60° Head Tilt for Angular Versatility: Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

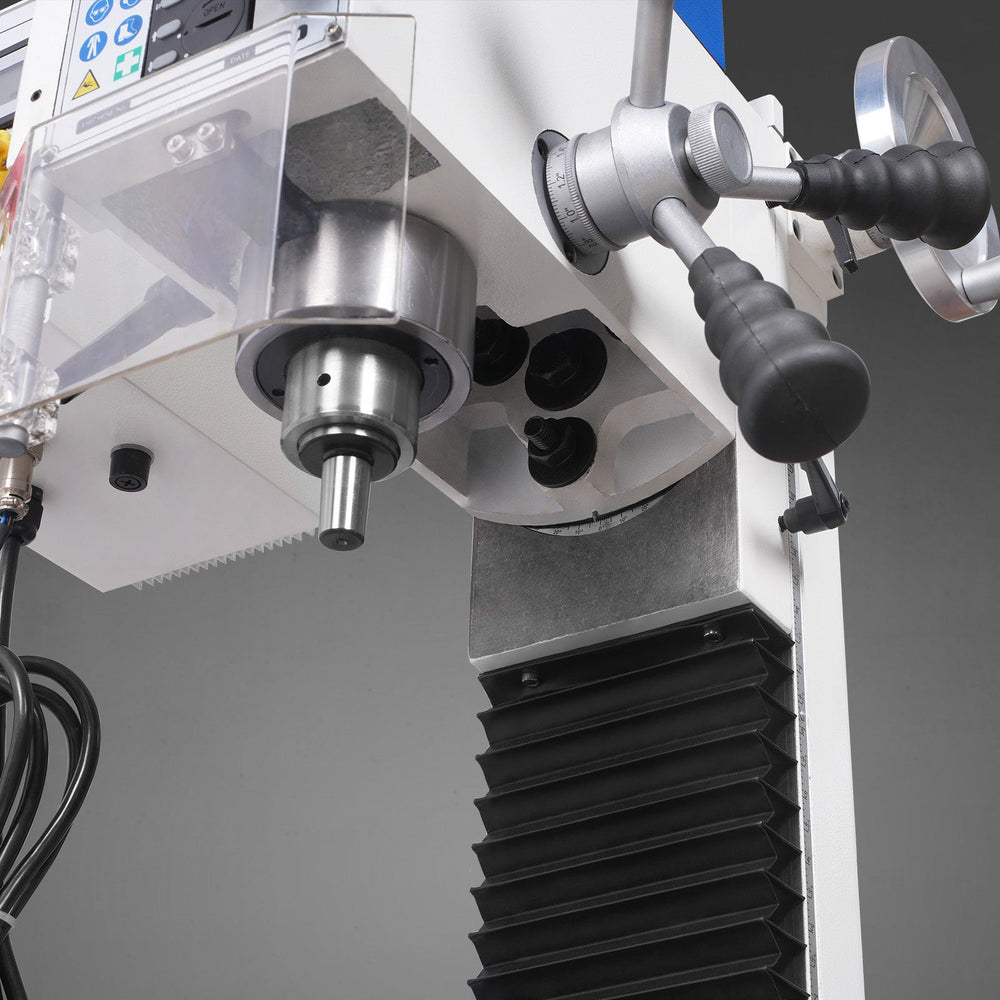

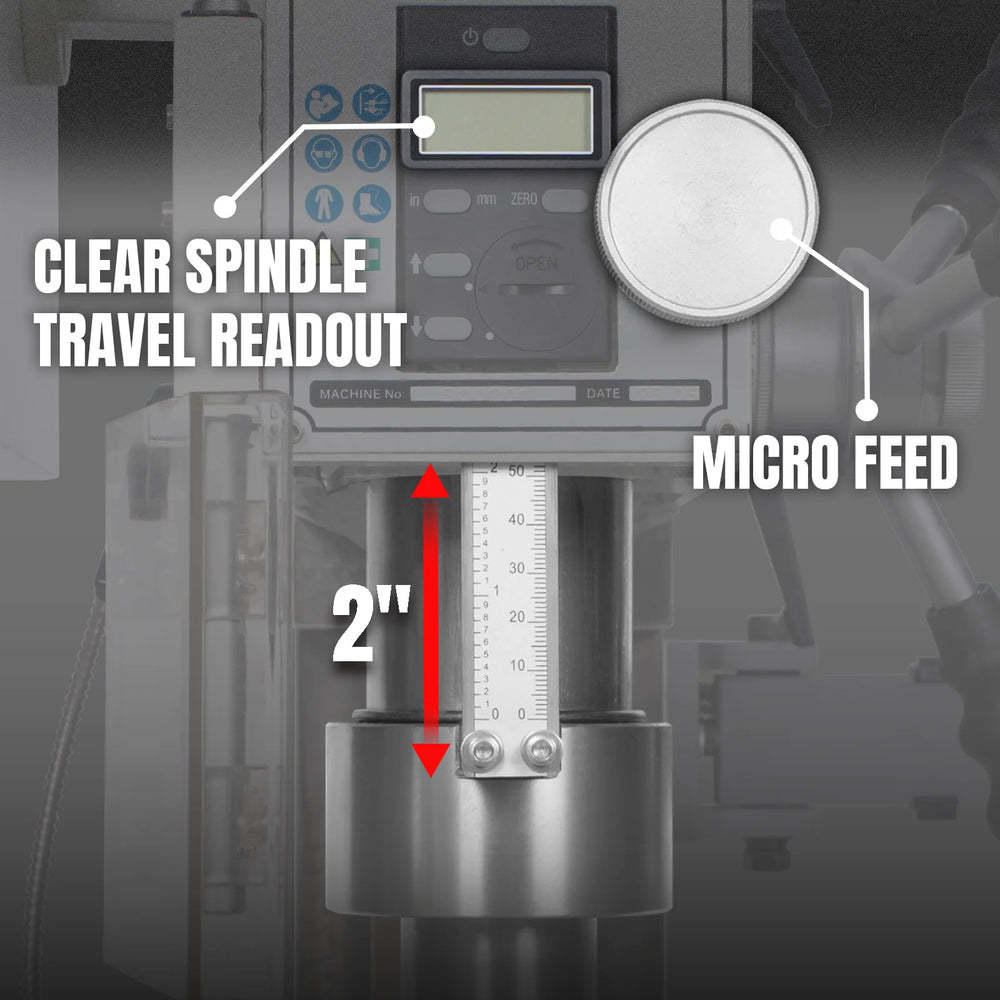

- Engineered for Precision Drilling: Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.

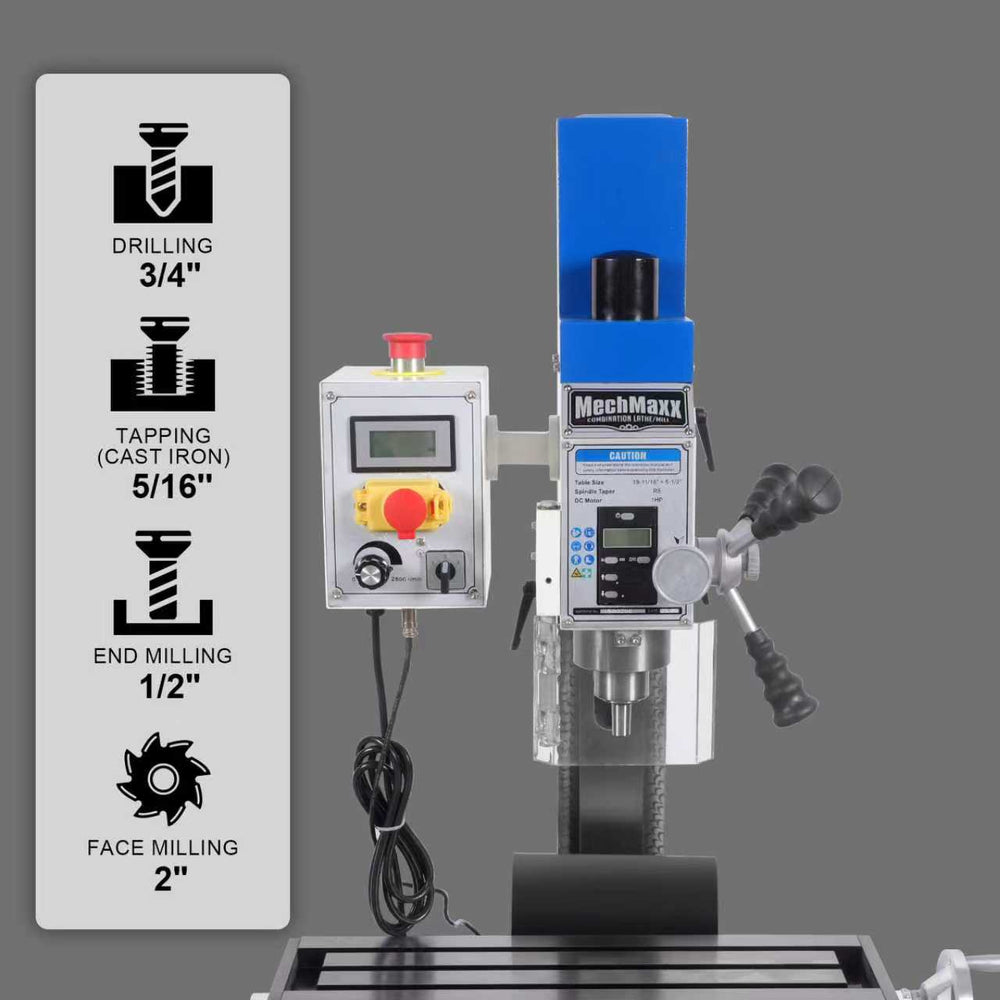

- Cutting Capacities You Can Count On: Handle a wide range of tasks with the VM18L: Drilling up to 3/4", Tapping (Cast Iron) up to 5/16", End Milling up to 1/2", and Face Milling up to 2". Compact yet capable — this machine gets real work done.

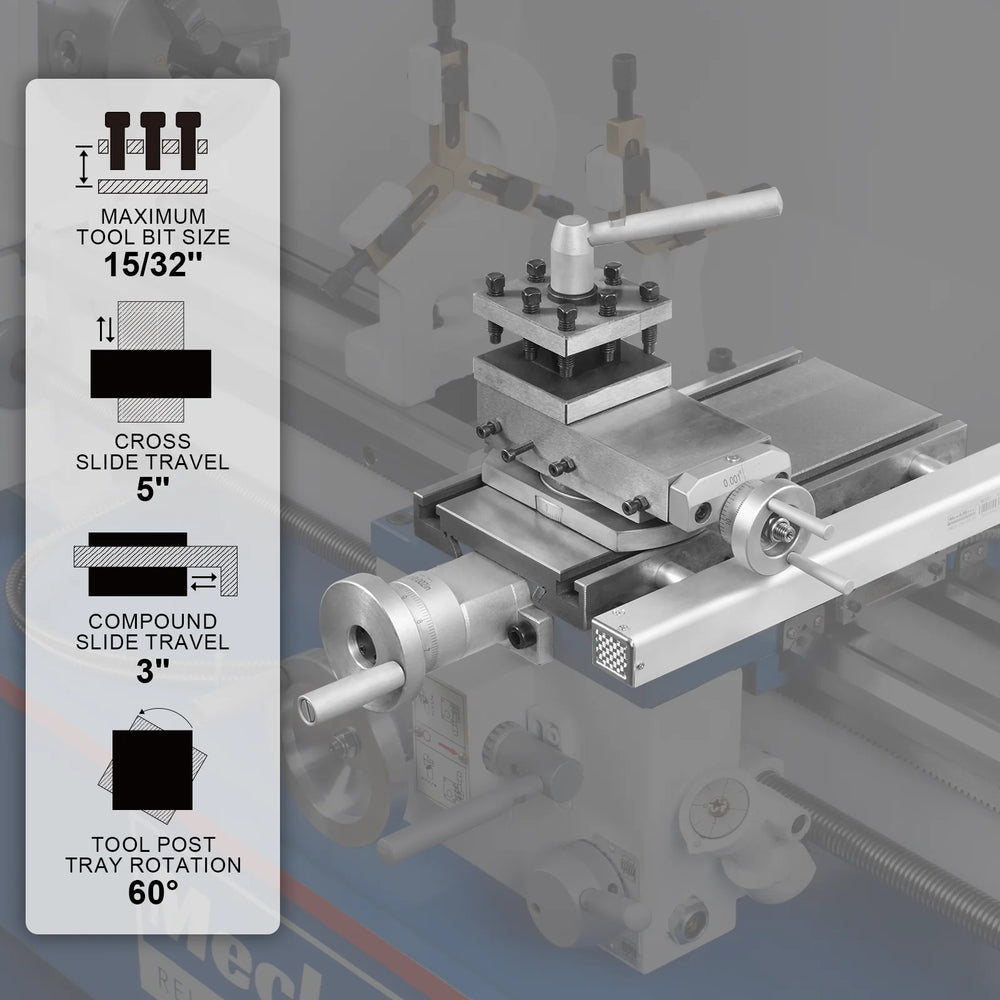

- Precision Tool Post with Adjustable Rotation: This tool post offers superior support for turning and threading operations. With 5" cross slide travel and 3" compound slide travel, it ensures smooth, precise movements. The 60° rotation of the tool post tray allows you to easily position tools for different angles, enhancing versatility and precision in every cut. Perfect for a variety of tasks, from fine-tuning to heavy-duty operations.

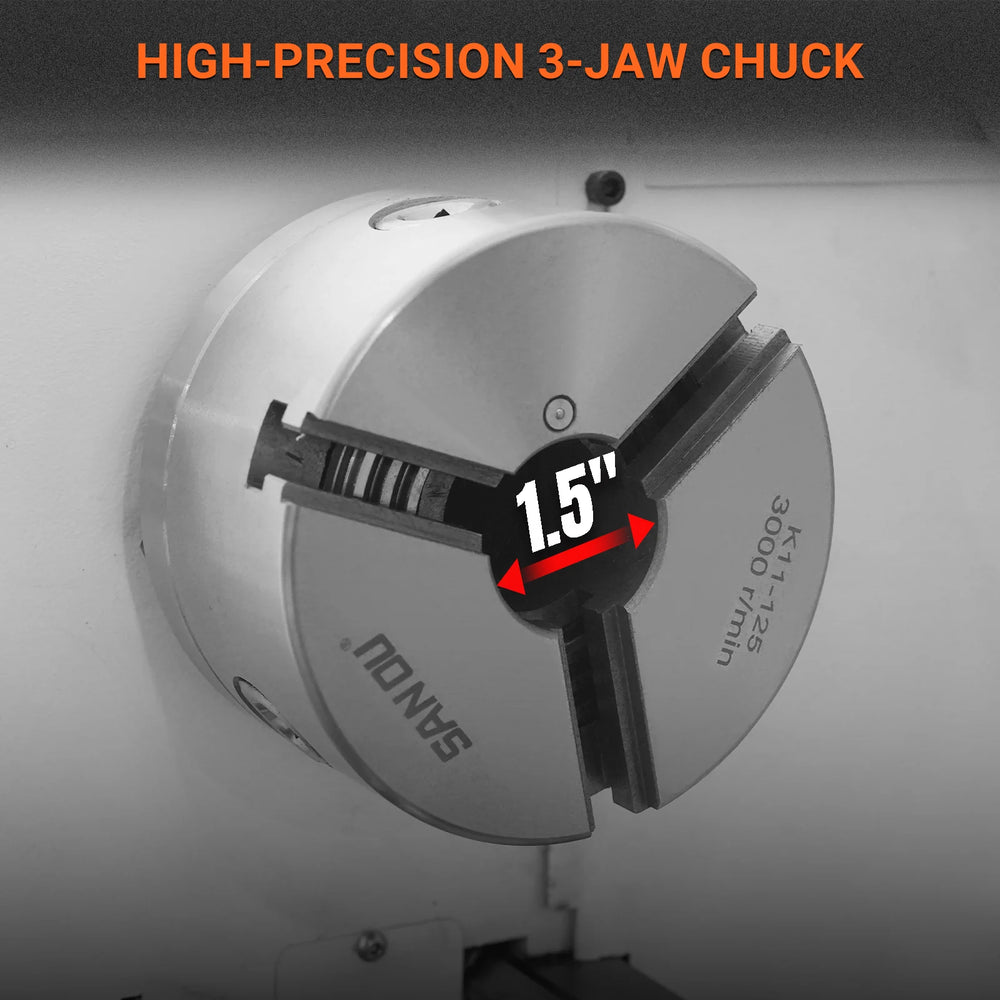

- High-Precision 3-Jaw Chuck with Large 1.5" Spindle Bore: This 5" 3-jaw chuck pairs with a powerful 1.5" spindle bore—larger than most in its class—offering exceptional clamping capacity for longer or thicker workpieces. The MT#5 taper one-piece spindle ensures minimal runout and high concentricity, making it ideal for bar feeding, precision turning, and demanding jobs that require both strength and accuracy.

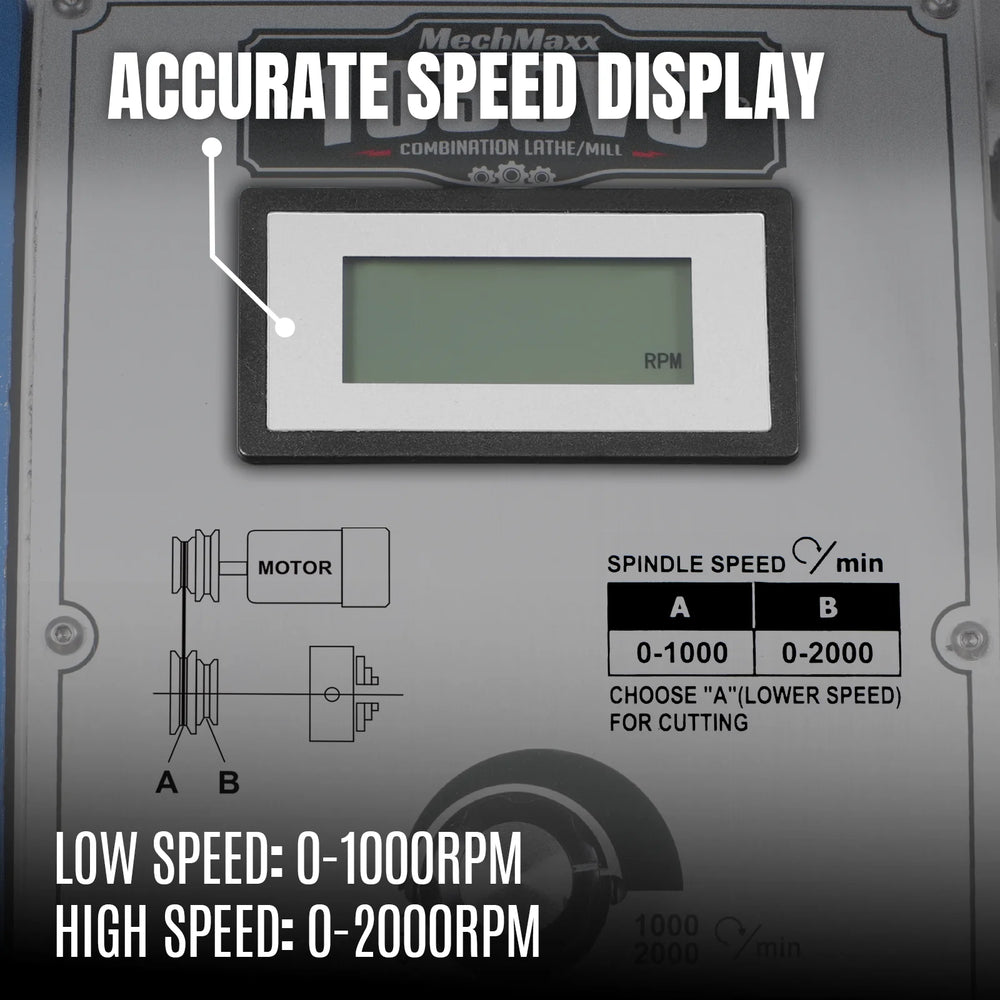

- Electronic Control with Stepless Speed Adjustment: The high-quality electronic control system provides stepless speed adjustment, allowing for smooth, continuous speed changes for different workpieces. With a clear speed display, you can easily monitor and adjust settings, ensuring precise control and flexibility for all your machining tasks. Effortlessly switch between tasks and materials, and achieve the best results every time.

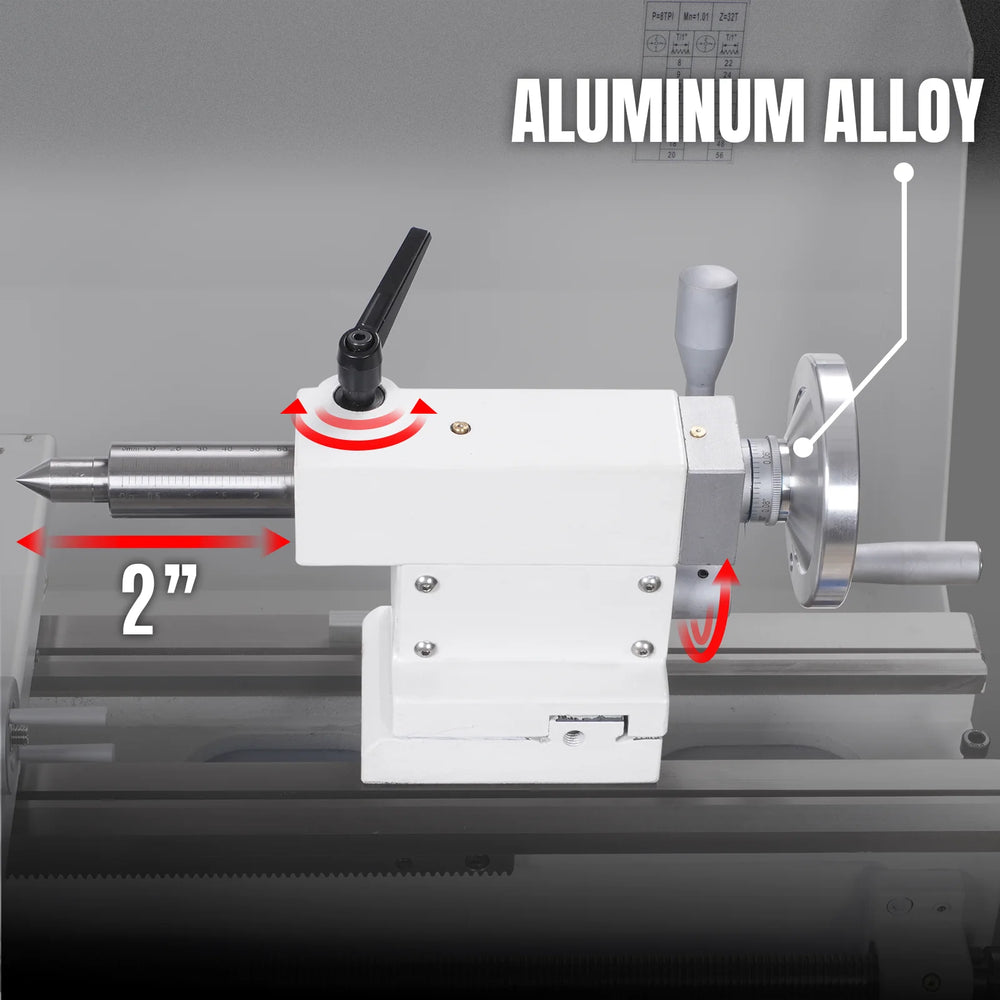

- Quick-Lock Tailstock with Durable Aluminum Alloy Construction: This tailstock features a quick-lock design for fast, secure adjustments with minimal effort. Made from high-quality aluminum alloy, it offers durability while reducing weight. The streamlined design maintains strength without the excess material, providing an efficient and user-friendly solution for precise operations.

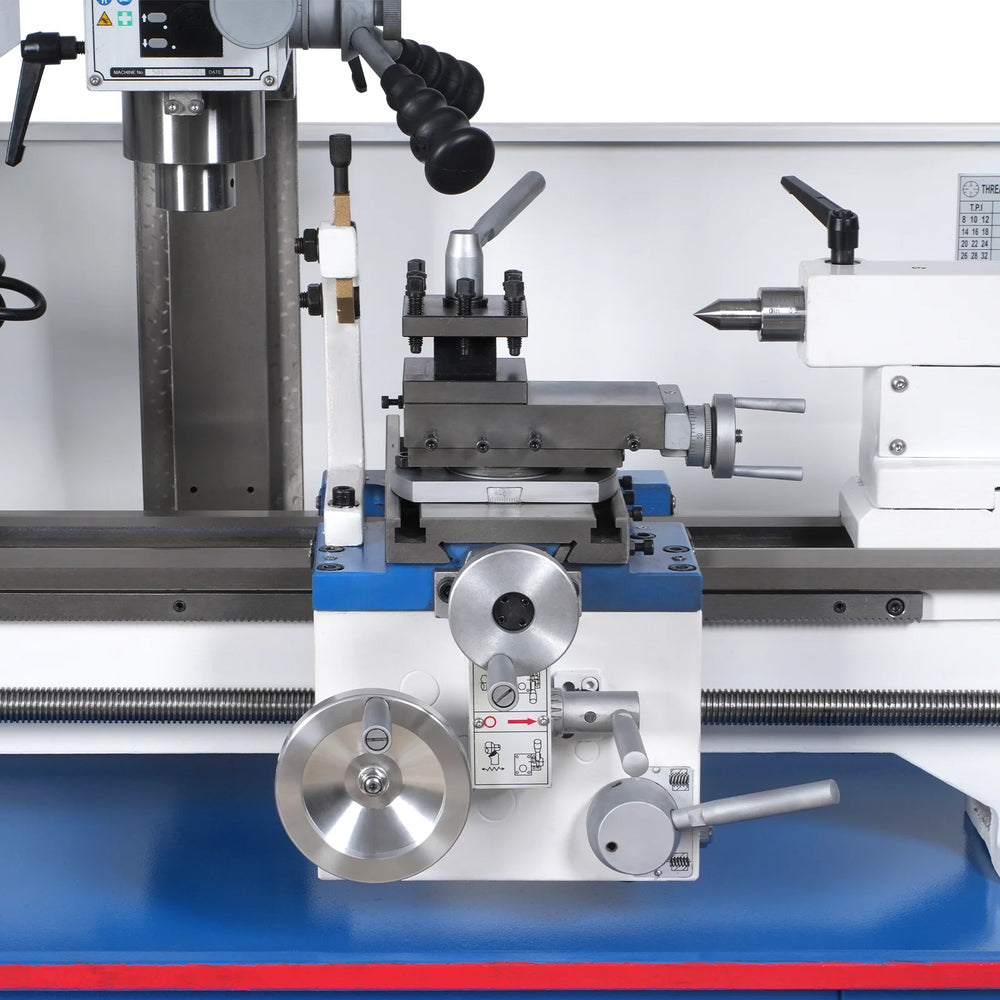

- Automatic Longitudinal and Cross Feed Support: Equipped with automatic feed in both longitudinal and cross directions, this lathe allows for smooth, hands-free cutting operations. It enhances precision and consistency while reducing operator effort—ideal for threading, facing, and extended turning tasks where surface finish and accuracy matter most.
- Safety Mechanisms with Power Disconnect: To ensure operator safety, this machine features automatic power cut-off when the chuck guard or gearbox cover is removed. This protective design prevents the machine from operating during maintenance or adjustments, reducing the risk of accidents and ensuring a safer working environment.
Specifications
| Motor Power (Lathe) | 1.5 HP, 110V, single-phase, 10A |
| Swing Over Bed | 9-7/8" (250 mm) |
| Swing Over Cross Slide | 5-1/2" (140 mm) |
| Swing Over Saddle | 5" (127 mm) |
| Distance Between Centers | 29-1/2" (750 mm) |
| Bed Width | 5-3/8" (135mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic back plate |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |
| Tailstock Quill Travel | 3" (75 mm) |
| Carriage Travel | 27-1/2" (700 mm) |
| Cross Slide Travel | 5" (127 mm) |
| Compound Slide Travel | 3" (75 mm) |
| Spindle Speed Range | 0–2000 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feed Rate | 0.0025 – 0.014 in./rev. |
| Transverse Feed Rate | 0.0014 – 0.004 in./rev. |
| Leadscrew Size & Pitch | 20mm(8TPI) |
| Threading Capacity – Inch | 8–80 TPI(37KINDS) |
| Threading Capacity – Metric | 0.35 – 3.0 mm(21kinds) |

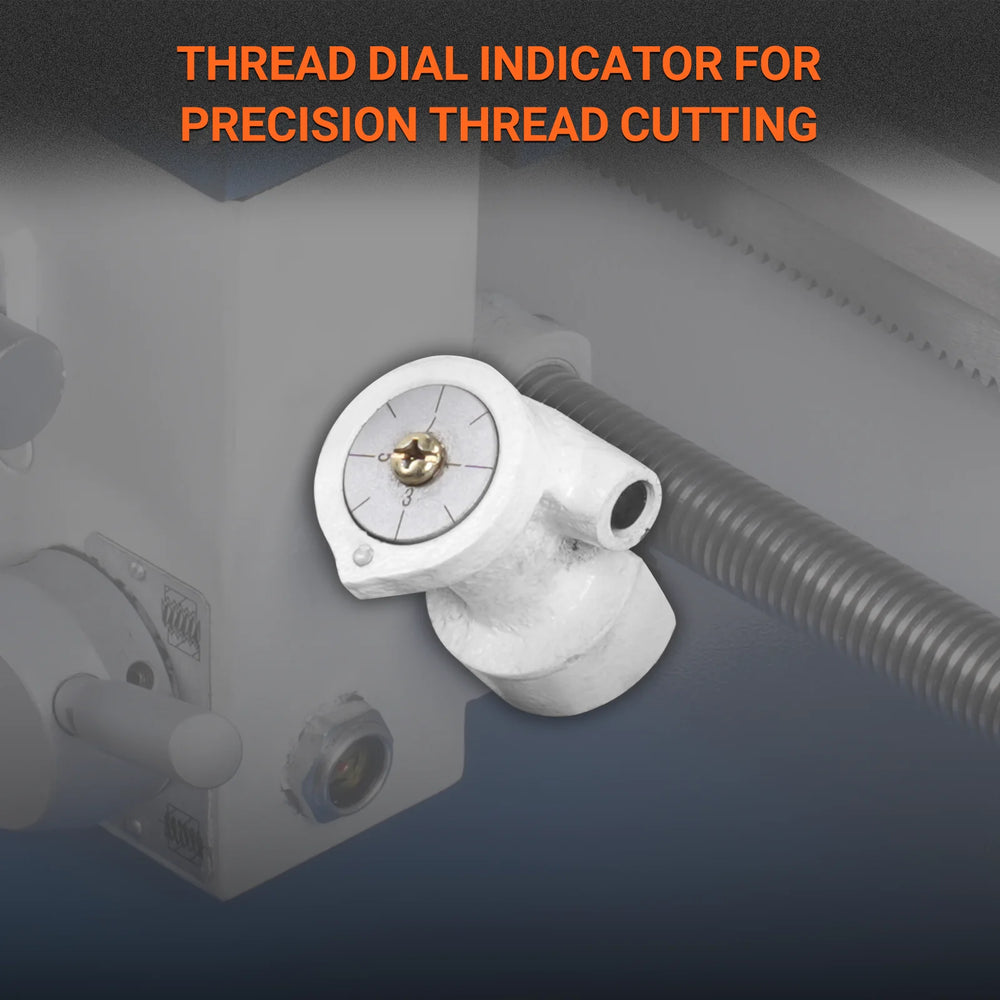

| Thread Dial Indicator | YES |
| Tool Post Type | 4-way |
| Max Tool Bit Size | 15/32''(12mm) |

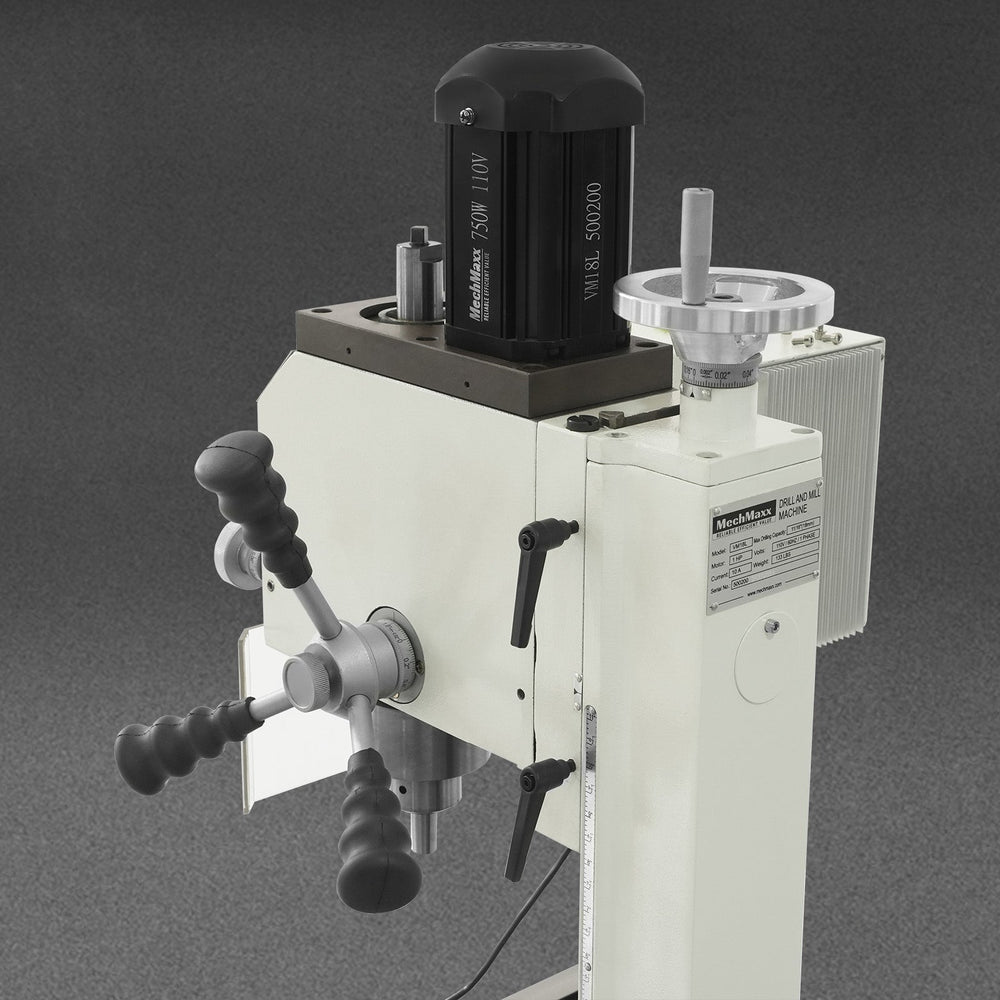

| Motor Power (Mill Head) | 1HP(750W) |
| Spindle Taper | R8 |
| Spindle Speed Range | 0-2500RPM |
| Spindle Travel (Quill Stroke) | 2"(50mm) |
| Quill Diameter | Ø60 mm |
| Drawbar Thread Size | 7/16"-20 |
| Drilling Capacity | 5/8"(16mm) |
| End Milling Capacity | 1/2"(12mm) |
| Face Milling Capacity | 2"(50mm) |
| Vertical Travel (Z-Axis) | 10-7/8"(275mm) |
| Head Tilt Angle | ±90° |
| Distance: Spindle to Table | 10-7/8"(275mm) |
| Distance: Spindle to Column | 6-5/8"(170mm) |
| Column Type | Dovetail Slot |
| Drive Type | Belt Drive Brushless |
| Electrical Requirements | 110V 1PHASE |
| Overall Dimensions | 52''x26''x38-1/4''(1320x660x970mm) |
| Net / Gross Weight | 440/517lbs(200/235kg) |
| Shipping Dimensions | 56''x27''x39''（1420x680x970mm） |
