MechMaxx 1130VD Metal Lathe 11" x 30" Benchtop DRO Variable Speed 2HP Brushless Motor High Precision New
Manufacturer: MechMaxx
SKU: 500008
Model Options
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 4,099.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
×
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

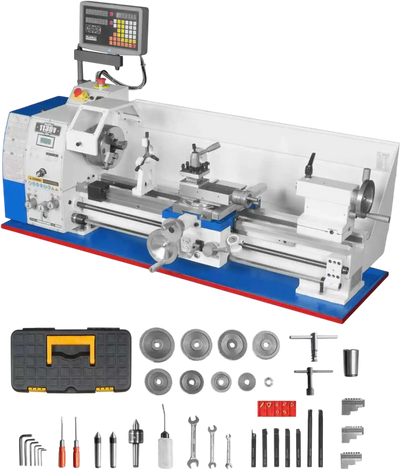

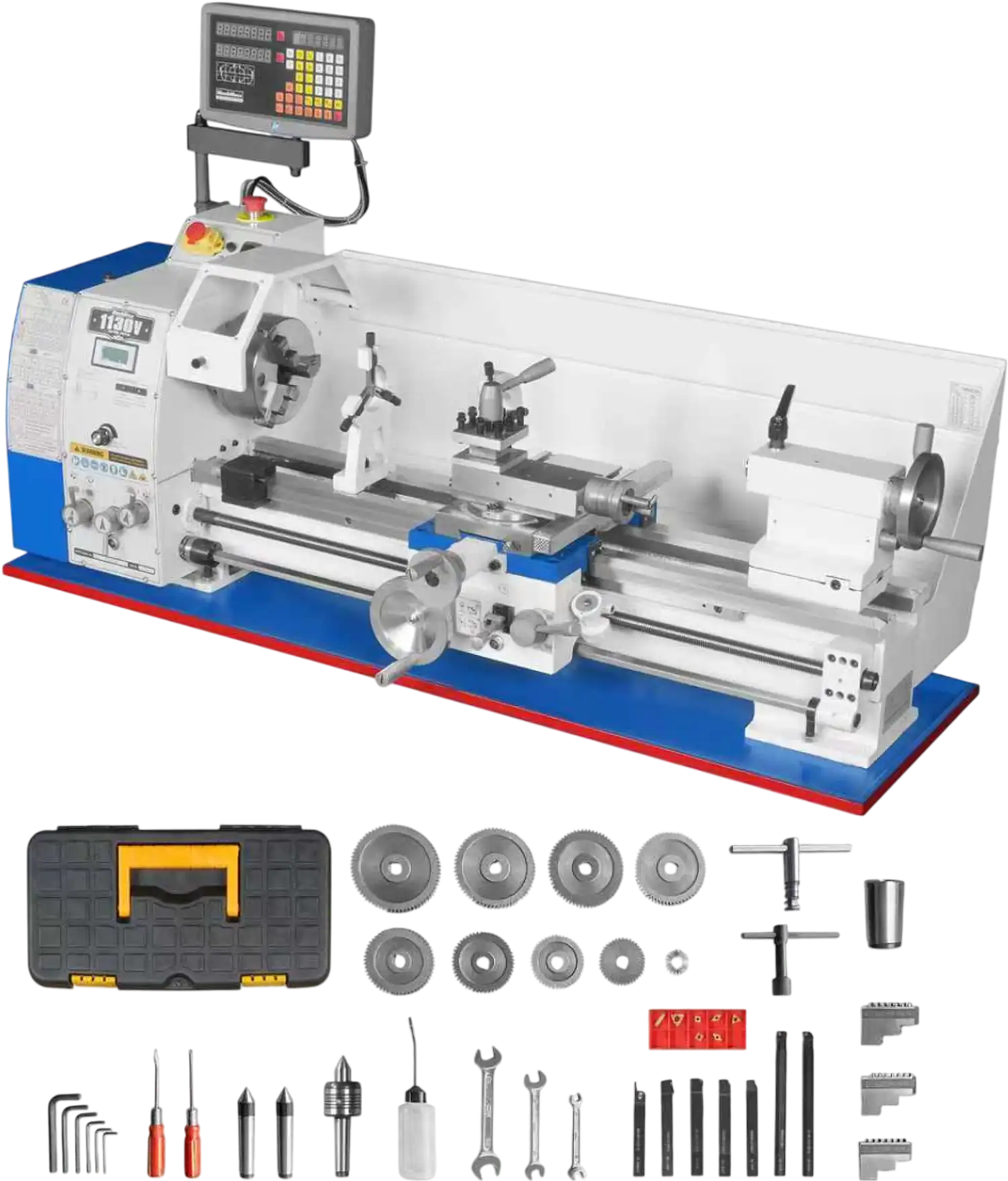

MechMaxx 1130VD Metal Lathe 11" x 30" Benchtop DRO Variable Speed 2HP Brushless Motor High Precision New
Product Overview
- Powerful 2 HP Motor: The lathe is equipped with a 2 HP motor, providing consistent and reliable power to handle a wide variety of turning operations. The 110V, single-phase motor is perfect for both hobbyists and professionals.
- Variable Spindle Speeds: Featuring variable spindle speeds from 0–2000 RPM, the lathe allows precise control for different materials and applications. Whether you're working with metals or softer materials, you can adjust the speed to suit your needs.
-
One-Piece Spindle for Increased Precision:
Unlike traditional two-piece spindles, this lathe features a one-piece spindle that ensures greater rigidity, higher precision, and more stable operation. The MT#5 spindle taper and 1-1/2" (38mm) spindle bore further enhance its capability to handle larger workpieces. - Precision Threading: Capable of cutting both inch threads (8–56 TPI) and metric threads (0.4–3.5mm), this lathe is versatile for a variety of threading applications. The thread dial indicator simplifies threading setups, ensuring consistent and accurate threads every time.

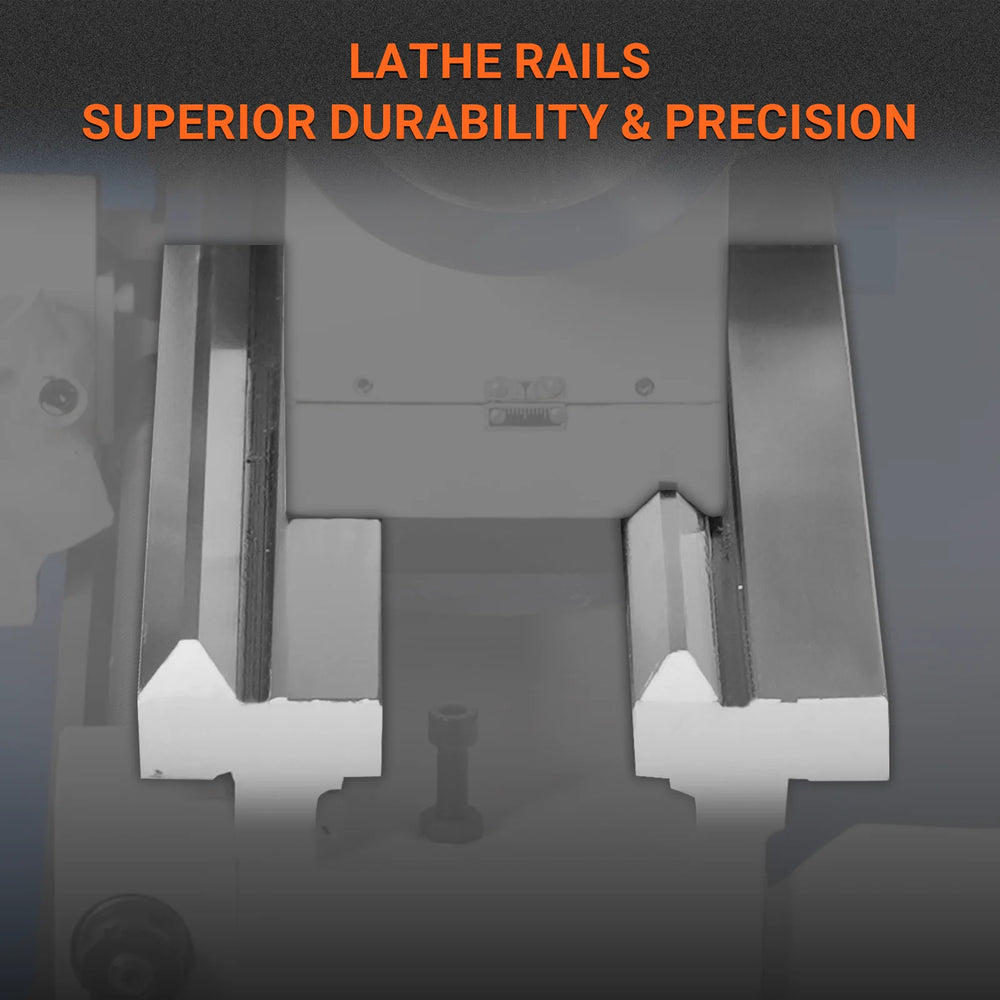

- Heavy-Duty Build: The 7" (180mm) bed width and solid construction ensure better stability during machining. The larger spindle bore and MT#5 spindle taper further improve performance and versatility for a wide range of tasks.
- Heavy-Duty Construction: The 7" (180mm) bed width and solid build provide better stability and precise machining.
- Digital Readout (DRO) for Precision and Efficiency:
The Digital Readout (DRO) system enhances machining accuracy and workflow efficiency. It provides real-time, digital measurements for each axis, allowing for quick and precise adjustments. By eliminating manual measurements, the DRO ensures consistent results and reduces errors in your work, making complex tasks easier and more reliable.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

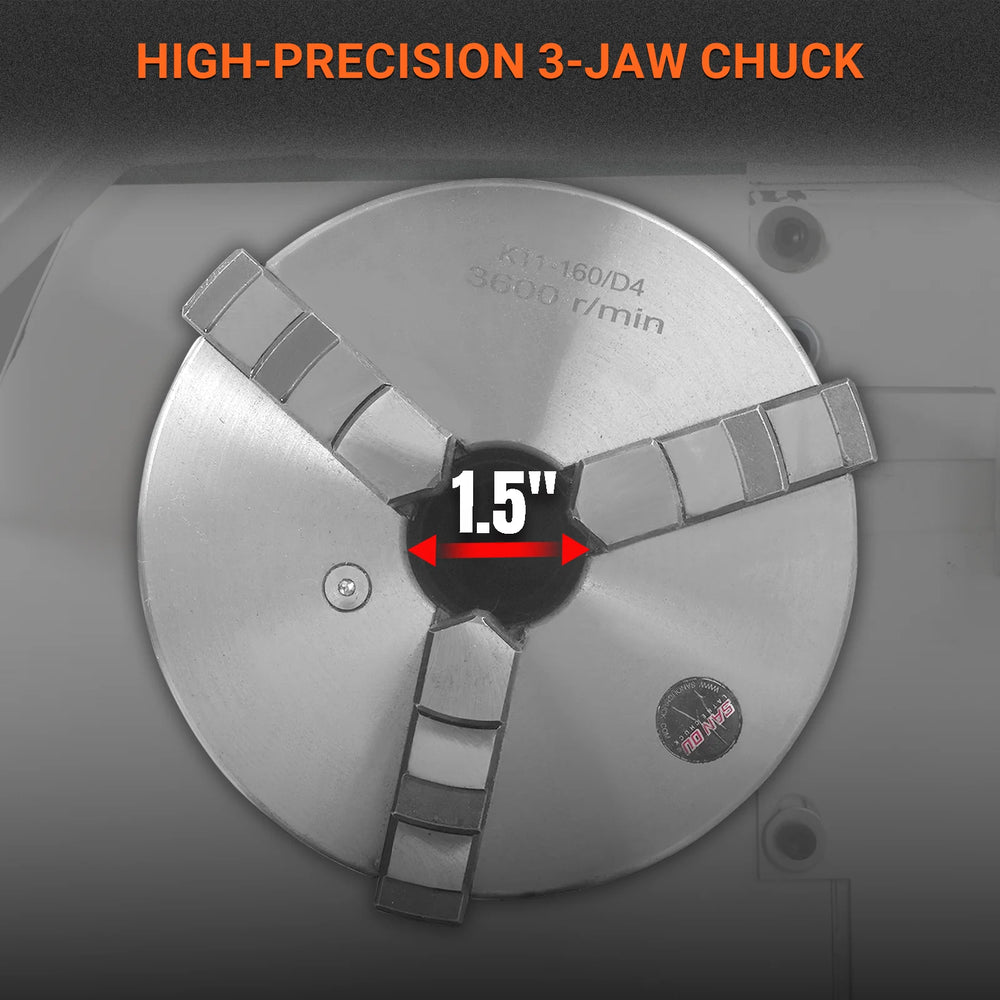

- High-Precision 3-Jaw Chuck: This 5" 3-jaw chuck offers a strong 1.5" clamping range, ensuring secure grip and minimal runout. Designed with a MT5 spindle taper, it provides a tight, stable fit for accurate turning operations. Perfect for both small and large components, this chuck combines strength, durability, and precision.

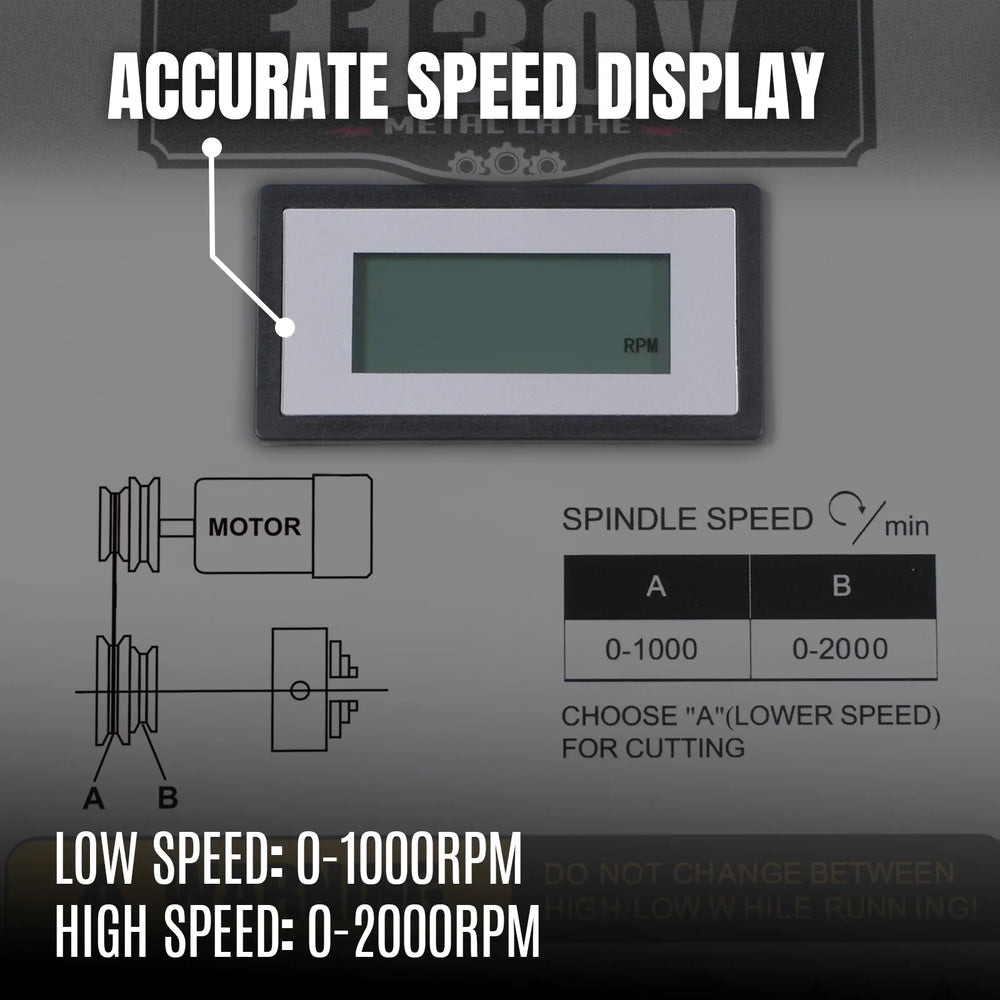

- Electronic Control with Stepless Speed Adjustment: The high-quality electronic control system provides stepless speed adjustment, allowing for smooth, continuous speed changes for different workpieces. With a clear speed display, you can easily monitor and adjust settings, ensuring precise control and flexibility for all your machining tasks. Effortlessly switch between tasks and materials, and achieve the best results every time.

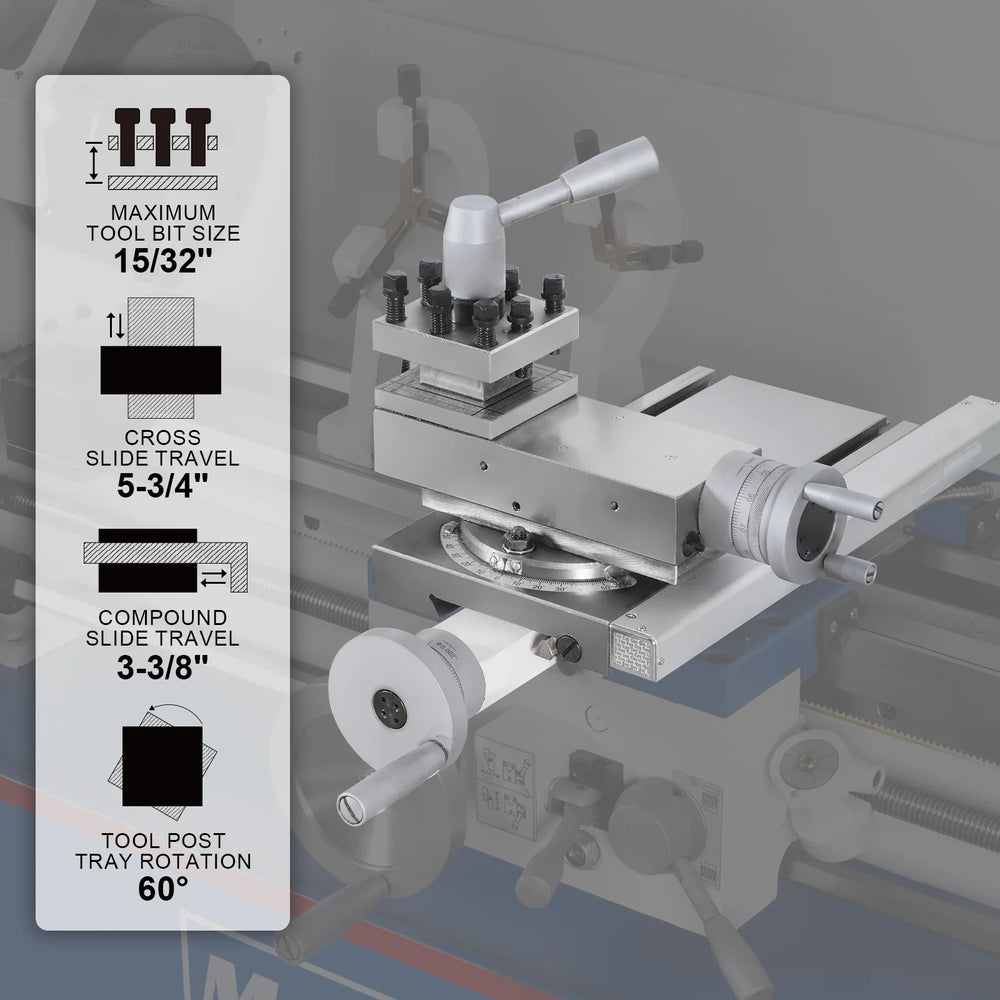

- High-Precision Tool Post with Adjustable Features: This tool post is designed for precision and versatility, offering a maximum tool bit size of 15/32" for a wide range of cutting tasks. With a 5-3/4" cross slide travel and 3-3/8" compound slide travel, it ensures smooth, accurate movements for detailed machining. The 60° tool post tray rotation allows for easy adjustment and optimal positioning of tools, enhancing flexibility and precision in every operation.
- Dual-Axis Digital Readout for Precise Control: The dual-axis digital readout (DRO) system allows for precise tracking of both the longitudinal and cross slide movements, providing real-time position feedback. This feature ensures accurate machining and quick adjustments during operations, improving efficiency and reducing the chances of error, especially when working on complex or detailed parts.

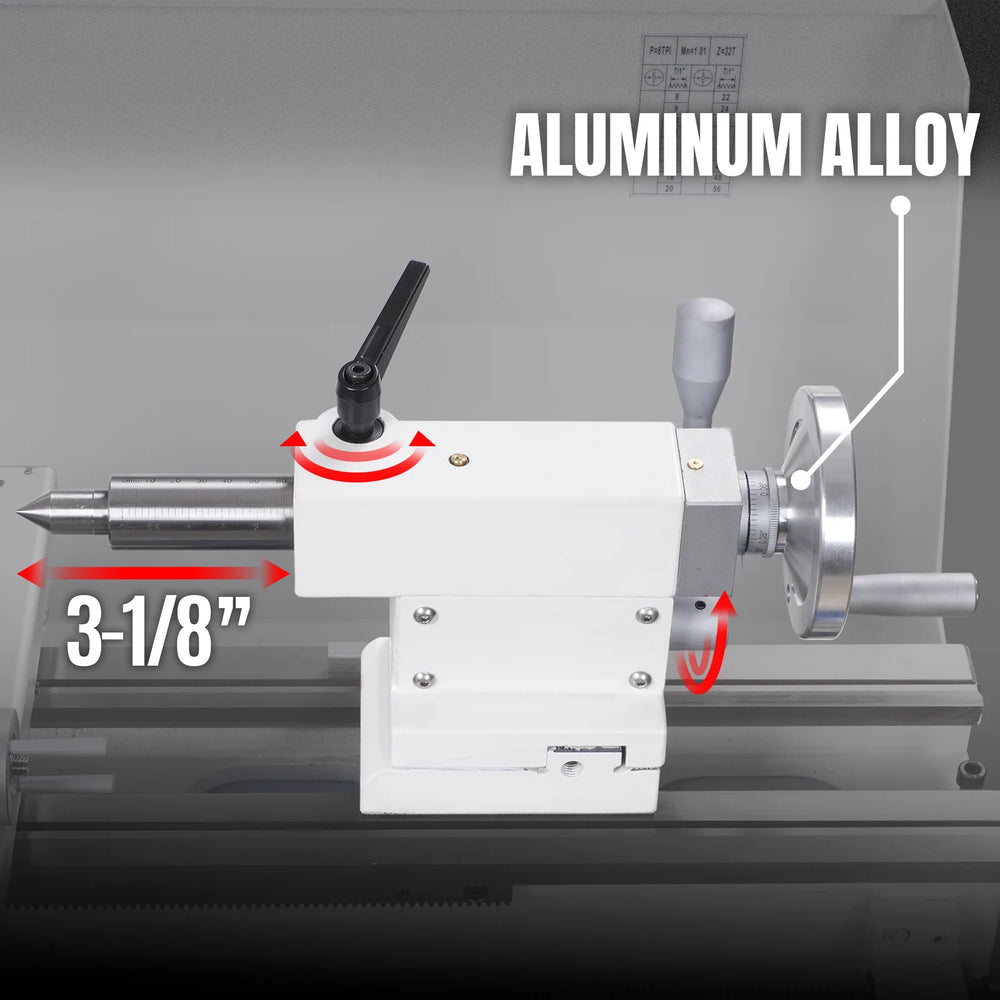

- Quick-Lock Tailstock with Durable Aluminum Alloy Construction: This tailstock features a quick-lock design for fast, secure adjustments with minimal effort. Made from high-quality aluminum alloy, it offers durability while reducing weight. The streamlined design maintains strength without the excess material, providing an efficient and user-friendly solution for precise operations.

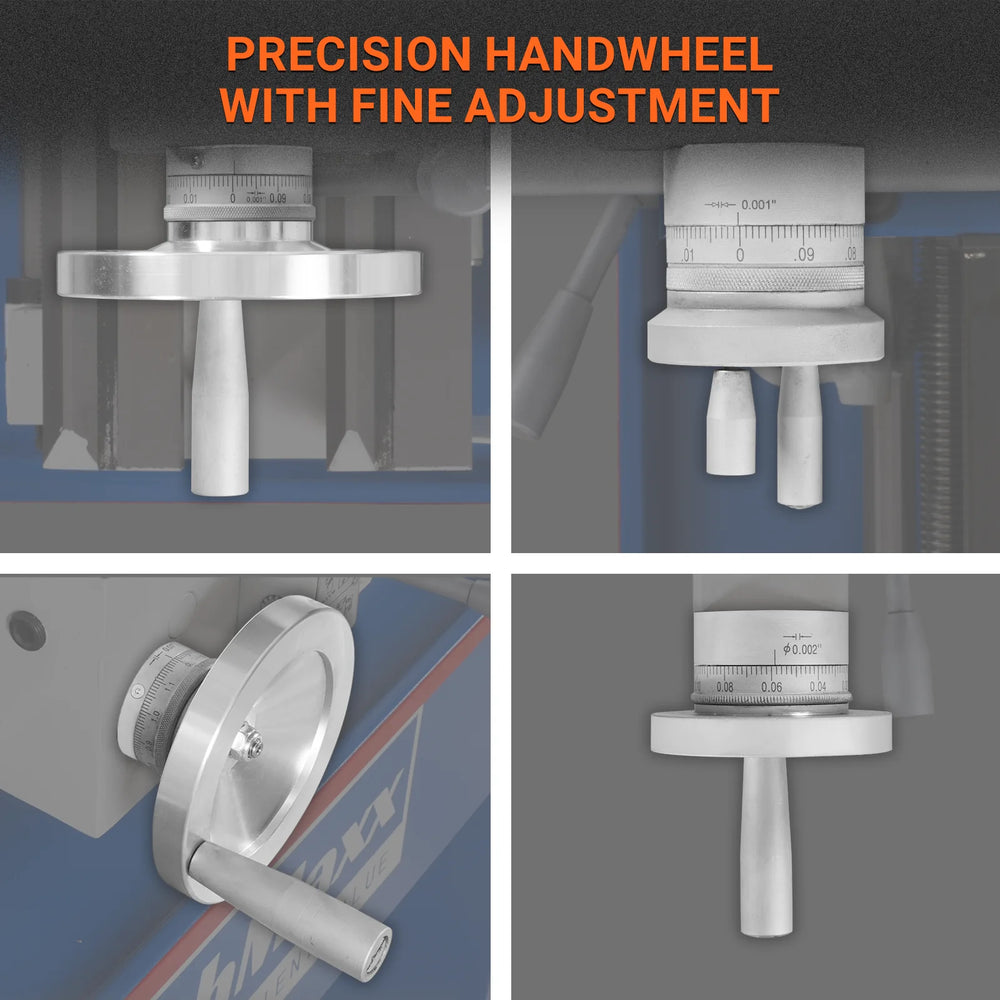

- Precision Handwheel with Fine Adjustment: The handwheel allows for fine adjustments with precision control, perfect for tasks requiring high accuracy. Whether you're fine-tuning feed rates or making detailed cuts, this feature ensures smooth and exact movements for precise machining results.
- Safety Mechanisms with Power Disconnect: To ensure operator safety, this machine features automatic power cut-off when the chuck guard or gearbox cover is removed. This protective design prevents the machine from operating during maintenance or adjustments, reducing the risk of accidents and ensuring a safer working environment.

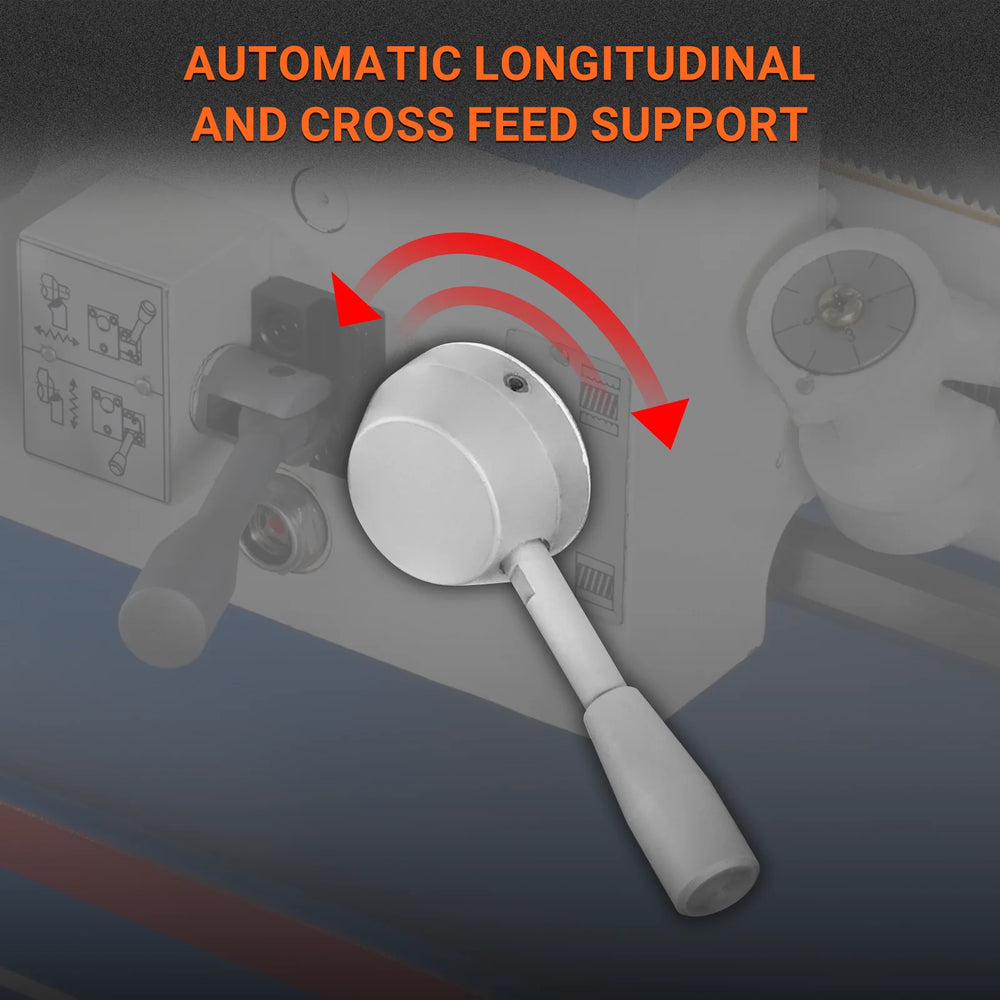

- Automatic Longitudinal and Cross Feed Support: Equipped with automatic feed in both longitudinal and cross directions, this lathe allows for smooth, hands-free cutting operations. It enhances precision and consistency while reducing operator effort—ideal for threading, facing, and extended turning tasks where surface finish and accuracy matter most.

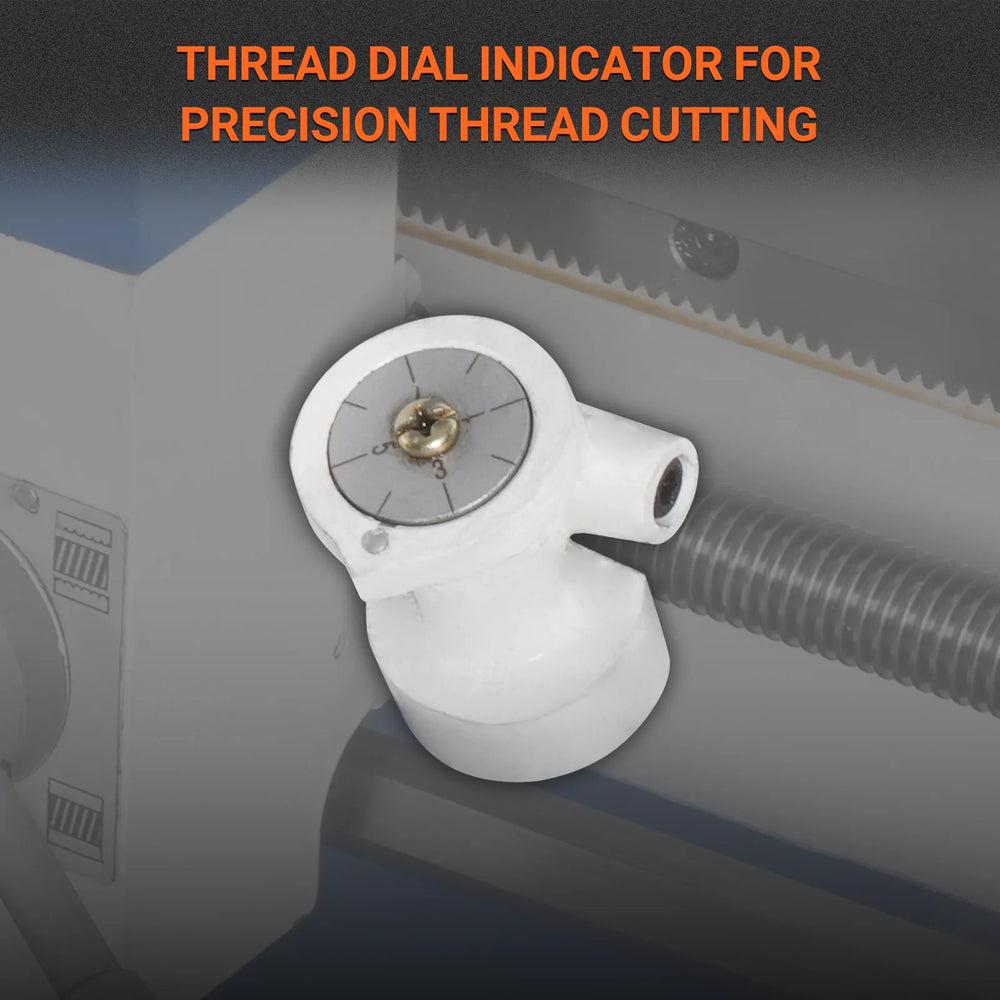

- Thread Dial Indicator for Precision Thread Cutting: The thread dial indicator enables accurate thread cutting by providing precise control over the feed rate. It helps synchronize the carriage with the leadscrew, allowing for smooth threading and reducing the chances of misalignment. While it doesn’t directly eliminate vibrations, its role in ensuring accurate cuts helps minimize errors that could lead to instability, enhancing the overall cutting quality and stability.
Specifications
| Motor | 2 HP, 110V, Single-Phase, 20A, 60HZ |
| Swing Over Bed | 11-2/5"(290mm) |
| Swing Over Cross Slide | 7-1/4"(185mm) |
| Swing Over Saddle | 5-3/4"(147mm) |
| Distance Between Centers | 29-1/2"(750mm) |
| Bed Width | 7"(180mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | D1-4 |
| Spindle Type | One-piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#3 |
| Tailstock Quill Travel | 3-1/8"(85mm) |
| Cross Slide Travel | 5-3/4"(147mm) |
| Compound Slide Travel | 3-3/8"(86mm) |
| Carriage Travel | 27-1/2" (700 mm) |
| Spindle Speeds | 0–2000 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feeds | 0.017-0.25mm/R(0.0007-0.0098 in./rev.) |
| Transverse Feed Rate | 0.07-0.53mm/r(0.0027-0.02in./rev) |
| Leadscrew Size & Pitch | 20mm(8TPI) |
| Threading Capacity - Inch | 8-56TPI(21KIDS) |
| Threading Capacity - Metric | 0.4-3.5 mm(12kids) |
| Maximum Tool Bit Size | 15/32''(12mm) |
| Thread Dial Indicator | YES |
| Overall Dimensions | 59" X 31" X 30"(1400X750X740MM) |
| N.W/G.W | 517/572lbs(235/260kg) |
Warranty
This item comes with a factory warranty.
