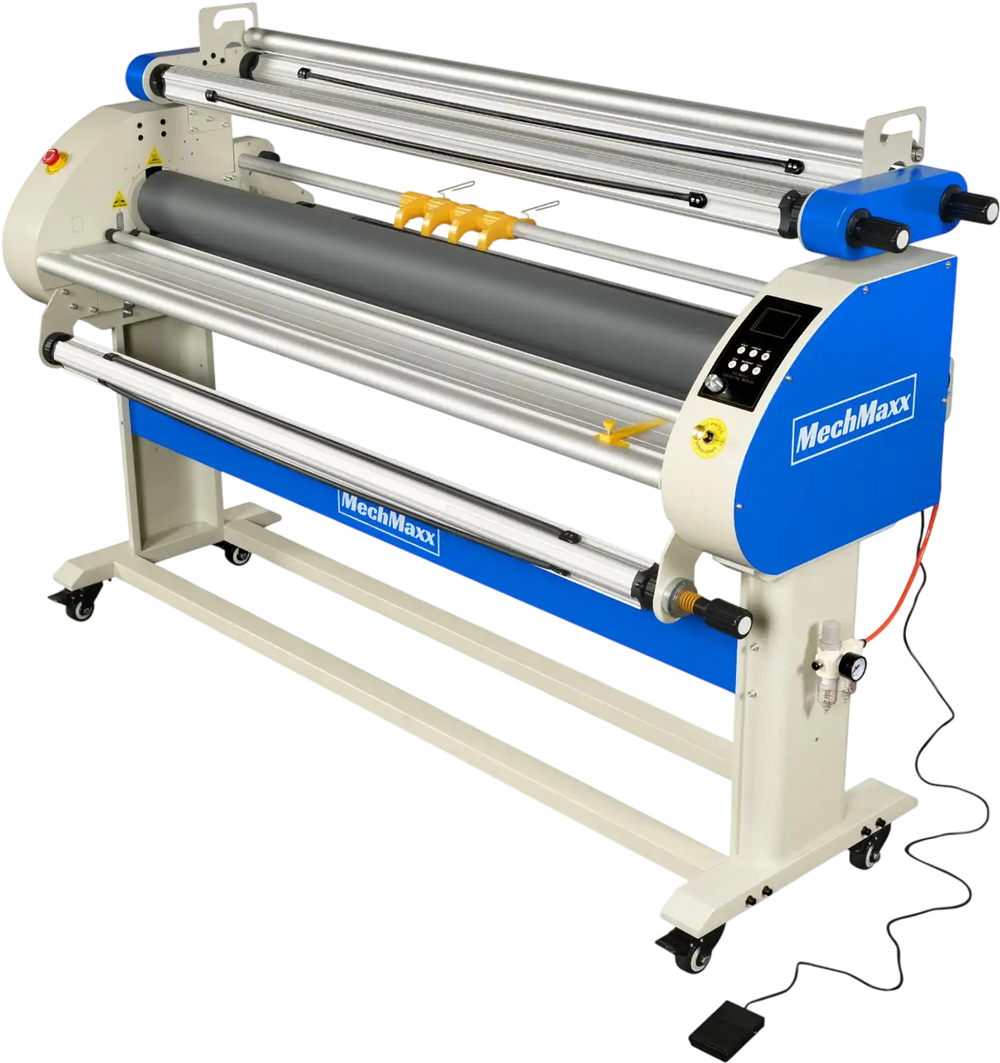

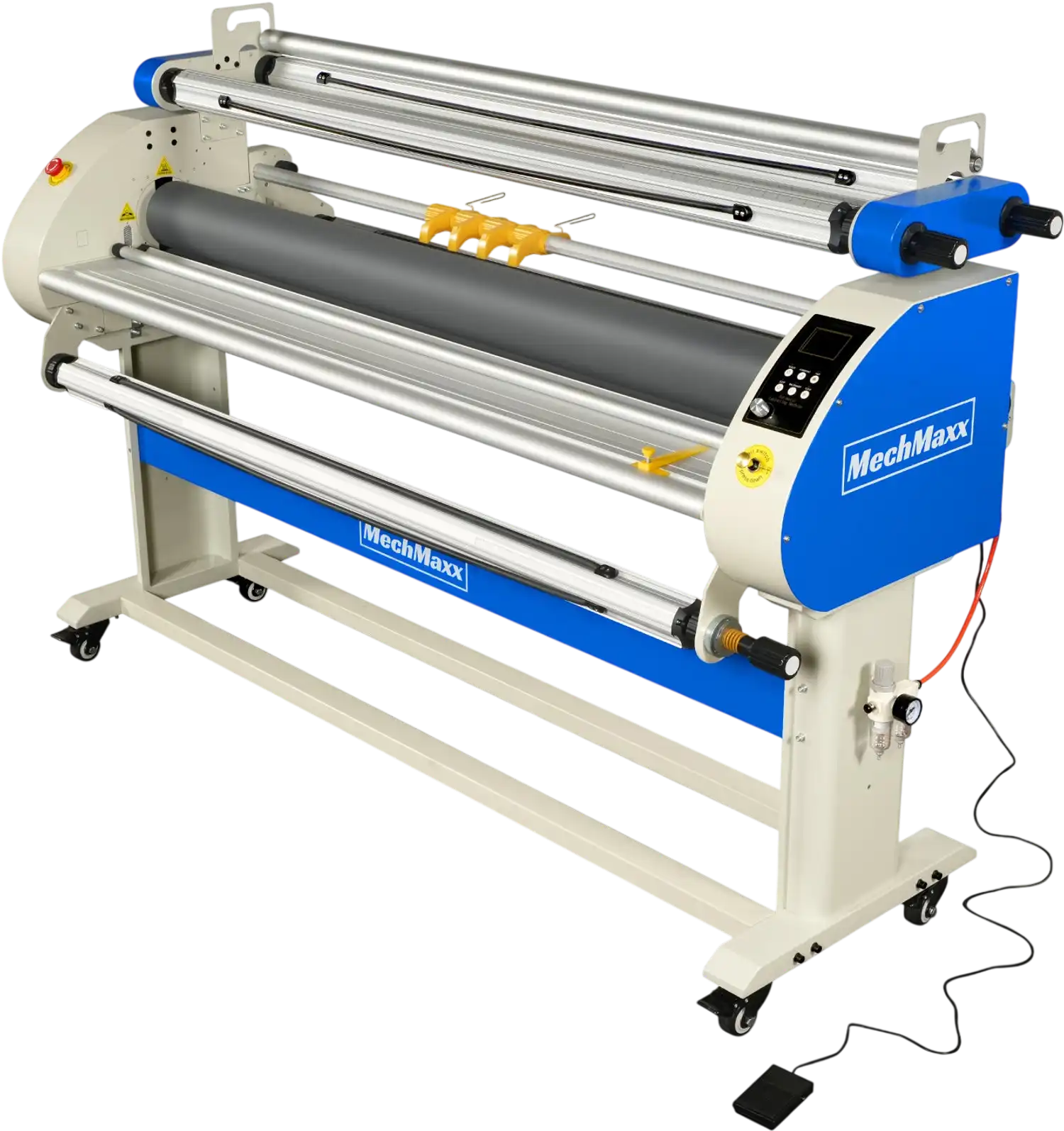

MechMaxx 1700-A3 Laminator 67" Wide Format Full Auto Cold & Heat Assisted Pneumatic Machine 4 Trimmers Digital Control New
Manufacturer: MechMaxx
SKU: 501020
QTY
or
(888) 999-1522
$ 4,499.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
MechMaxx 1700-A3 Laminator 67" Wide Format Full Auto Cold & Heat Assisted Pneumatic Machine 4 Trimmers Digital Control New
Product Overview
Versatile & Efficient Lamination: Ideal for bottomless film, polymer film, thick car stickers, floor films, etc. Boasts a max speed of 52.5ft/min (about 16 m/min) for quick, high-quality large-volume laminating.
Precise Infrared Heating & Digital Control: Uses infrared heating (up to 158℉/70℃) for precise temp control. Digital display enables easy setting adjustment, with multi-mode button operation for quick mastery, even for beginners.
Robust & Reliable Roller System: Features 5.11 in (130mm) upper and lower high-grade silica gel rollers with high concentricity and precision. Also has a 12.5 in (320mm) large-diameter aluminum unwinding/rewinding rod (single rod bears up to 70kg) for easy material loading.
Enhanced Durability & Safety: 45# steel replaces plastic parts (with mold steel springs and canvas friction plates) for better anti-deviation tension. Built-in sensors enable paper-out auto-stop and anti-pinch functions. Static rope with stainless steel fibers reduces static harm.
User-Friendly Design Elements: Front/rear double-speed knob adjusts speed per material. Single-foot switch enables hands-free roller lifting. Double-adjustable pneumatic lifting device allows one-key roller operation.
All-Round Performance Boosters: Comes with 4 standard tungsten steel cutters for perfect cuts. Sturdy build includes a heavy-duty frame, suitable for continuous professional use.
The 1700 - A3 is a professional - grade wide format laminator from Mechmaxx, engineered for high - speed and high - quality lamination of large prints. It's an excellent choice for print shops, signage businesses, and any setting requiring efficient lamination of vinyl graphics, posters, inkjet prints, and more.

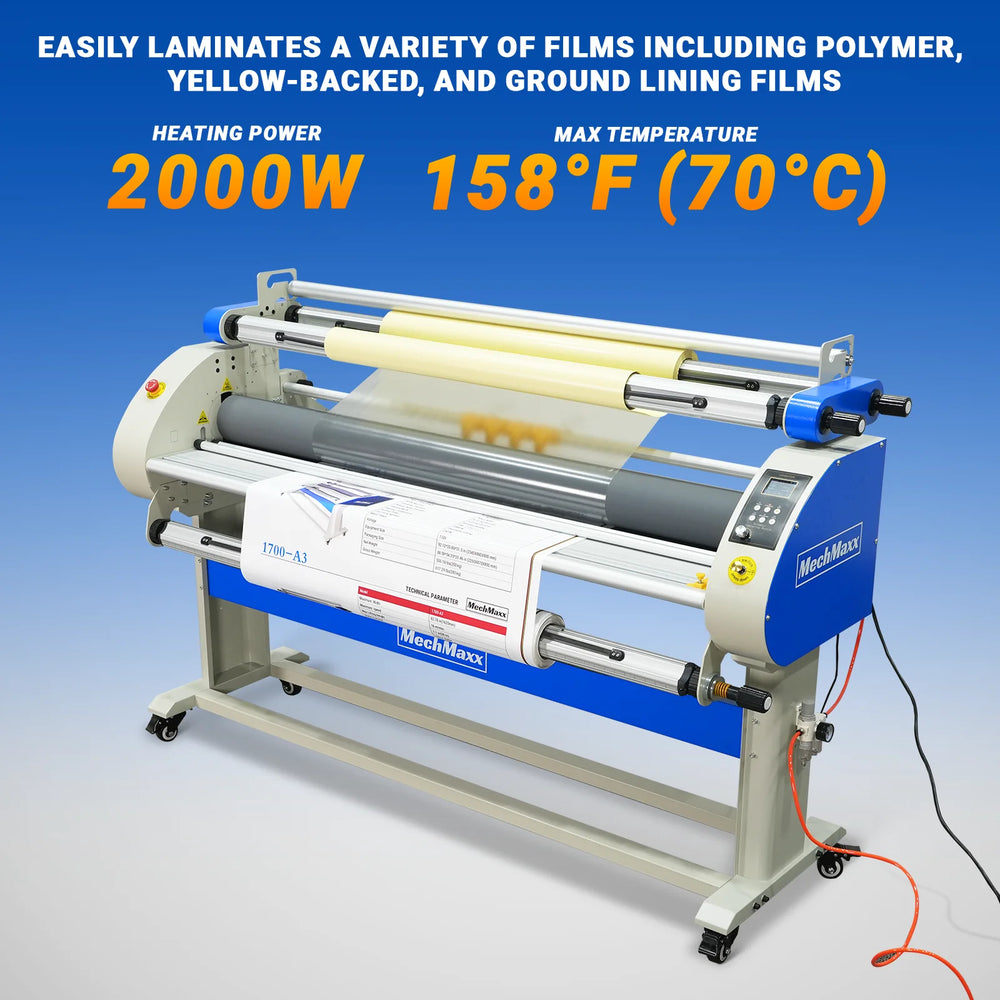

This laminator offers both cold lamination and heat - assisted lamination options, leveraging infrared heating technology. With a maximum temperature setting of 158℉(70℃), it provides precise temperature control, ensuring optimal results whether you're working with heat - sensitive prints or more durable media.
It can handle materials up to 1.1 inches (28mm) thick and has a maximum laminating width of 63 inches (1600mm), accommodating a broad spectrum of media from paper to foam boards and mounted prints. The laminator operates at a maximum speed of 52.5 ft/min(around 16 m/min ), allowing for swift processing of large - volume laminating jobs without sacrificing the professional finish.
The digital control system makes operation a breeze, enabling users to easily adjust settings like speed and temperature for precision control. It's a fully automatic laminator with foot switch functionality for hands - free operation, enhancing convenience and efficiency.
Built to last, this heavy - duty laminator is designed for continuous operation. It features durable components, including 5.11 in (130mm) upper and lower rollers made of imported silica gel, ensuring a smooth laminating process. Additional features like the large diameter aluminum rod, enhanced anti - deviation tension structure, double - adjustable pneumatic lifting device, and anti - static device further contribute to its performance, durability, and user - friendliness, making it a reliable solution for all your wide format laminating needs.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer

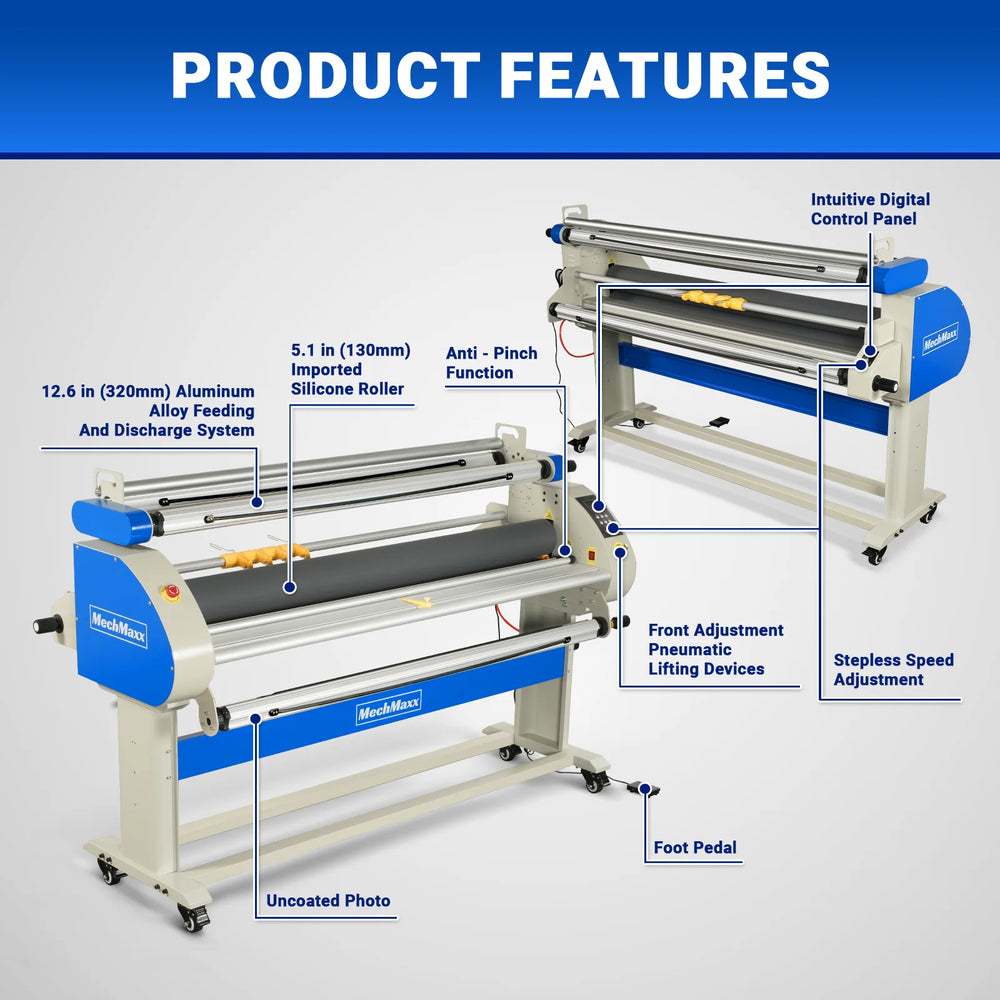

Features

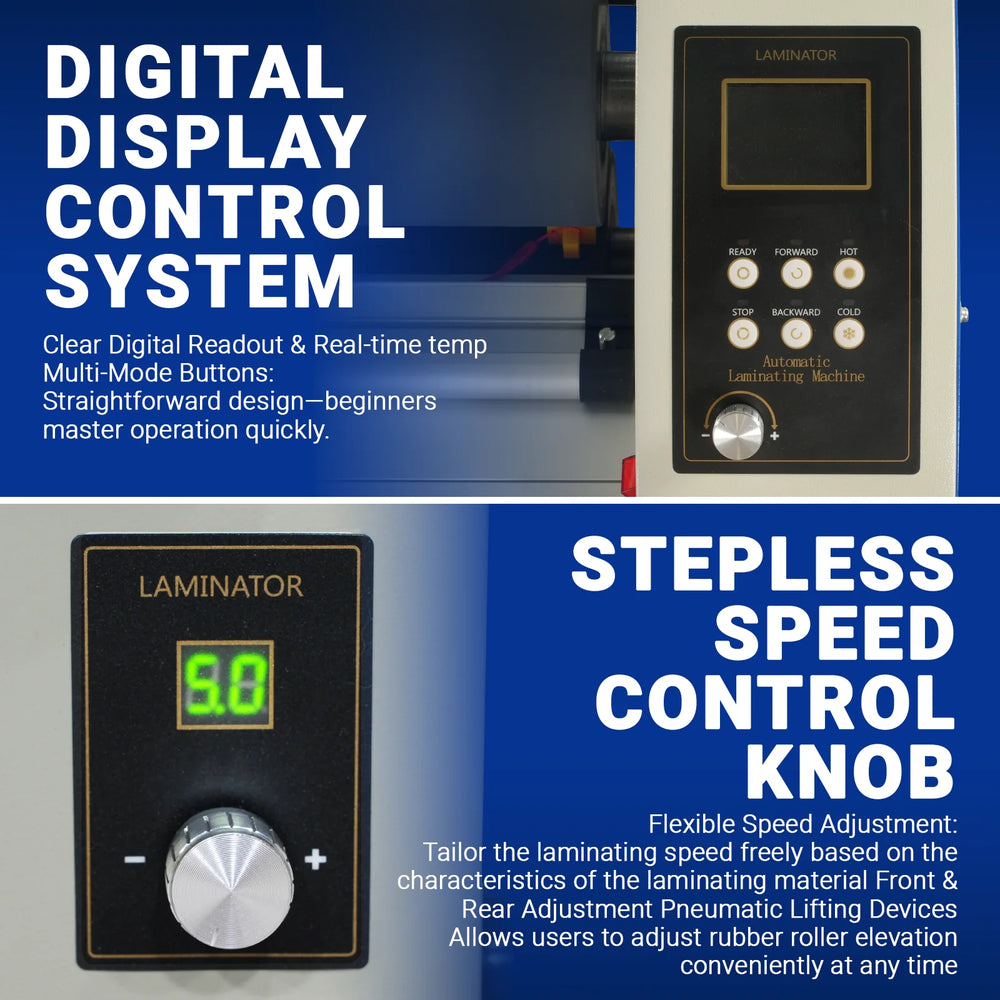

- Front & Rear Dual Digital Display Control Panels with Stepless Speed & Roller Lift Functionality: Outfitted with dual operation panels, one positioned at the front and the other at the rear of the machine. Each panel is equipped with a stepless speed regulation knob, permitting you to freely adjust the laminating speed from either side according to the specific characteristics of the laminating material. Additionally, both panels allow for the control of the rubber roller's lifting and lowering. Whether you require slow, precise lamination or fast, efficient processing, this configuration guarantees stable, reliable, convenient, and swift operation.

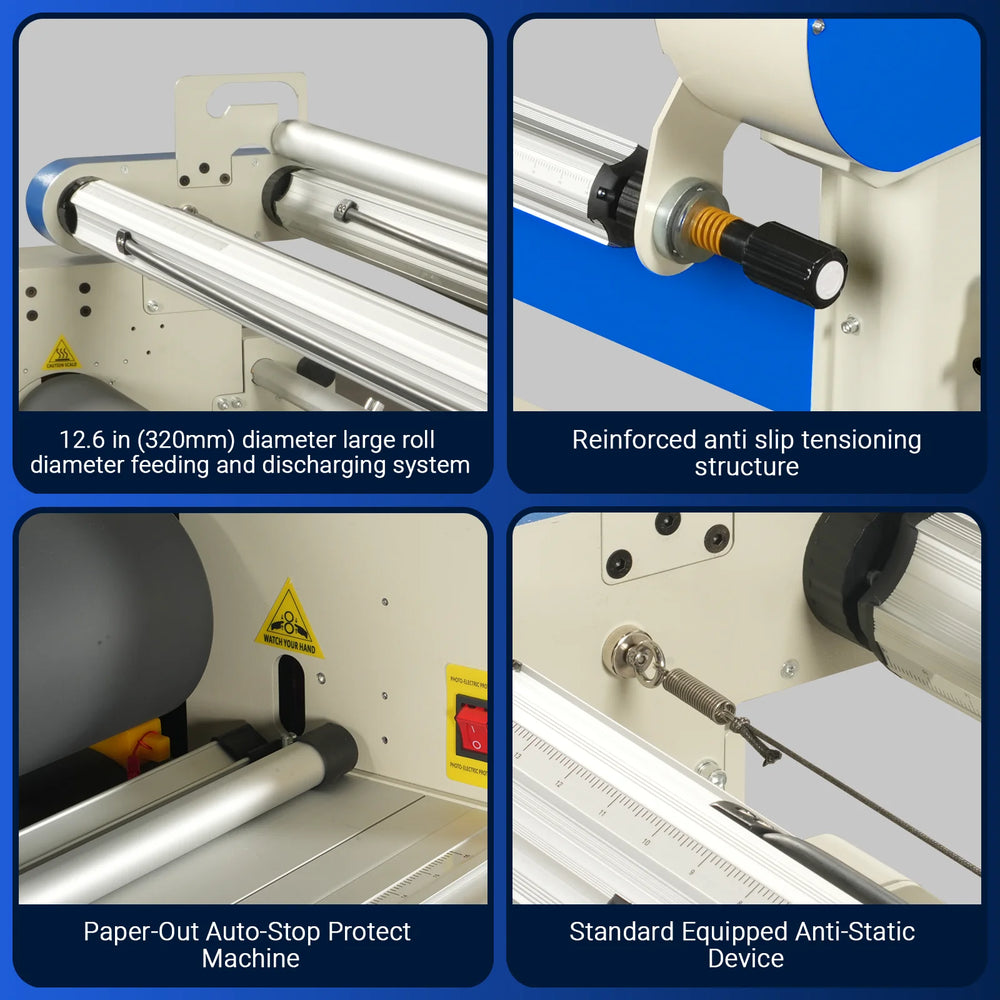

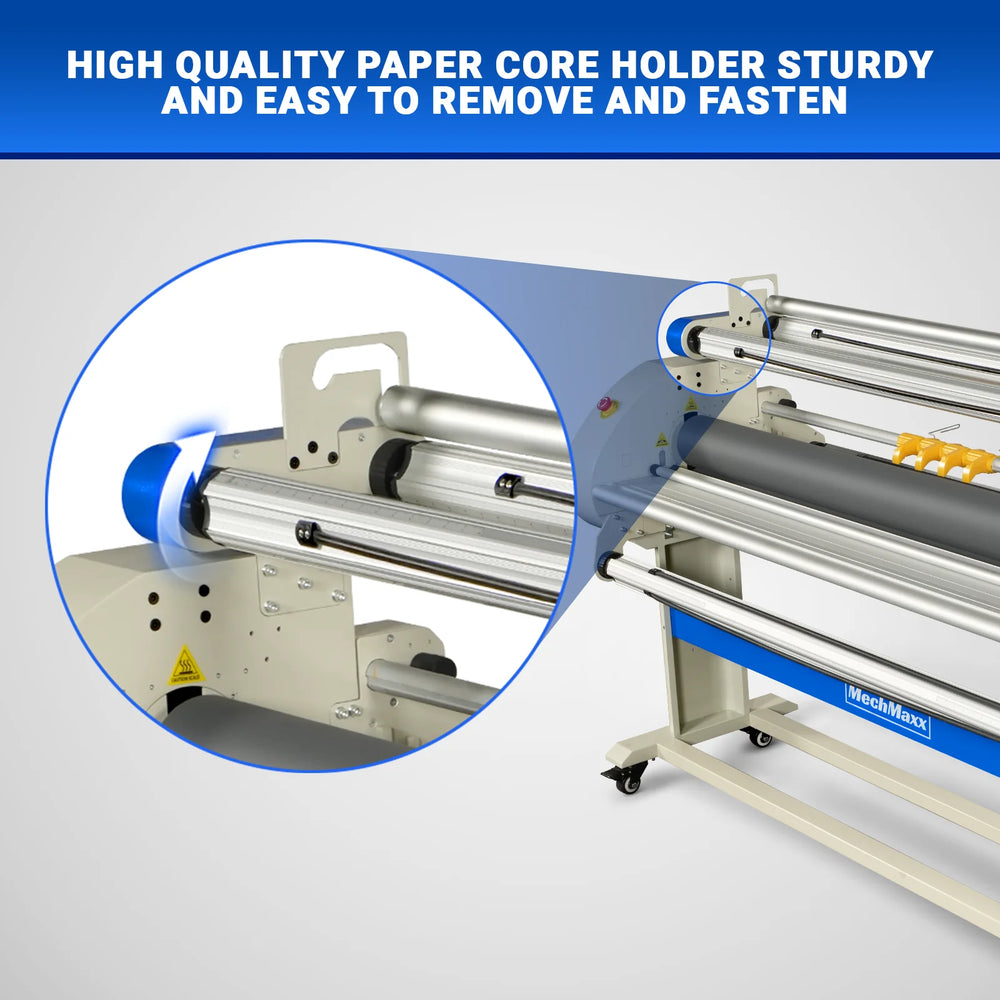

- Large Roll Support (Φ12.6 in /320mm): Designed with a high-quality aluminum alloy roll system, this laminator can handle rolls up to 70kg. The sturdy aluminum rod makes changing rolls simple and quick, accommodating a wide range of applications.
- Anti-Skewing and Stability Design: Built with high-strength 45# steel and reinforced components, this laminator features an advanced anti-skewing system that ensures the material remains perfectly aligned during the lamination process. The design prevents any shifting or misalignment, leading to smooth, flawless results every time.
- Precision Tungsten Steel Cutters: Equipped with four premium tungsten steel cutters, this laminator ensures precise and clean cuts every time. Paired with an improved cutting tool holder, the cutting process is even more accurate.
- Convenient Foot Switch Control: The included foot panel switch allows hands-free operation, making it easier to lift and lower during the lamination process. This feature boosts productivity and efficiency, especially during high-volume tasks.
- Paper-Out Auto-Stop / Anti-Pinch Function: Safety is a priority with this laminator’s high-sensitivity sensor and reverse mechanism. The anti-pinch function ensures smooth operation while protecting both you and the machine from damage.
- Pneumatic Lifting System: The pneumatic lifting device offers one-touch lift and lower control, providing a fast and efficient way to adjust the machine to your needs. Simplified operation for improved workflow.

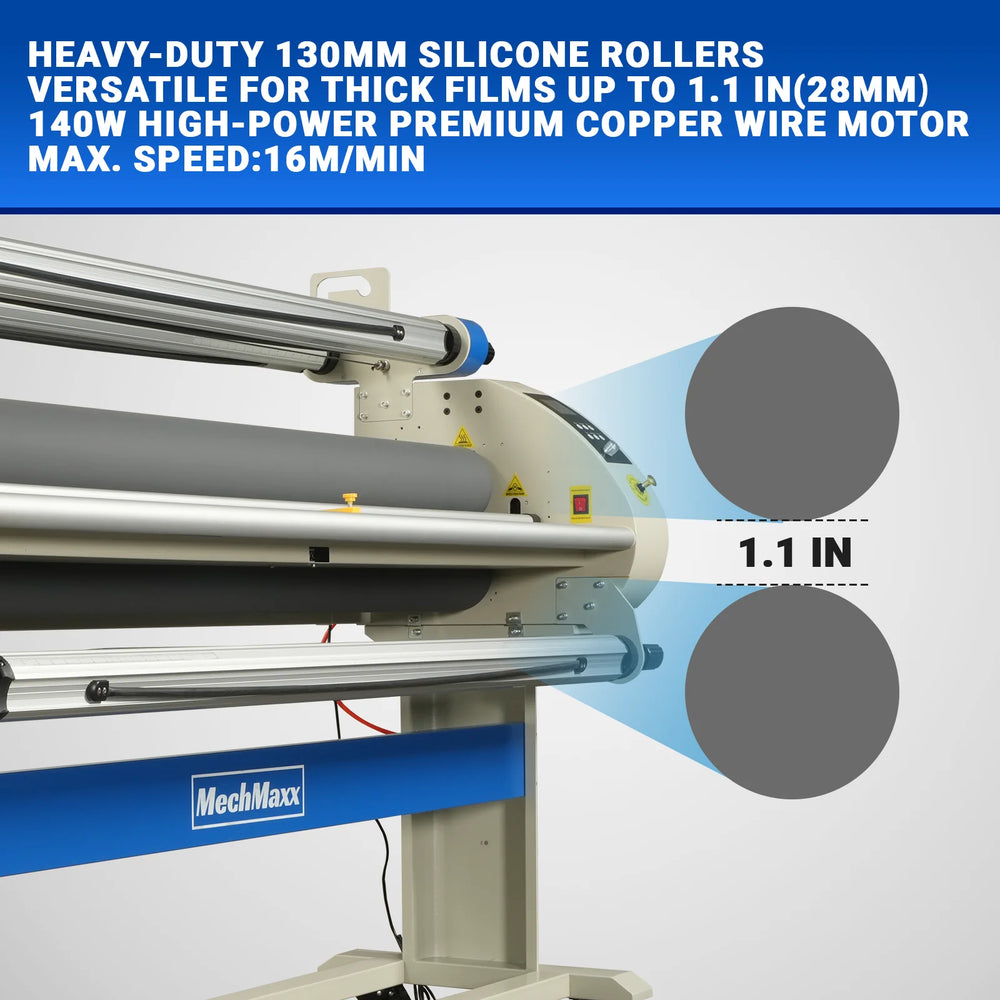

- 5.11 in 130mm High-Quality Silicone Roller: This laminator features a premium 130mm silicone roller imported for superior performance. Its high precision and flat surface deliver flawless lamination results, improving both speed and quality.
- Built-In Static Elimination System: Say goodbye to static issues! The laminator includes a stainless steel fiber brush static elimination system, reducing static build-up to prevent damage and ensure smooth lamination.

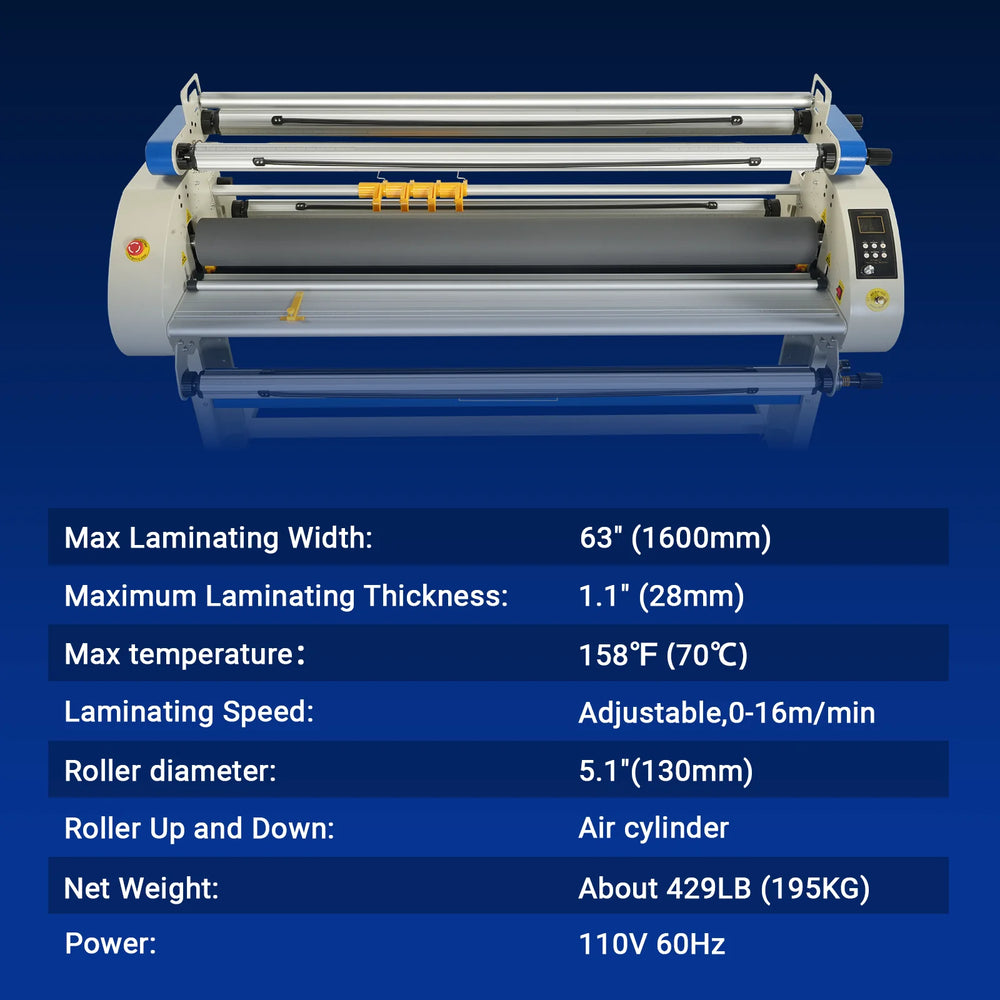

Specifications

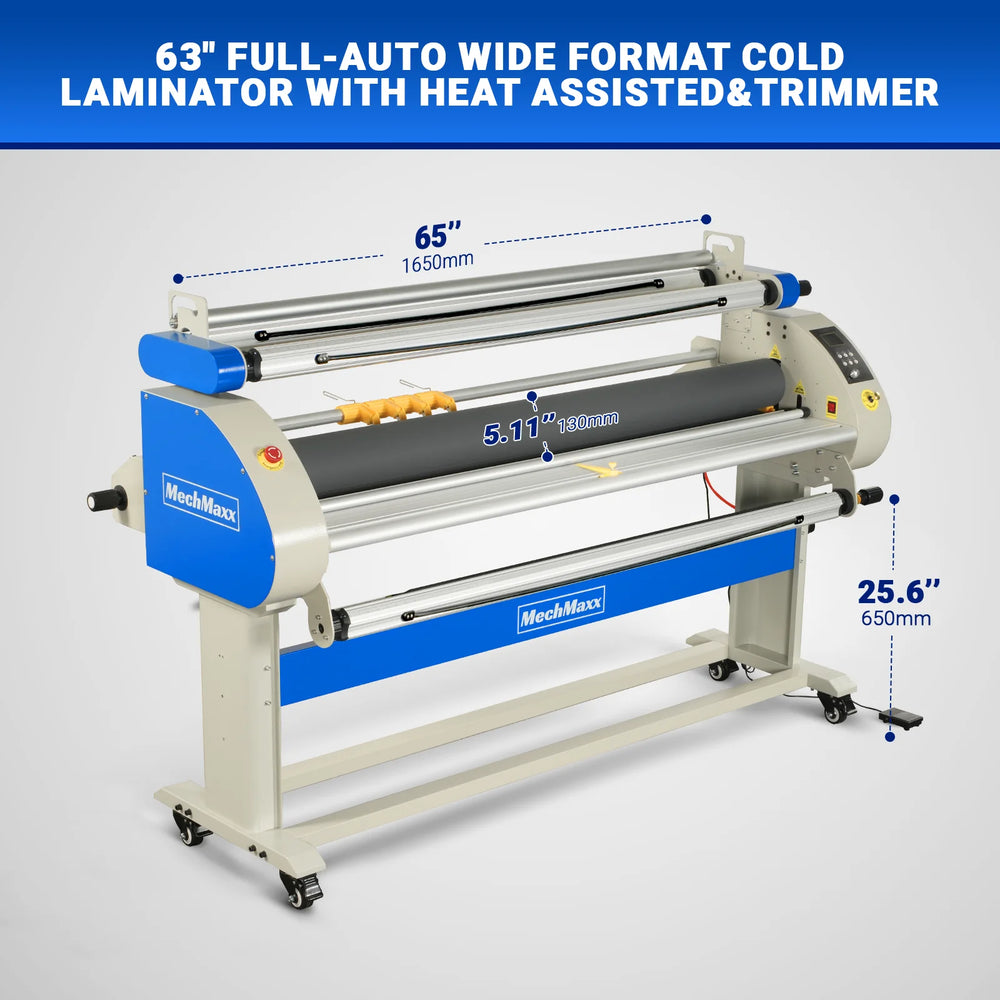

| Model | 1700-A3 |
| Format Wide | 67 in |
| Max Laminating width | 63 in /1600 mm |
| Max Laminating thickness | 1.1 in / 28 mm |
| Max Temperature | 158℉ /70℃ |
| Trimmer | 4 |
| Max Speed | 0-52.5 ft/min （0-16 m/min） |
| Lifting Method | Pneumatic (Air cylinder ) |
| Heating Method | Infrared heating |
| Heating Power | 110V /2000 W |
| Upper Roller Diameter | 5.11 in /130 mm |
| Down Roller Diameter | 5.11 in /130 mm |
Warranty
This item comes with a factory warranty.
