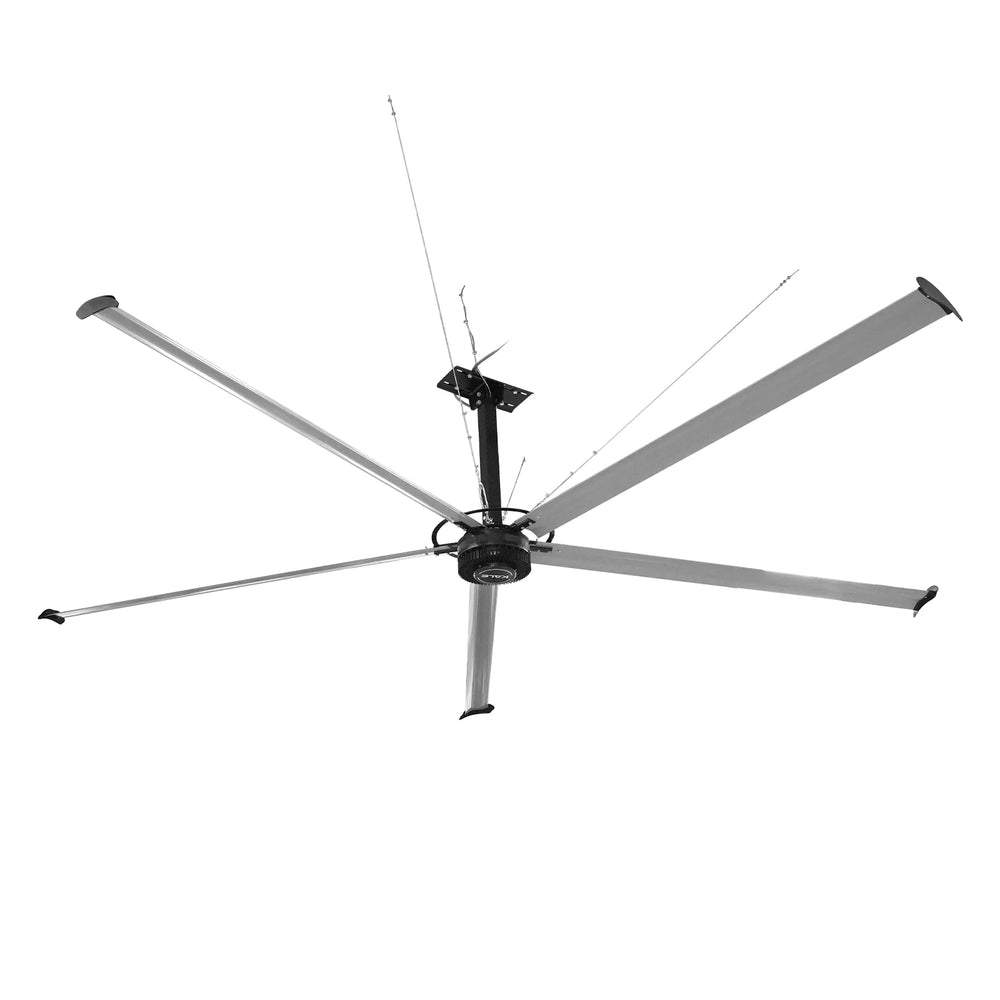

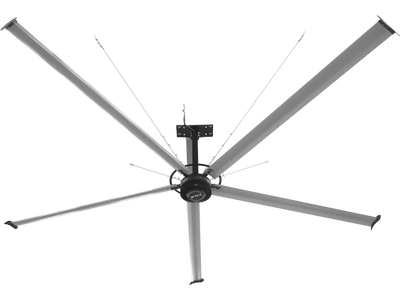

MechMaxx 20FT3PH Industrial Ceiling Fans 20' HVLS 208-240V 3-Phase Energy Efficient Large Area Air Circulation Warehouse Factory New
Manufacturer: MechMaxx
SKU: 330005
Model Options
QTY
or
(888) 999-1522
$ 3,499.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
MechMaxx 20FT3PH Industrial Ceiling Fans 20' HVLS 208-240V 3-Phase Energy Efficient Large Area Air Circulation Warehouse Factory New
Product Overview
- Industrial HVLS fans are more energy efficient than traditional air conditioning and station fans, and long-term use can significantly reduce energy costs and improve worker efficiency, creating a more efficient working environment.
- PMSM (permanent magnet synchronous motor) drive system.

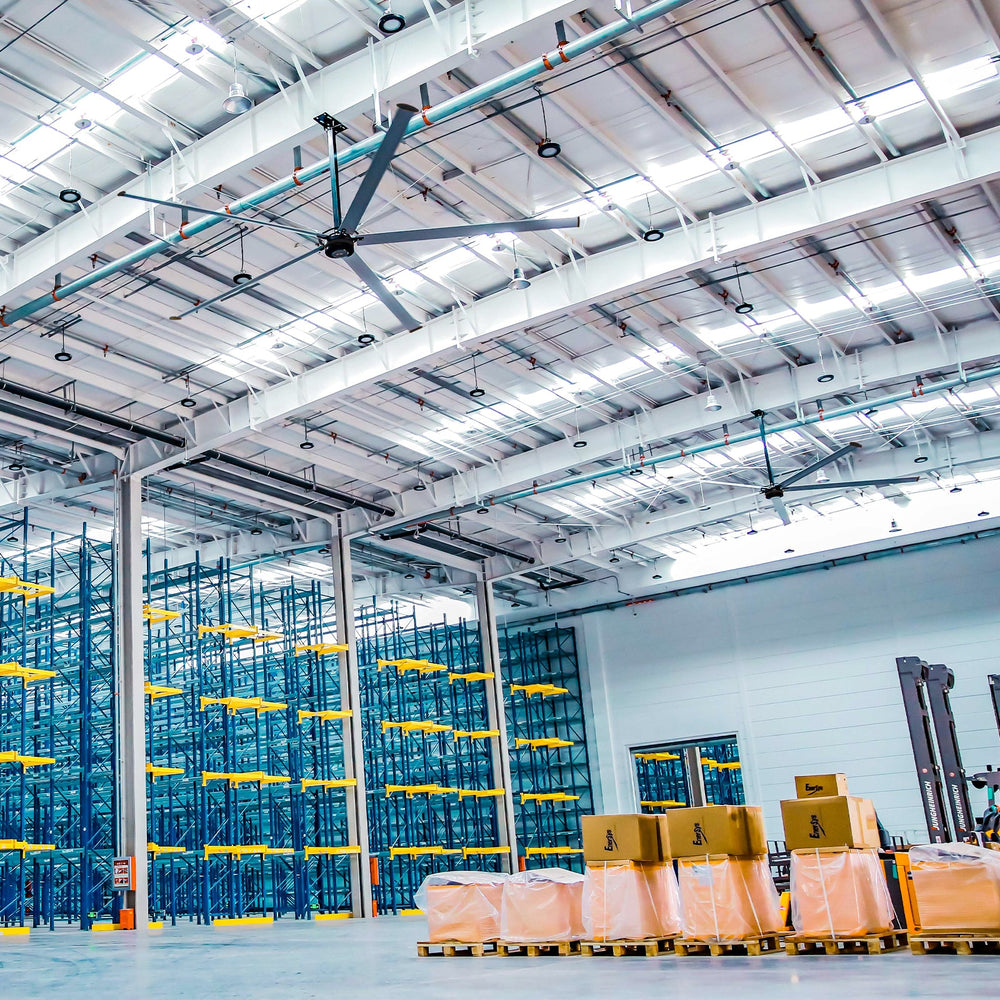

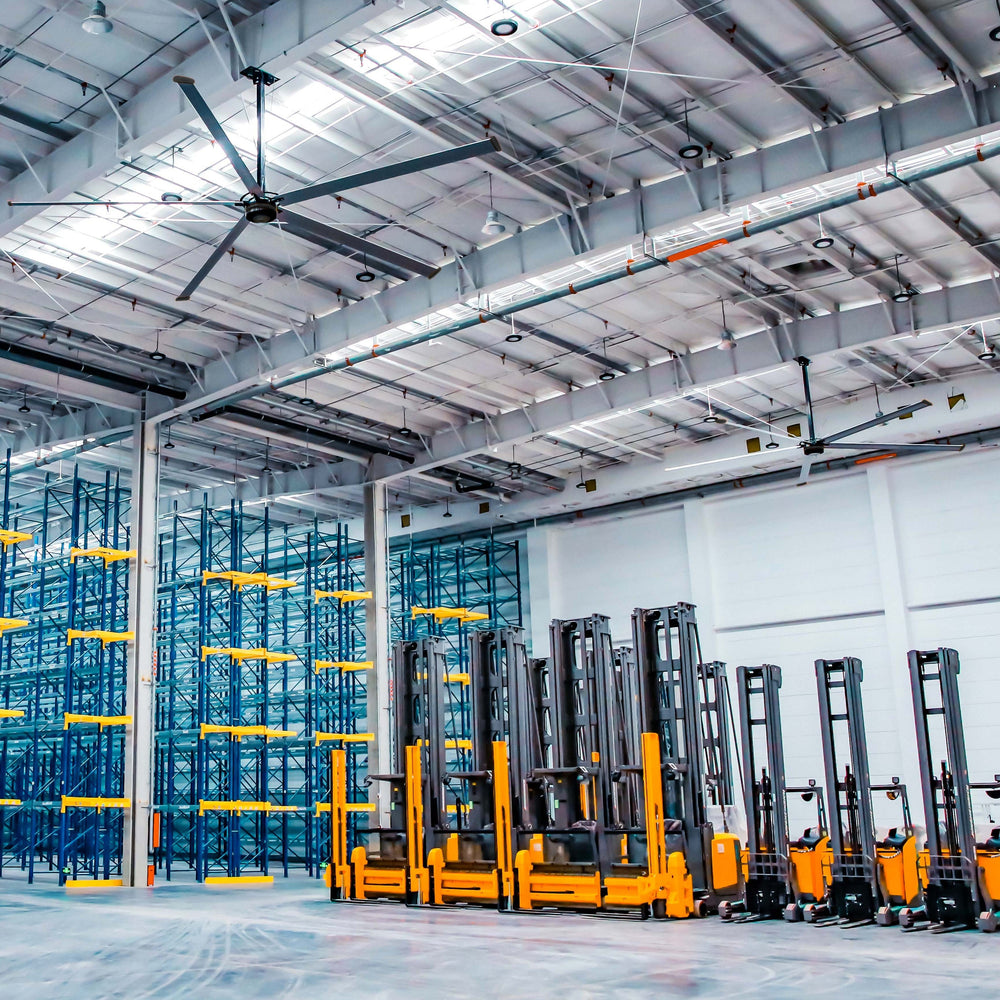

- Ideal for warehousing and logistics centers, manufacturing workshops, exhibition halls,shopping malls, stadiums, transportation hubs and other places.
- Air volume up to 517,360 CFM.
- Coverage area: more than 12325ft².
- Delivers full-body cooling with 3D airflow for wide-area, natural-feeling cooling.
- Infinitely adjustable wind speed for tailored comfort
- Delivers a refreshing breeze equivalent to a 41–46°F (5–8°C) drop in perceived body temperature.
- Designed for overall airflow circulation, providing a comfortable and natural breeze even in high-ambient environments.
- Effectively dilutes smoke and dust, removes excess moisture, and eliminates unpleasant odors for improved air quality.
- Maintenance-free and Easily Installation
Note!

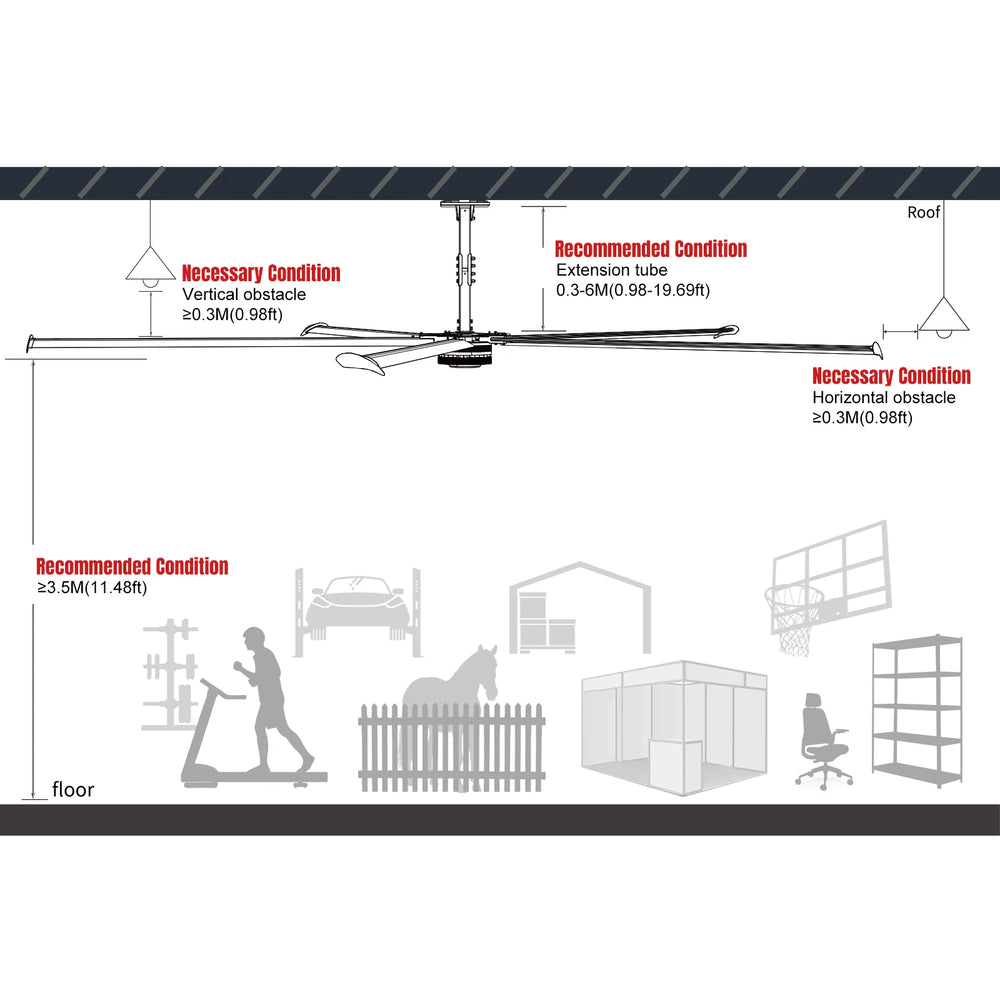

- Please carefully review the installation requirements before purchase to ensure your site meets the necessary conditions. Also confirm which optional accessories are needed to complete the installation.

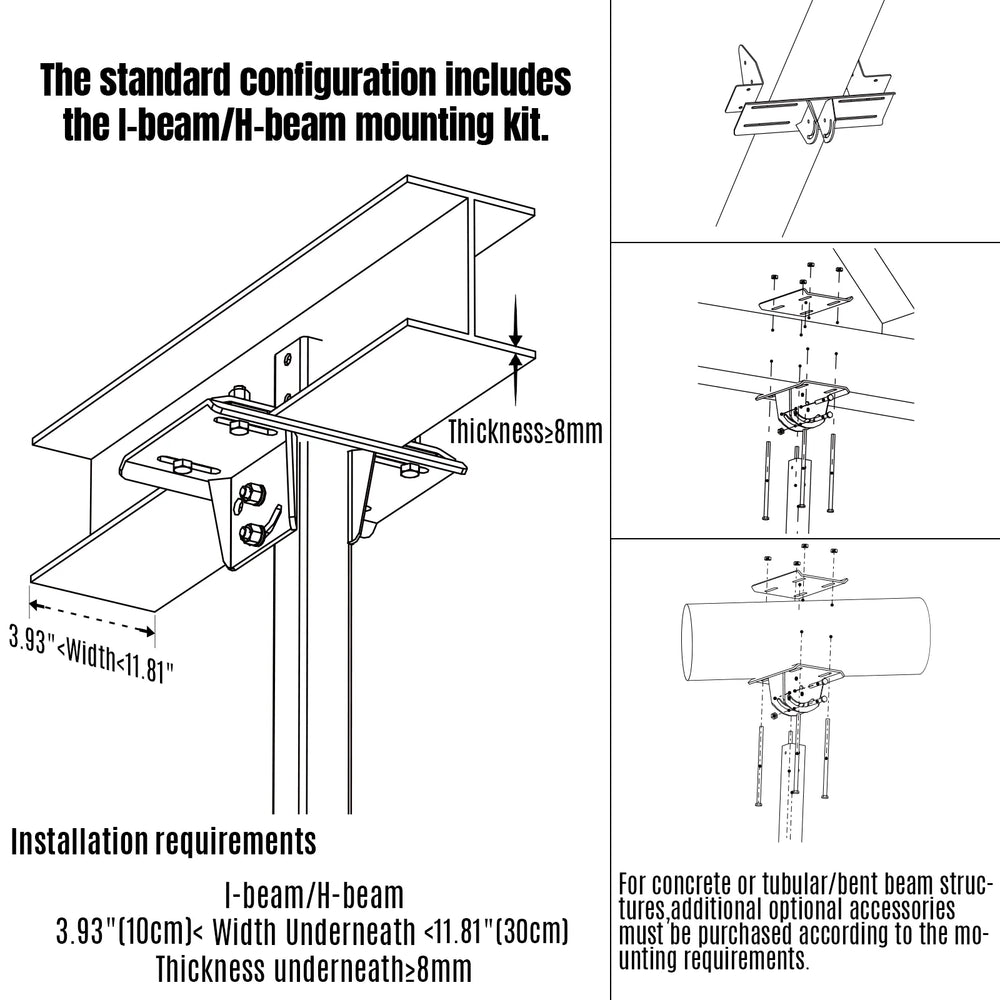

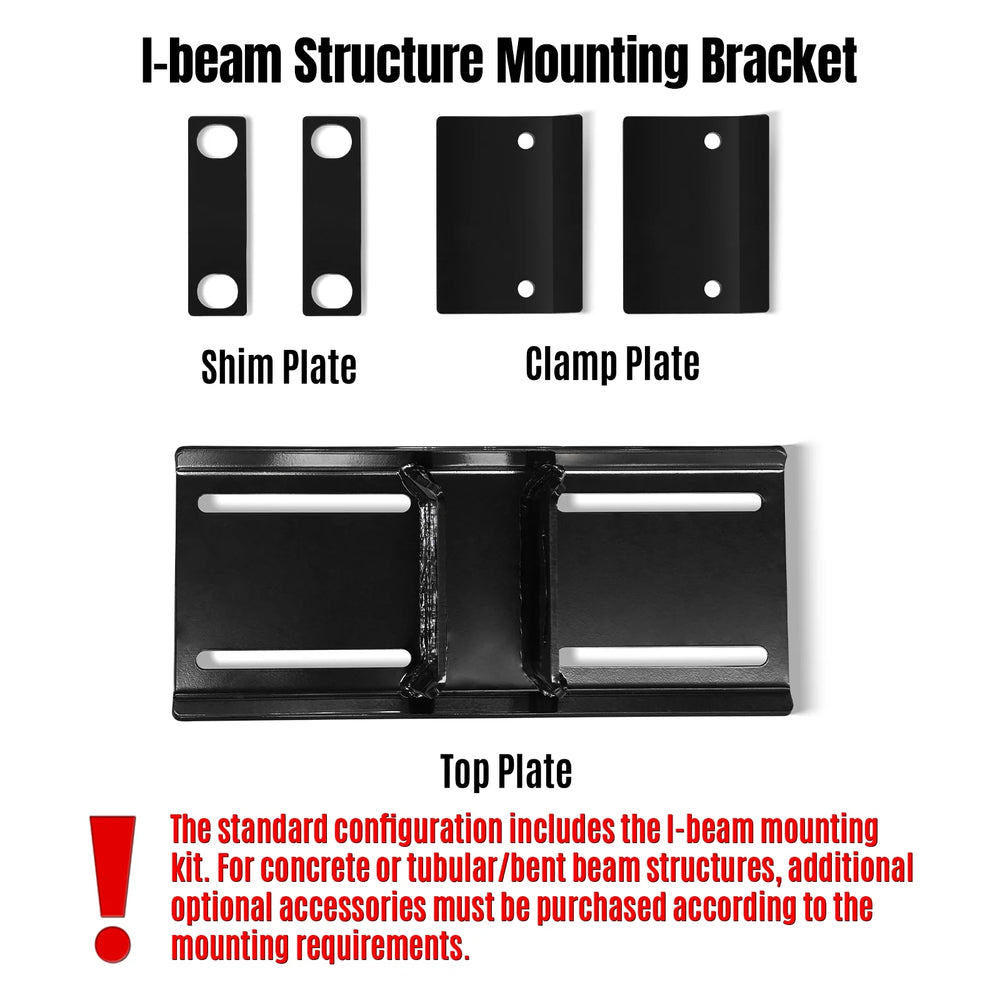

- The standard configuration includes the I-beam structure mounting kit.For concrete or tubular/bent beam structures, additional optional accessories must be purchased according to the mounting requirements.
- The standard configuration includes a 59" extension tube. Depending on the requirements of the installation, you can choose to purchase a 39.4"EXTENSION TUDE or purchase an additional EXTENSION TUDE CONNECTOR to assemble a 58.4" extension tube.
- The fan should increase slowly from the lowest frequency to the highest frequency.
- Power-on sequence: first turn on the main switch, then turn on the access input wire circuit breaker, then turn on the control cabinet circuit breaker(First time use), and then turn on the third-speed switch of the fan.
- The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
Installation Support
For installation, customers can easily hire a qualified local commercial electrician or industrial contractor through platforms such as Field Nation, Angi, or local service providers.
We provide complete installation documentation, including mounting requirements, dimensions, weight specifications, and wiring diagrams. Due to the fan size and installation height, professional installation with proper lifting equipment (such as a scissor lift or boom lift) is recommended.
Our technical support team is available to assist your installer with any product-related questions during installation.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

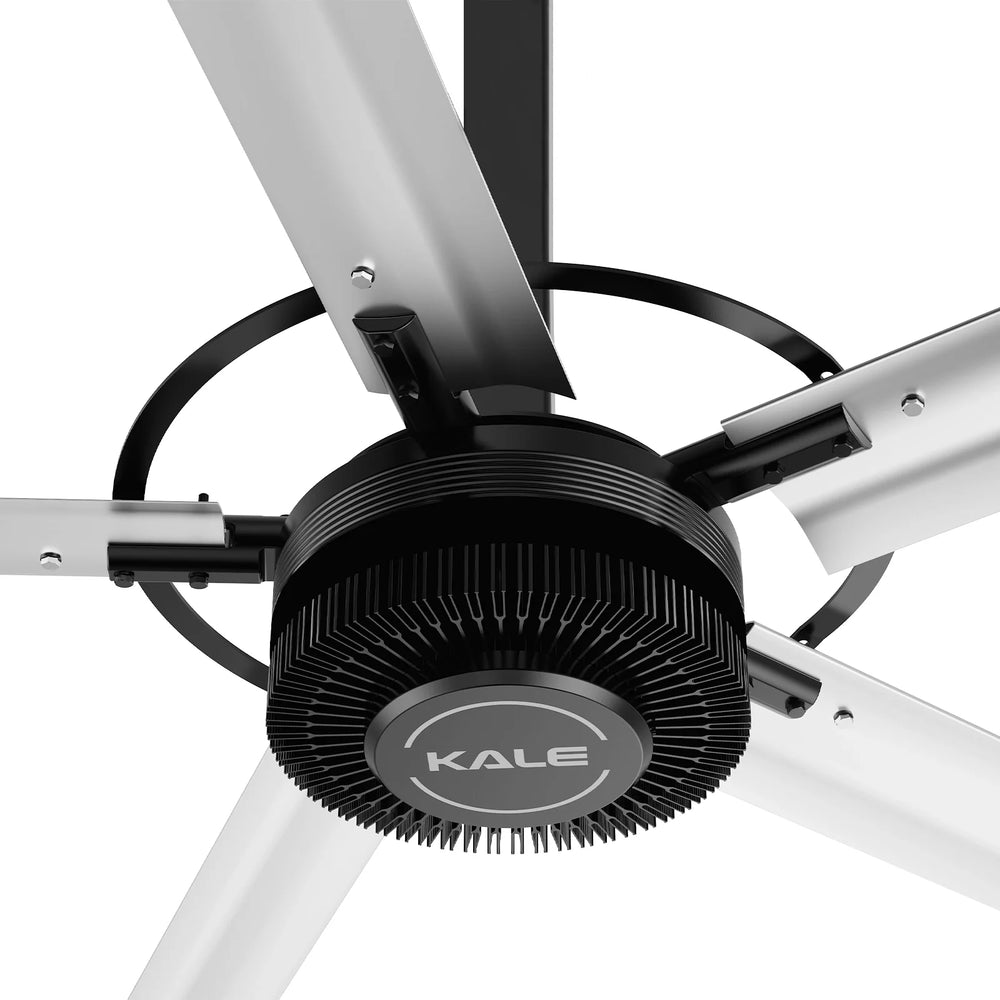

- PMSM motor: PMSM, permanent magnet synchronous motor, has high control accuracy, high torque density, good torque smoothness, low noise, high efficiency, high power factor, good force energy index, low temperature rise, etc.
- High-quality magnet: Eurus III Motor equipped with Neodymium Magnet, in 302°F retain good magnetic properties.Motor could still workable when surrounding temperature is up to 158°F

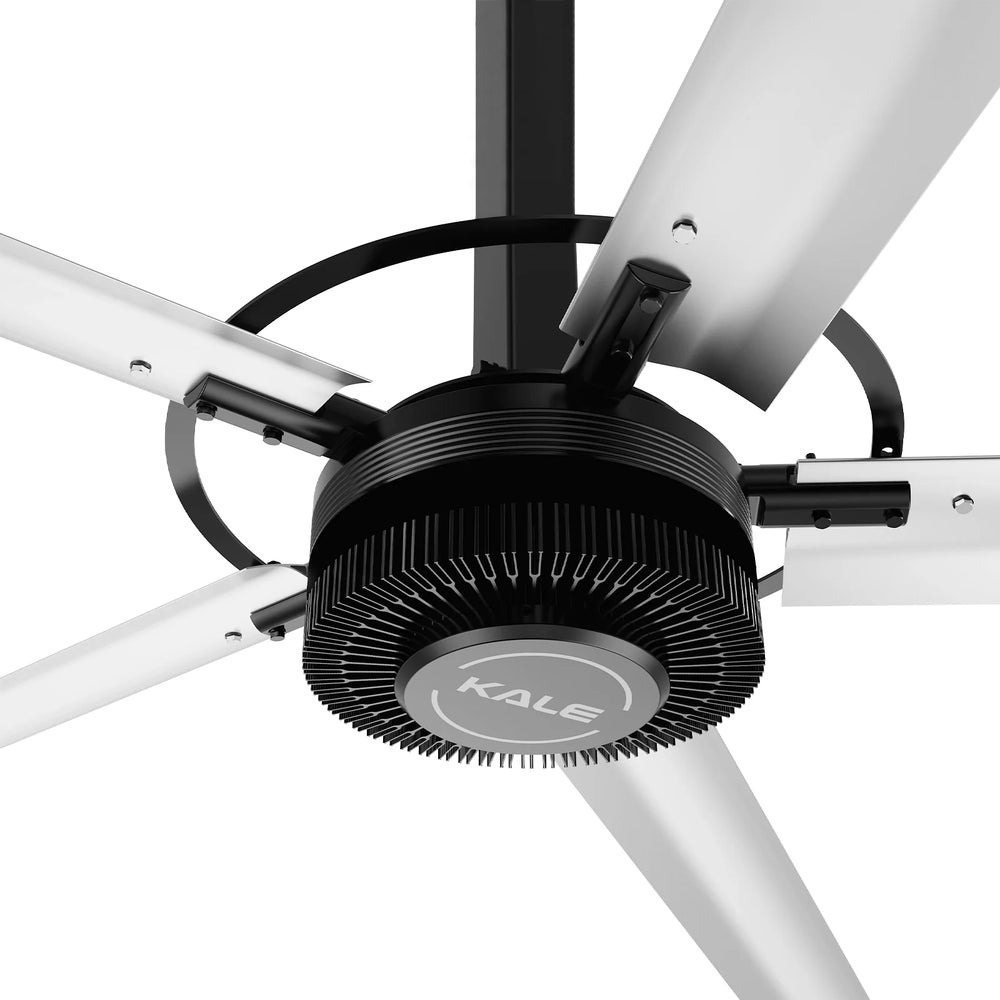

- Heat dissipation system: Aluminium alloy heat sink surface area is up to 23-1/4 ft²; has good thermal conductivity Good heat management within the motor could help improve motor life & ensure stability & safety during fan operation.
- Powerful motor featured with powerful torque: Up to 300N·m torque →Drive Big-scale BladesIt's even larger than the single wheel torque of most cars with 2.0T engines.
- Free Maintainance&IP55-Protection Level: Eurus III Motor just required cleaning work of motor shell.

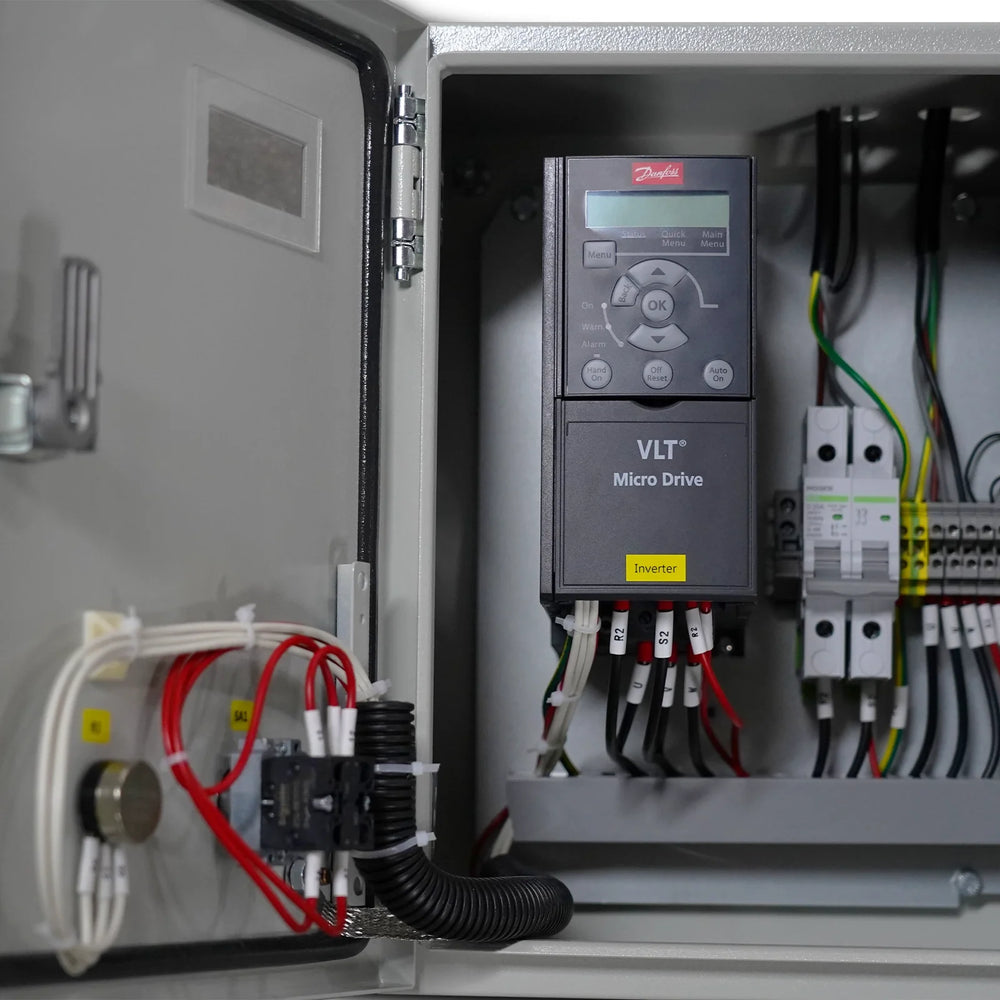

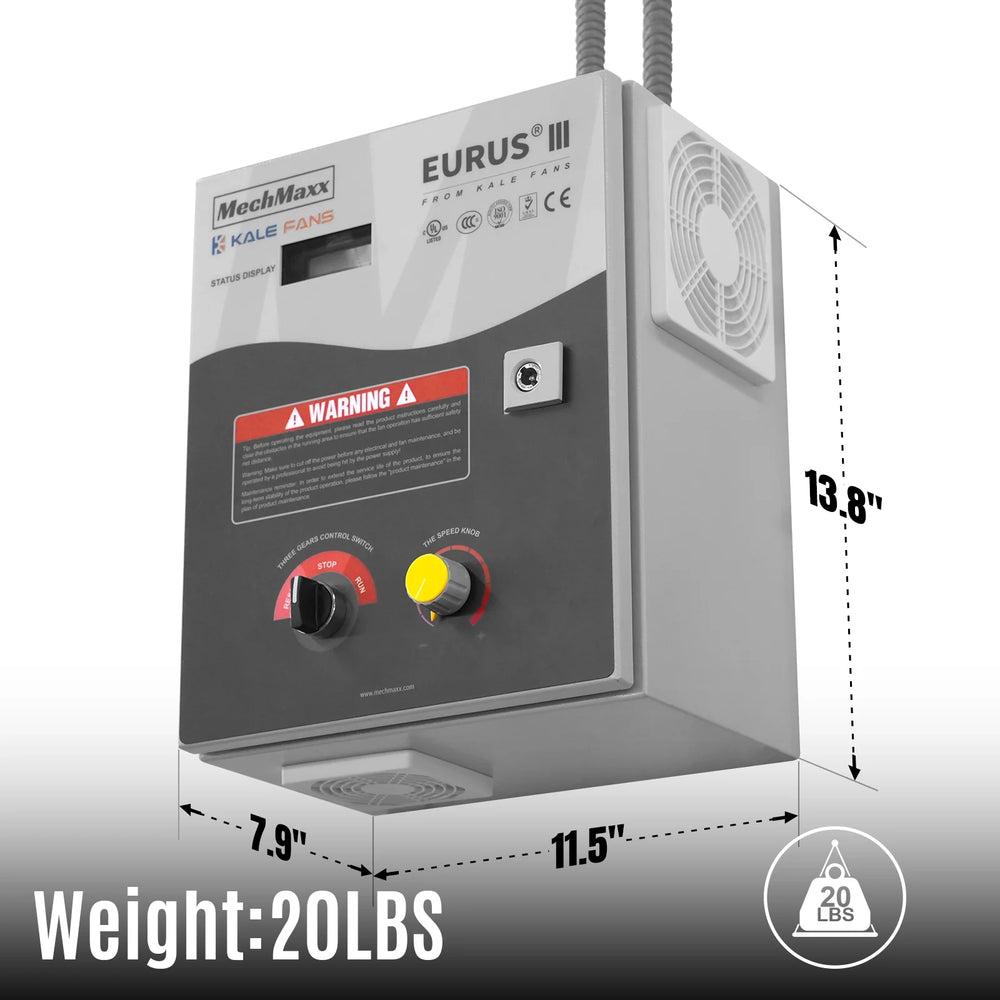

- Control systemI&P55-protection level.: Easy to operate with just two buttons.Equipped with a built-in safety protection module that automatically stops output in case of accidents. Uses Danfoss inverters imported from Denmark, certified by SGS for EMC compliance.
- Blade connectors: The external clamp connector uses 7075-T6 aluminum alloy. The internal safety bar (6063 aluminum alloy & PA66 plastic) provides extra support from inside the blade. Grade 10.9 fasteners firmly connect the external and internal connectors to the blade. A Teflon layer minimizes direct abrasion between the external connector and the blade, reducing related noise.
- Blade reinforcement: 6 Stiffeners inside Blade：2.5mm continuous Stiffener*2 and 4mm seperated Stiffener*4. Reduce the blade-shaking during fan operation.Enhance its ability to push down the wind and Increase the air volume.
- Blades conducted comprehensive dynamic and static tests: We have designed two types of static test rigs to test stress levels at force points & determine blade life. The fan blade assembly is engineered for high fatigue resistance, tested to withstand over 10 million cycles—equivalent to approximately 20 years of reliable service life.
- Personnel Cooling: The natural breeze generated by the EURUS III HVLS fan can reduce the perceived temperature by 41–46°F (5–8°C), taking away the heat and bringing a cool feeling. The wind blows on the human body from all directions, making people feel as if they are in nature.
- Great energy efficiency: Comparing with common GearsBox Motor(78%) electrical conversal-efficency, same data of Eurus III Motor is 84.4%.In a 96,875 ft² (9,000 m²) workshop, around 300 traditional 30-inch fans are needed for full coverage, while only 6 EURUS III fans (24 ft diameter) are required. Based on 2,400 hours of annual operation (10 hours/day, 8 months/year), the EURUS III fans consume about 21,600 kWh, compared to 540,000 kWh for small fans—saving over 90% in energy..
- Quadruple blade protection, prevents shedding: Safety Ring;Blade Retainer;Blade Connector;Safety Component
Specifications
| Model | 20FT3PH |
| Certifications | cULus,CE,SAA |
| Fan Diameter | 20FT |
| Number of Blades | 5 |
| Cooling Coverage | 12325ft² |
| Voltage | 220V ±10% 3Ph(L1, L2, L3, G) |
| Full Load Current | 4.4 A |
| Fan Watts | 1.0KW |
| RPM Range | 10-62 RPM |
| Air Flow@Max Speed | 517,360 CFM |
| Drive Motor | Permanent Magnet Synchronous Motor |
| Speed | Variable Speed |
| Drive Type | Direct |
| Blade Material | Al-Mg |
| Fan Weight | 265LBS |
| Noise Level | ＜40dB |
| Protection Level(Motor) | IP55 |

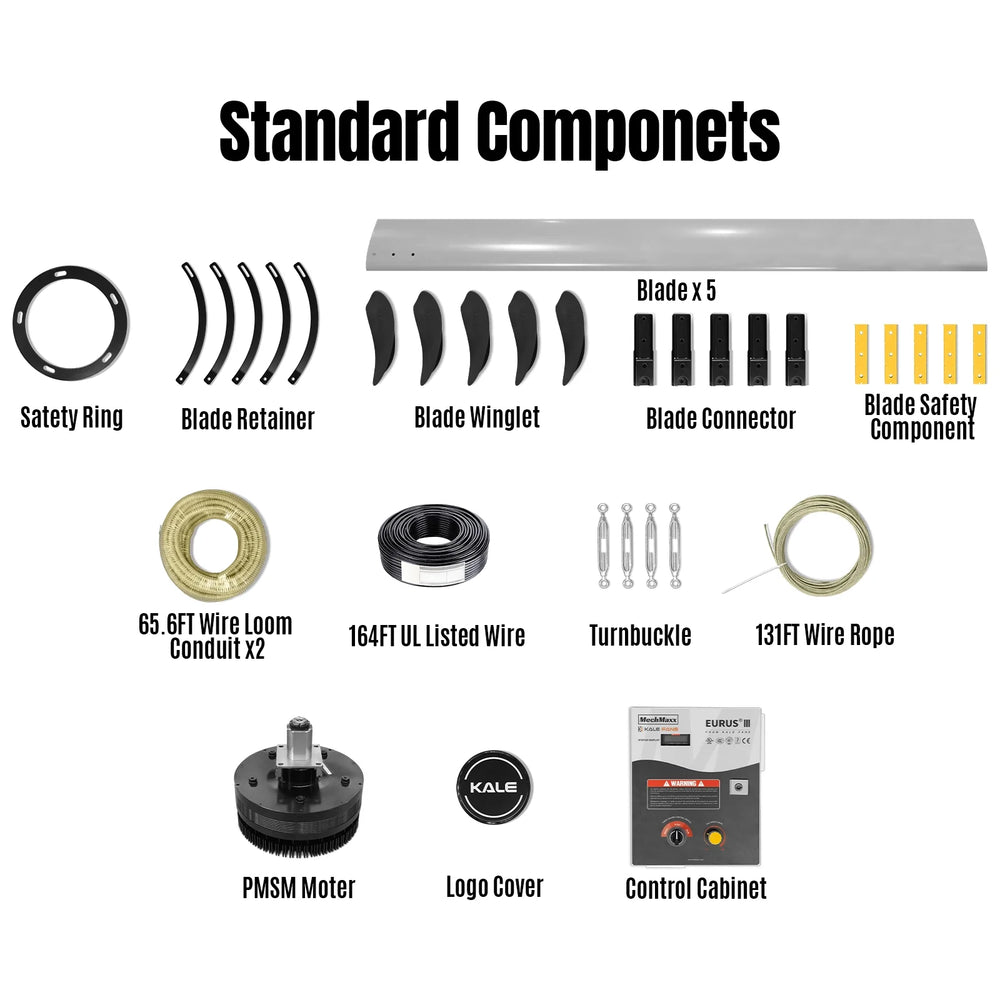

| Standard Includes | I-Beam Structure Mounting Kits;59" Extension Tube; Control Cabinet; 131Wire Conduit;131'Wire Rope;164' UL Listed Wire. |
| Packing Size | Box A:34.6"x31.5"x20.9"Box B:115.7"x13.4"x10.6" |
| Gross Weight | Box A: 356 LBSBox B: 158 LBS |
