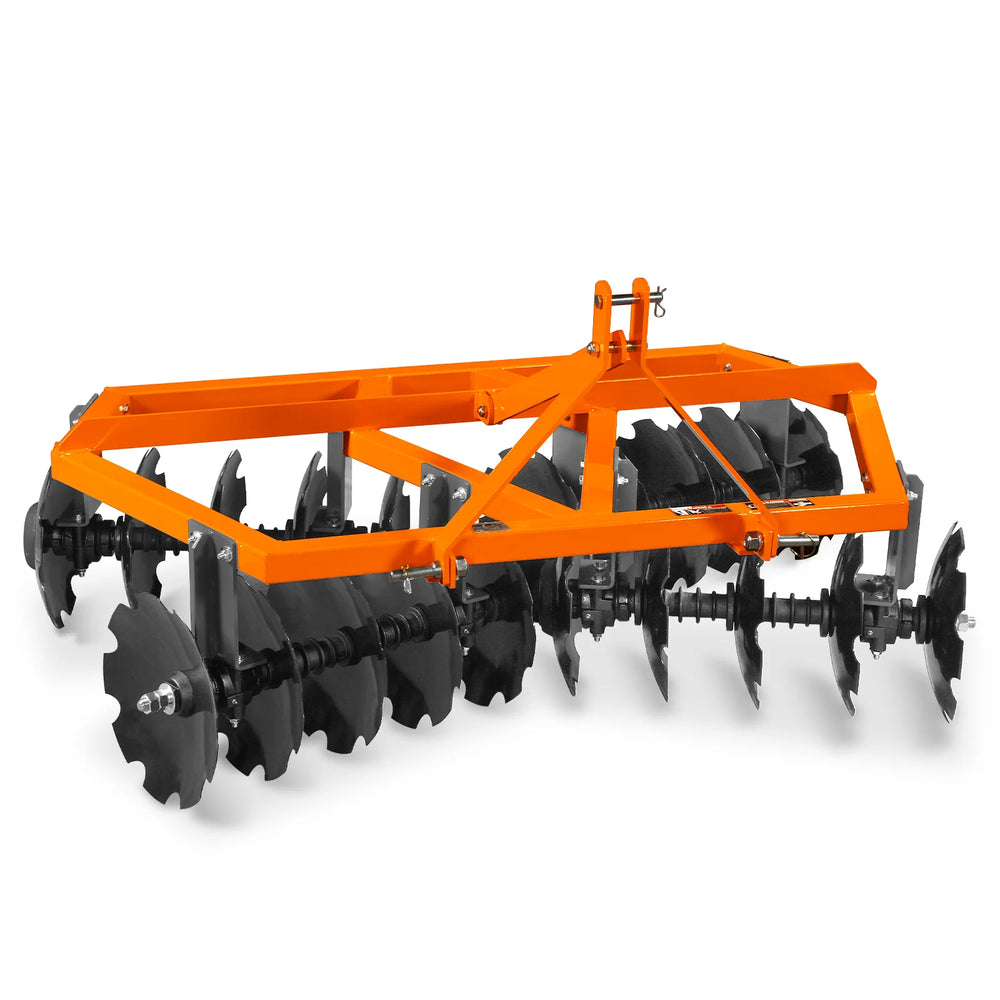

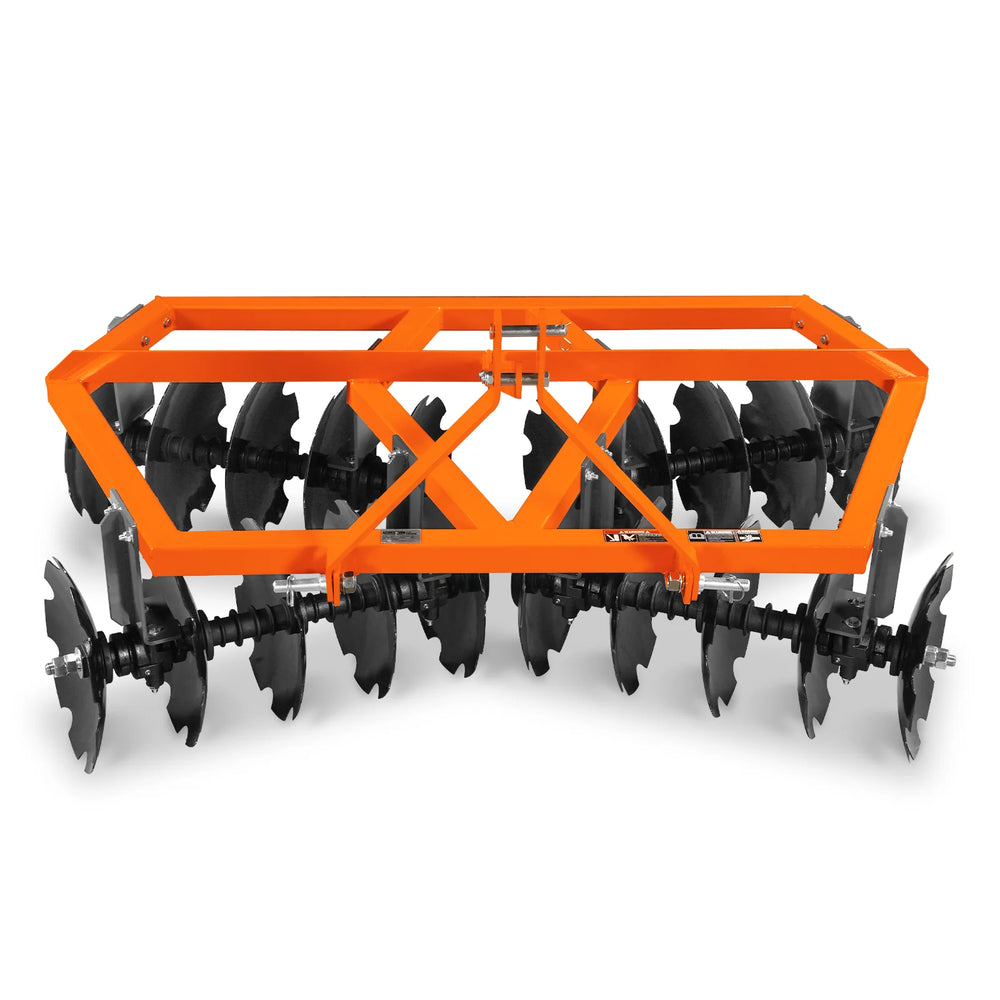

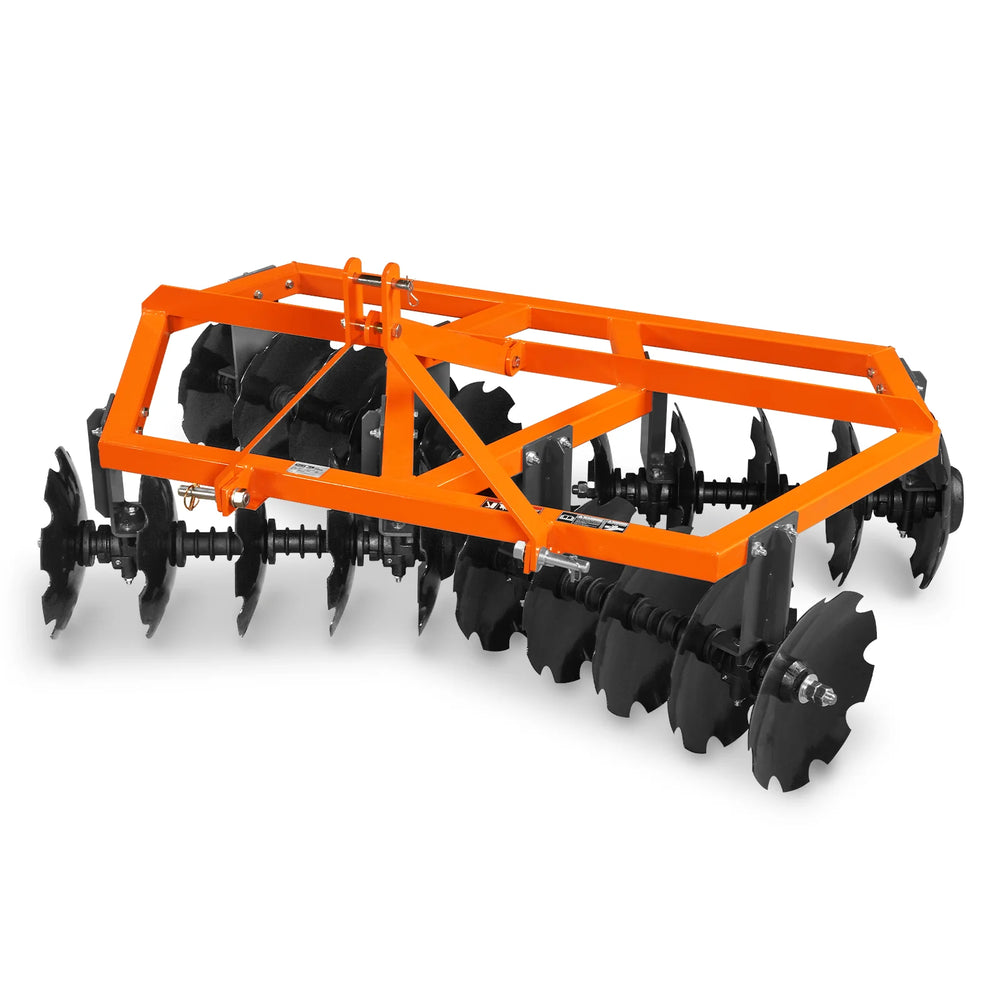

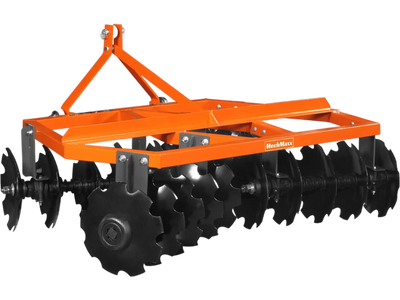

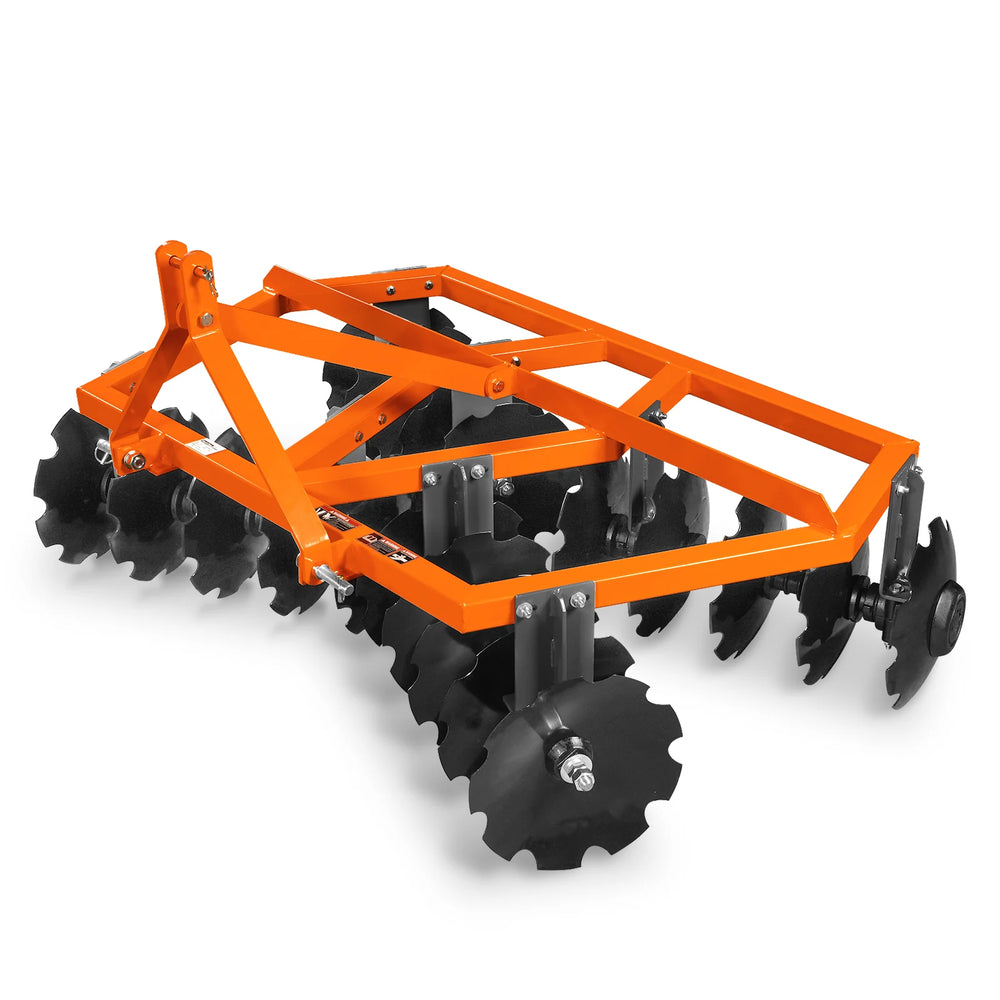

MechMaxx DH72 Disc Harrow 72" Tractor Notched Disc Plow 3 Point Hitch New
Manufacturer: MechMaxx
SKU: 201007
Model Options
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 1,999.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

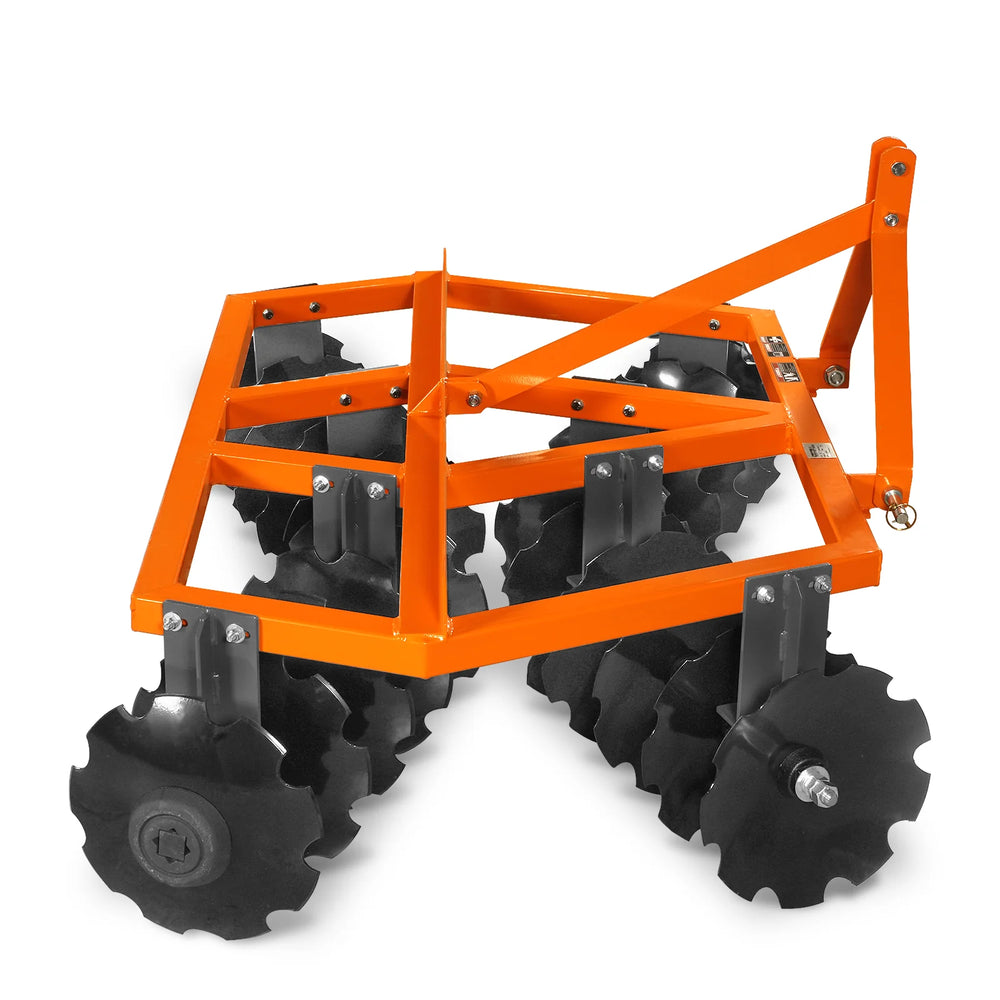

MechMaxx DH72 Disc Harrow 72" Tractor Notched Disc Plow 3 Point Hitch New
Product Overview
- Heavy-Duty Frame: Built with a powder-coated steel box frame for long-lasting durability and corrosion resistance.
- Efficient Soil Preparation: 16" notched discs aggressively cut, break, and loosen soil for easy planting.
- Sealed Bearings: Greaseable, sealed bearings ensure smooth disc rotation and extend the implement’s service life.

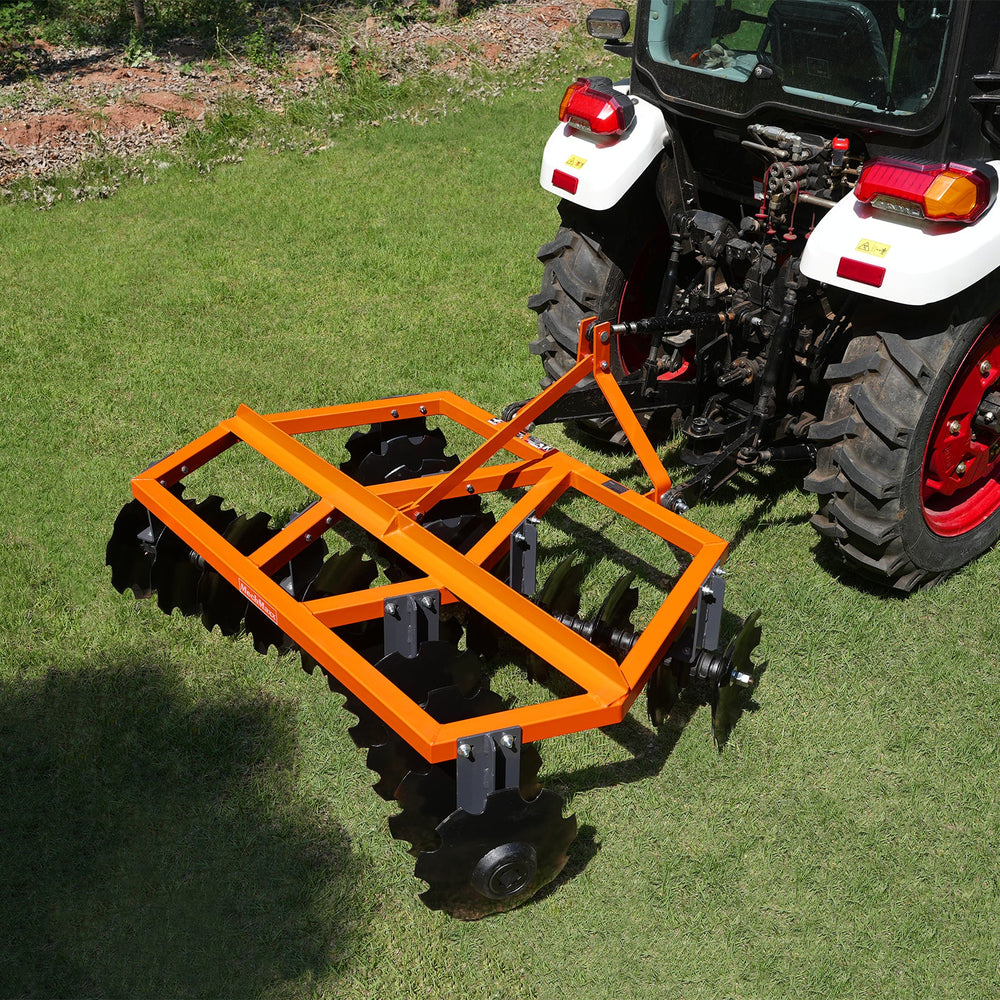

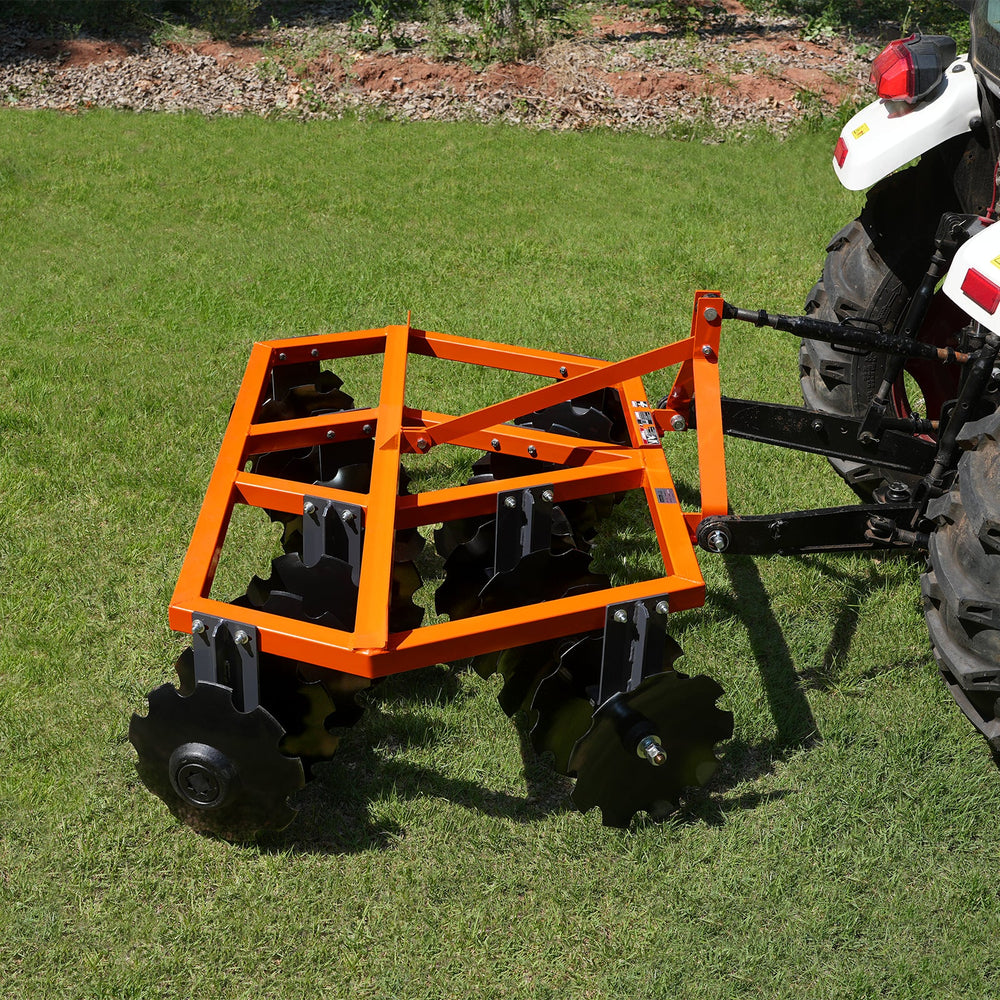

- Category 1 Compatibility: Easy hookup to most compact and utility tractors with a standard 3-point hitch.
- Versatile Use: Perfect for food plots, gardens, vineyards, landscaping, and small-acreage farming.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

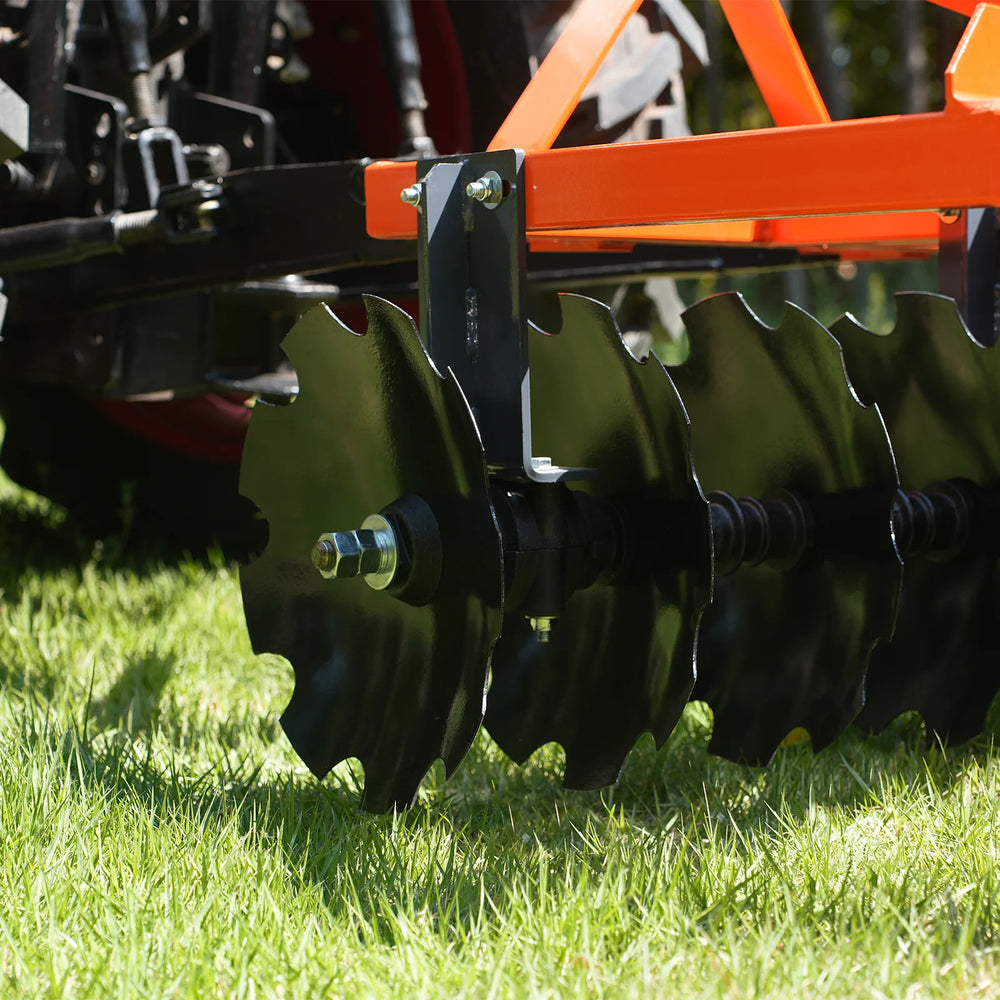

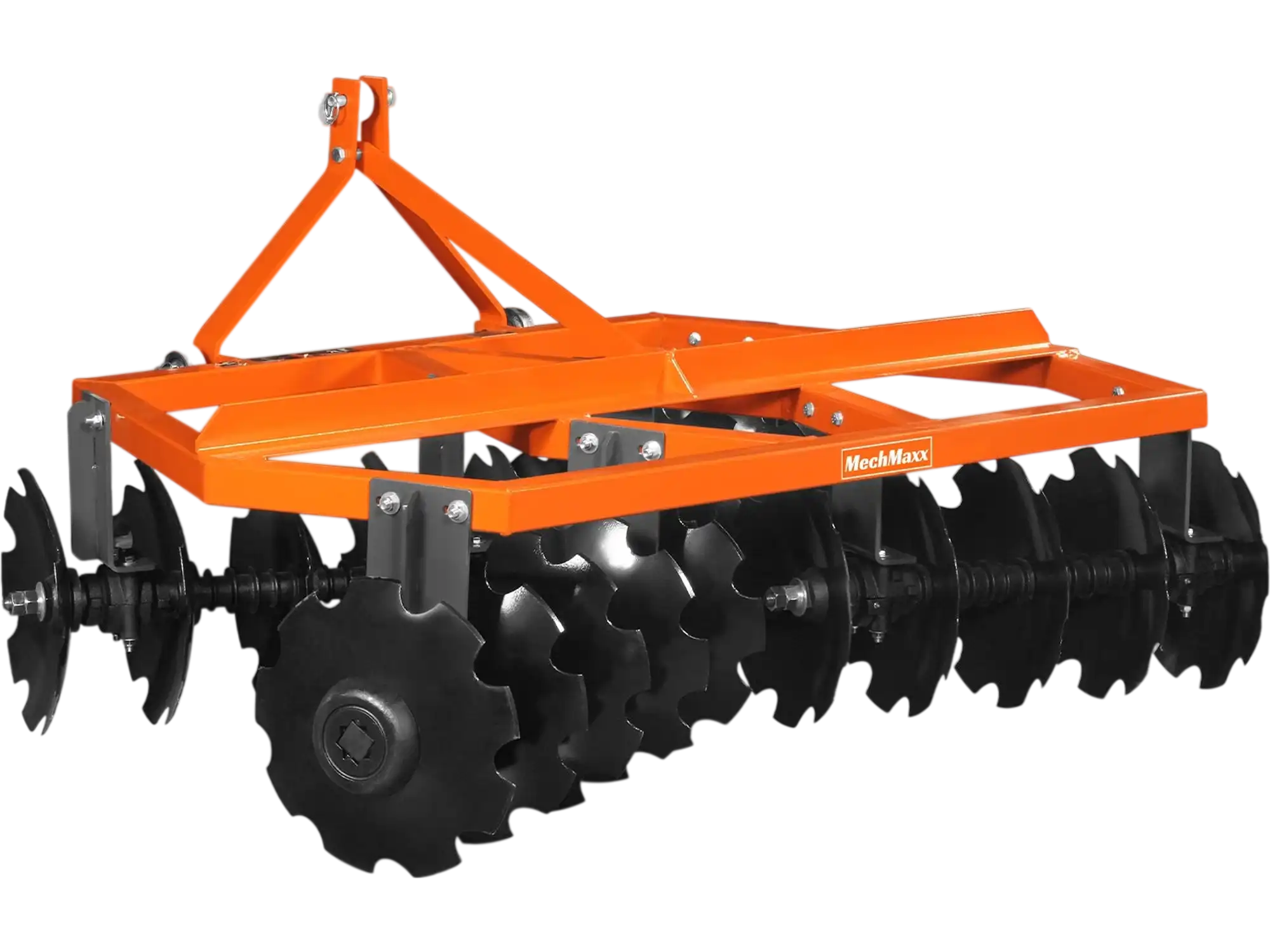

- 16’’ Notched Disc: The hardened steel discs are designed to provide optimal service life. The notched design helps to break up hard ground and till the remaining crops into the soil.
- 2.5 x 2.5 in Durable Square Tube Frame: The rugged square tube frame is strategically reinforced to withstand the forces at extreme angles that will extend work life.

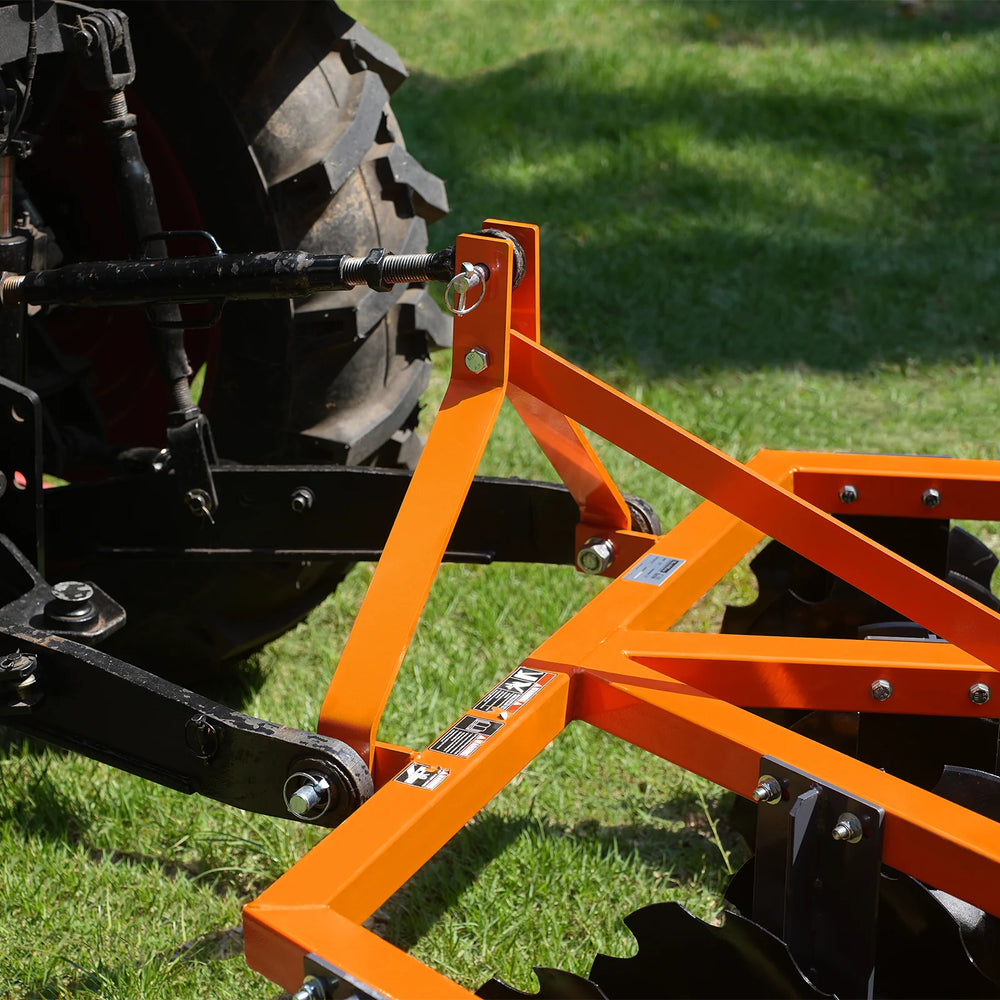

- 3 Point Hitch, Cat I: Directly to your Category 1 Tractor, 3 point hitch without any modification. 1 top and 2 lower pins are included.

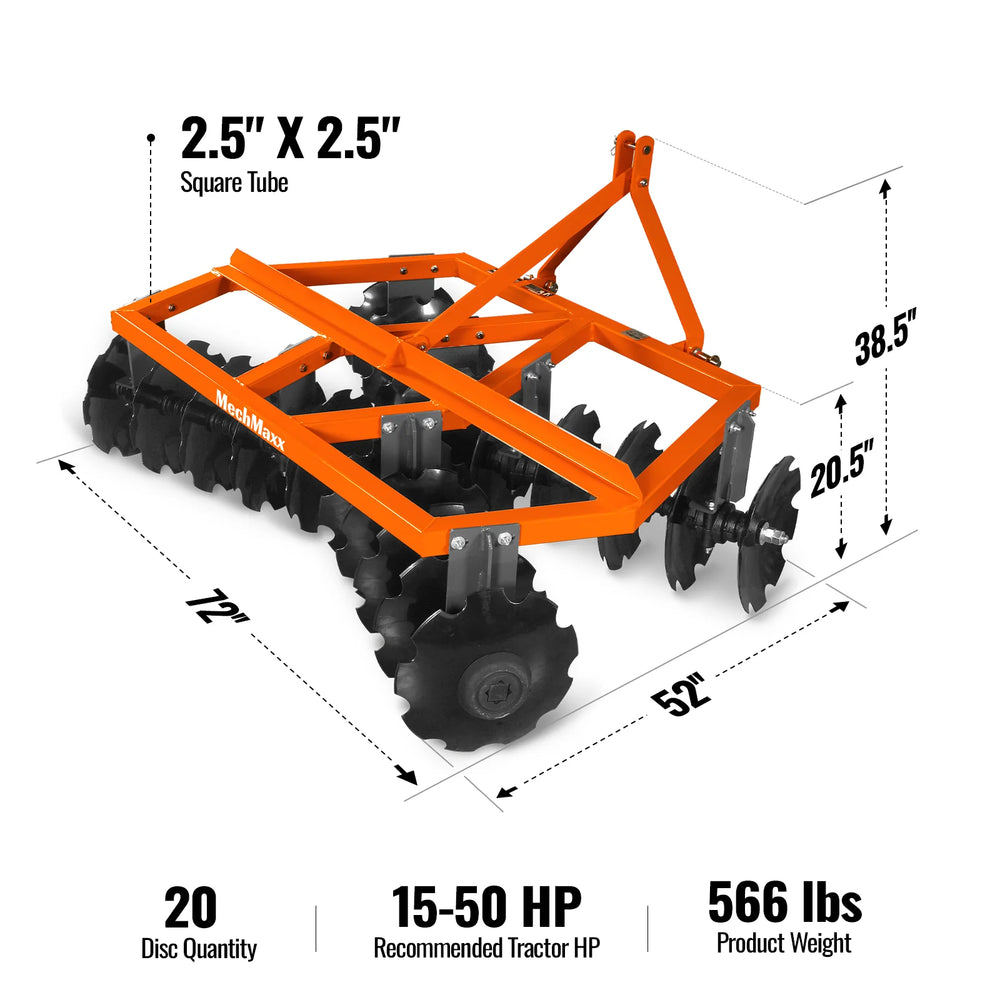

Specifications
| Overall Width | 72 in |
|---|---|
| Overall Depth | 52 in |
| Overall Height | 38.5 in |
| Max Working Depth | 7 in |
| Frame | 2.5 x 2.5 in Square Tube |
| Frame Height | 20.5 in |
| Disc | 20 Heat-Treated Spring Steel |
| Disc Diameter | 16 in |
| Disc Spacing | 7.5 in |
| Recommended Tractor HP | 15-50 HP |
|---|---|
| Hitch Type | Cat. 1 |
| Packing | Iron Frame |
| Packing Size (LxWxH) | 78 x 55 x 28 in |
| Weight (N.W/G.W.) | 566/662 lbs |
Warranty
This item comes with a 1 year factory warranty.
